Bernardine Monastery

LOCATION

Warta, Poland

SURVEYING EQUIPMENT

skanner VZ-400 Riegl, TCRA 1101 Plus, Camera Canon 3D mark II

TOTAL TIME SPENT

1 on site, 10 in the office

FINAL PRODUCT

registered point cloud, ortophoto, CAD documentation, mesh model



Bernardine Monastery in Warta


The project was commissioned by the conservator’s office and included 2D elevation drawings and high-resolution metric images – orthophotos.

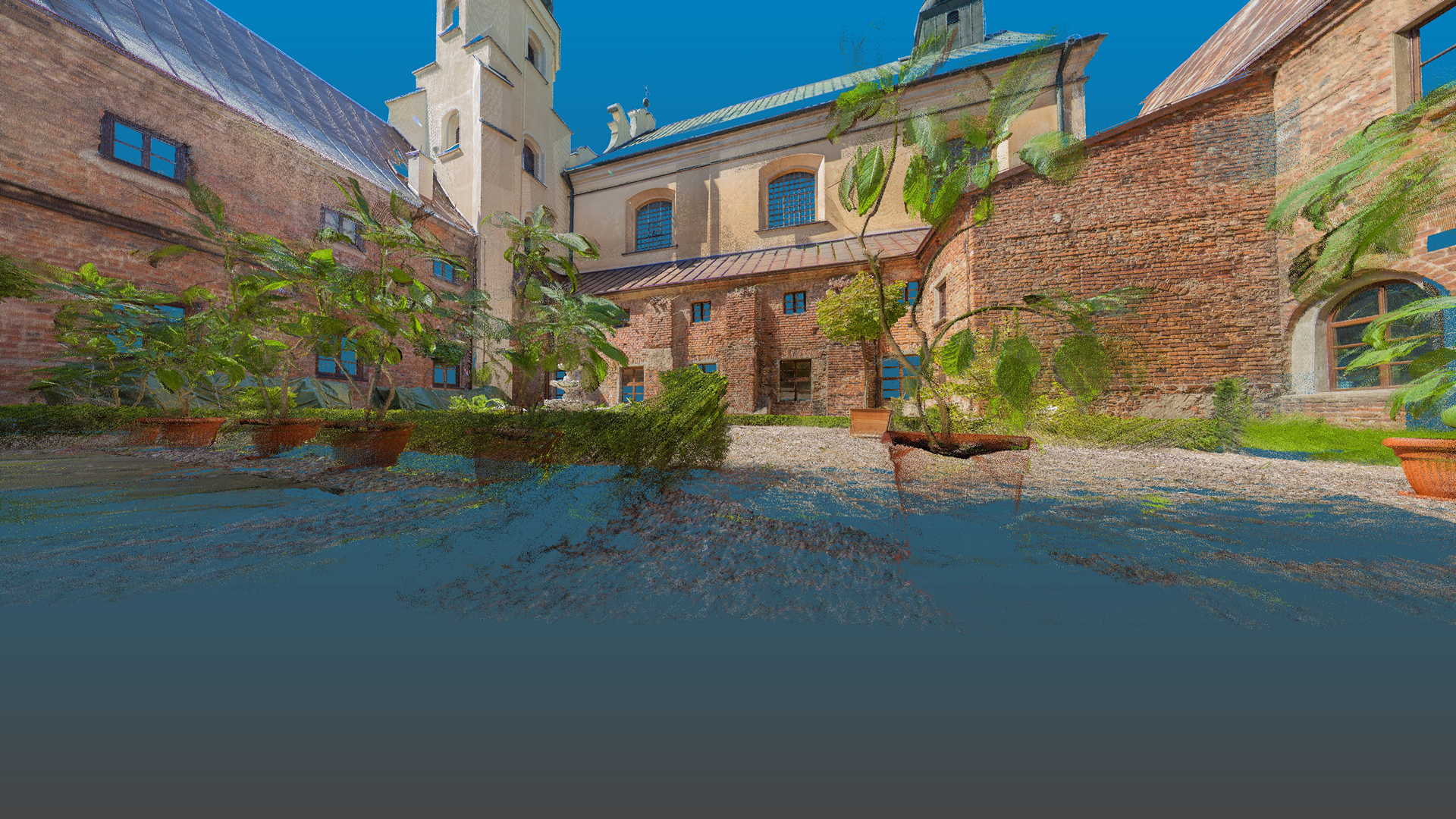

Orthophotos were generated from textured mesh models. These models were created from photos, taken in the time of the survey.

The project turned out to be an interesting experience both the fieldwork and further office works.

Categories:

  VIDEO:

  IMAGES:

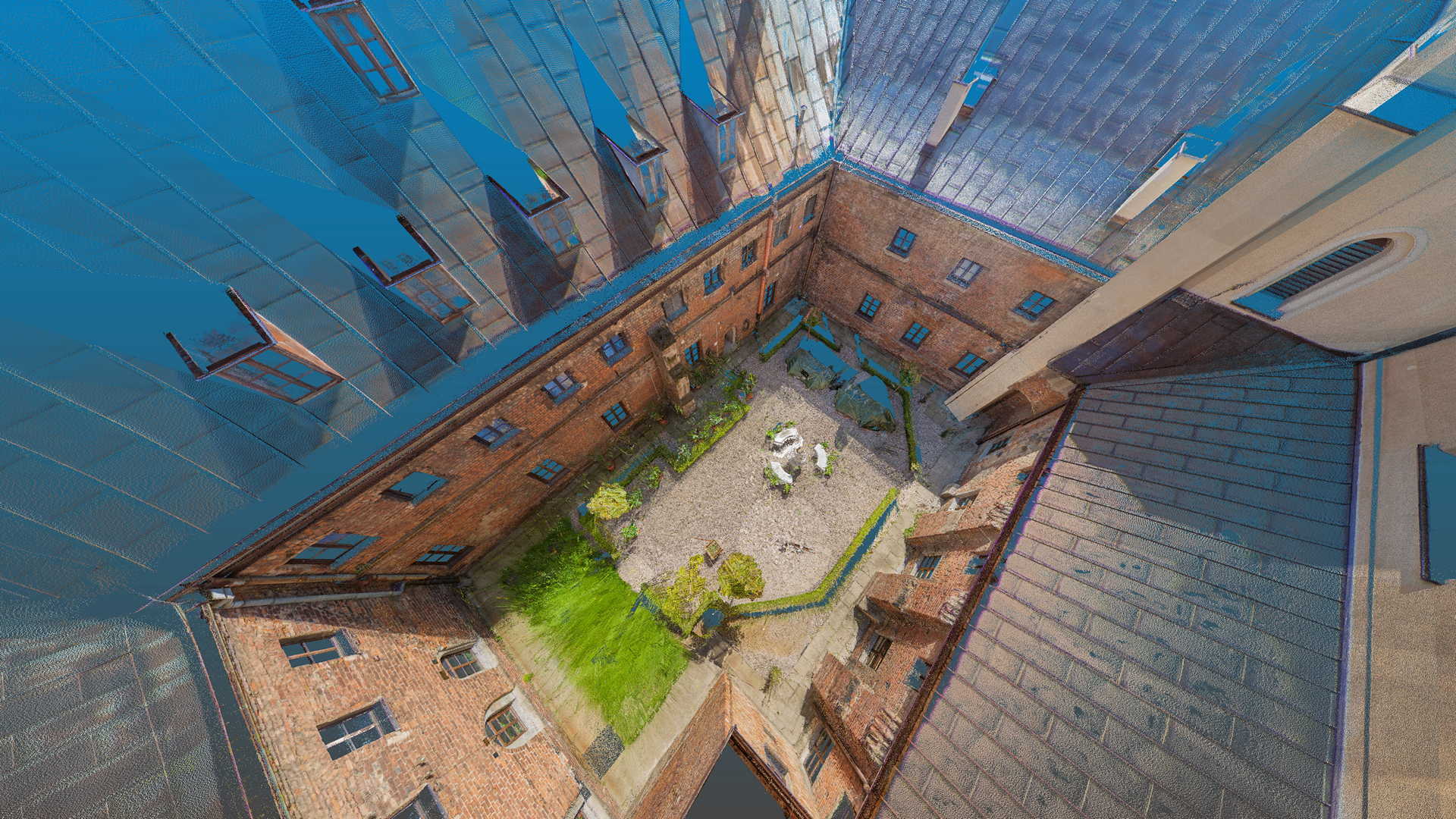

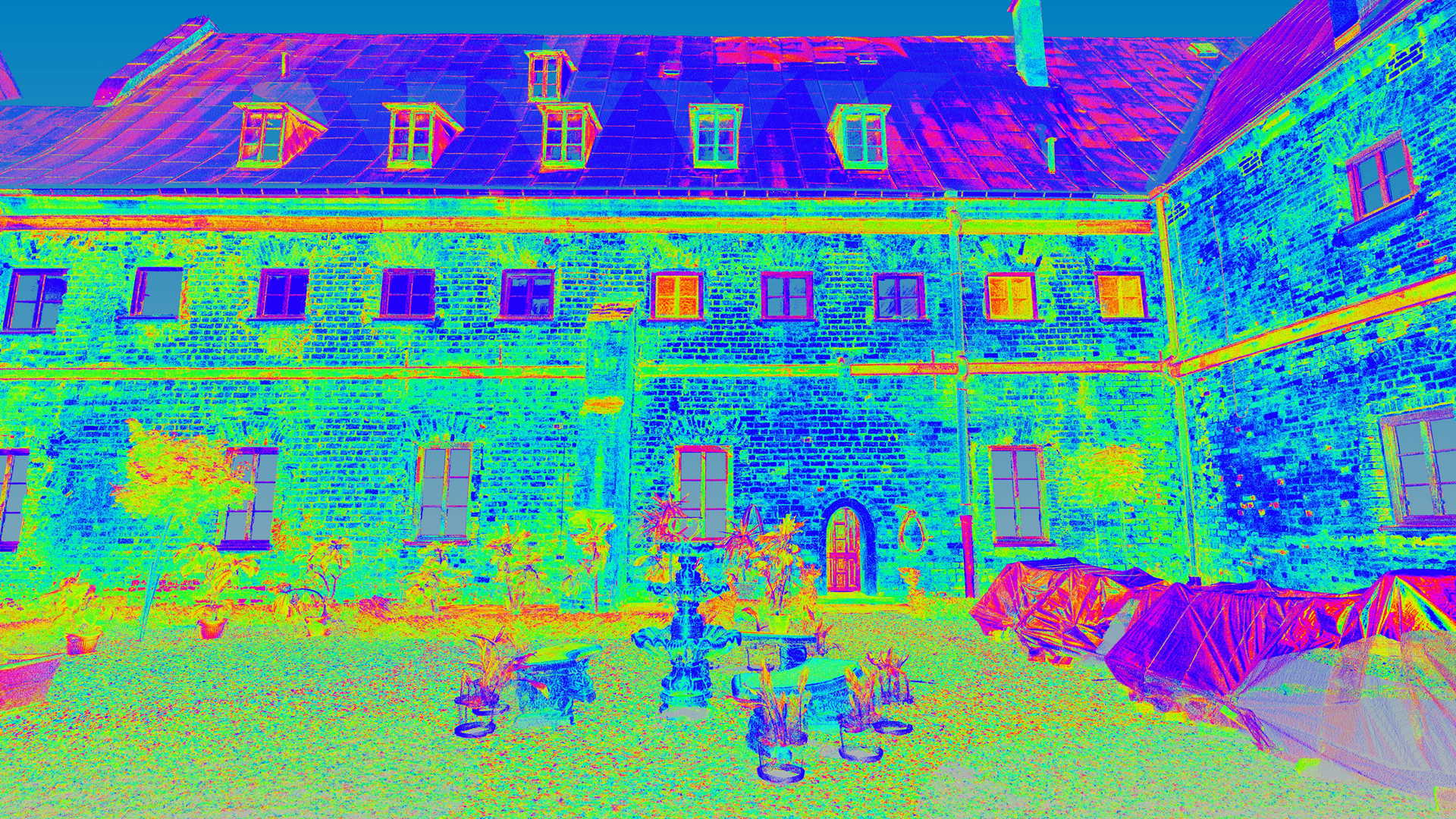

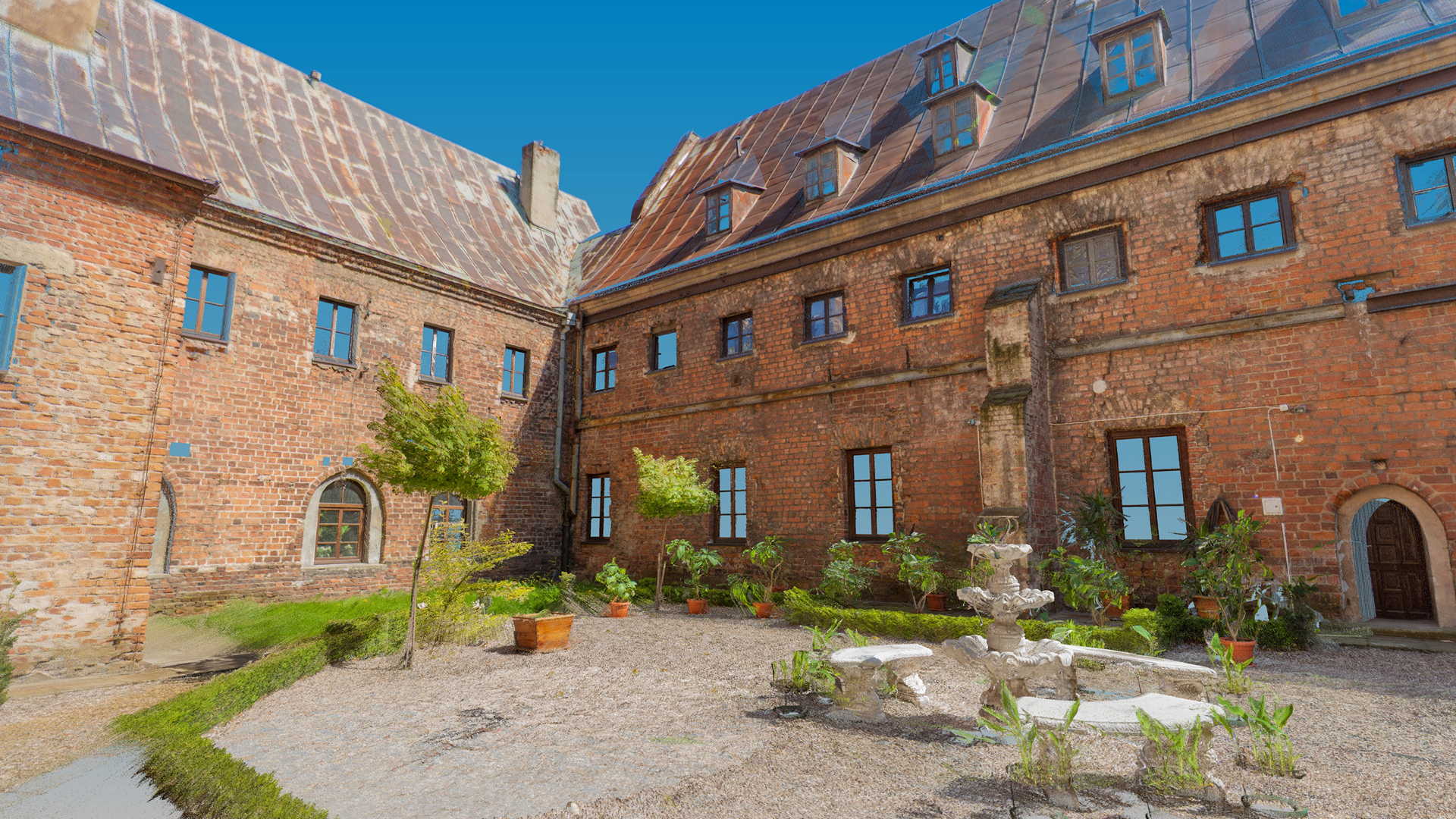

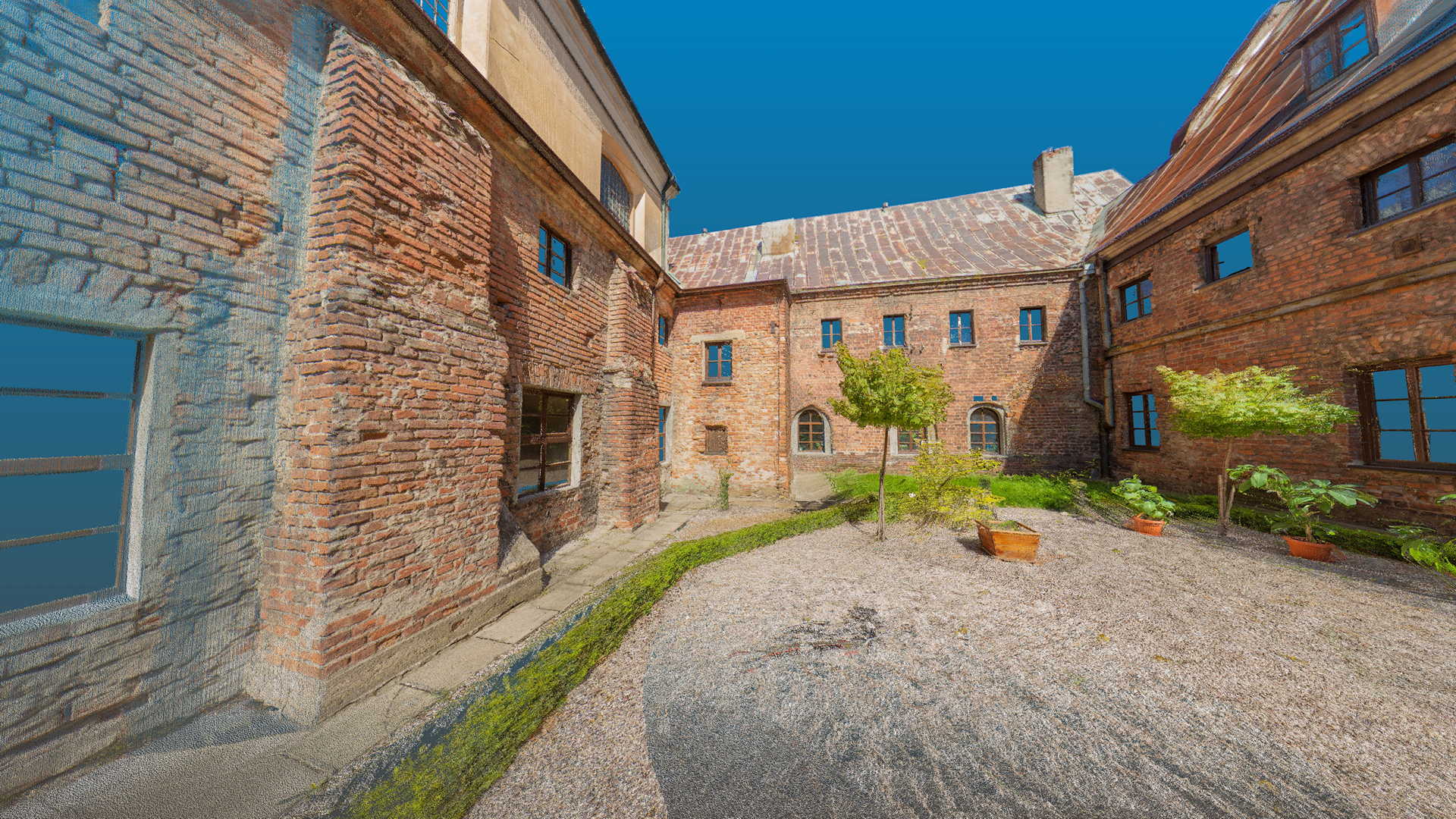

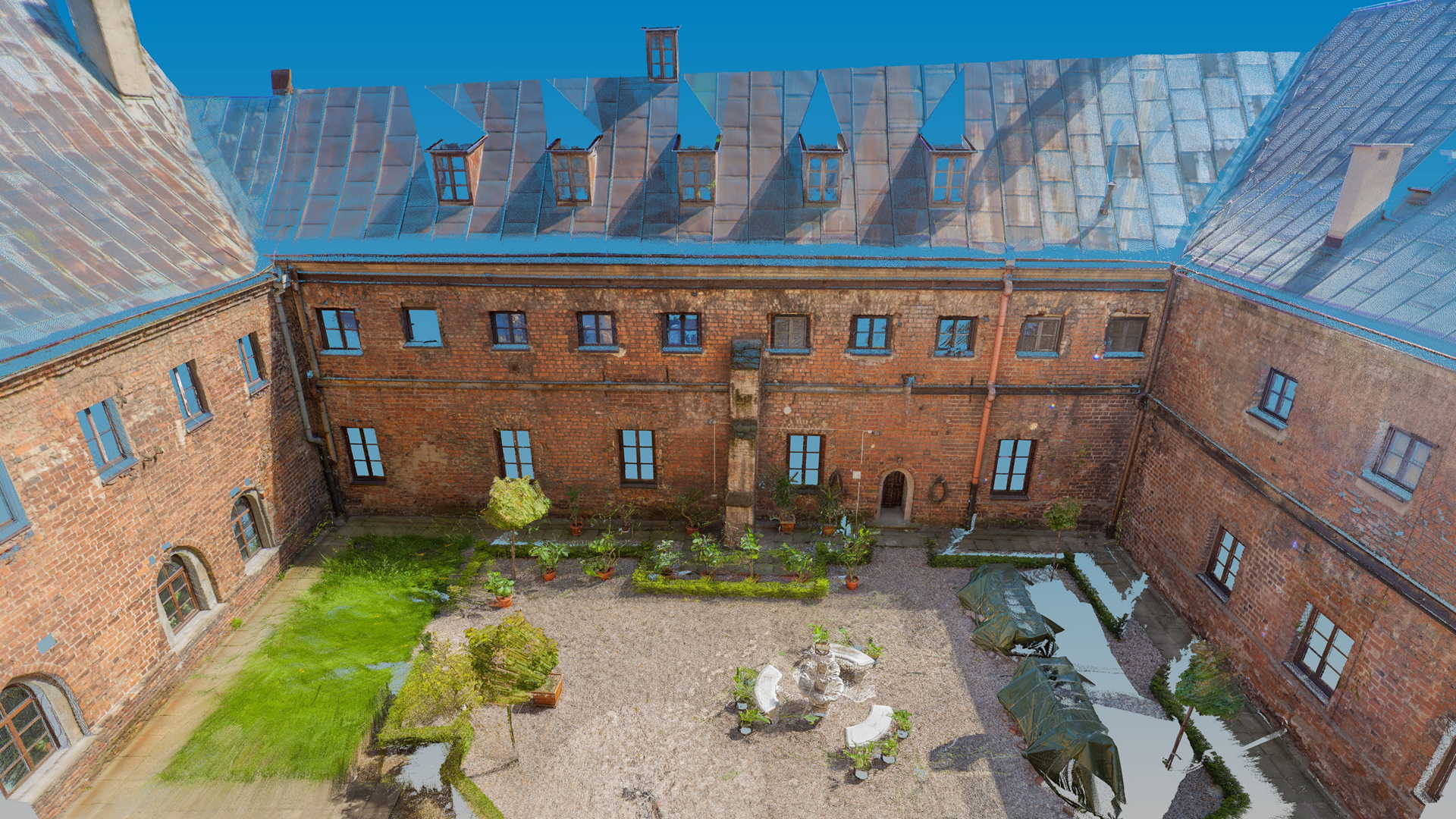

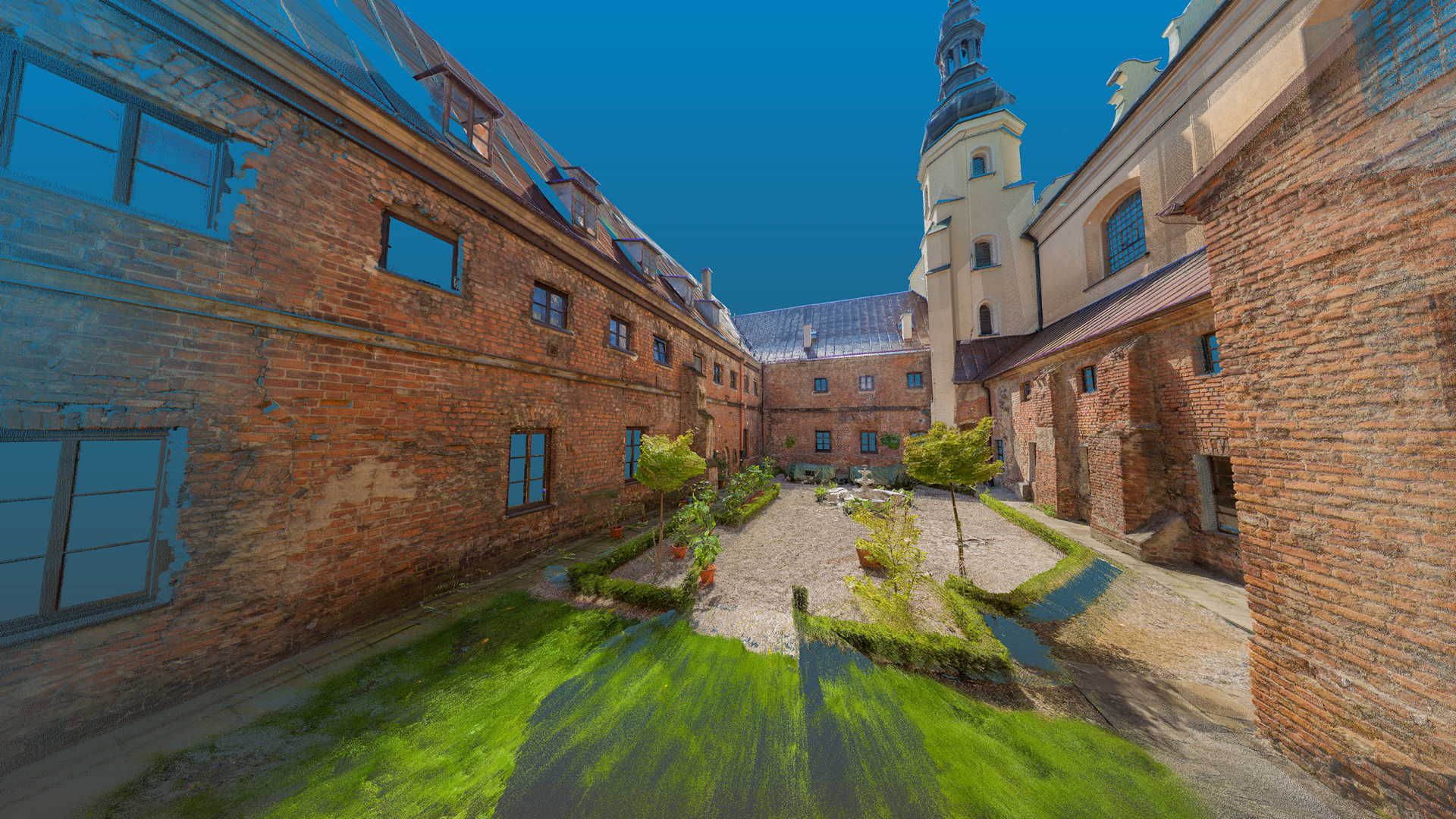

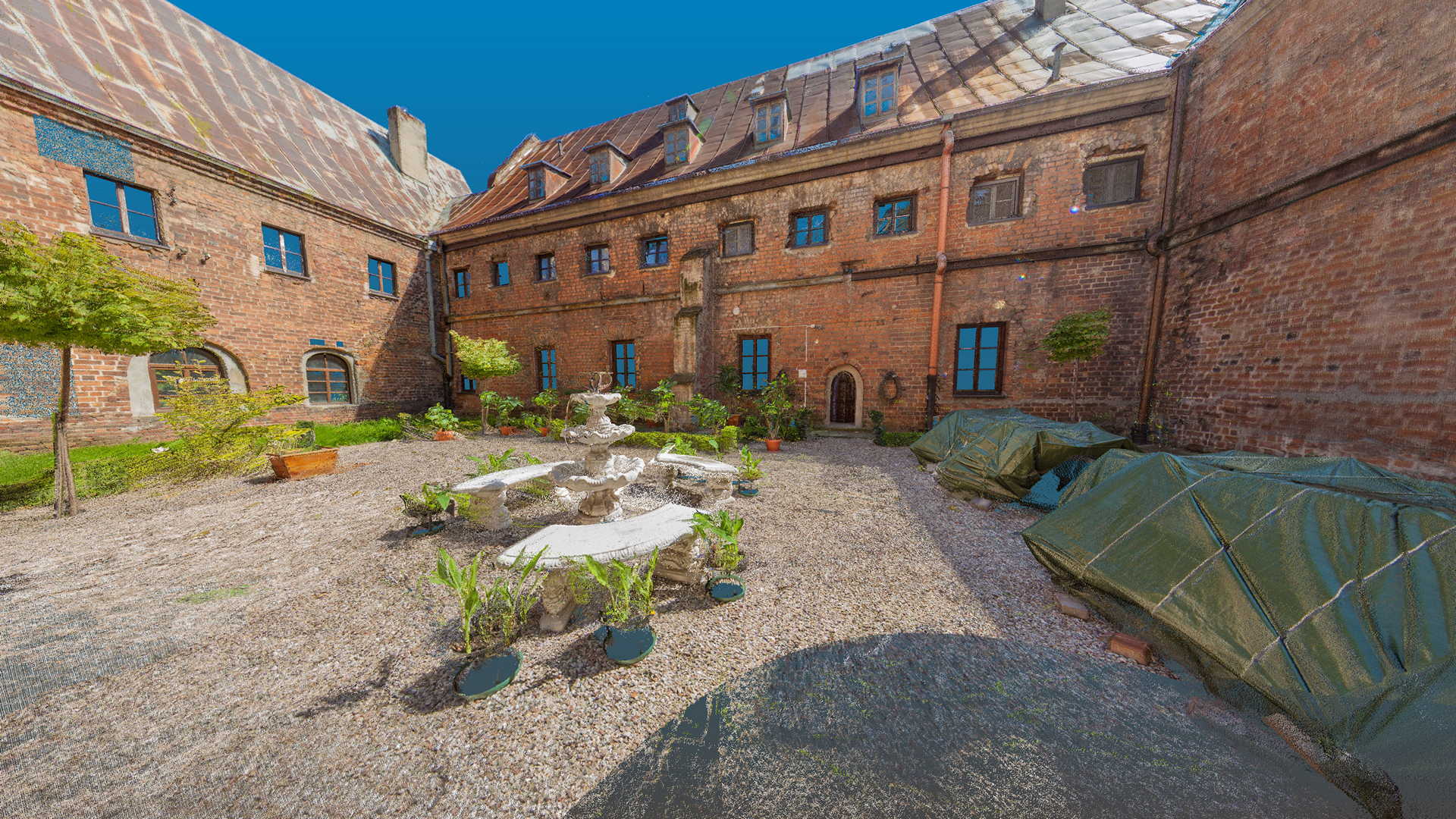

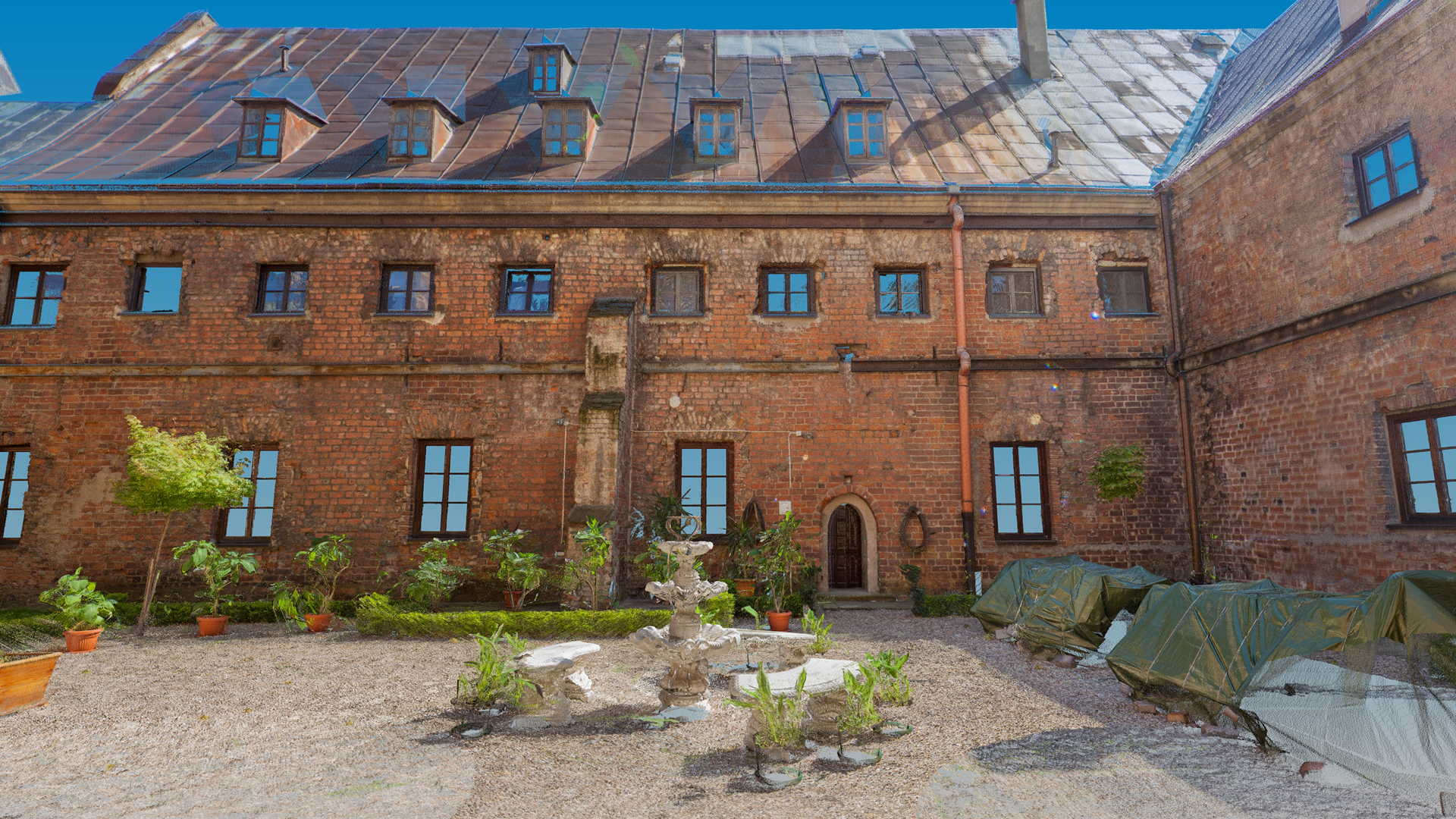

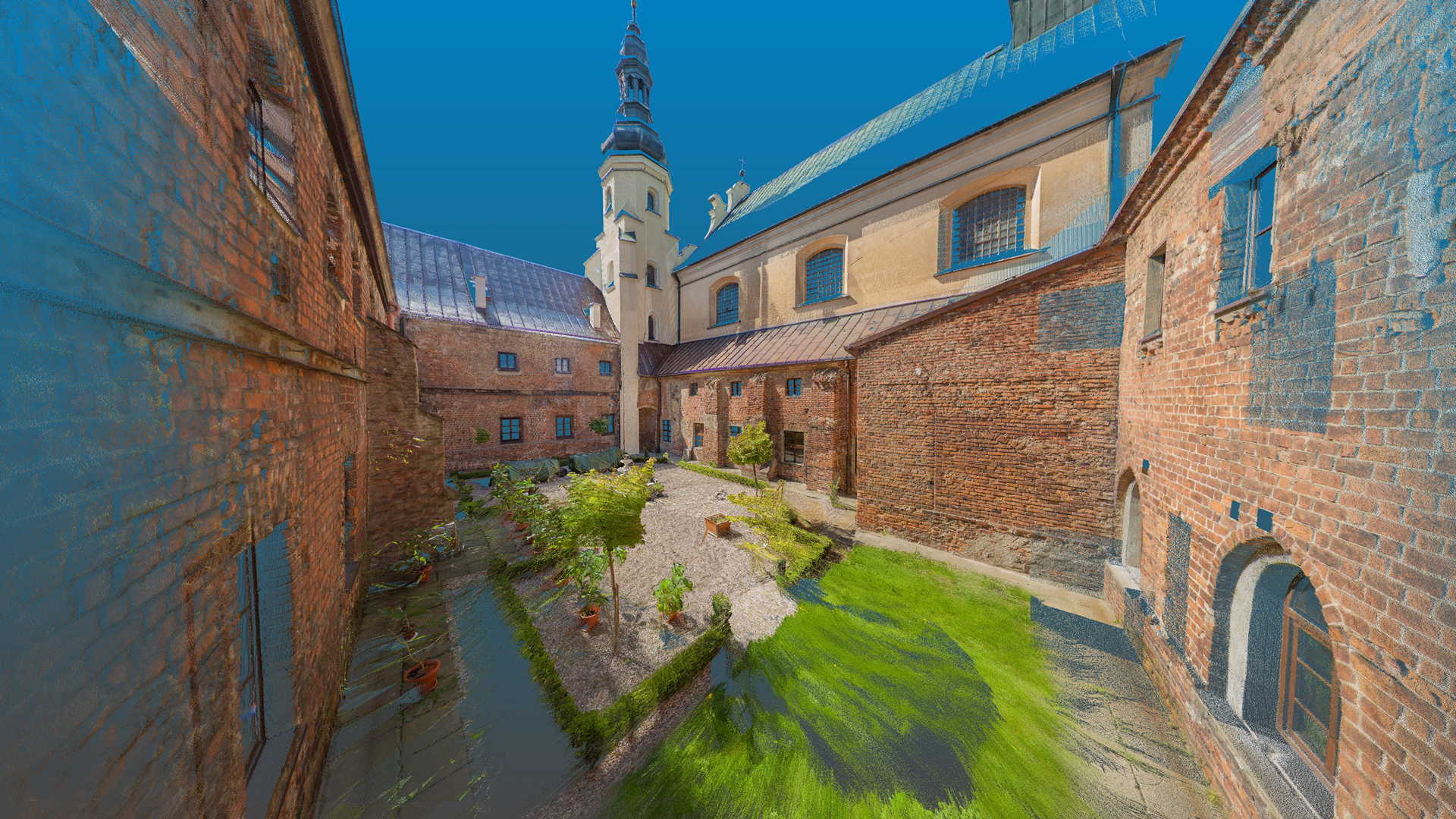

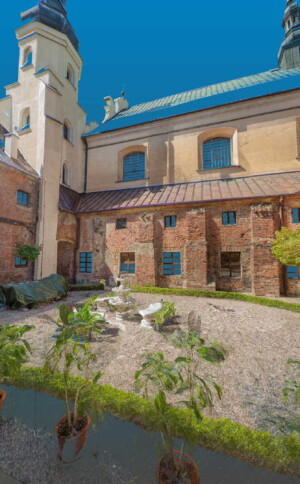

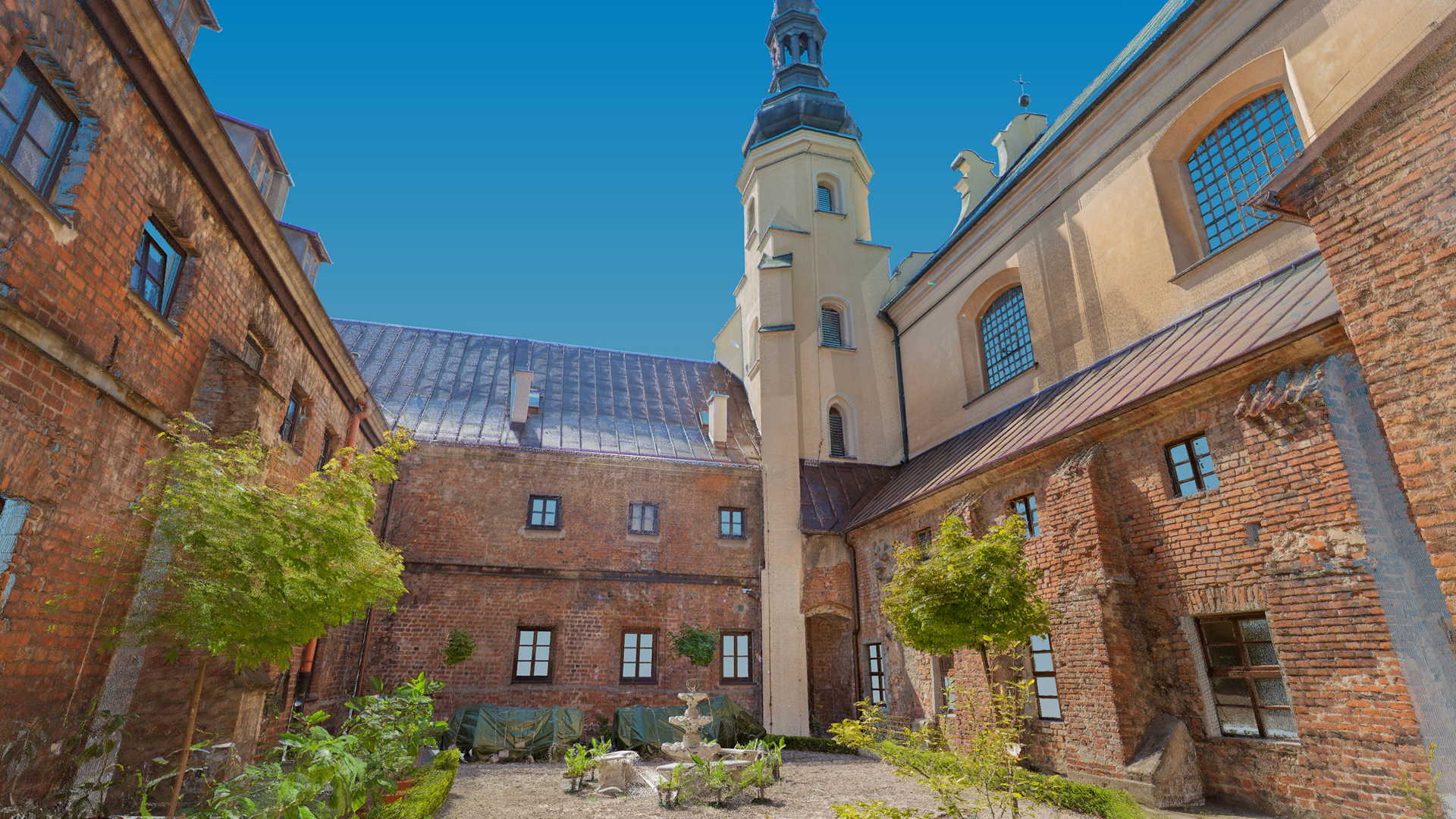

Bernardine Monastery in Warta laser scanning

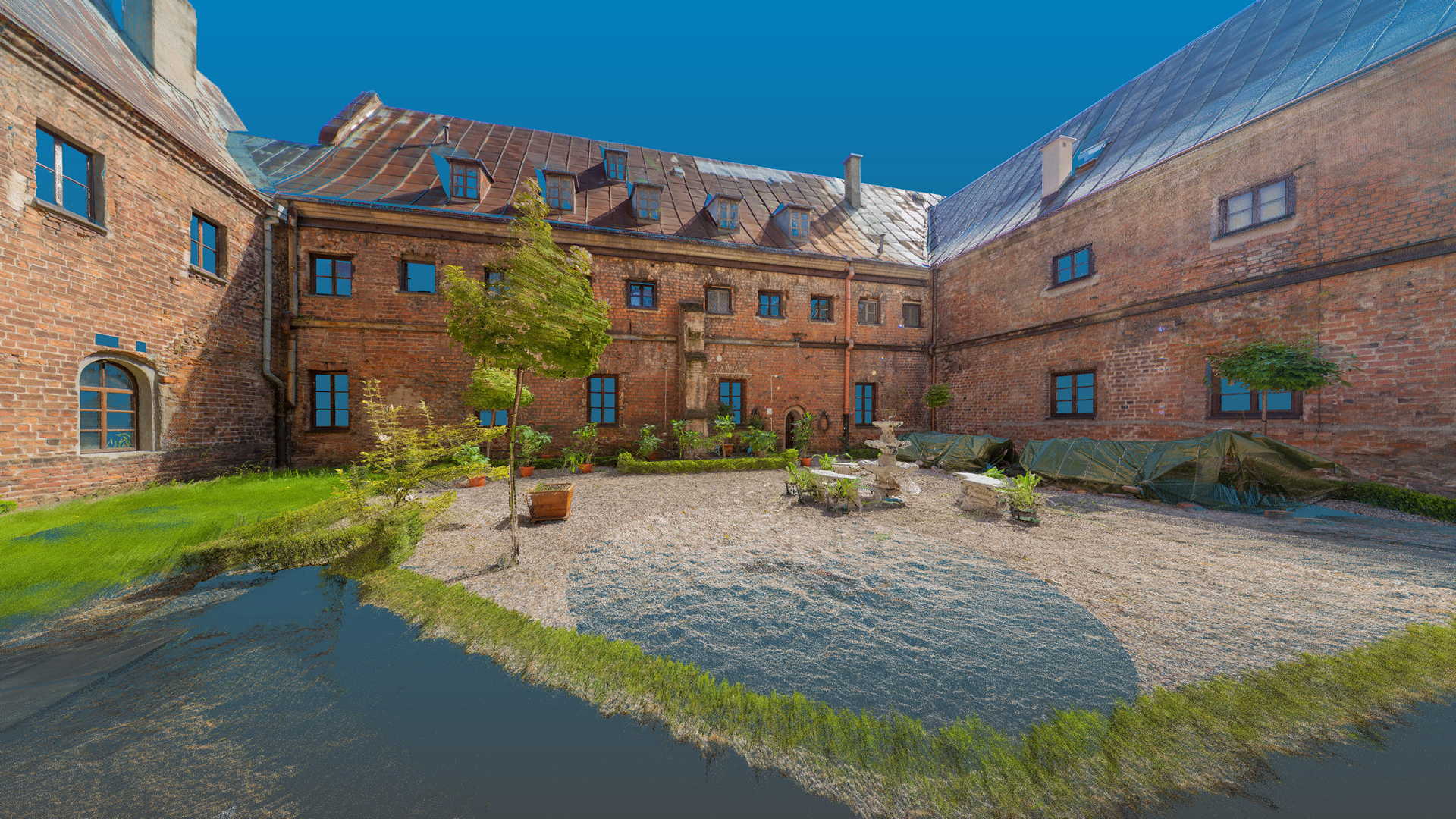

Bernardine Monastery in Warta laser scanning

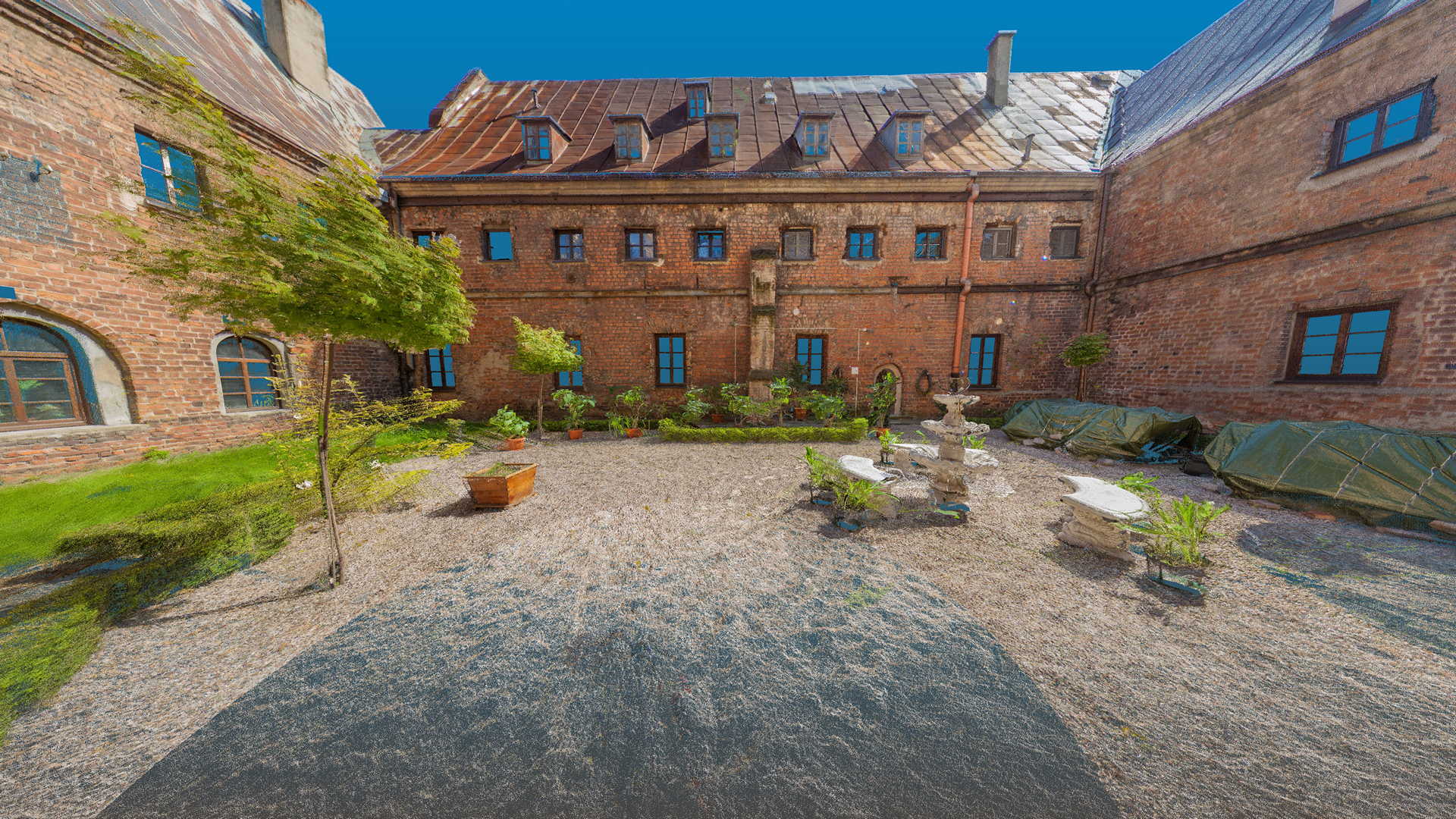

Bernardine Monastery in Warta laser scanning

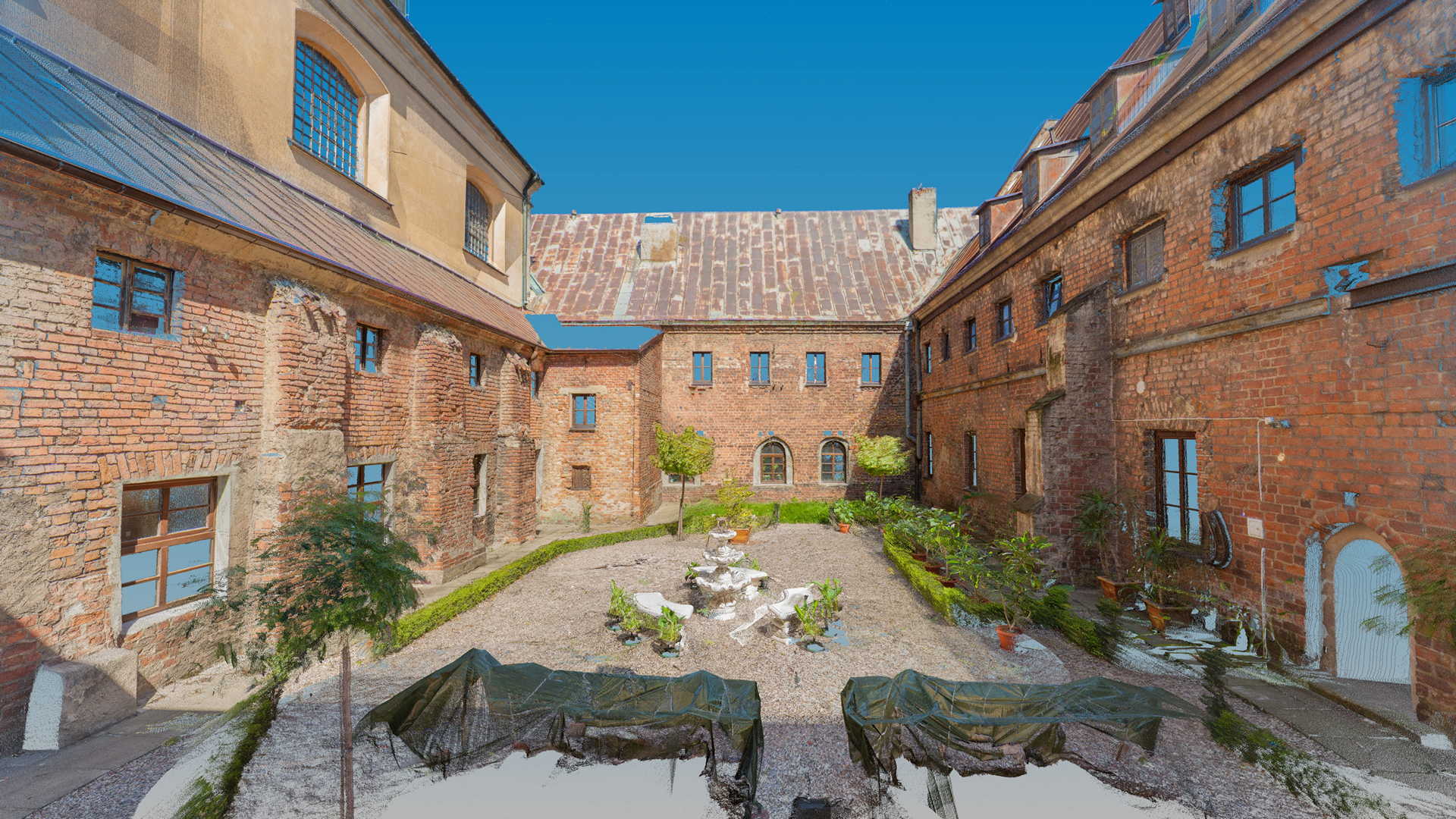

Bernardine Monastery in Warta laser scanning

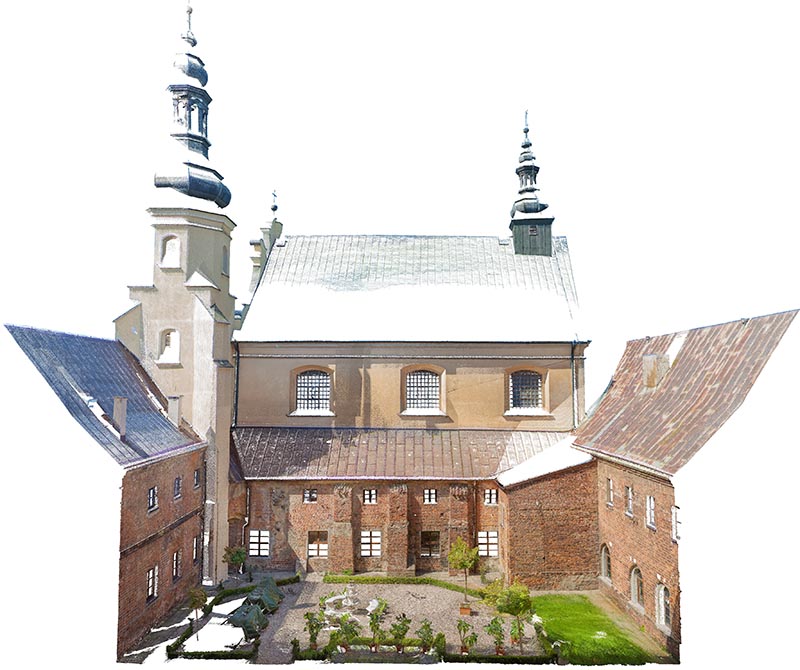

Bernardine Monastery in Warta laser scanning

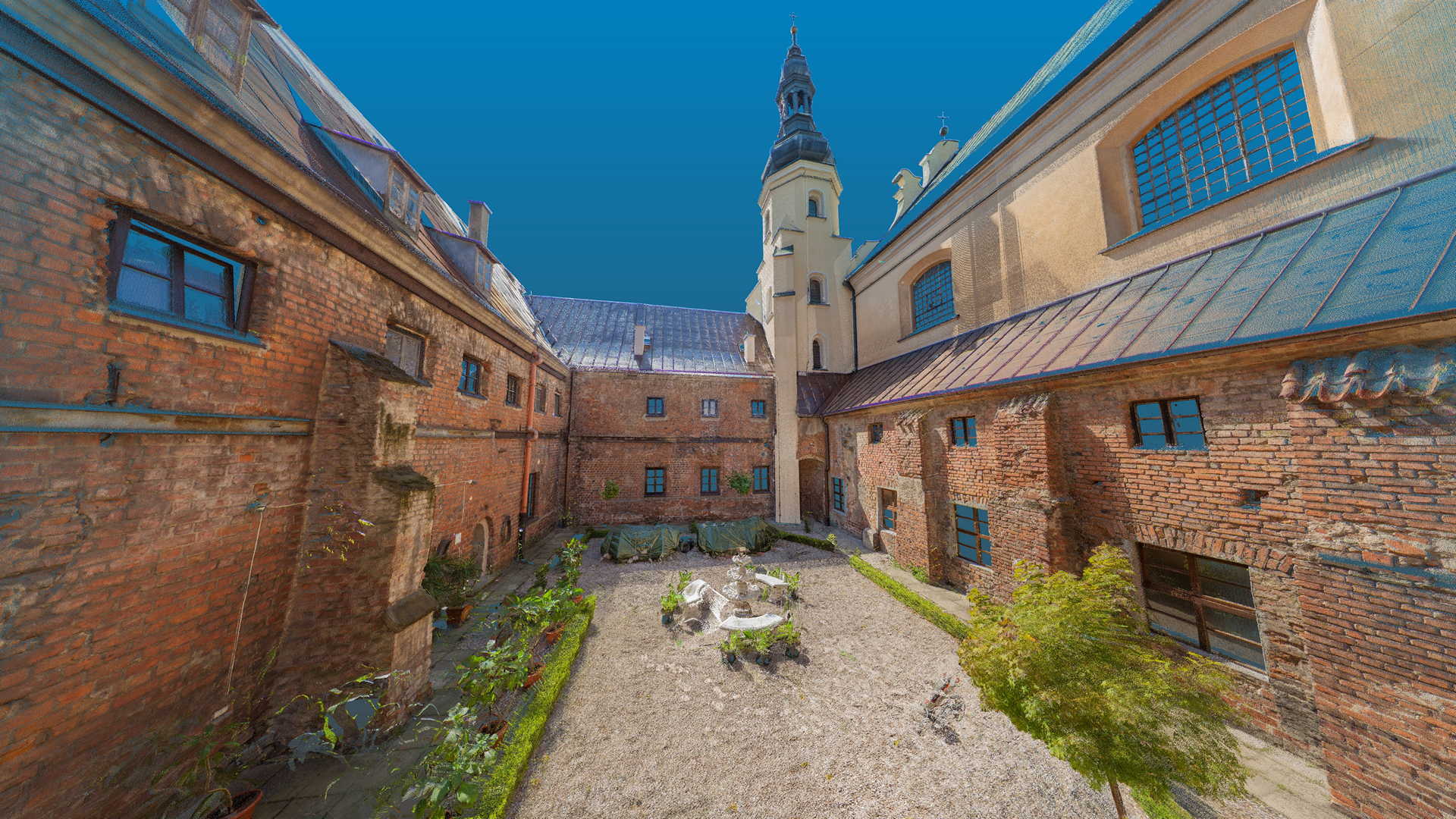

Bernardine Monastery in Warta laser scanning

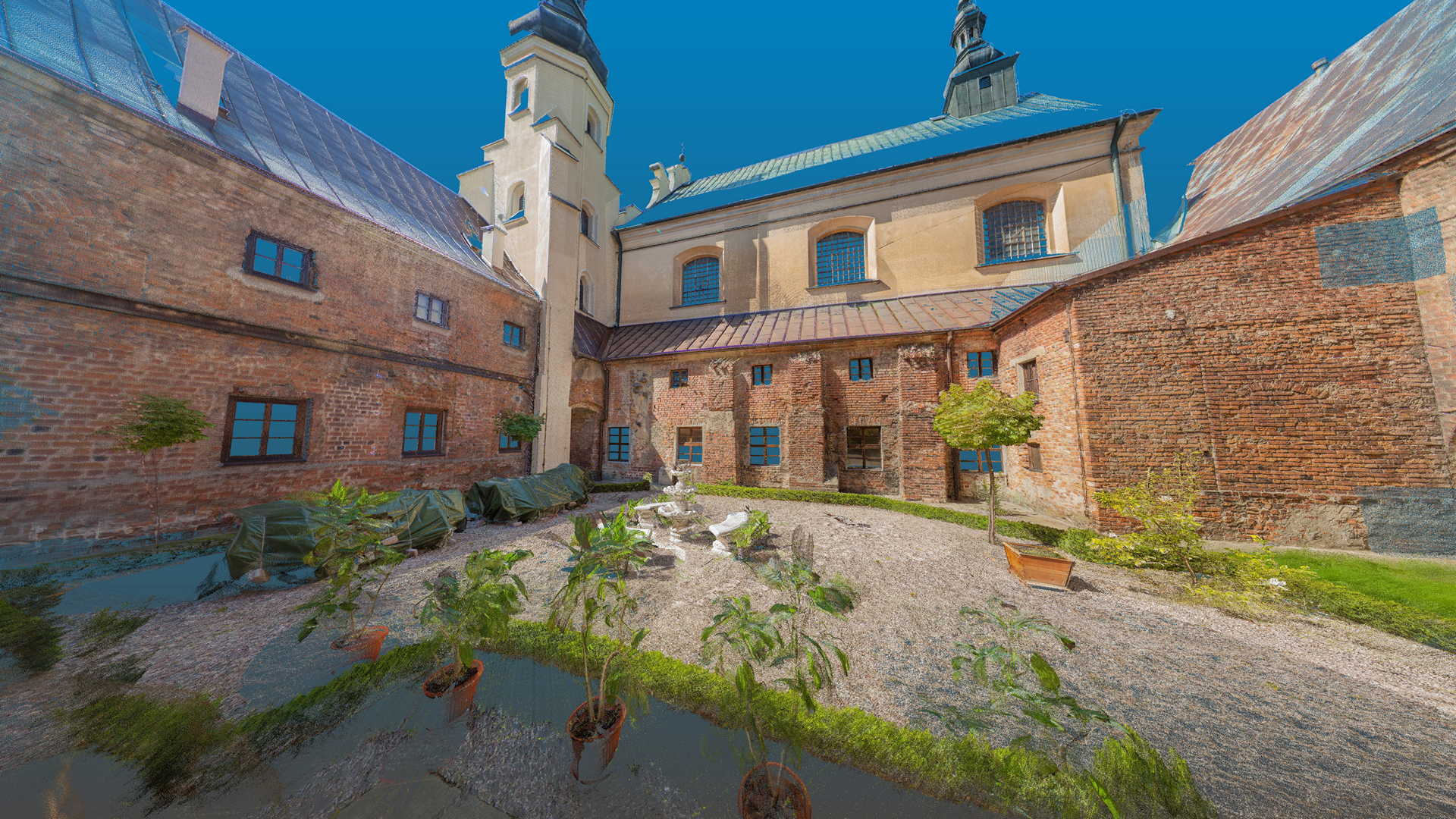

Bernardine Monastery in Warta laser scanning

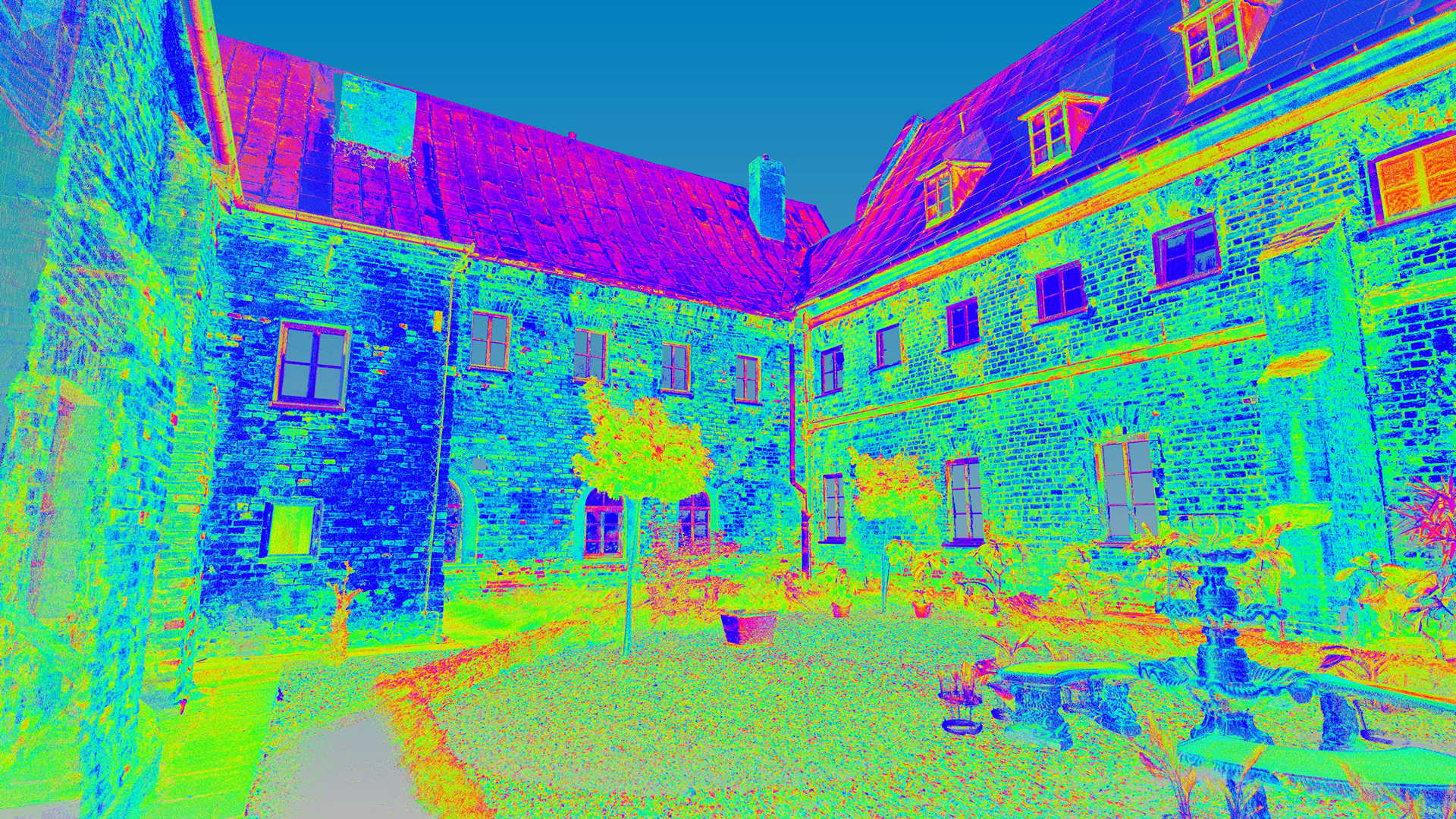

Bernardine Monastery in Warta laser scanning
