Dębno Bridge

LOCATION

Debno, Poland

SURVEYING EQUIPMENT

Z+F Imager 5010C, Leica TCRA 1101 plus Total Station

TOTAL TIME SPENT

1 day on site, 1 person about 2 days processing in the office

FINAL PRODUCT

Registered point cloud, TruView

River Dunajec bridge, Laser scanning

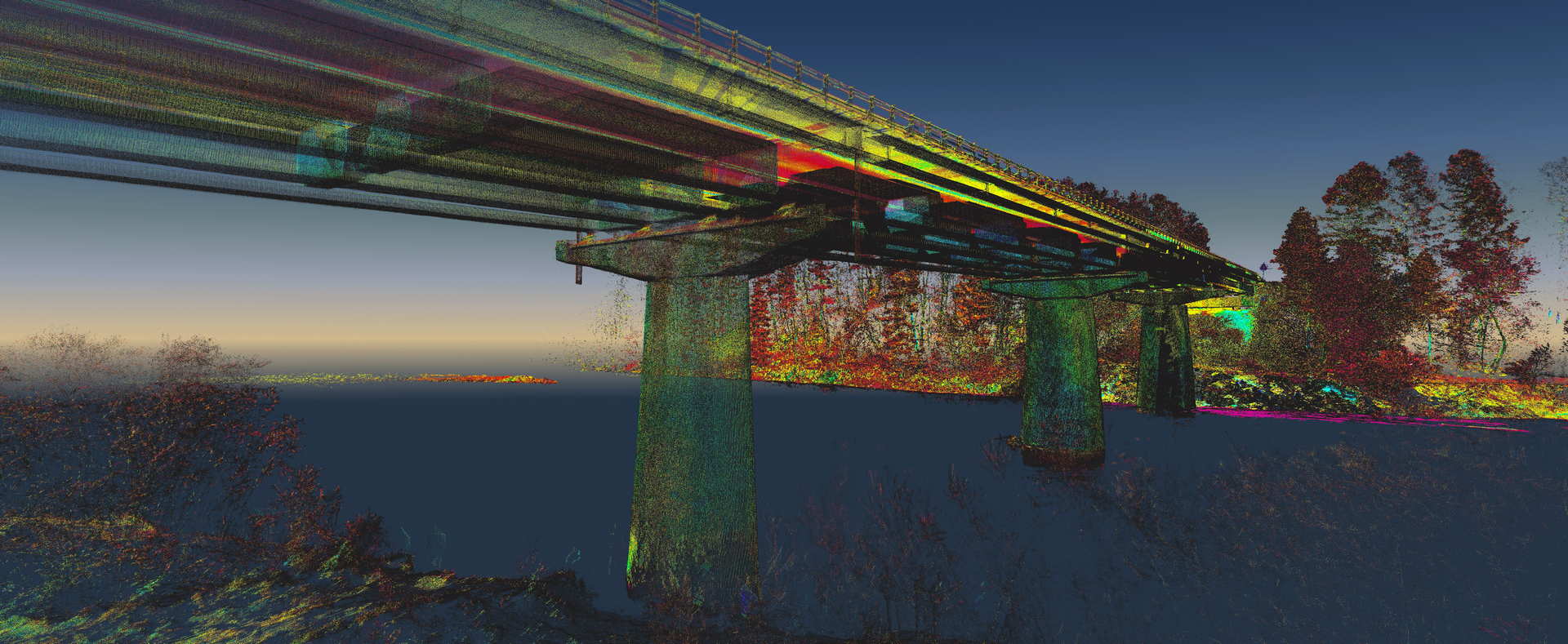

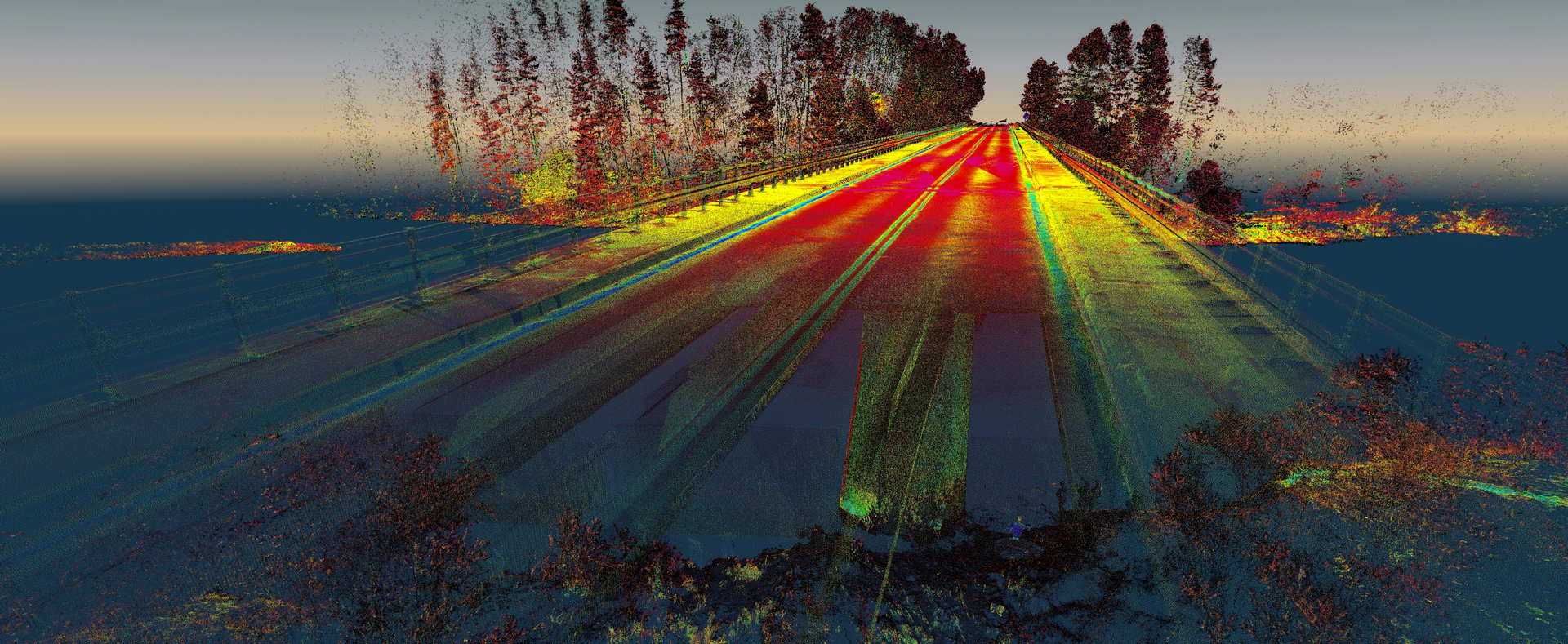

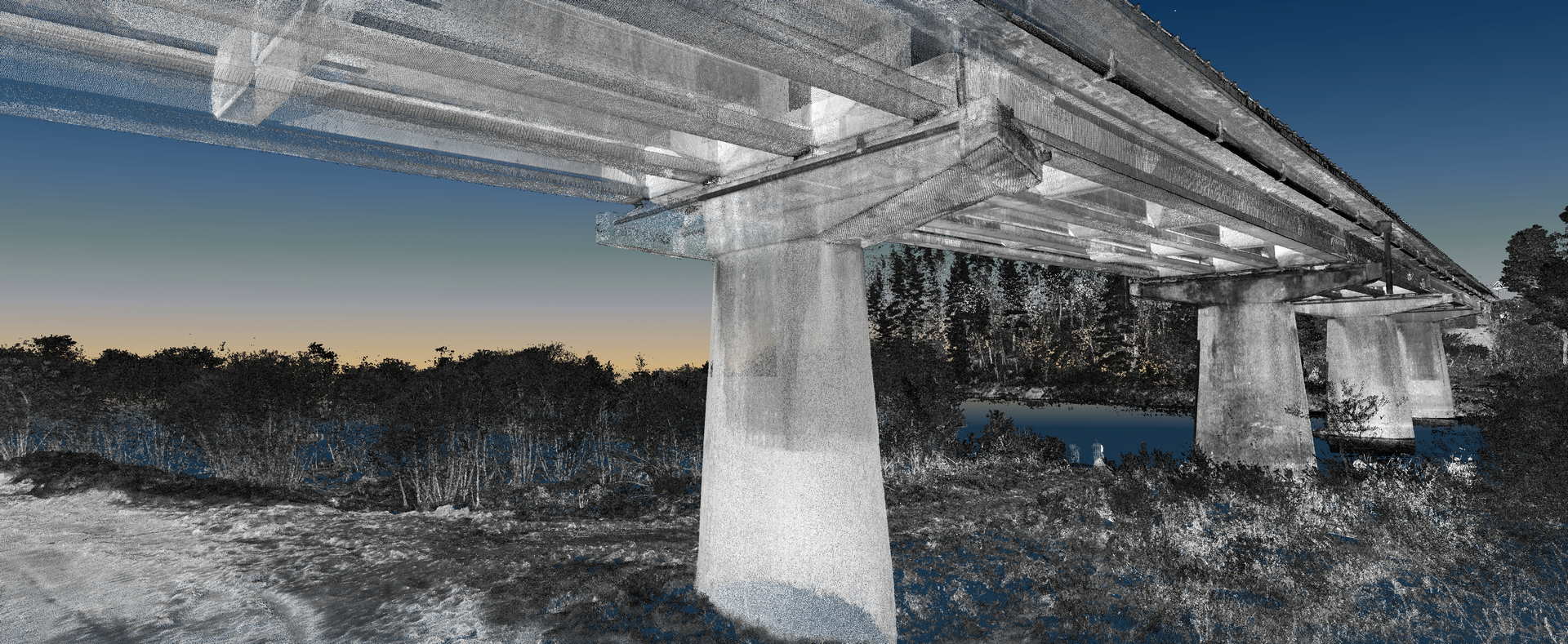

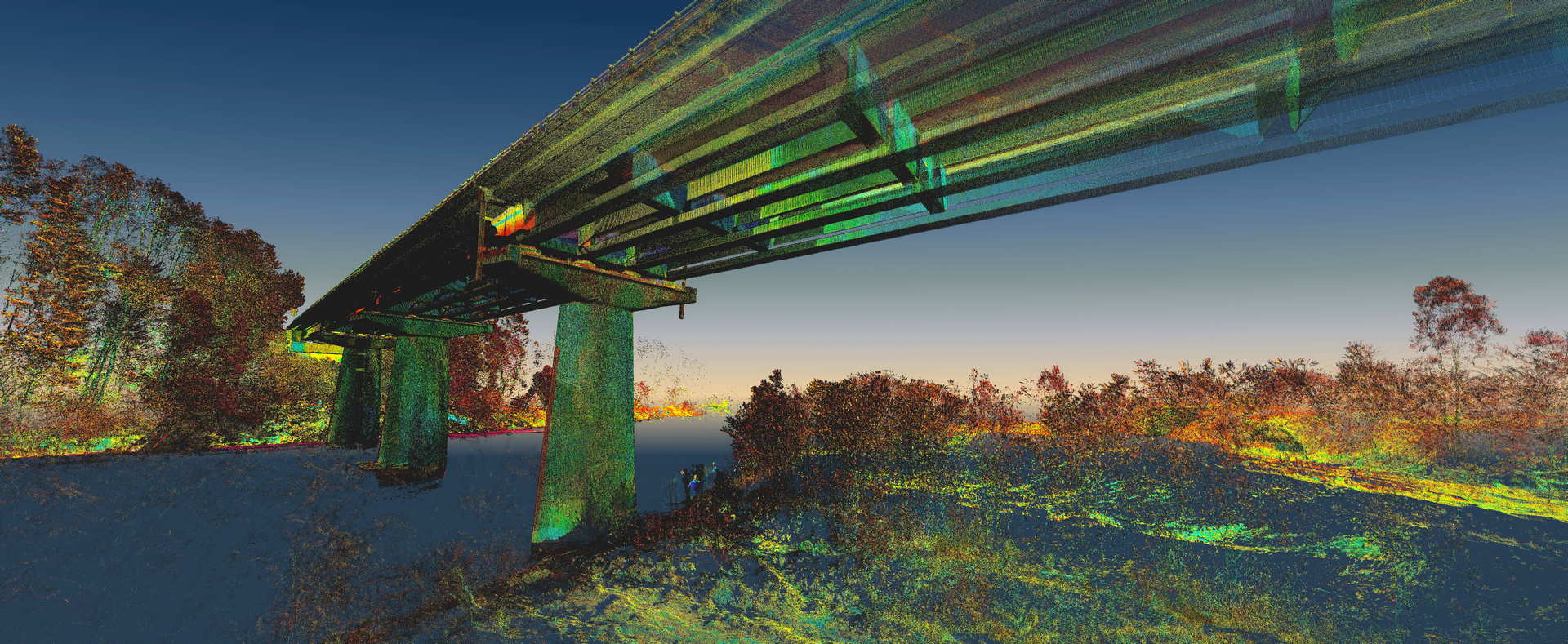

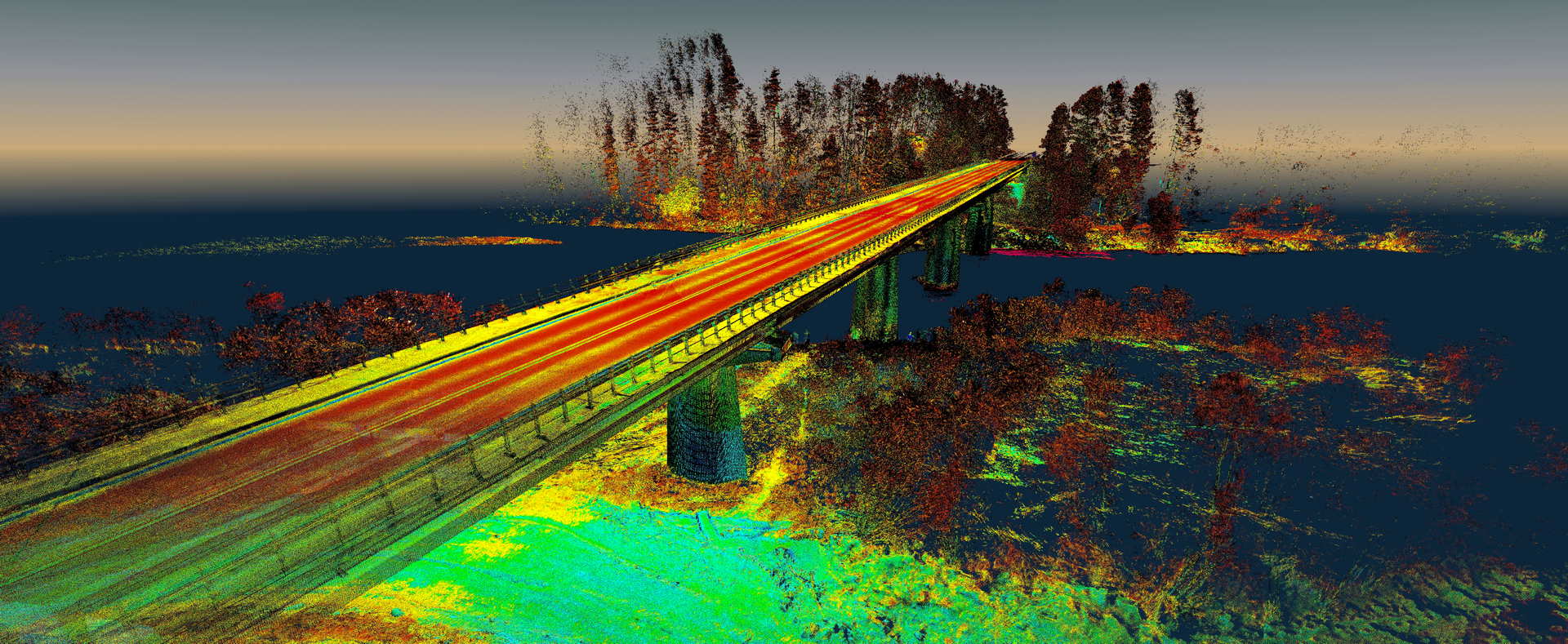

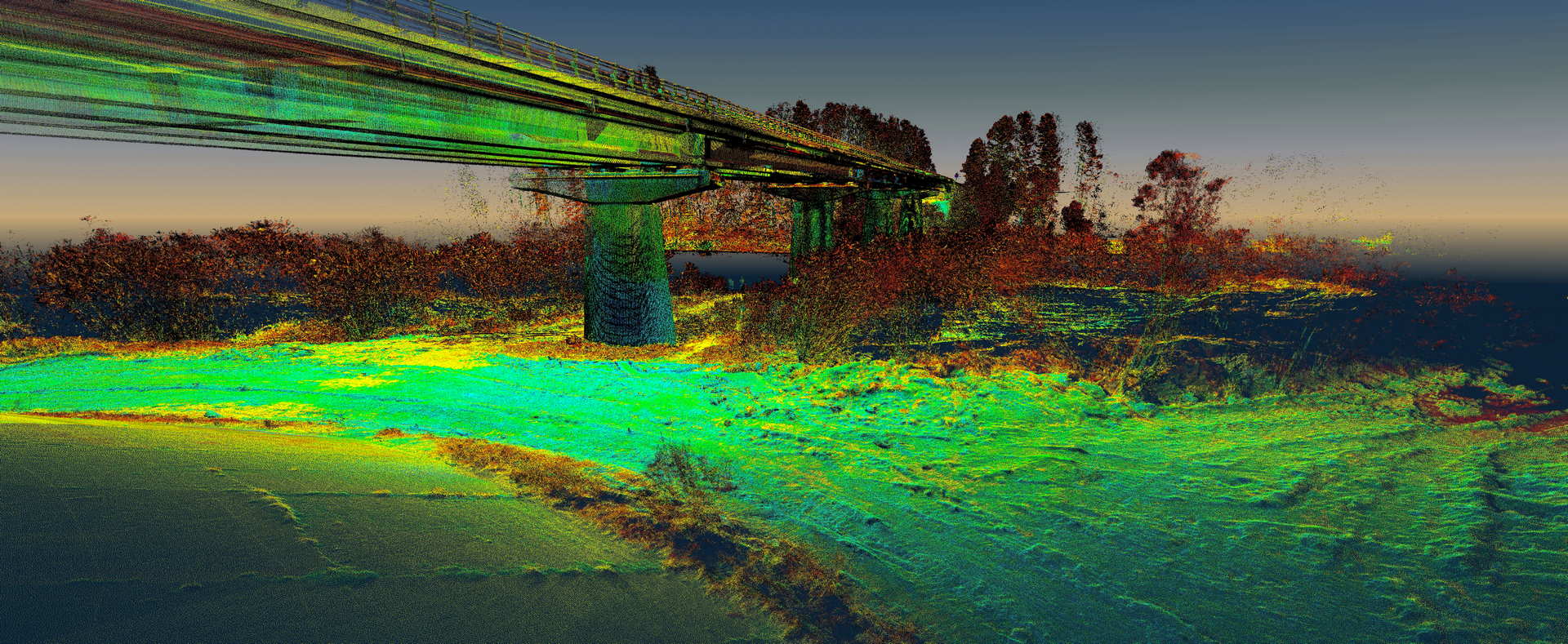

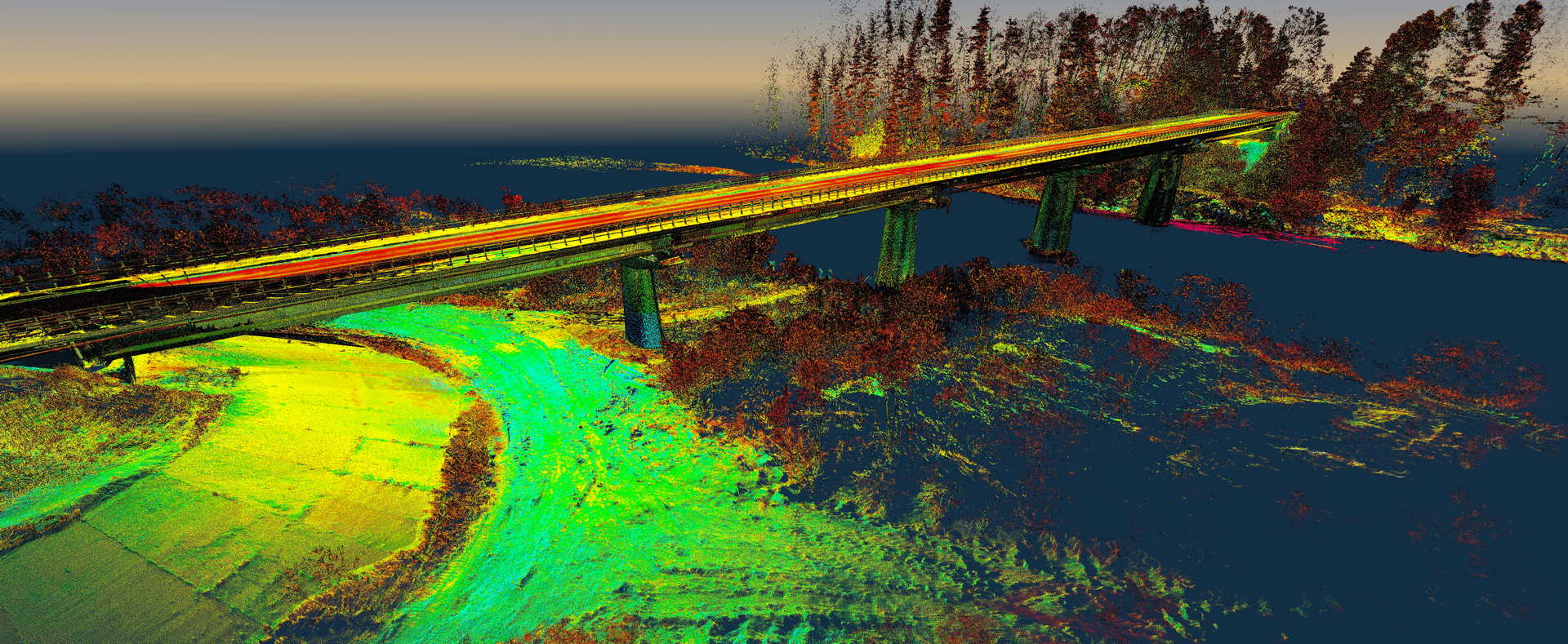

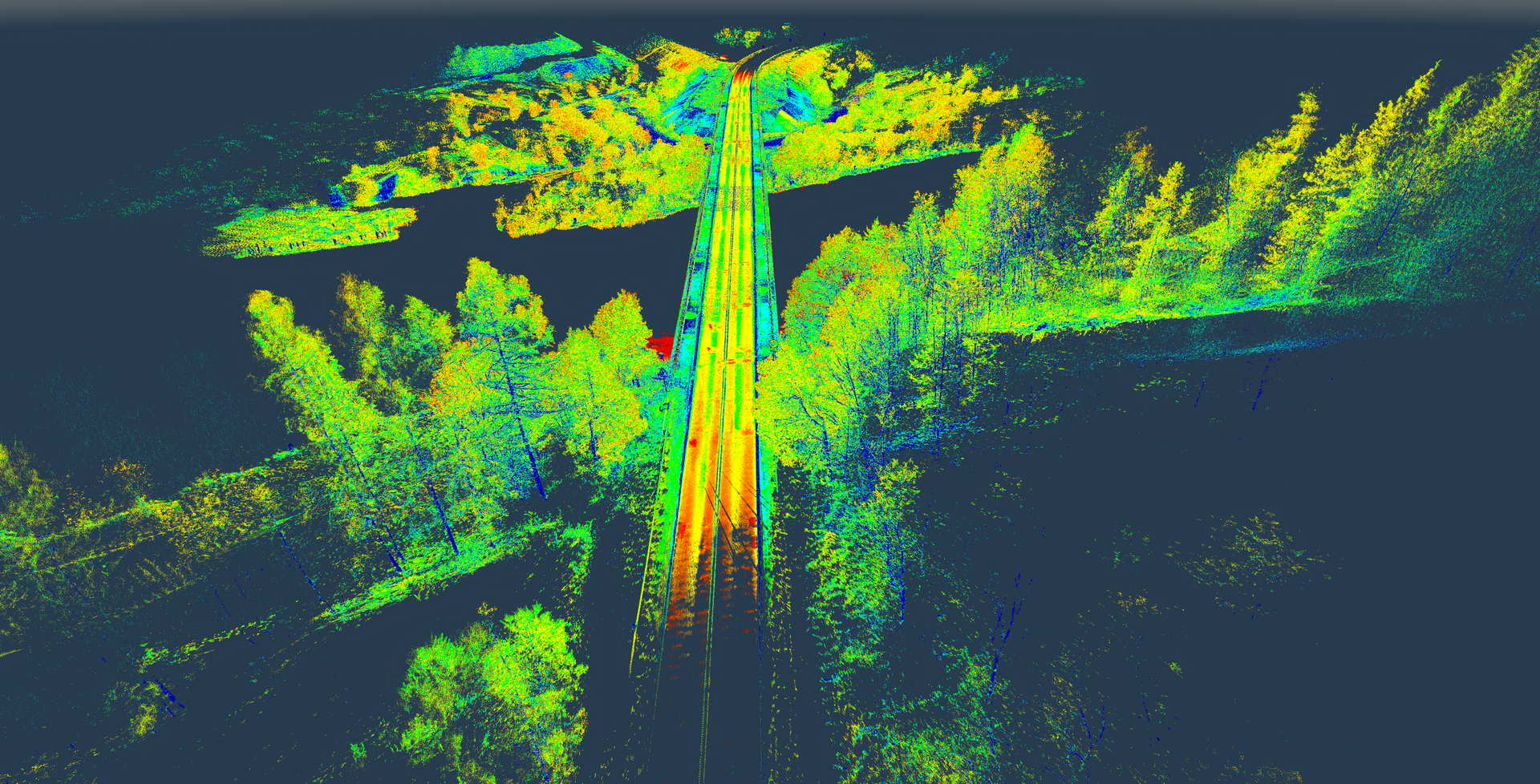

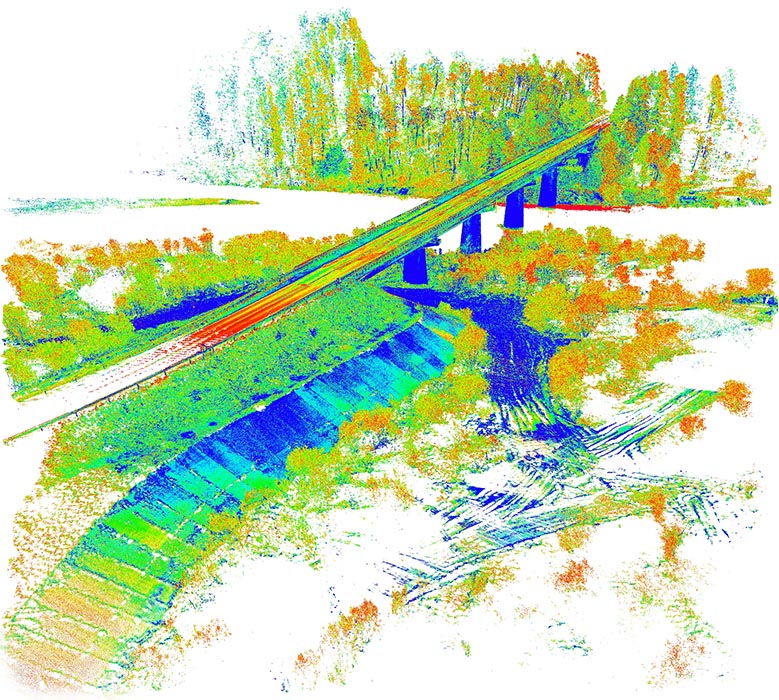

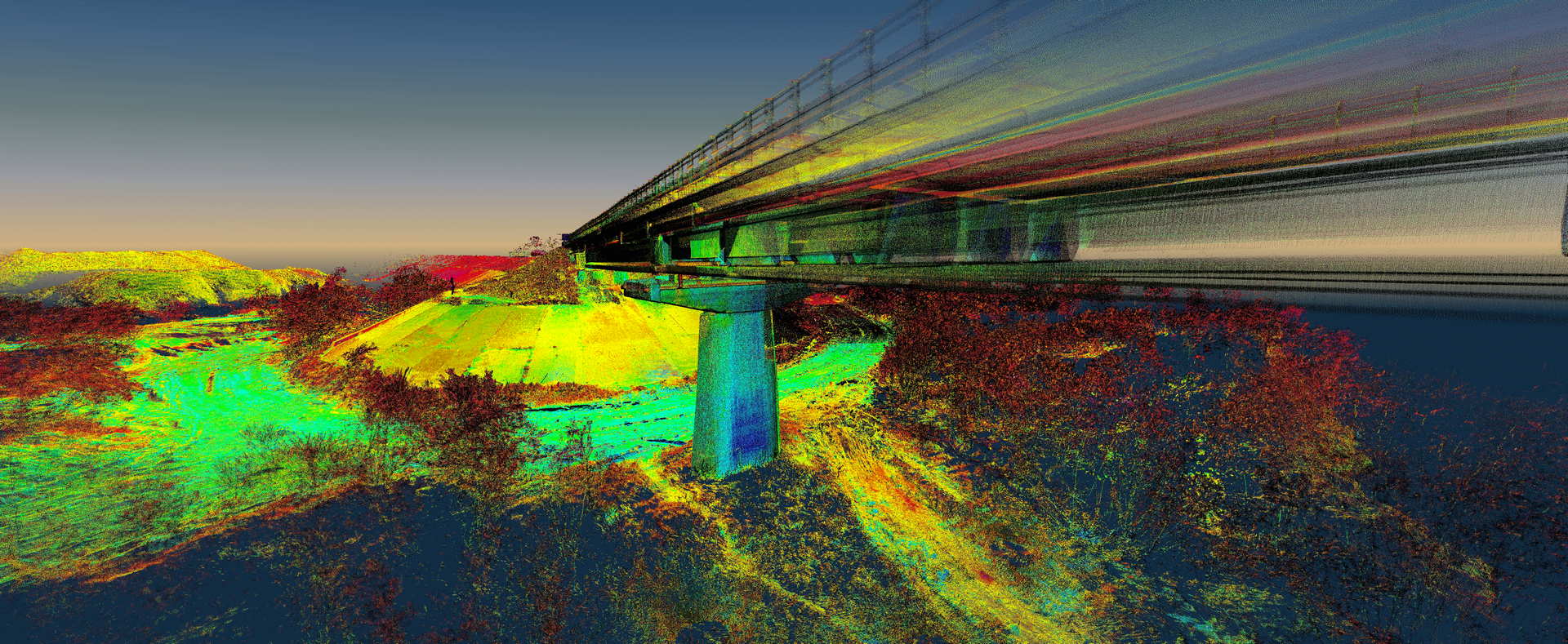

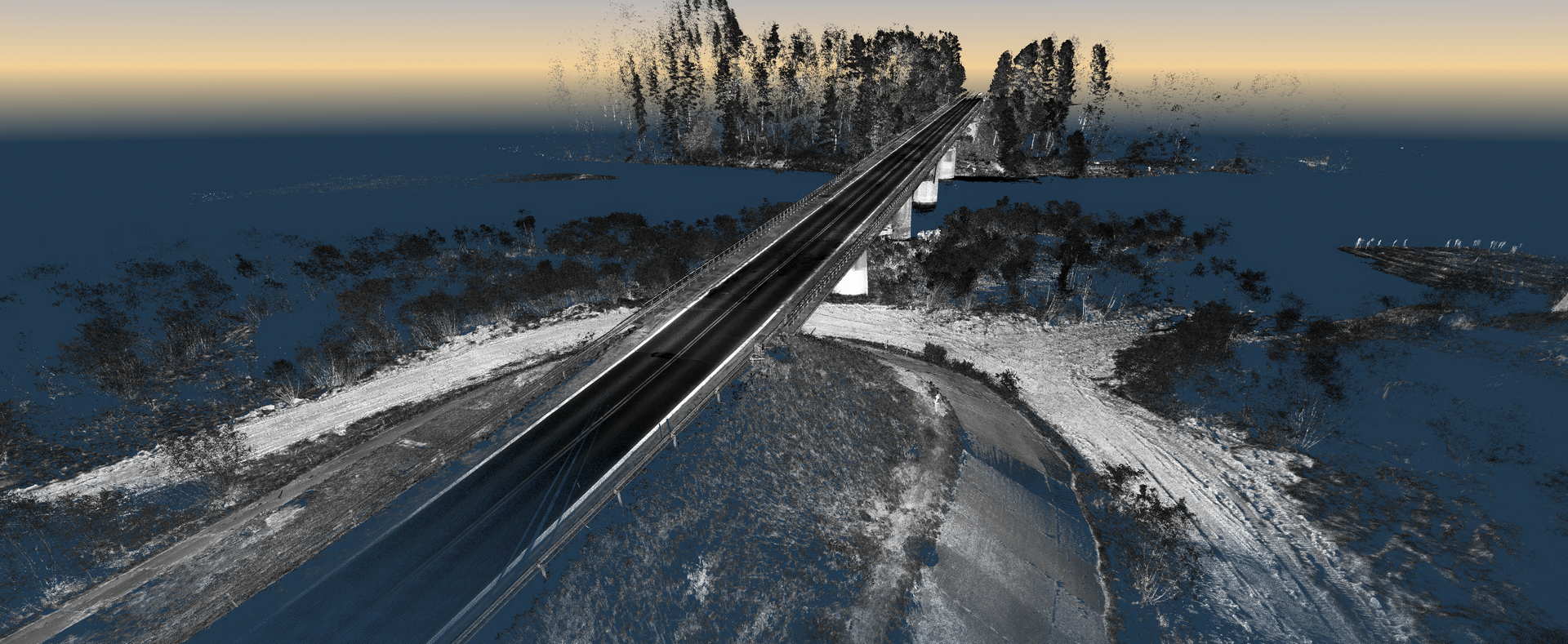

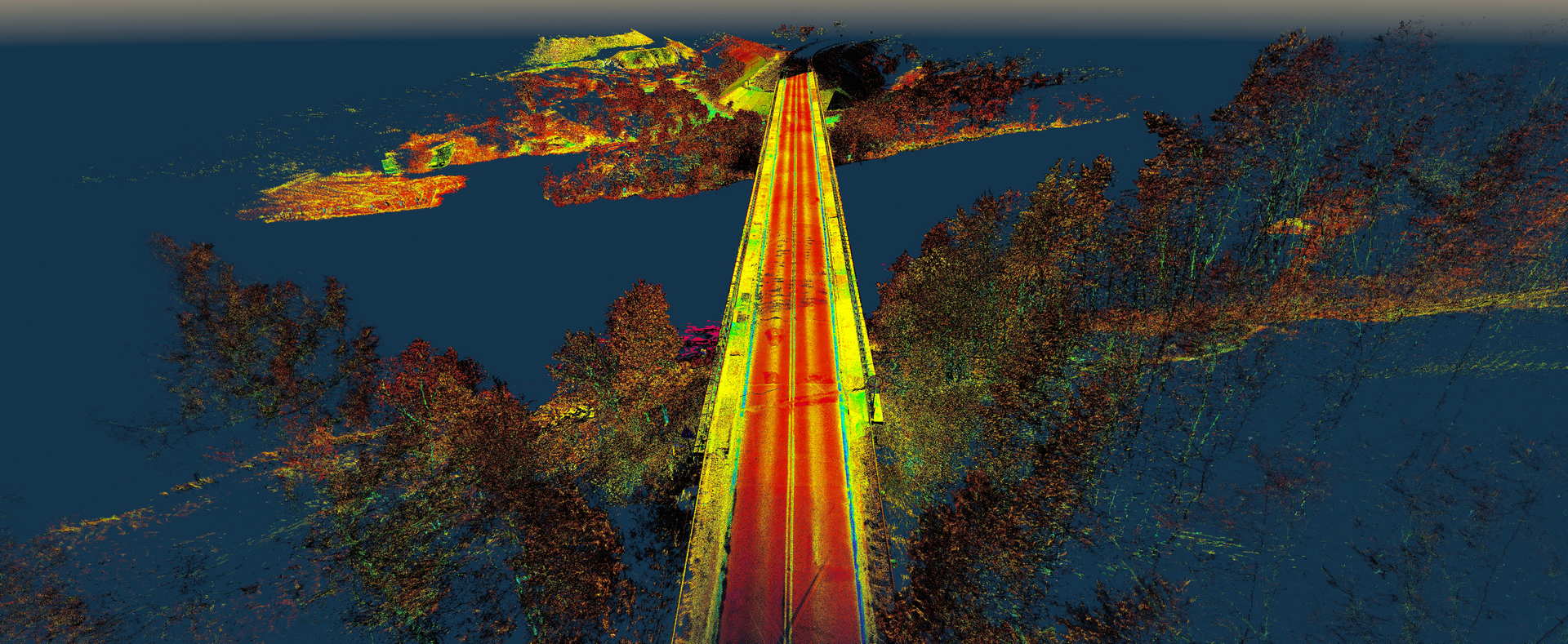

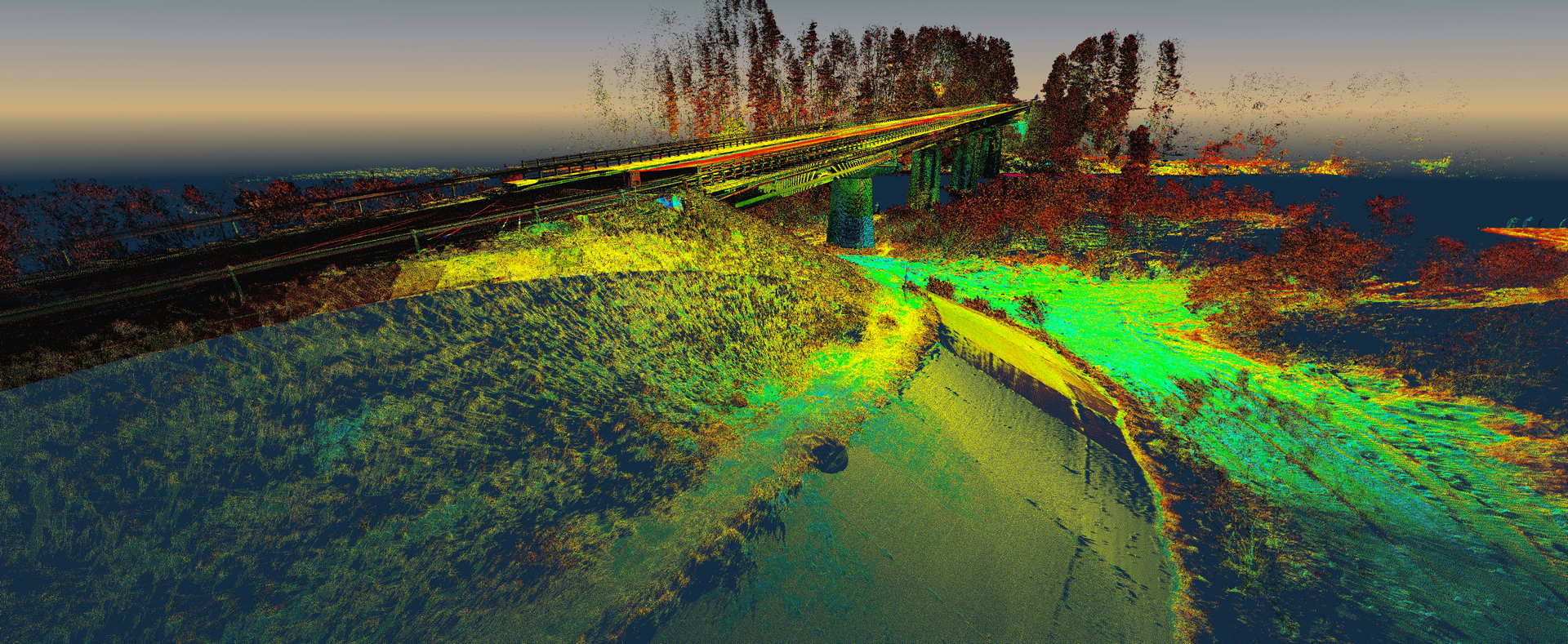

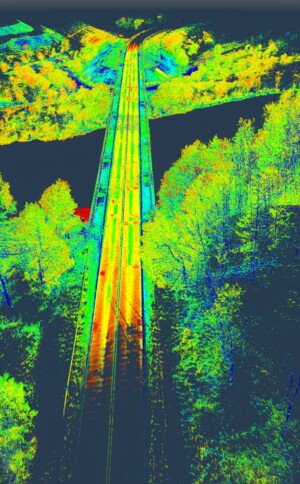

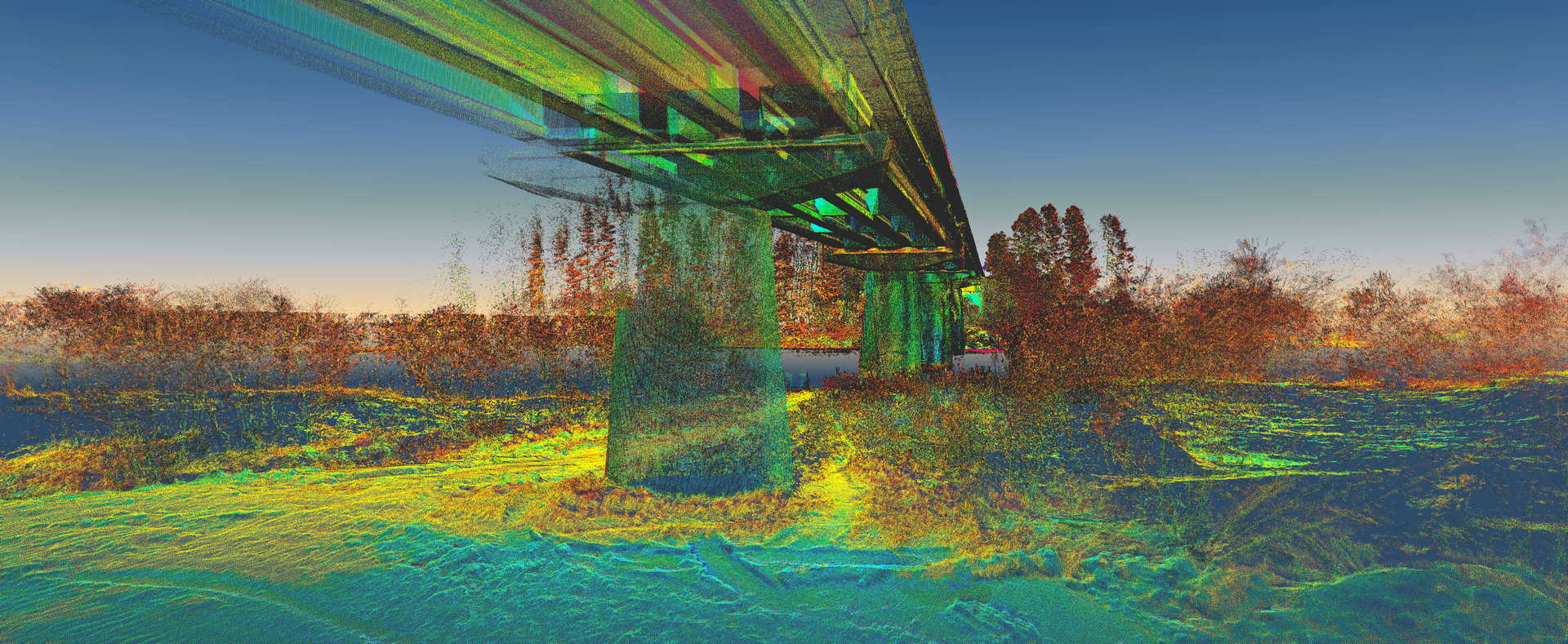

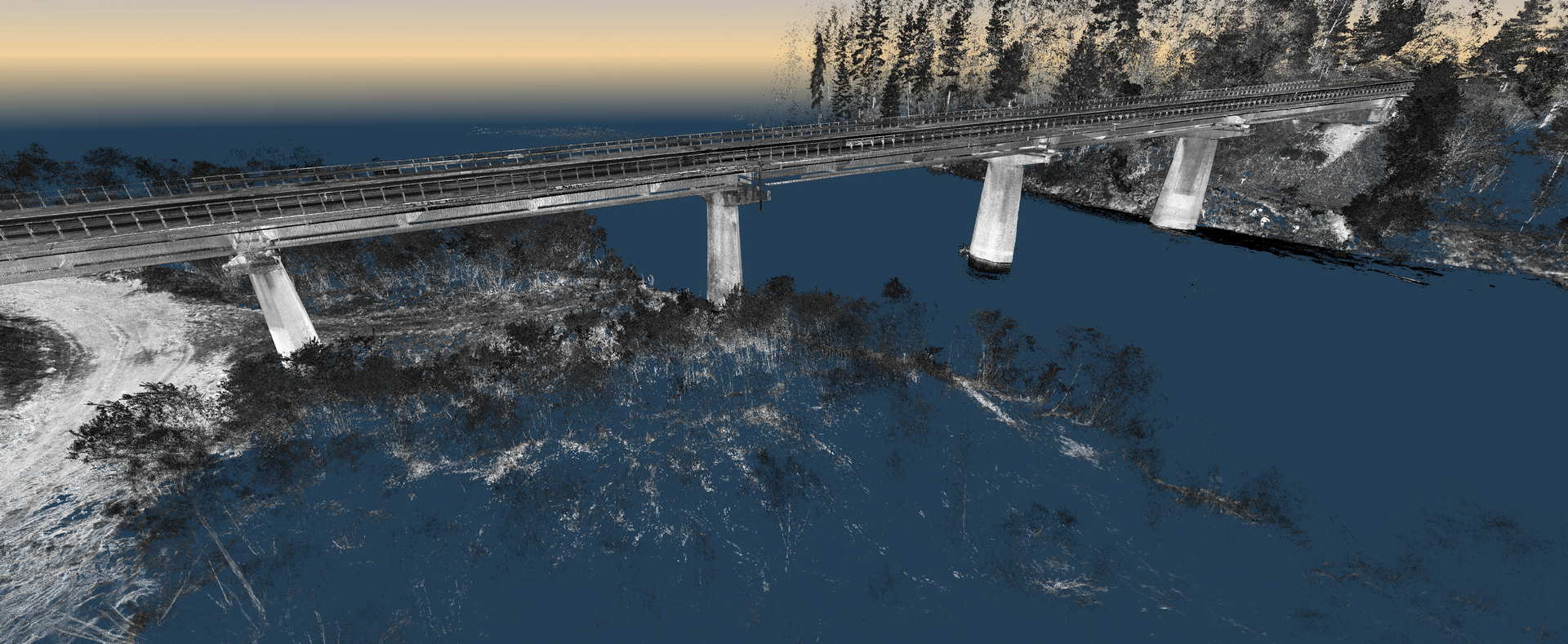

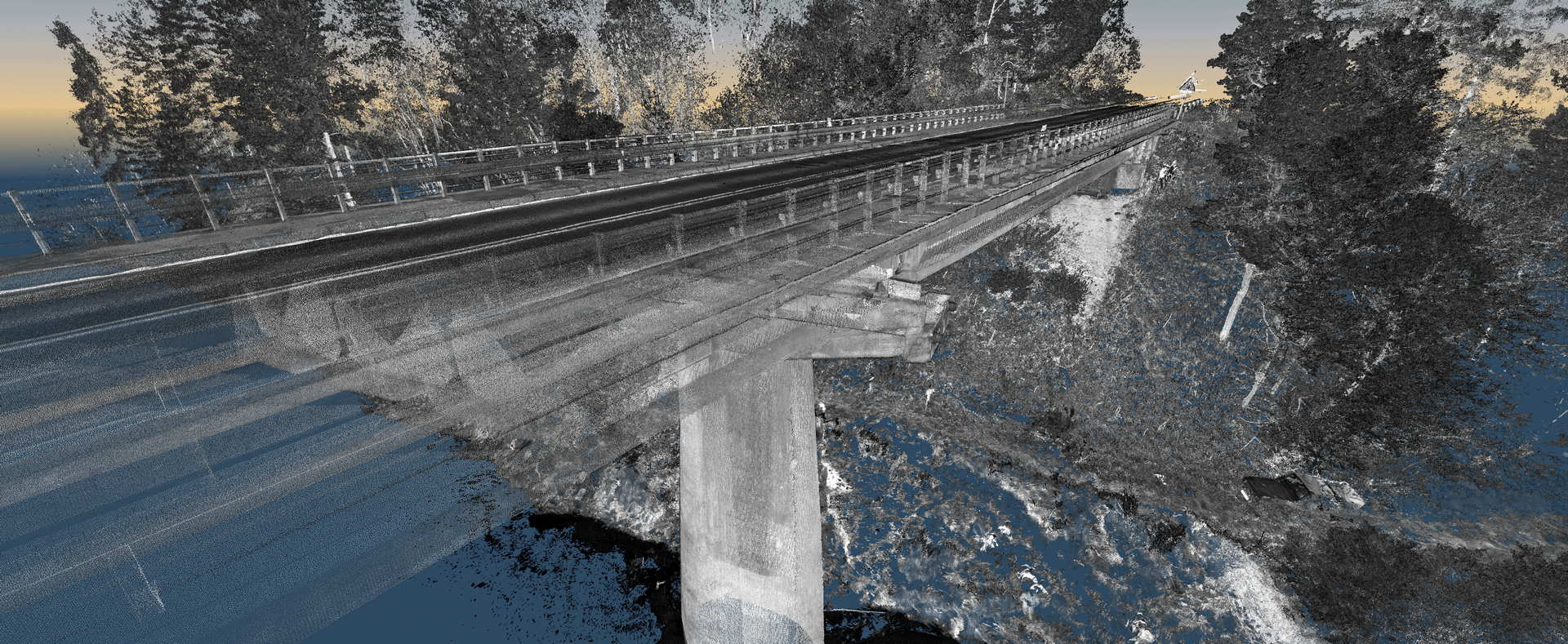

The project was commissioned to facilitate the renovation and rebuilding of this bridge over the Dunajec river. The scope was to provide a comprehensive point cloud of the structure. Around 60 scan positions were chosen in order to produce a complete dataset. A challenging project in that the environment made the control and registration particularly difficult with dense vegetation covering both banks plus the obstacle of the river itself. 3Delings extensive experience in point cloud manipulation allowed us to solve the problem and produce a point cloud with 5mm density.
