HOLY TRINITY CHURCH

LOCATION

Warsaw, Poland

SURVEYING EQUIPMENT

Z+F Imager 5010C, Leica TCRA 1101 plus Total Station

TOTAL TIME SPENT

2 days on site, one person about 200 scan positions, 35 days processing scan registration, modeling and 2D documentation

FINAL PRODUCT

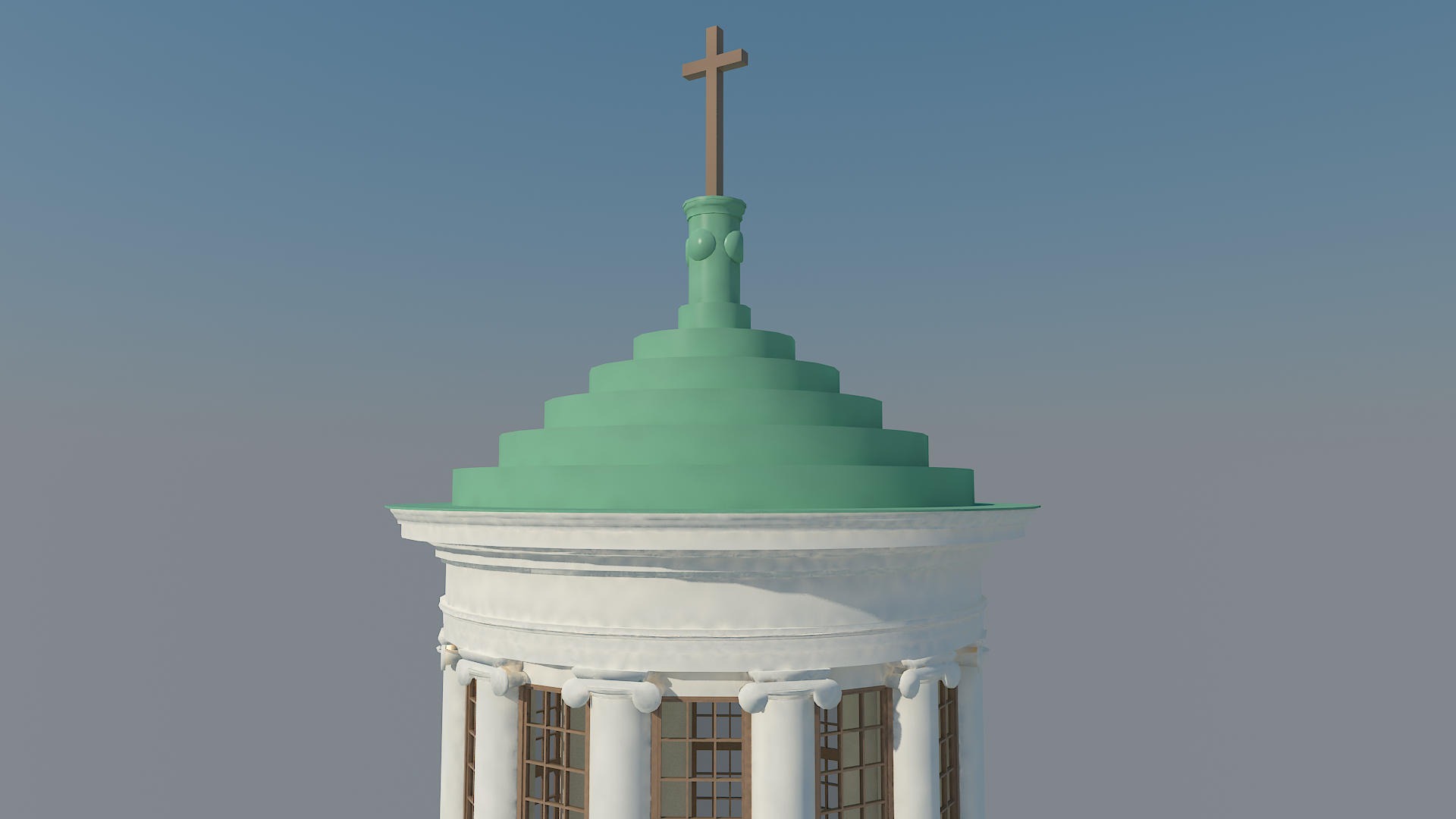

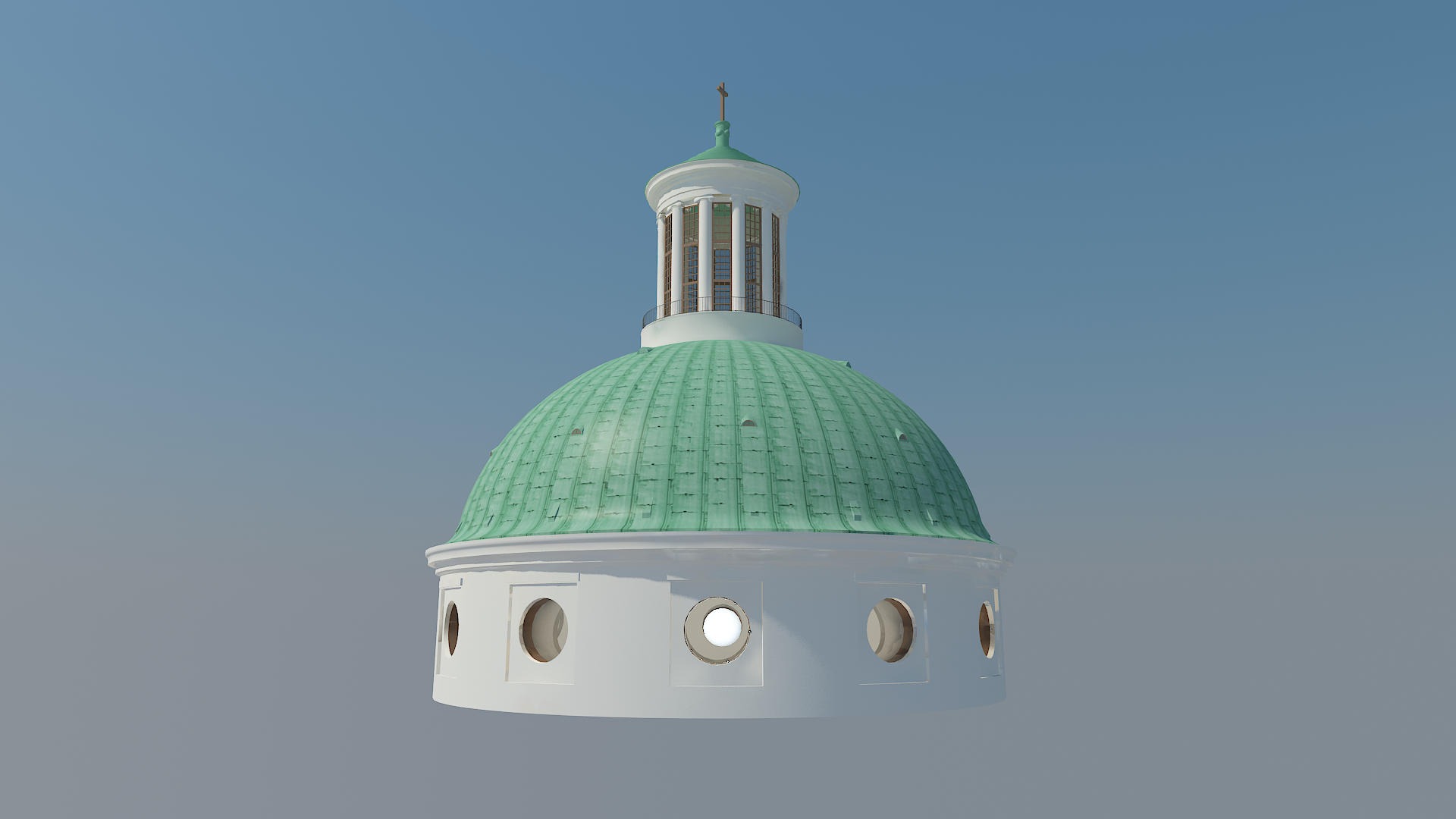

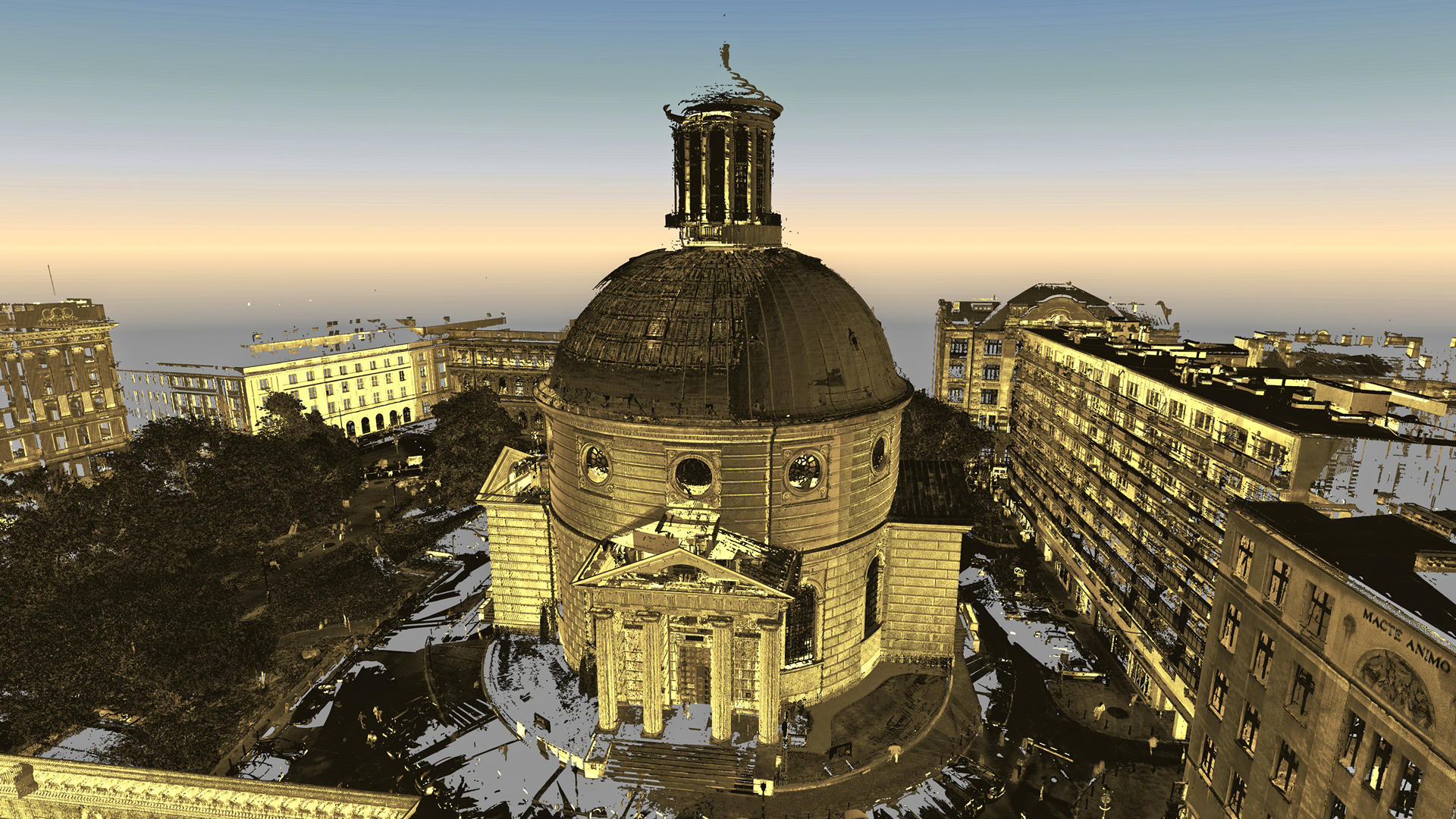

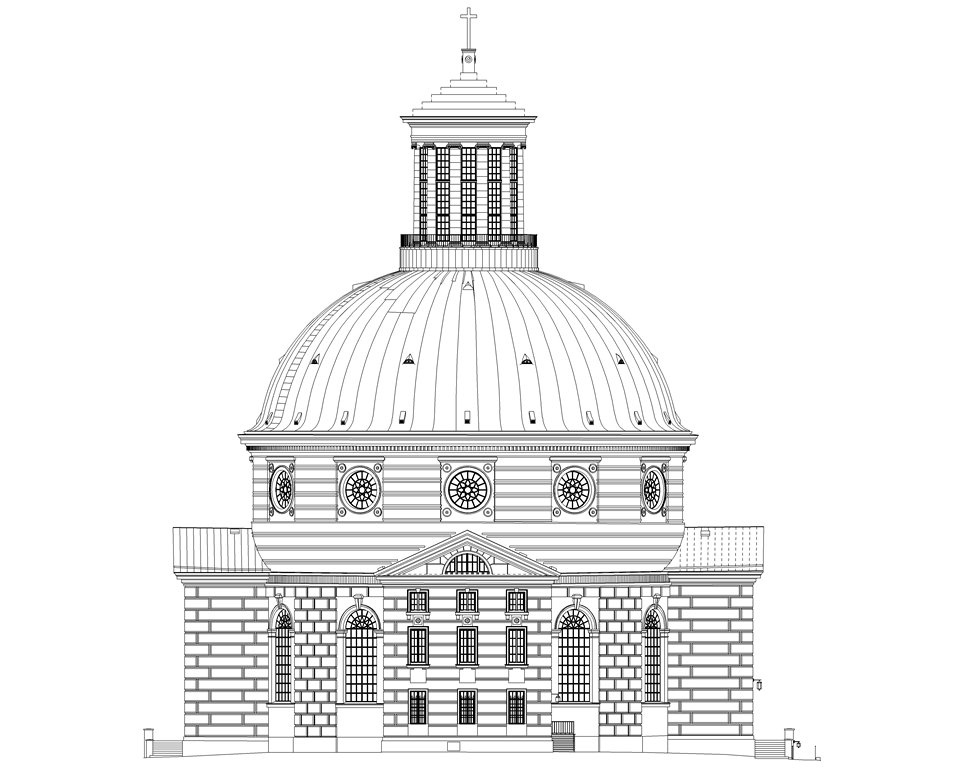

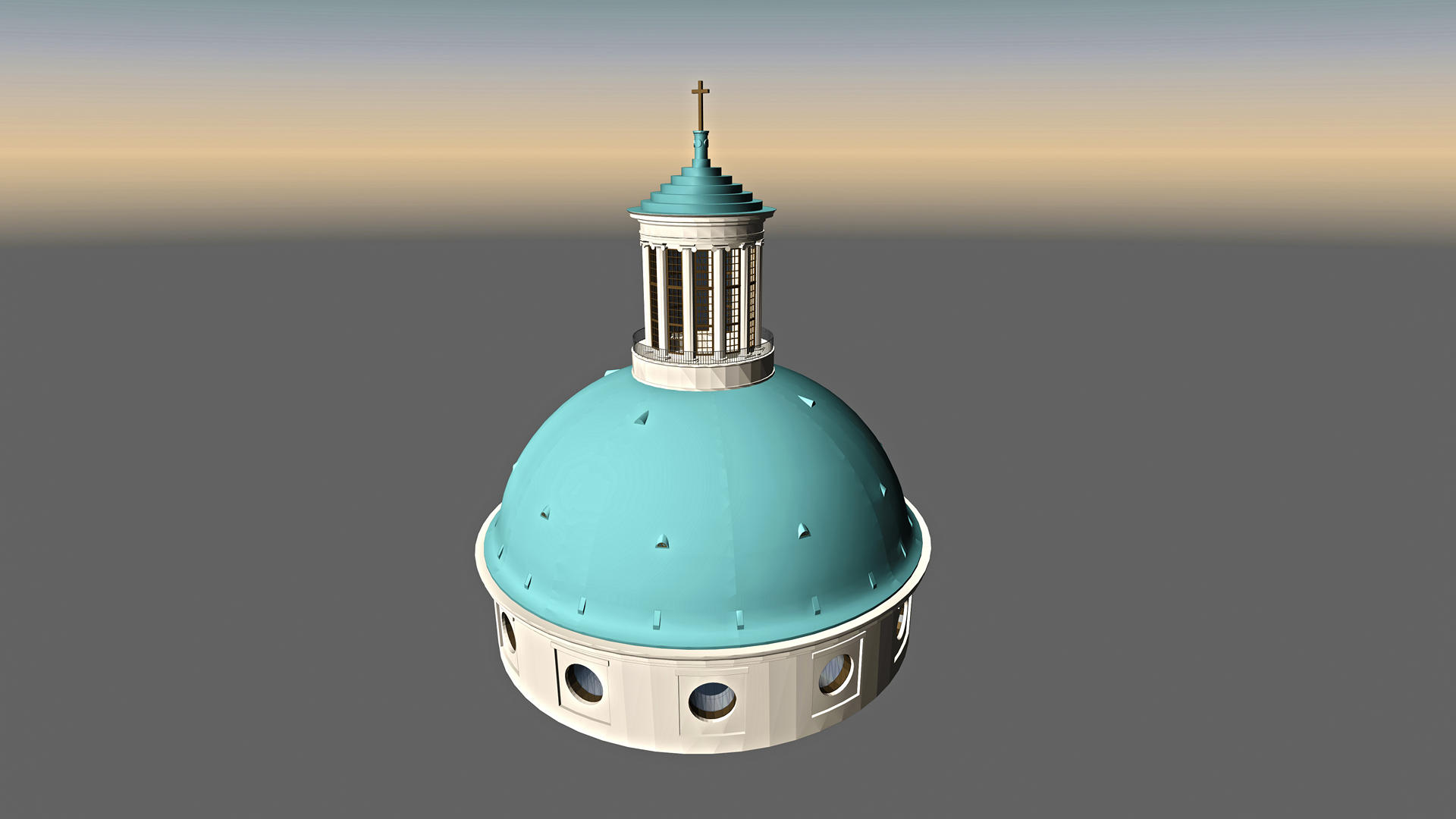

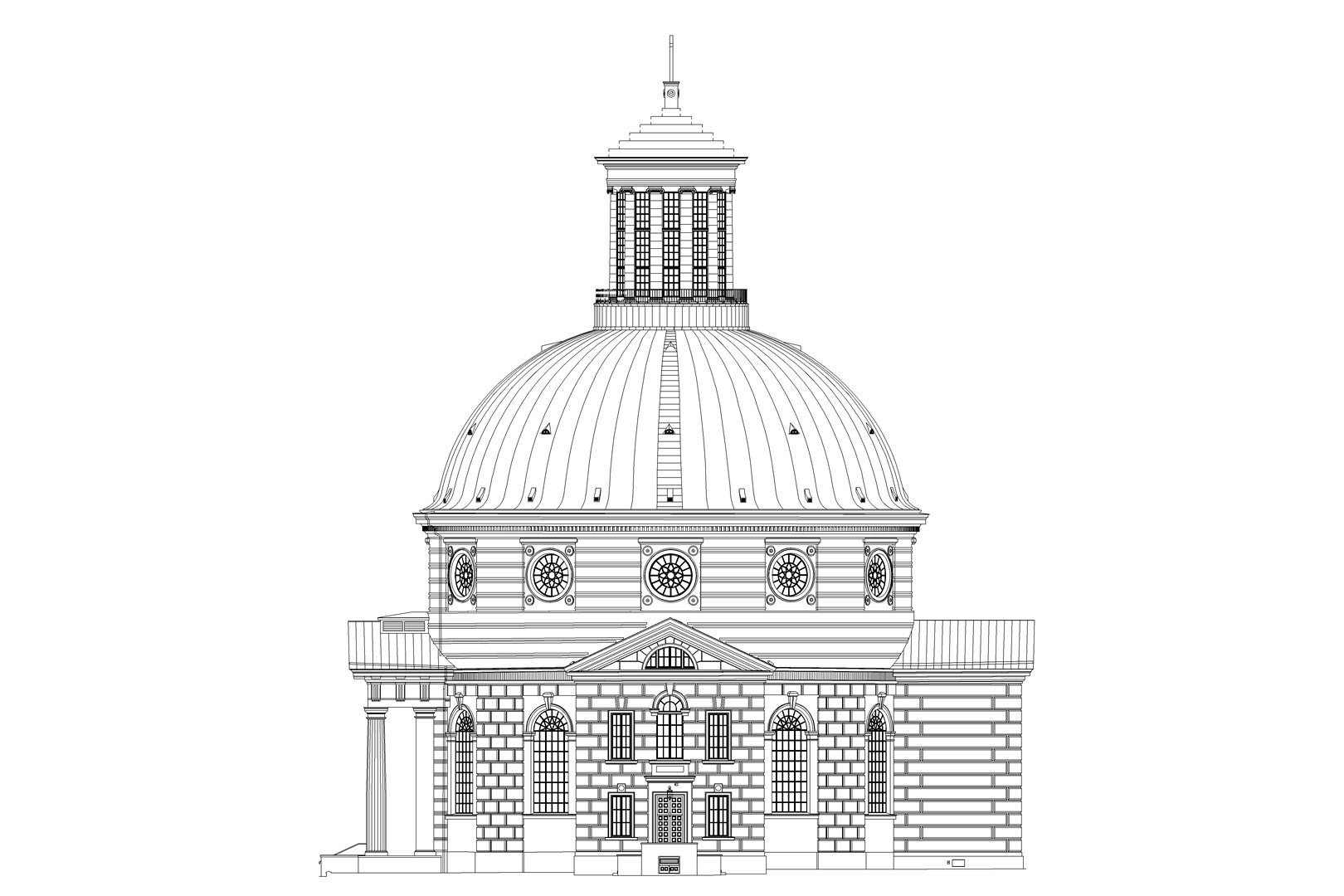

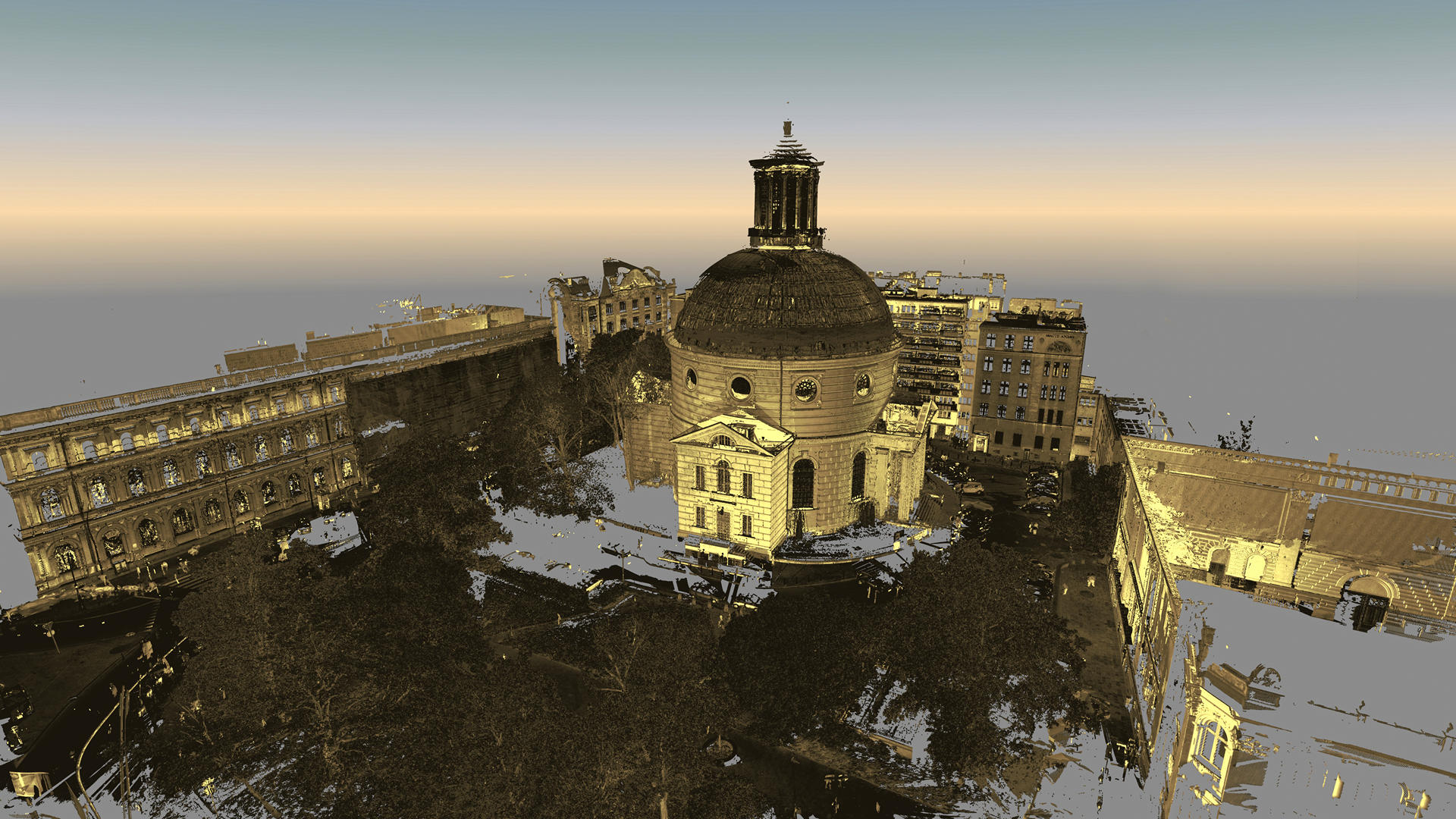

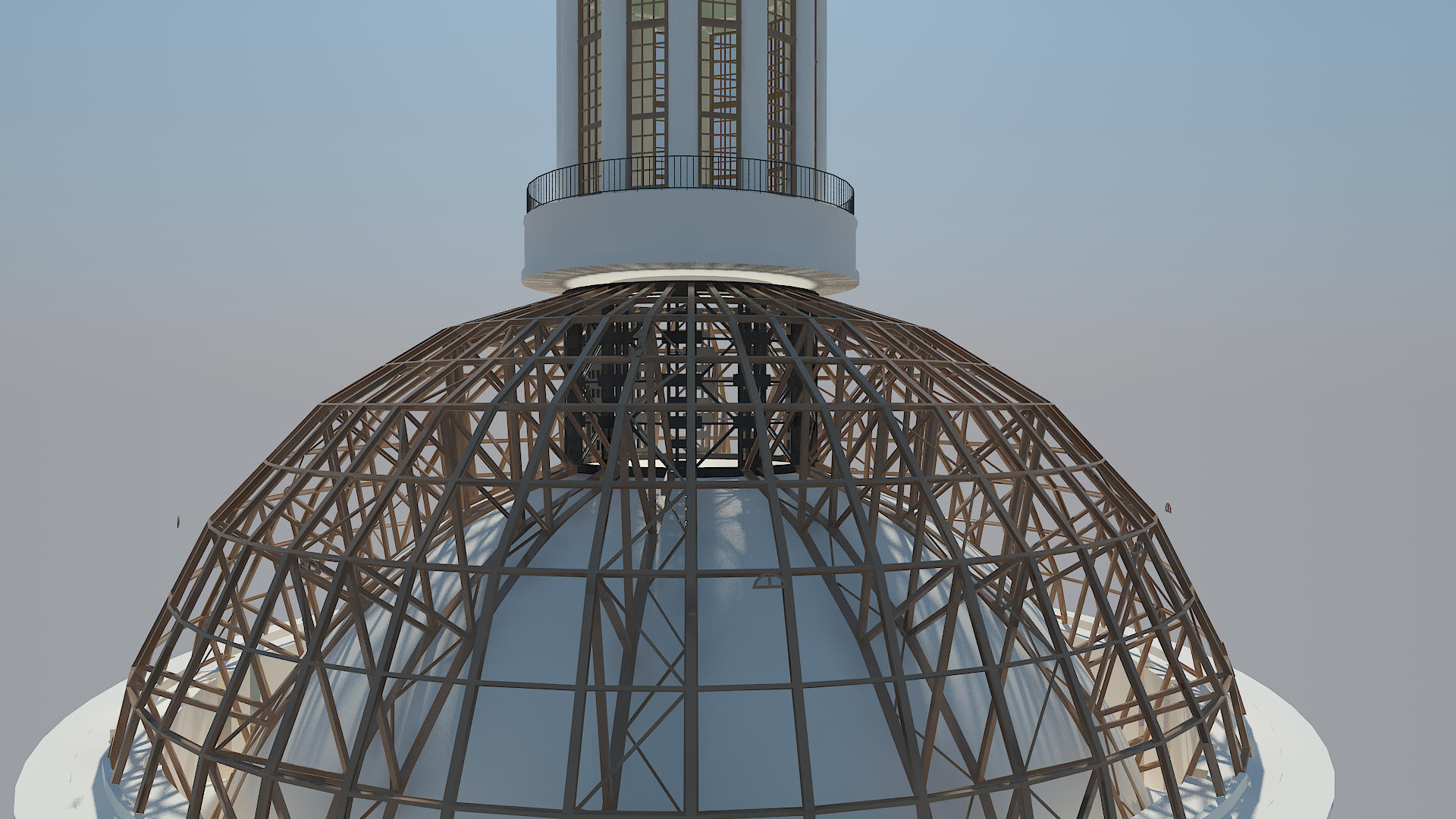

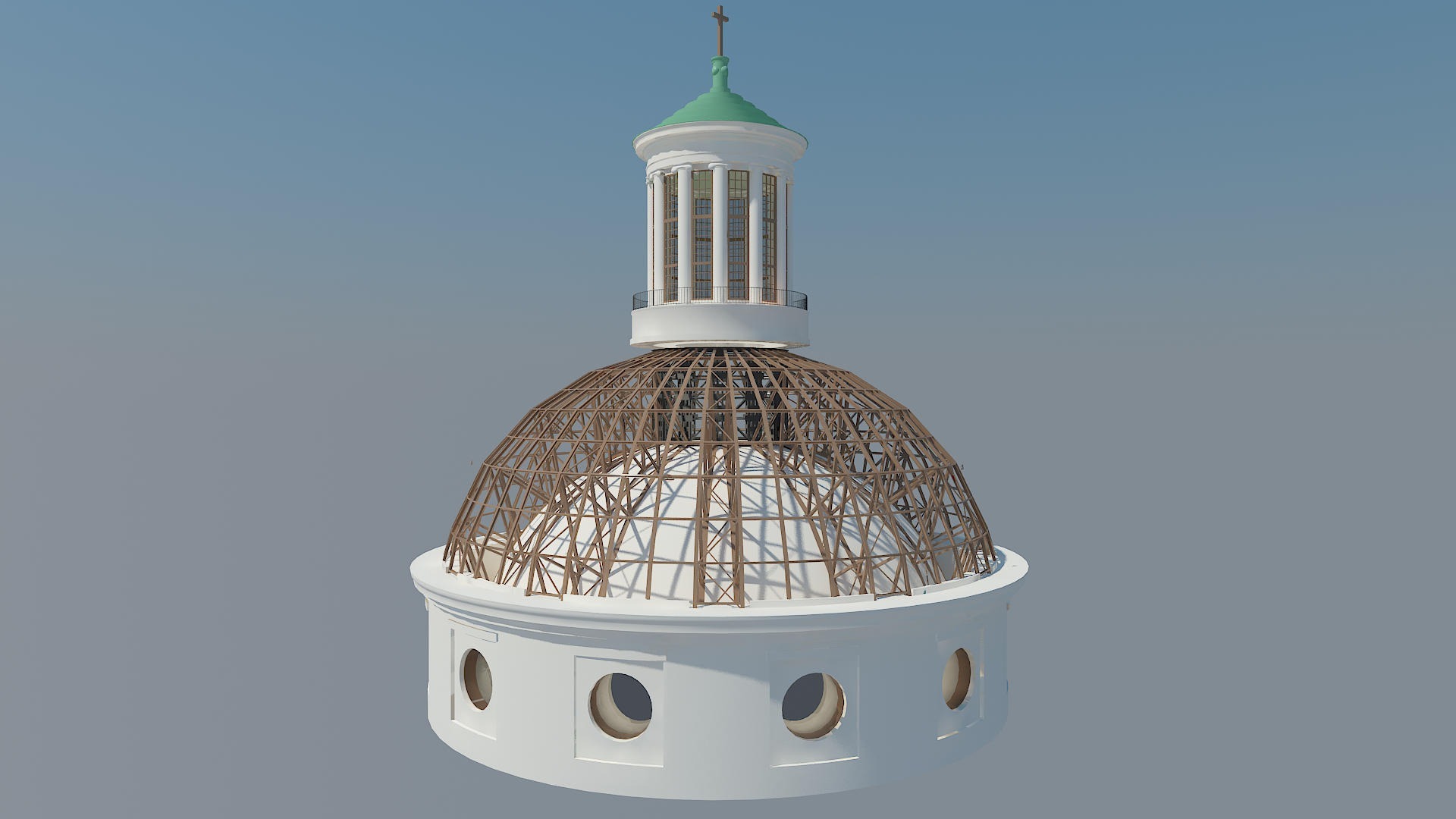

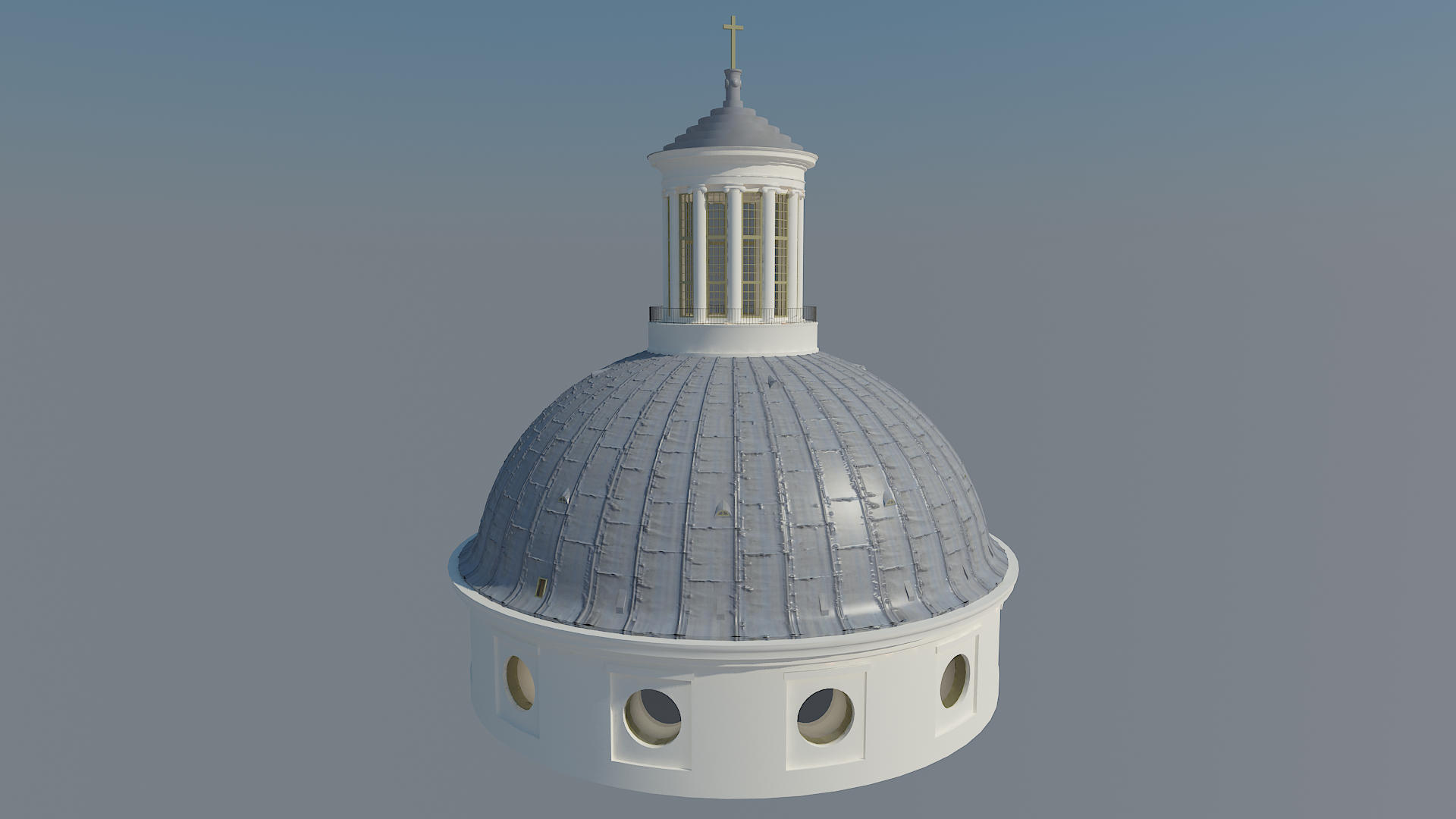

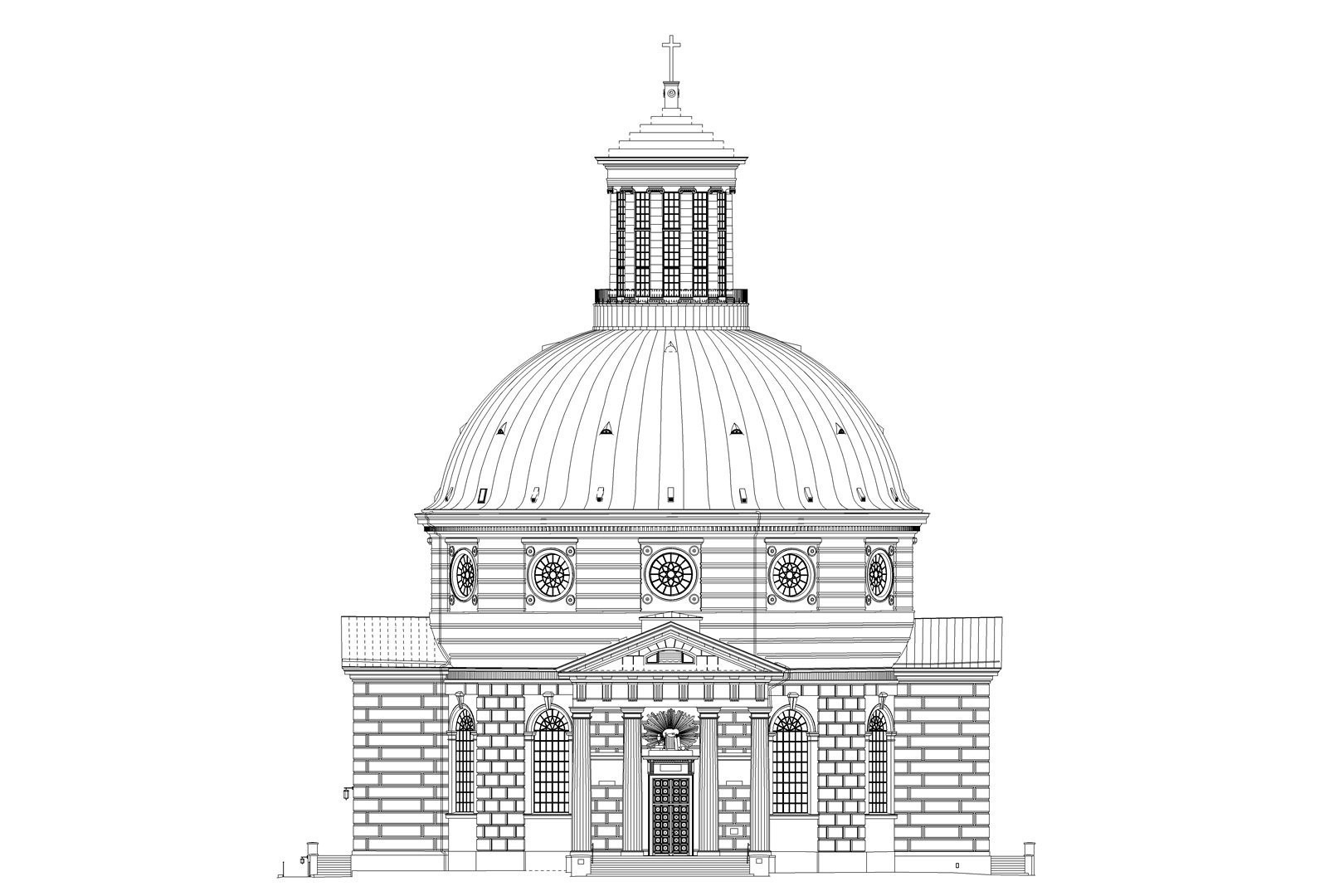

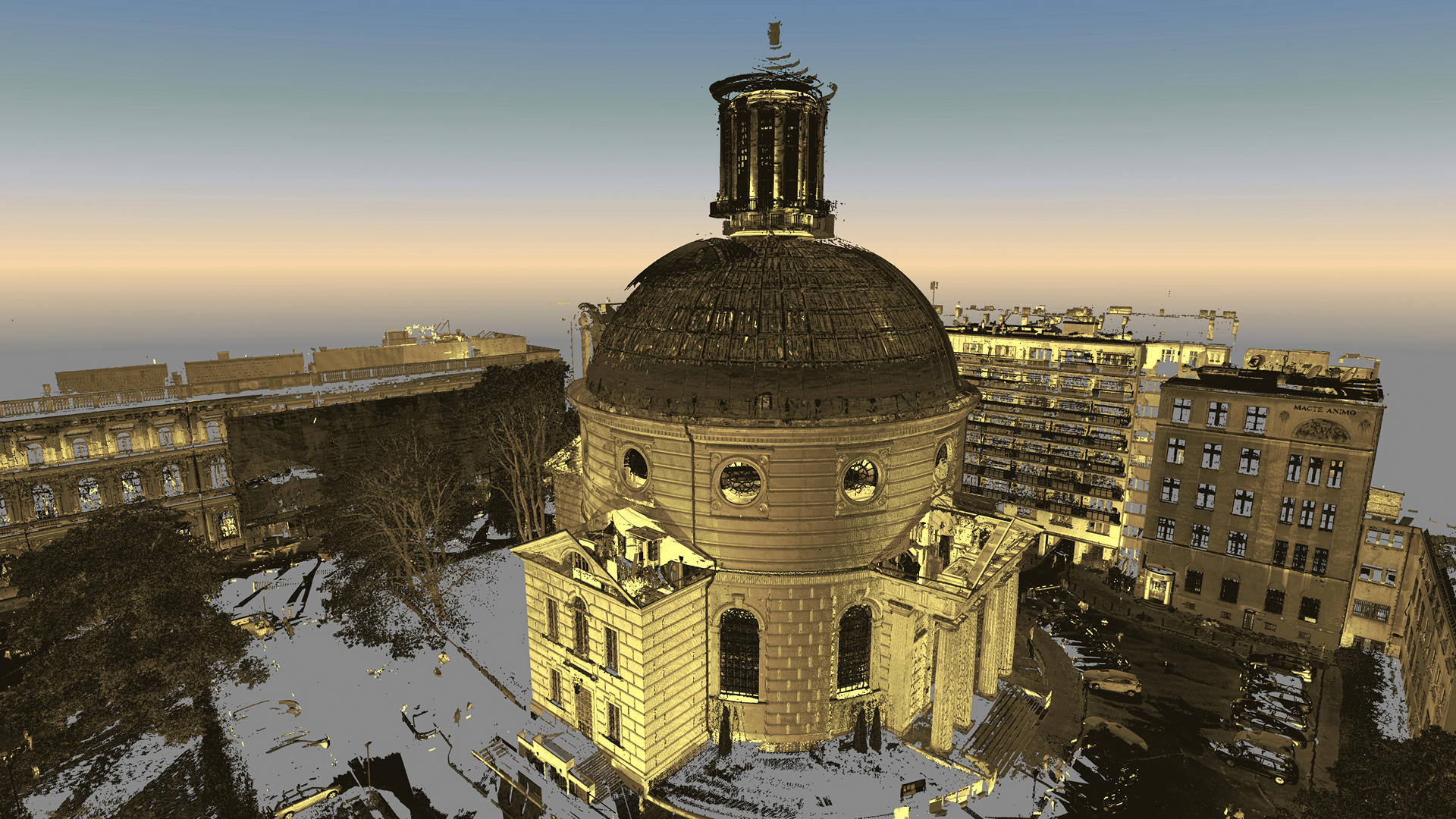

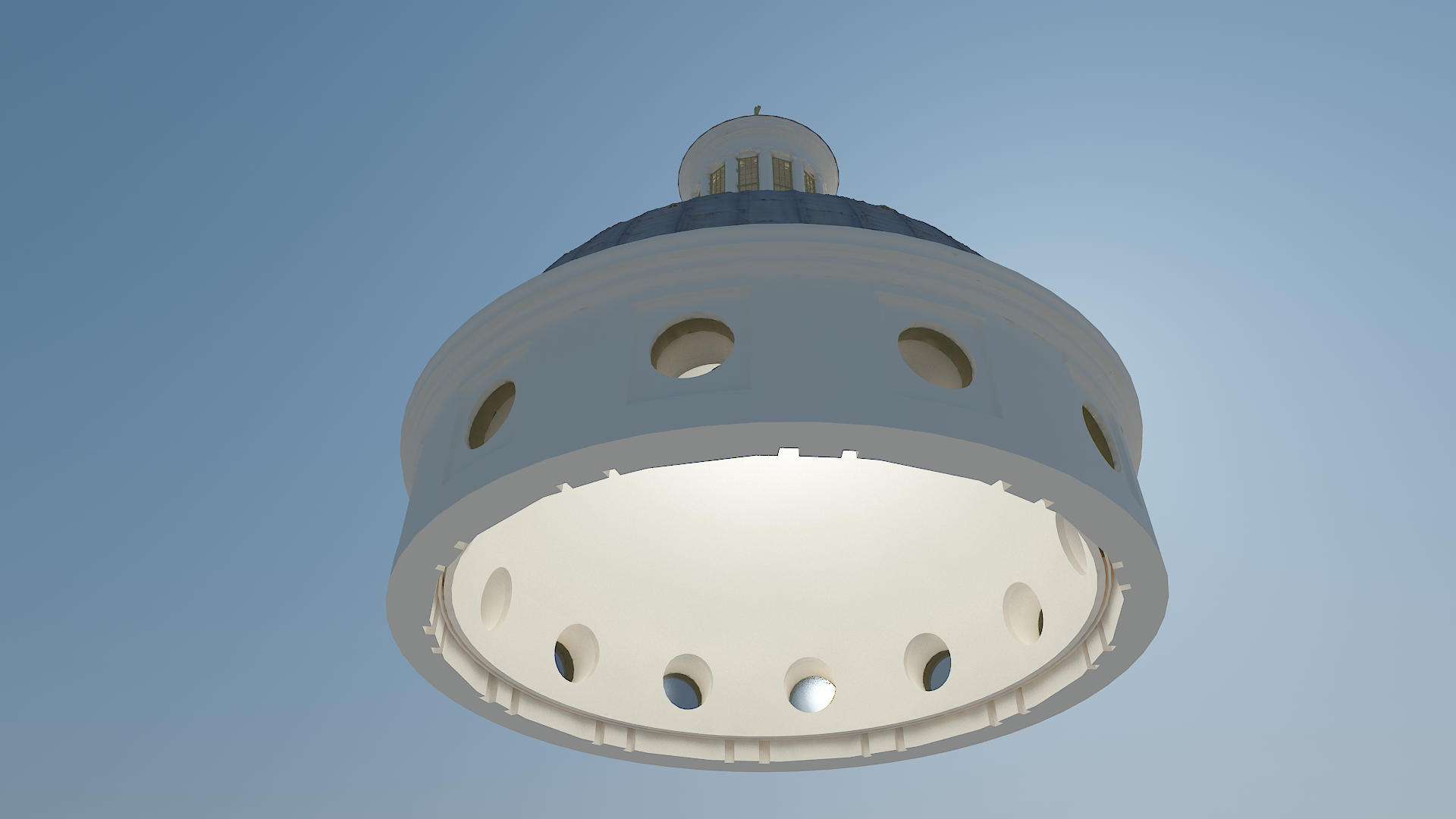

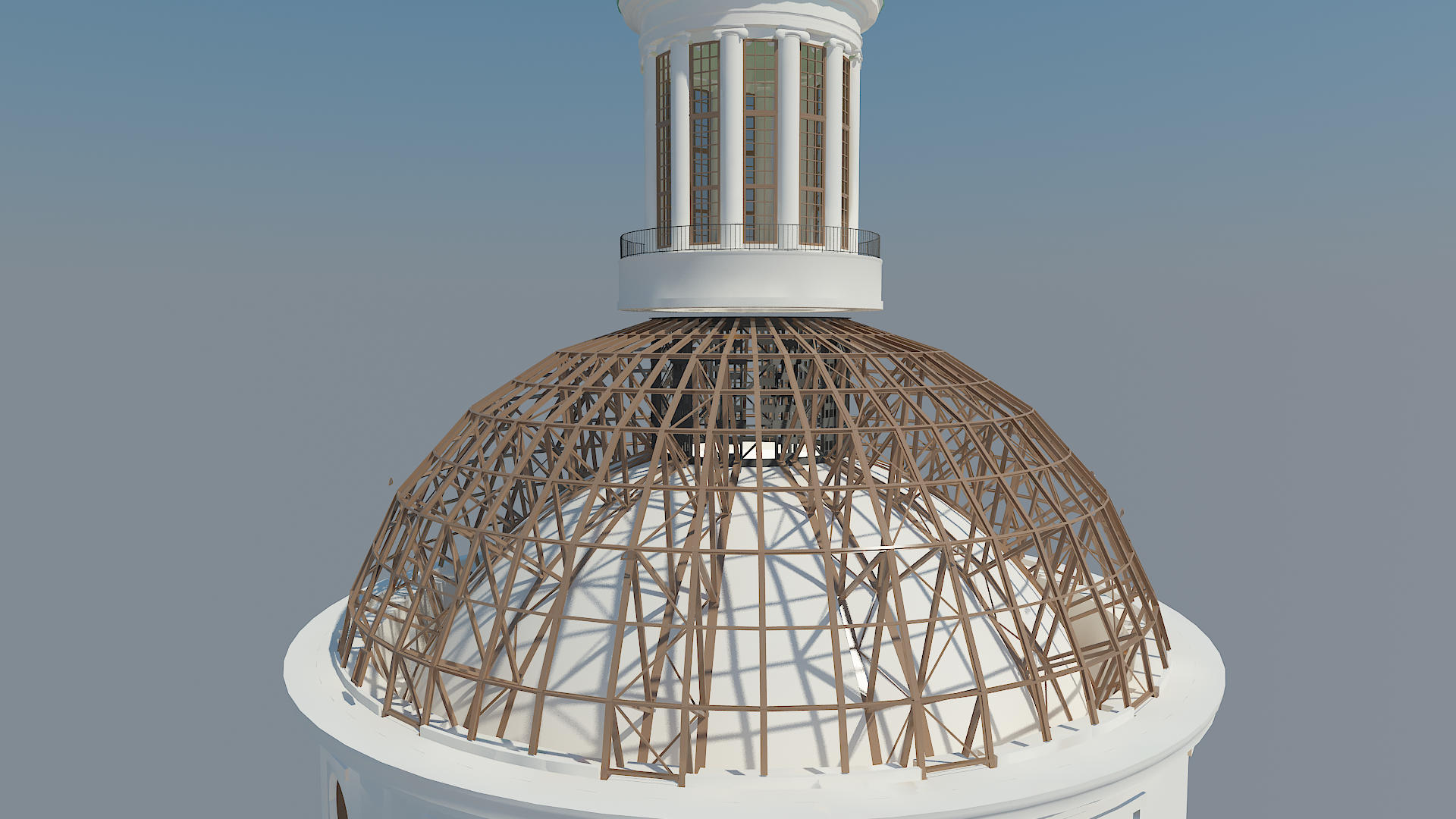

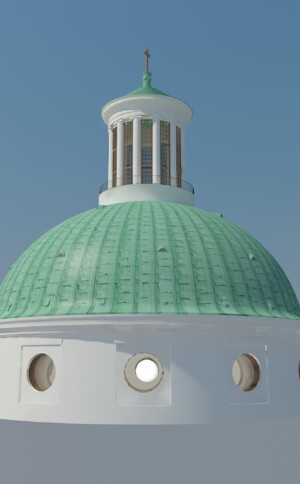

Registered point cloud, TruViews, 3D CAD model of a dome, external elevations



HOLY TRINITY CHURCH

Constructed between 1777-1782, the Dome of Holy Trinity Church in Warsaw spans 33m. Rebuilt after damage caused during the second world war, the dome is once again in frail condition.

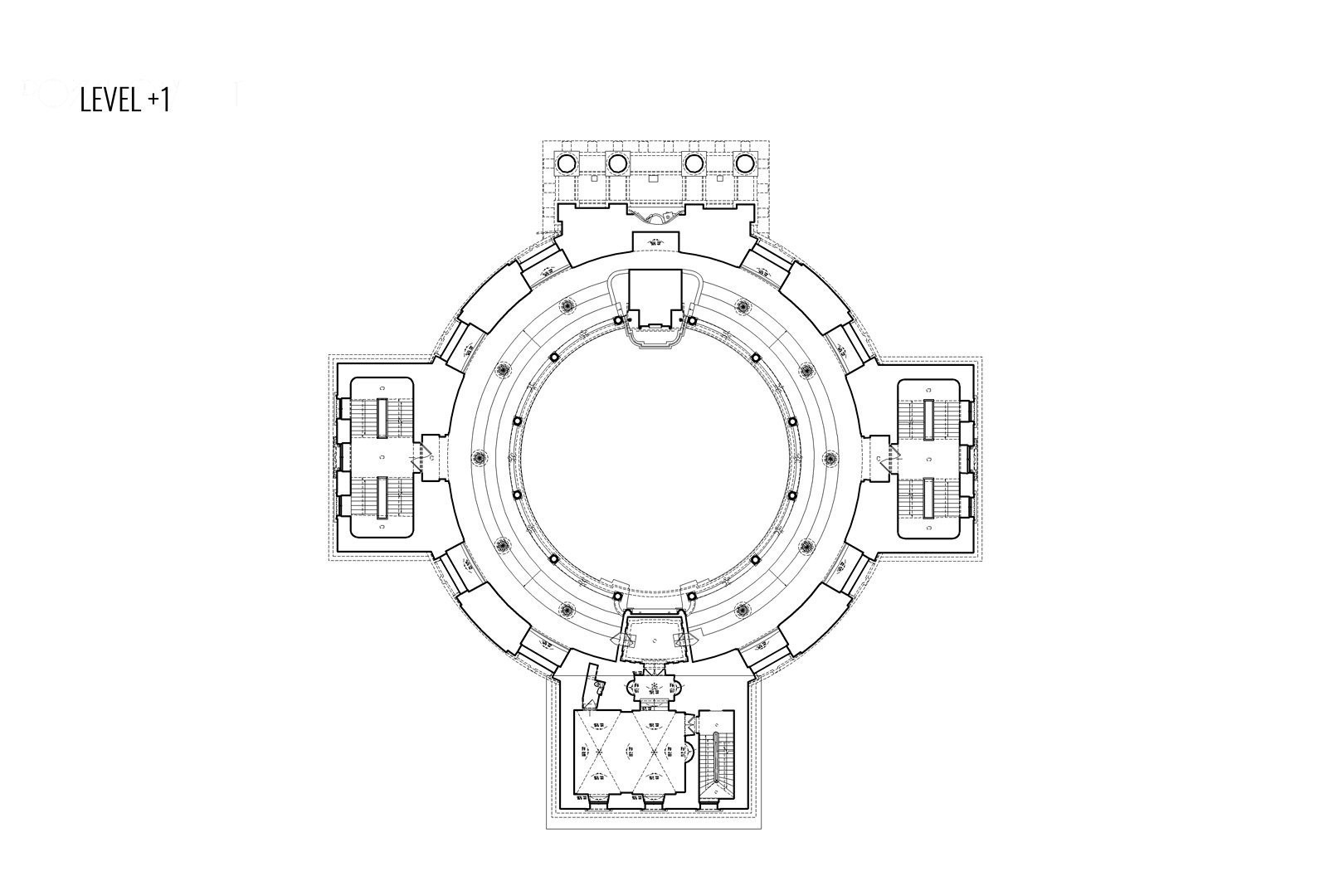

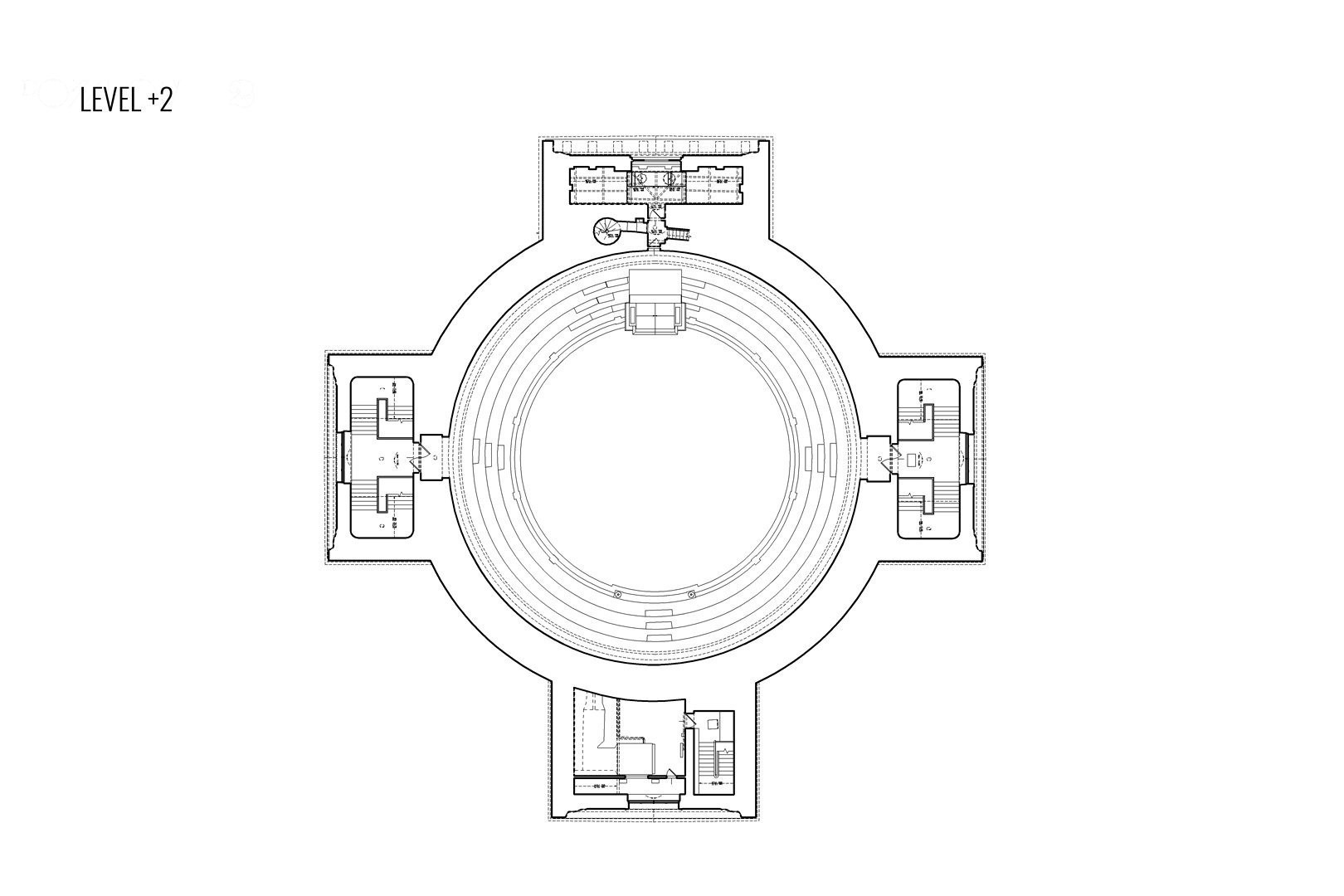

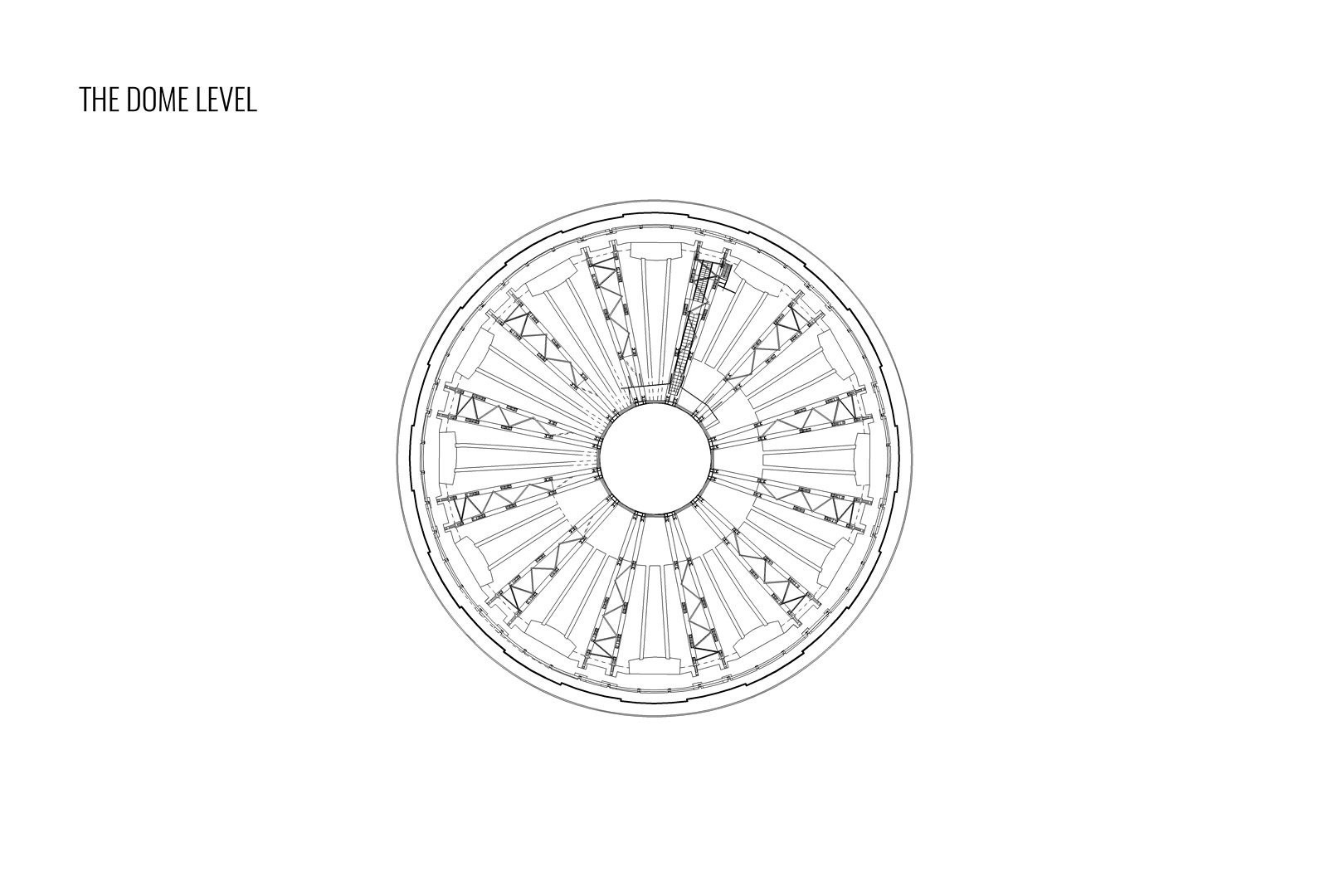

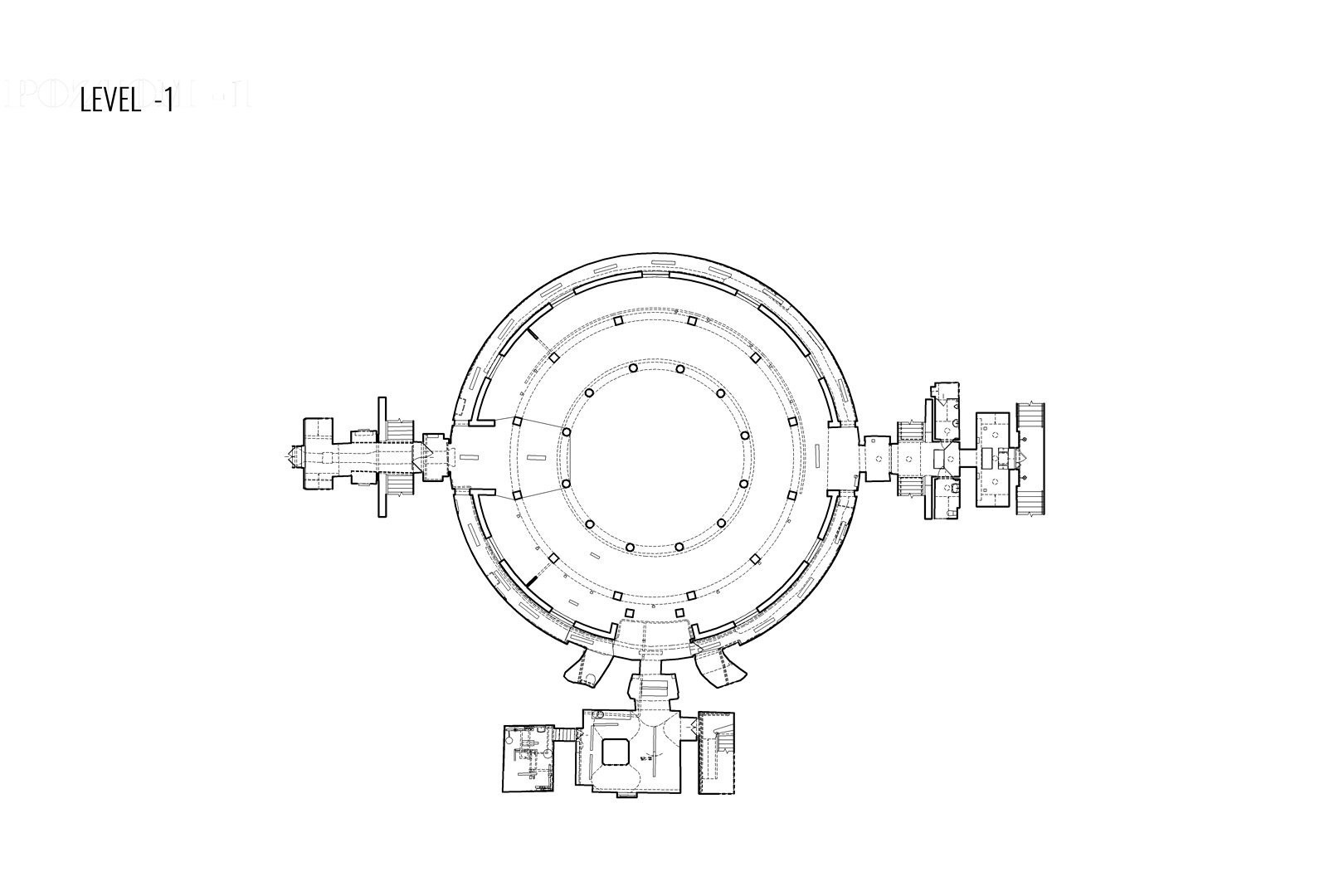

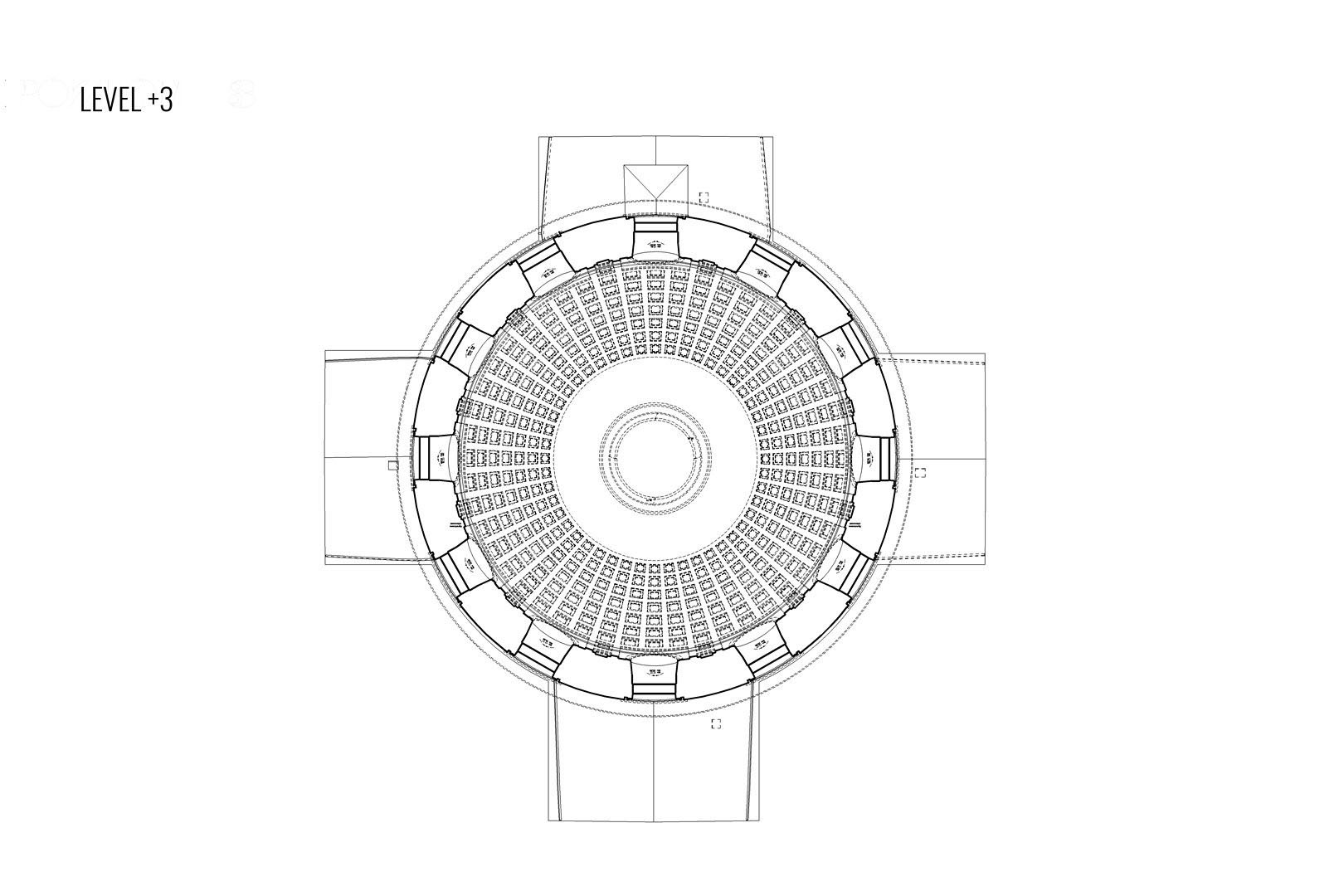

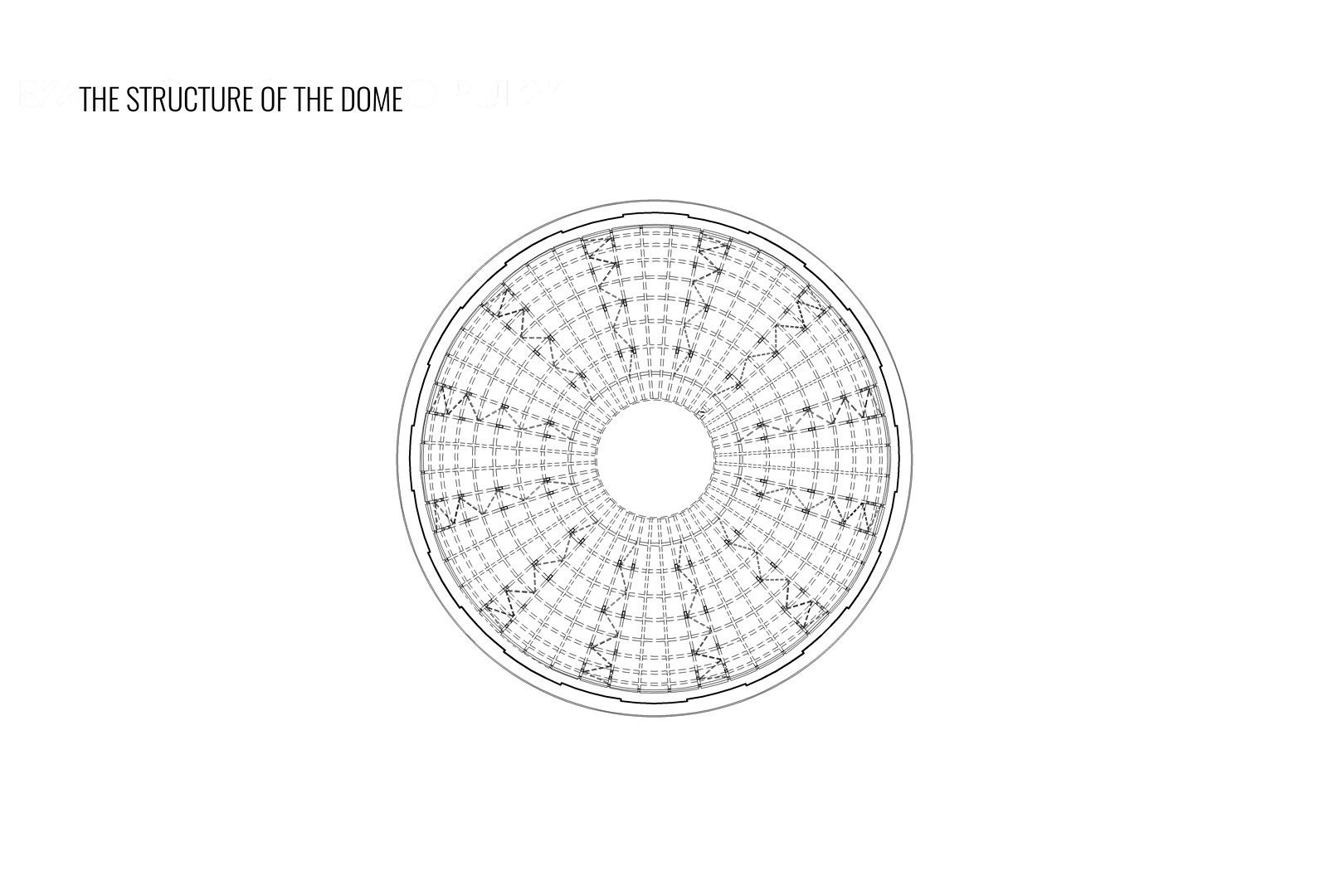

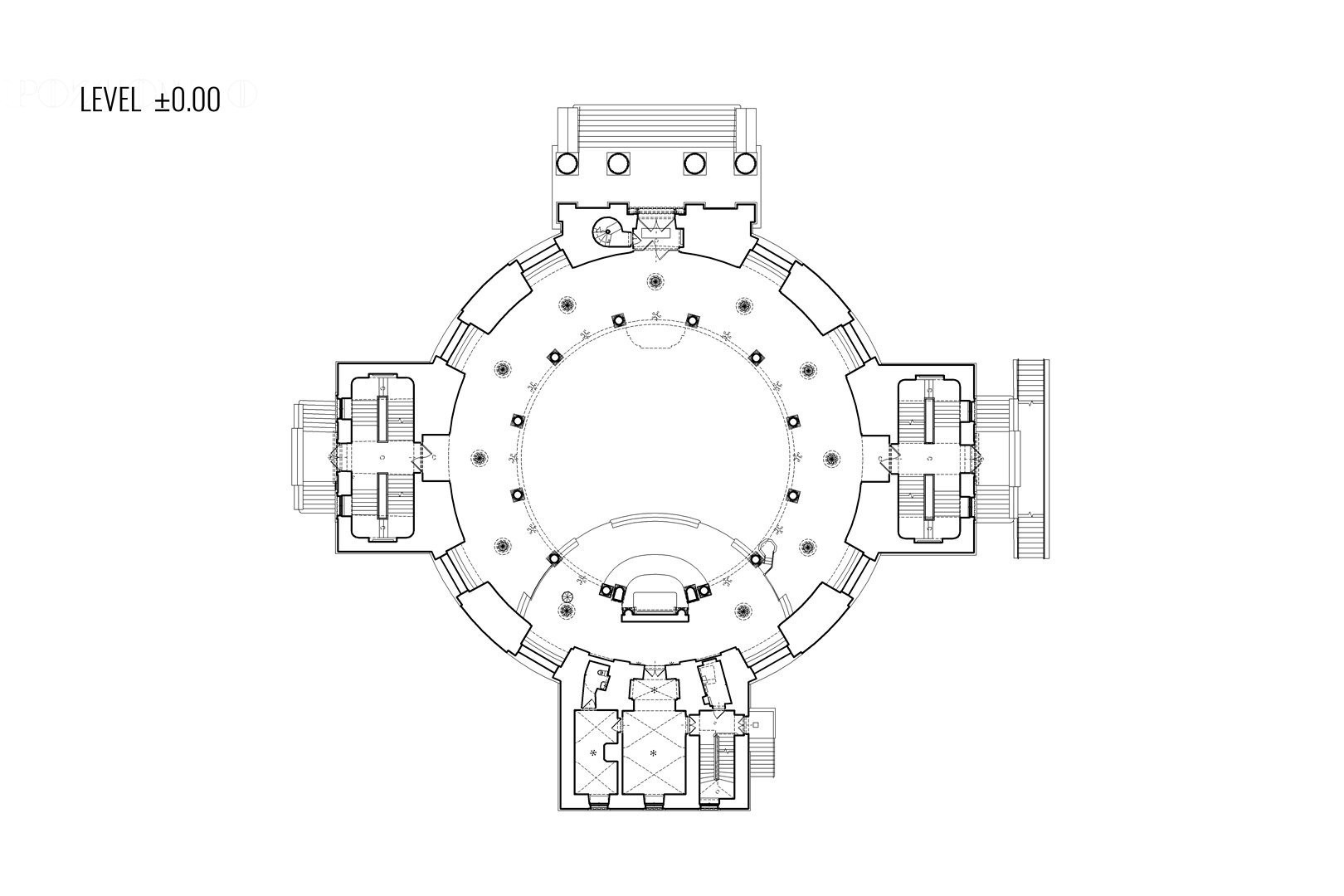

Investment has now been secured to perform conservation works on the dome. As the first step in this process, 3Deling was commissioned to produce a detailed 3D model as well as 2D plans and elevations of the dome structure. This project was especially challenging due to the limited access available to safely perform the survey works.
