Z+F Imager 5010C, Leica TCRA 1101 plus Total Station
TOTAL TIME SPENT
14 days on site, one person about 2400 scan positions, 100 days processing in the office
Registered point cloud, TruViews, Pano-Walk, BIM Revit model
MANCHESTER UNIVERSITY LIBRARY BIM MODEL
In collaboration with our UK client, we were commissioned on this extensive project at Manchester University Library. This was an incredibly challenging project. The building extends over 30,000 sq. m where we completed over 2400 individual scans all registered onto a single coordinate system.
The volume of data pushed the limits of the registration software. 3Delings extensive experience allowed us to overcome these challenges

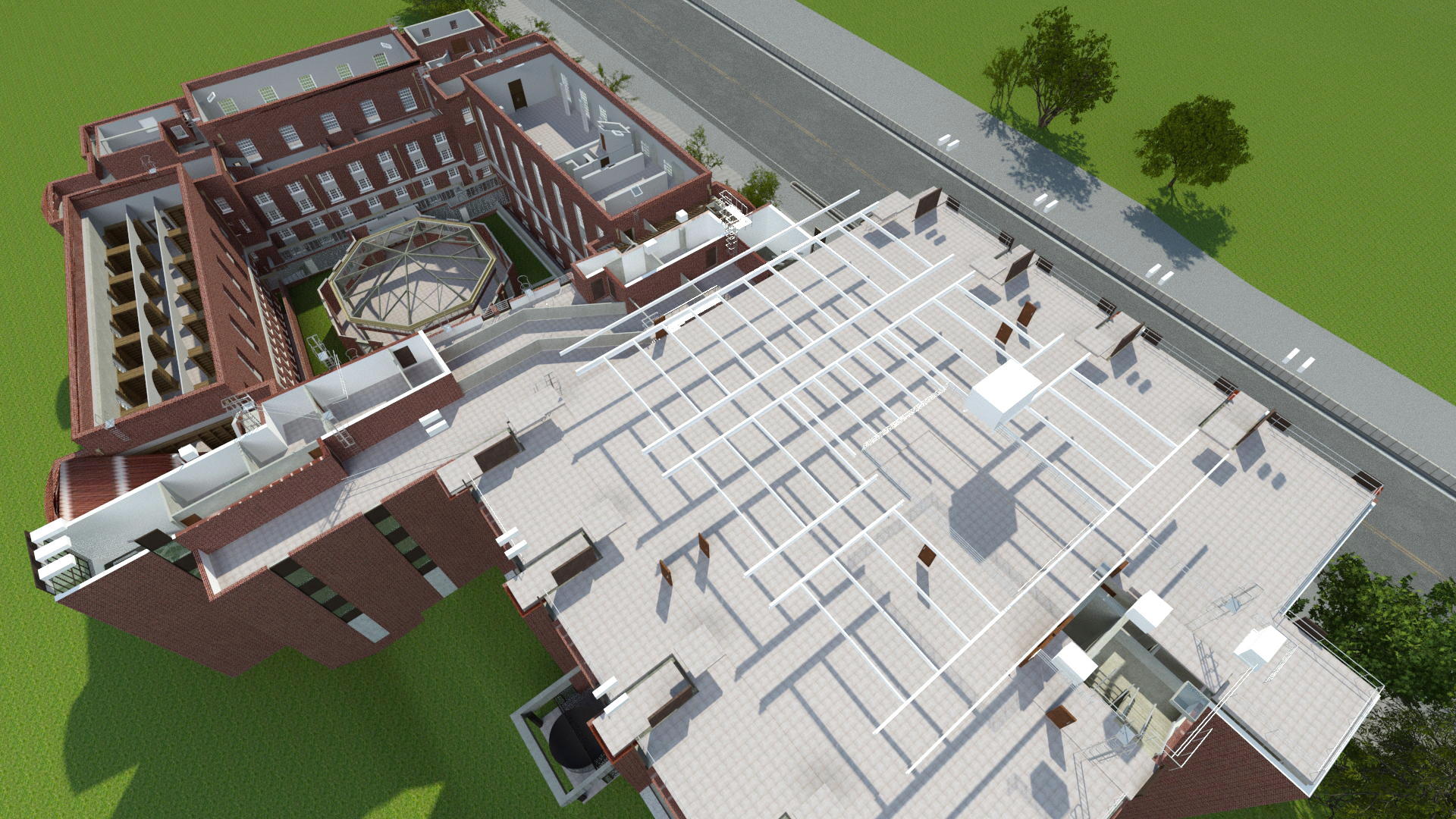

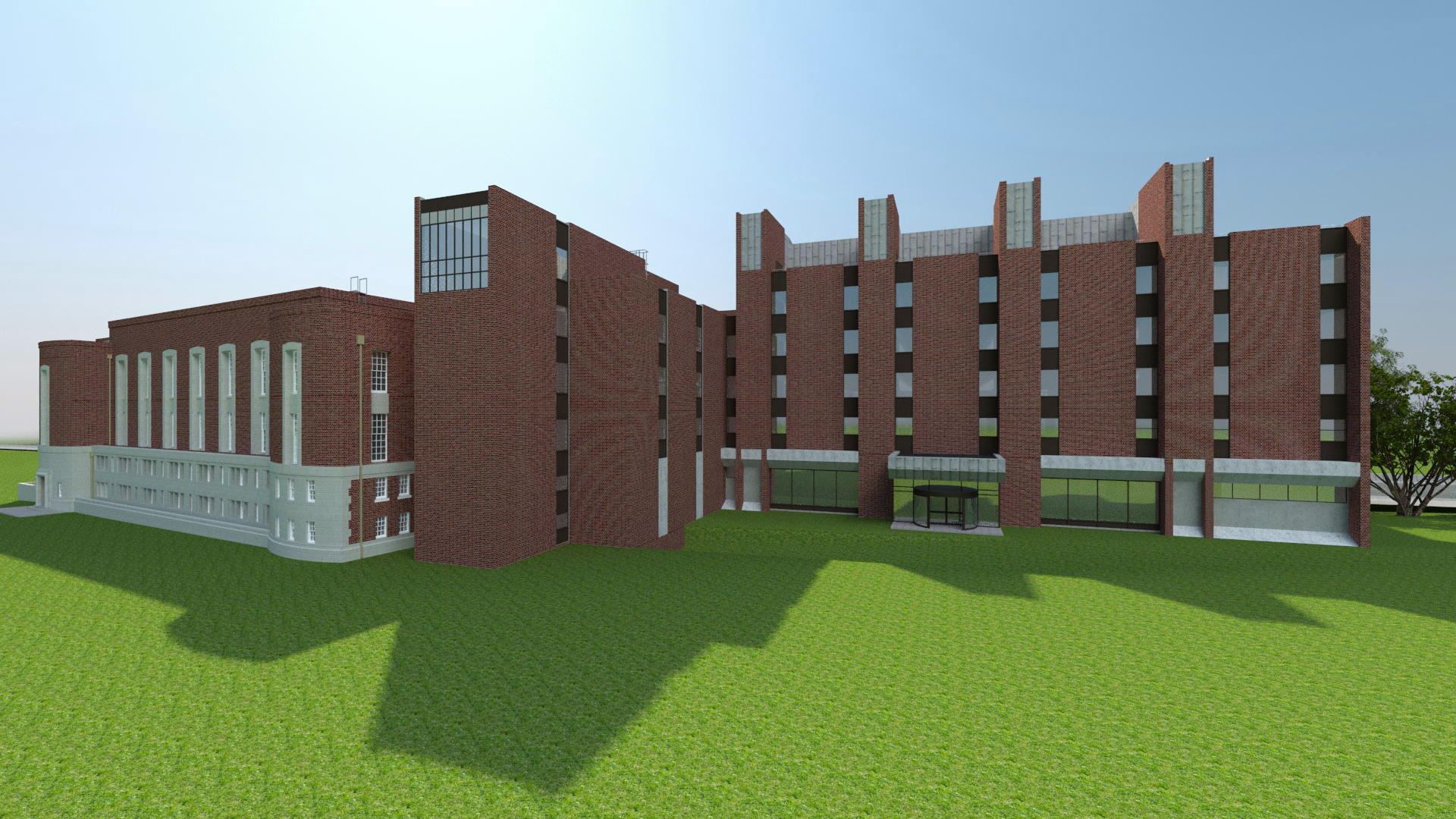

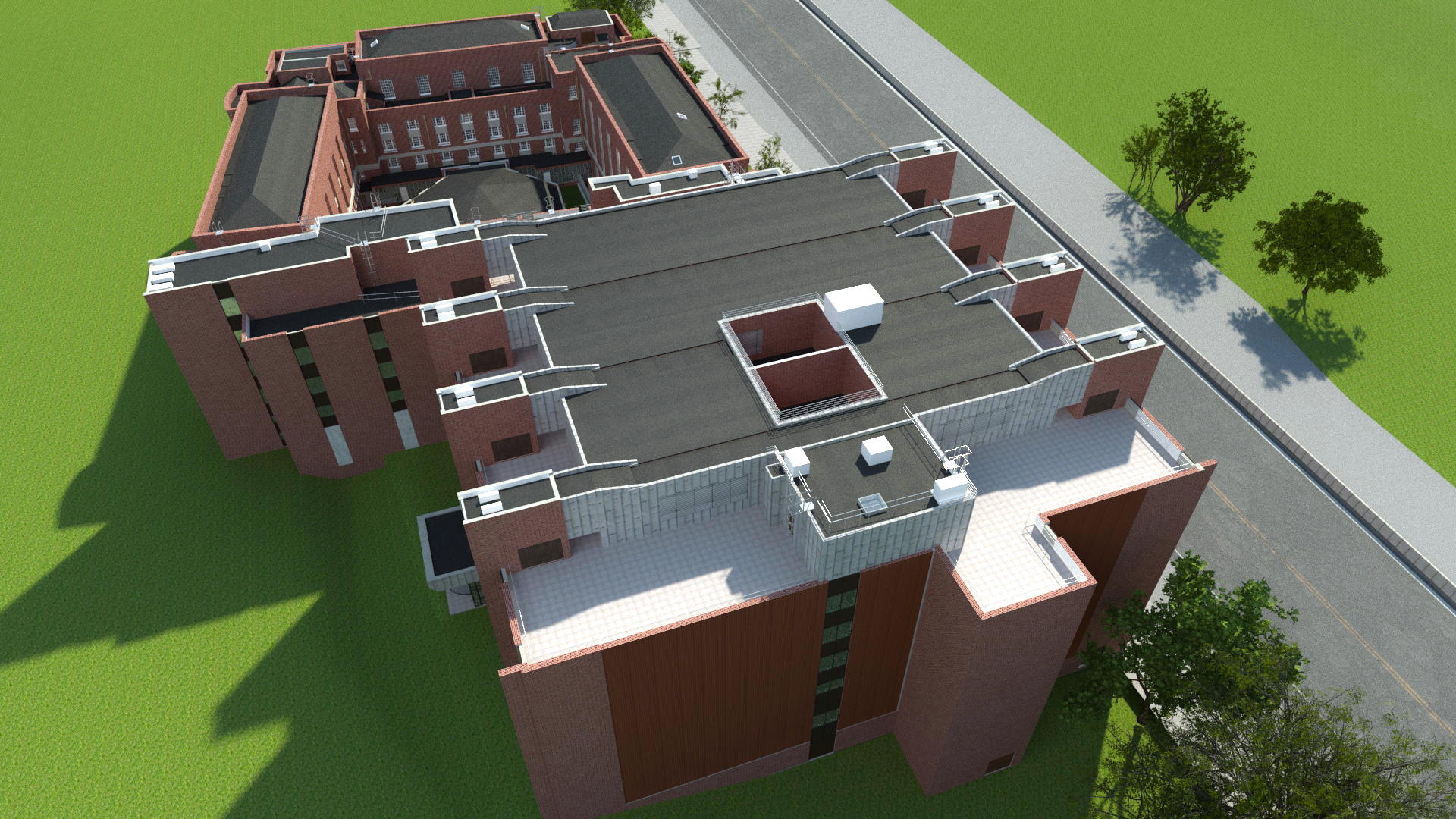

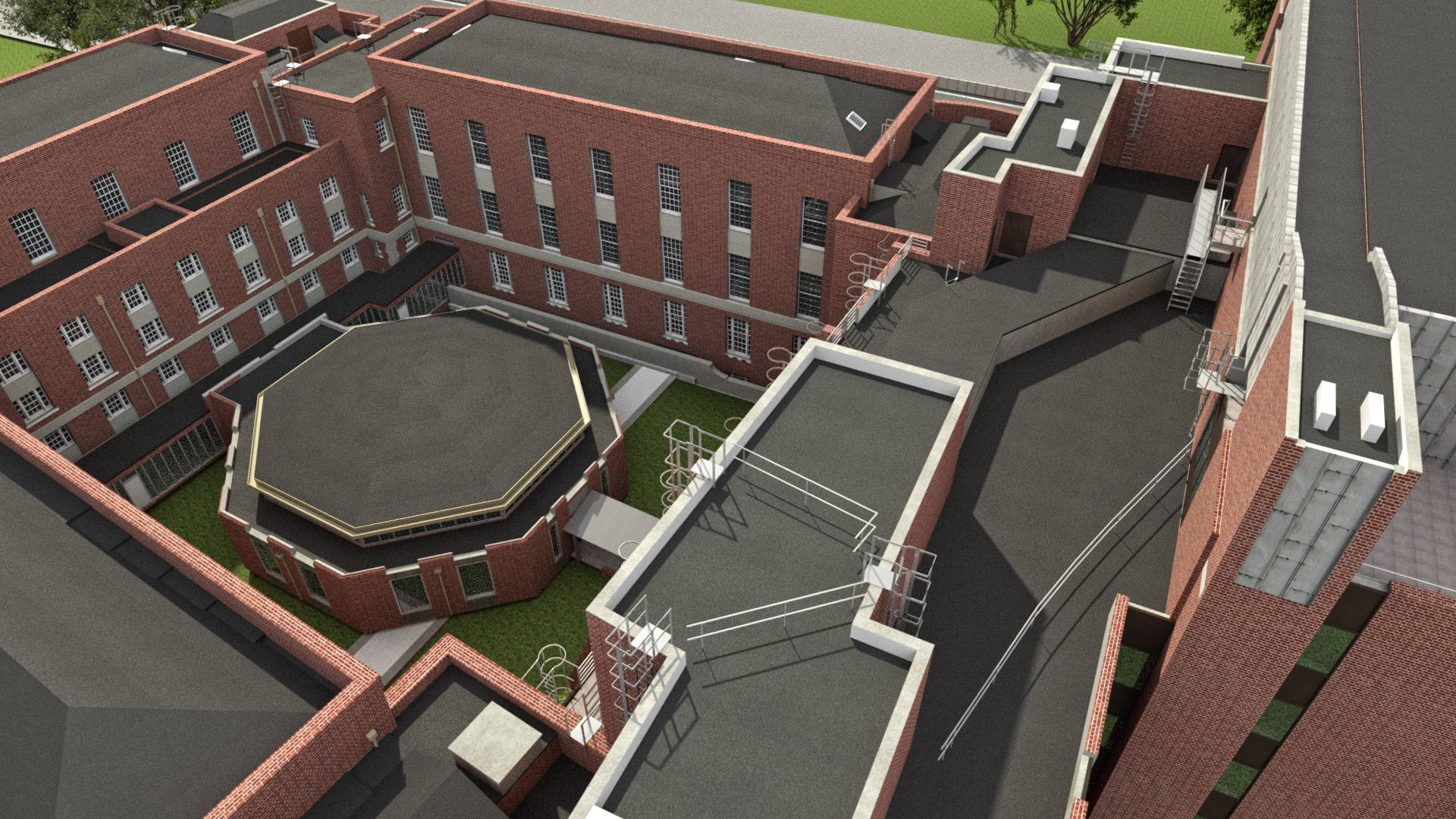

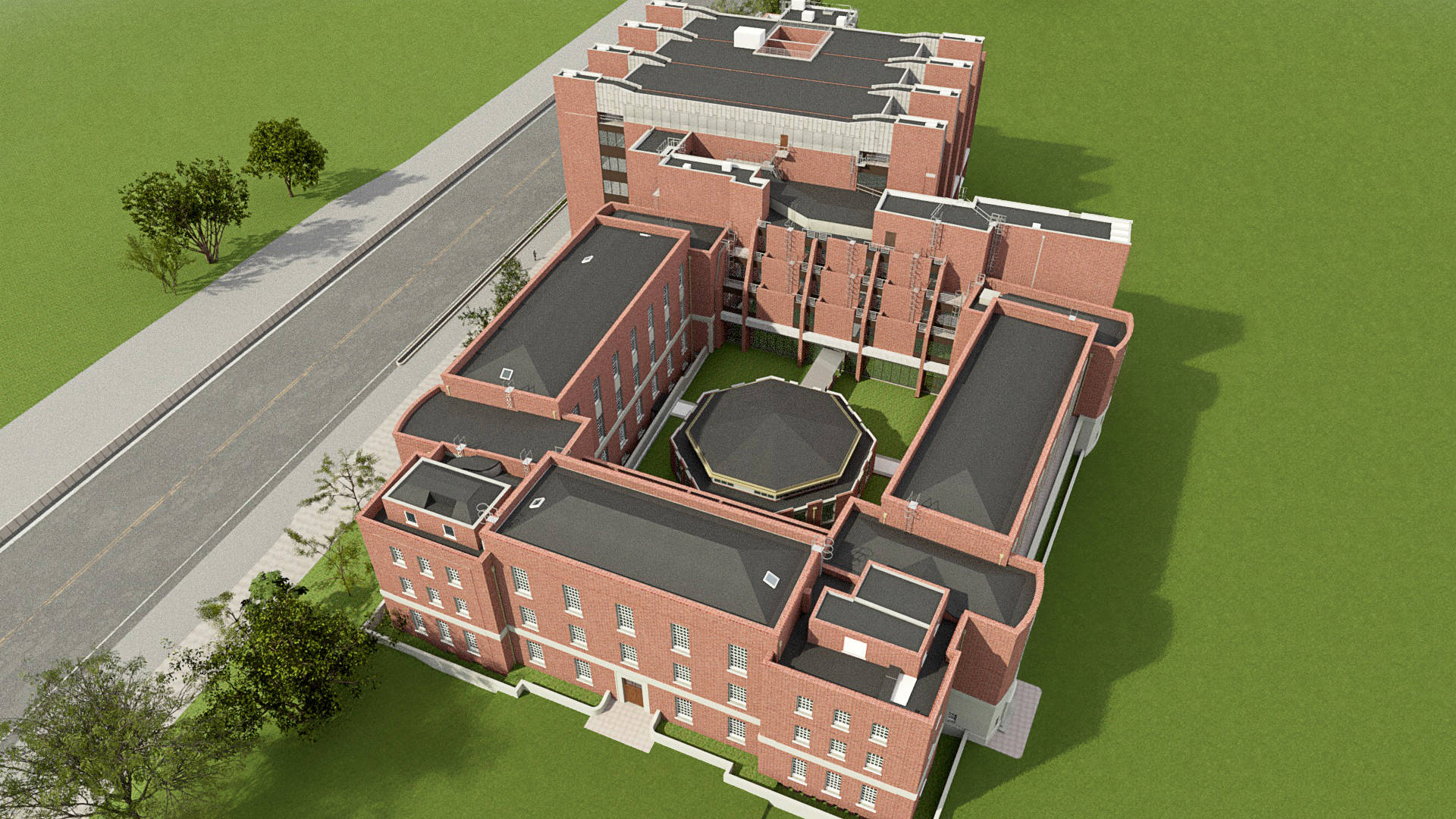

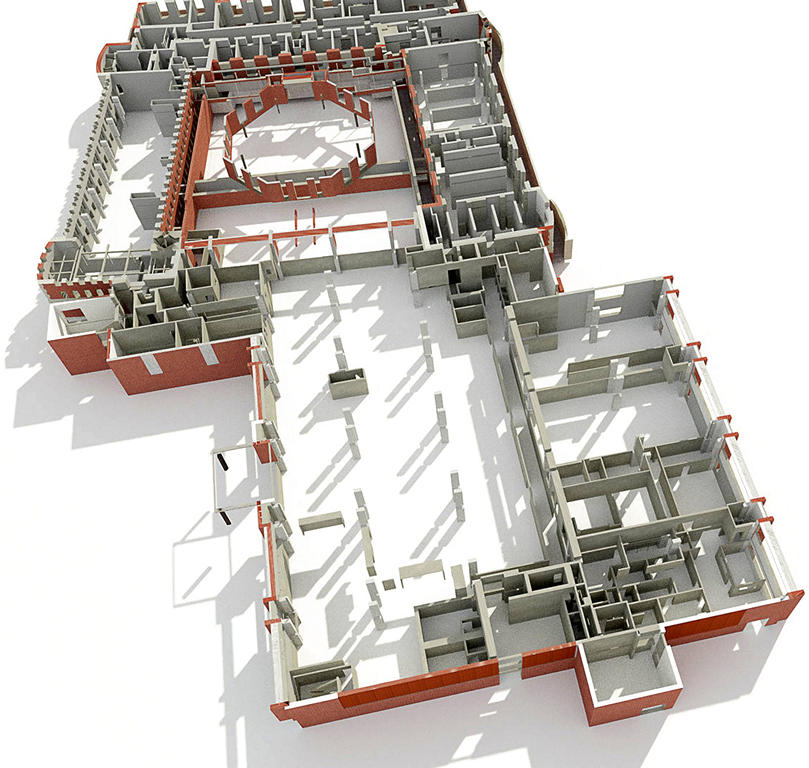

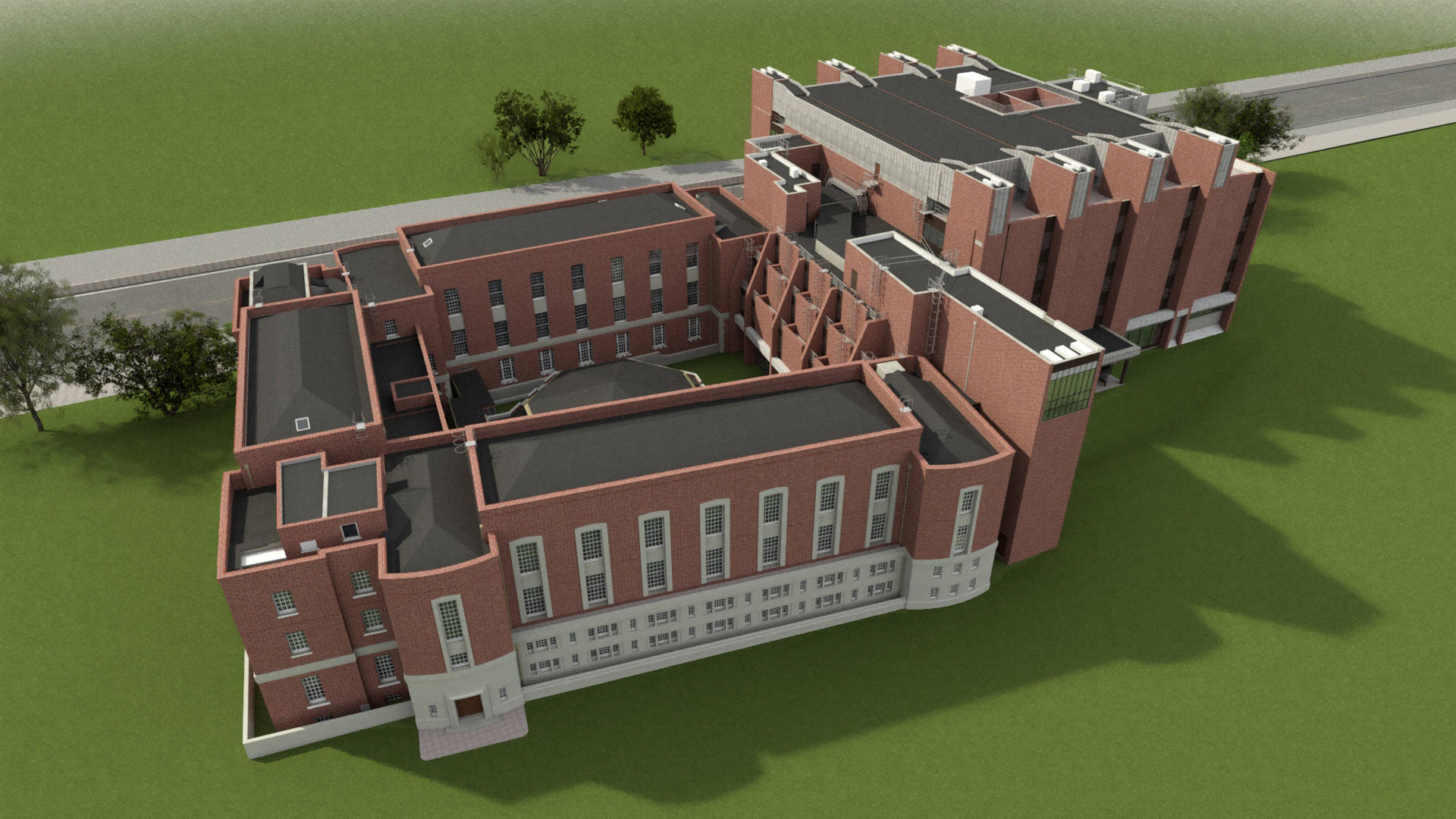

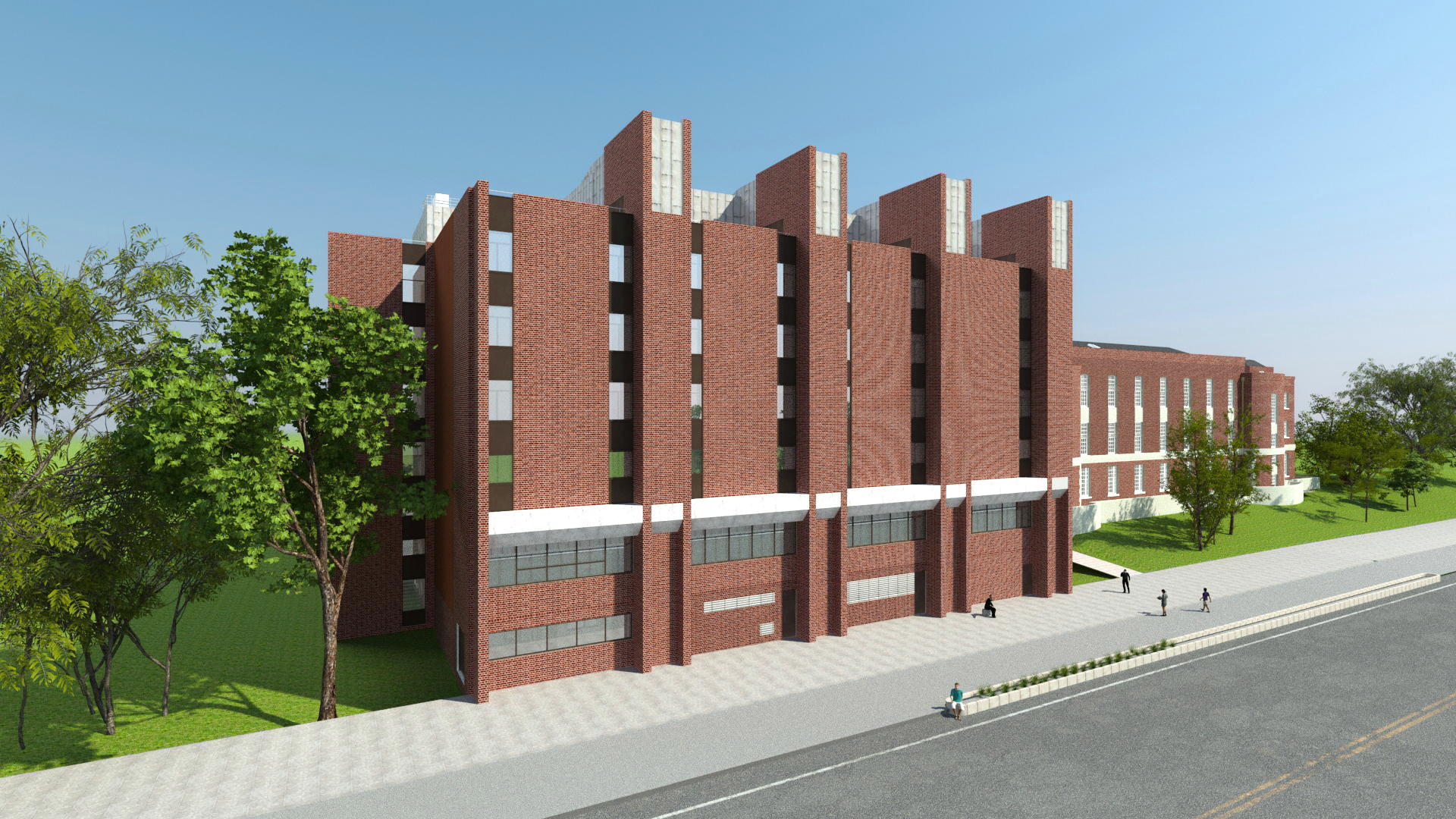

The final deliverable was LOD 3 BIM model completed in Autodesk Revit.
