Pabianice historic church

LOCATION

Pabianice, Poland

SURVEYING EQUIPMENT

scanner Z+F Imager 5010C, Leica TCRA 1101 plus Total Station

TOTAL TIME SPENT

1 day on site (30 scans), about 20 days processing in the office (CAD and scan registration)

FINAL PRODUCT

Registered point cloud, 3D CAD models



Laser Scanning and 3D modelling of Pabianice Historic Church

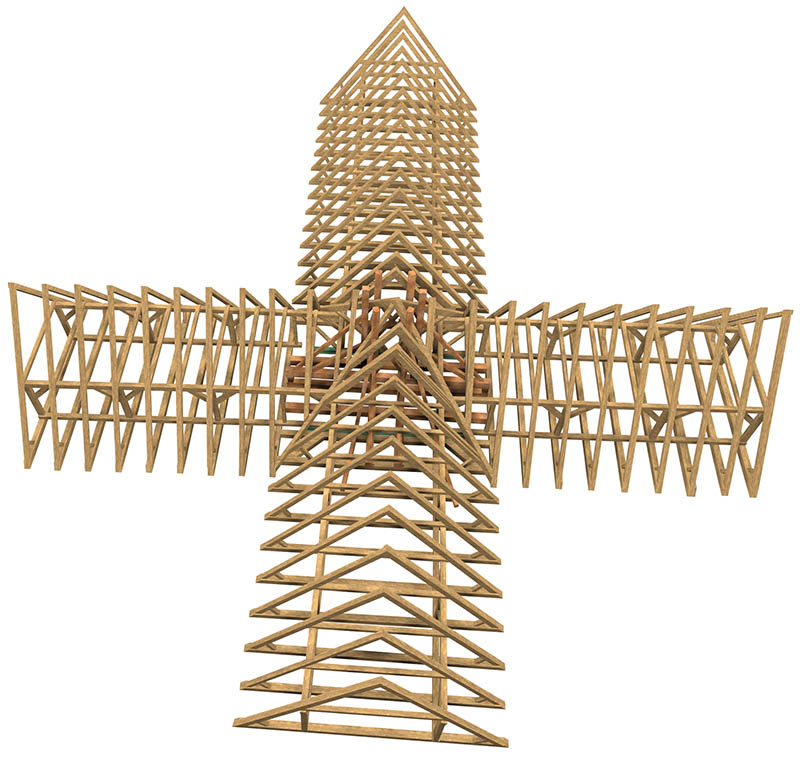

The purpose of the project was to provide design documentation for the roof structure of this historic church. 3D laser scanning was carried out throughout the roof-space under very difficult conditions. The resulting point cloud was used to create 3D models for individual roof structure elements. The model created will be used as the basis for new design.
