London, Great Britain
scanner Z+F Imager 5010C, Leica TCRA 1101 plus Total Station, Camera Canon 3D Mark II
TOTAL TIME SPENT
1 day on site (30 high-resolution scans ) 2 persons, about 20 days processing in the office (scan registration, ortophotos)
Registered point cloud, orthophotos
INVENTORY OF SELFRIDGES EXTERNAL FASADE
The scope of the project was to carry out a detailed examination of the facades of the iconic Selfridges department store on London’s Oxford Street. Limited access in this busy London thoroughfare prevented the use of drone technology at the time. Our team, therefore, undertook scanning and photography from a number of adjacent buildings to capture data as perpendicular to the facades as possible.

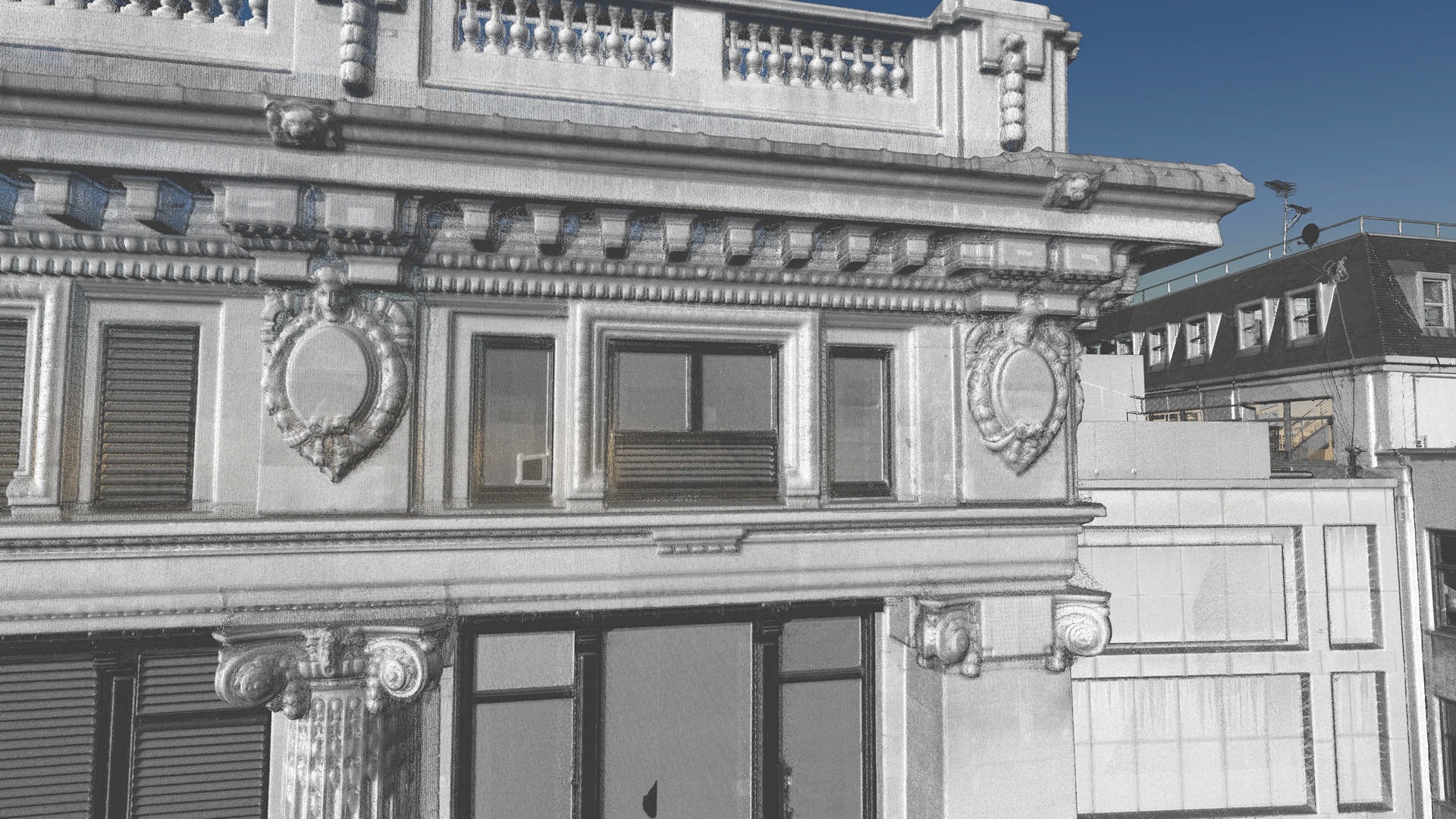

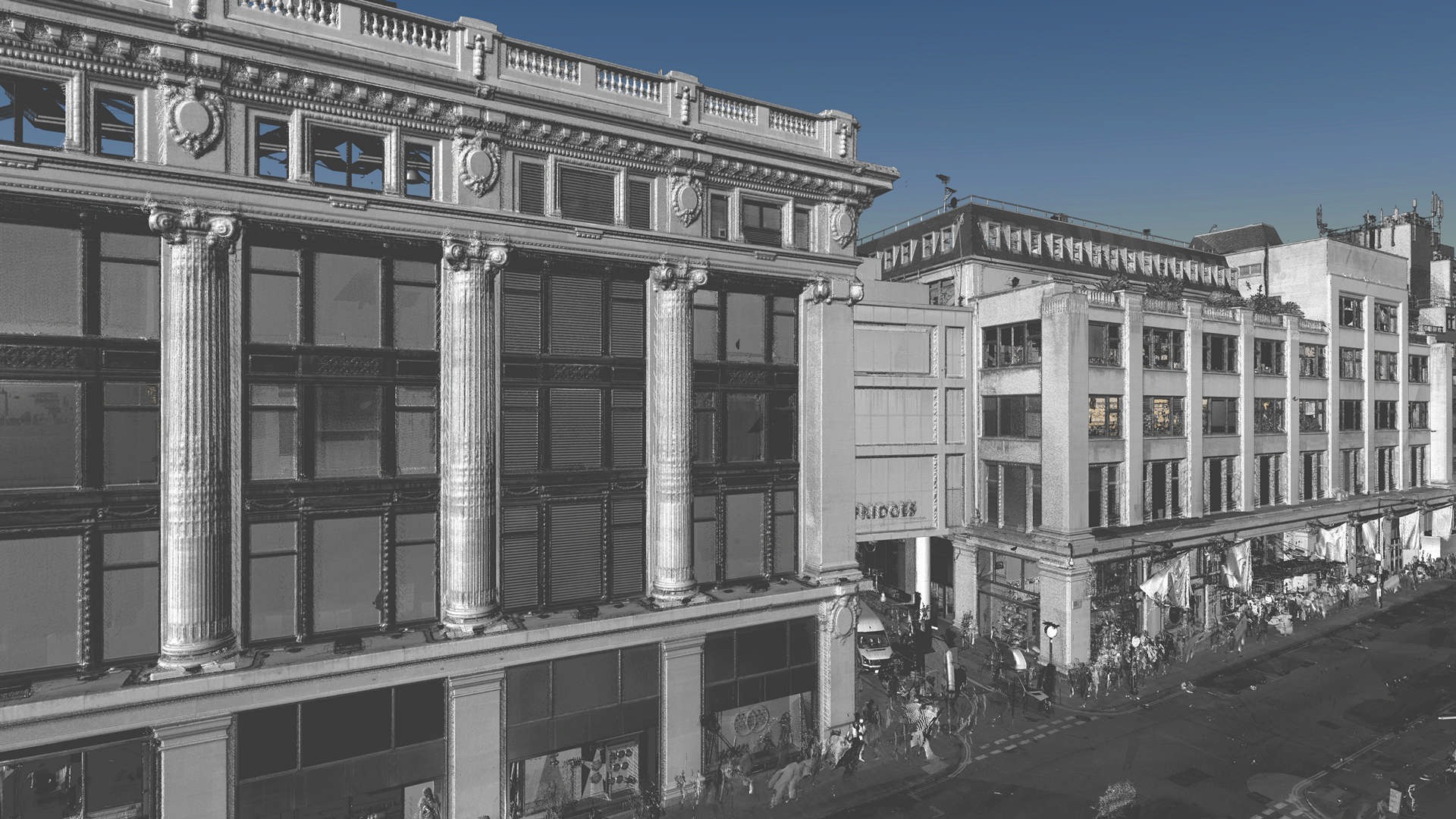

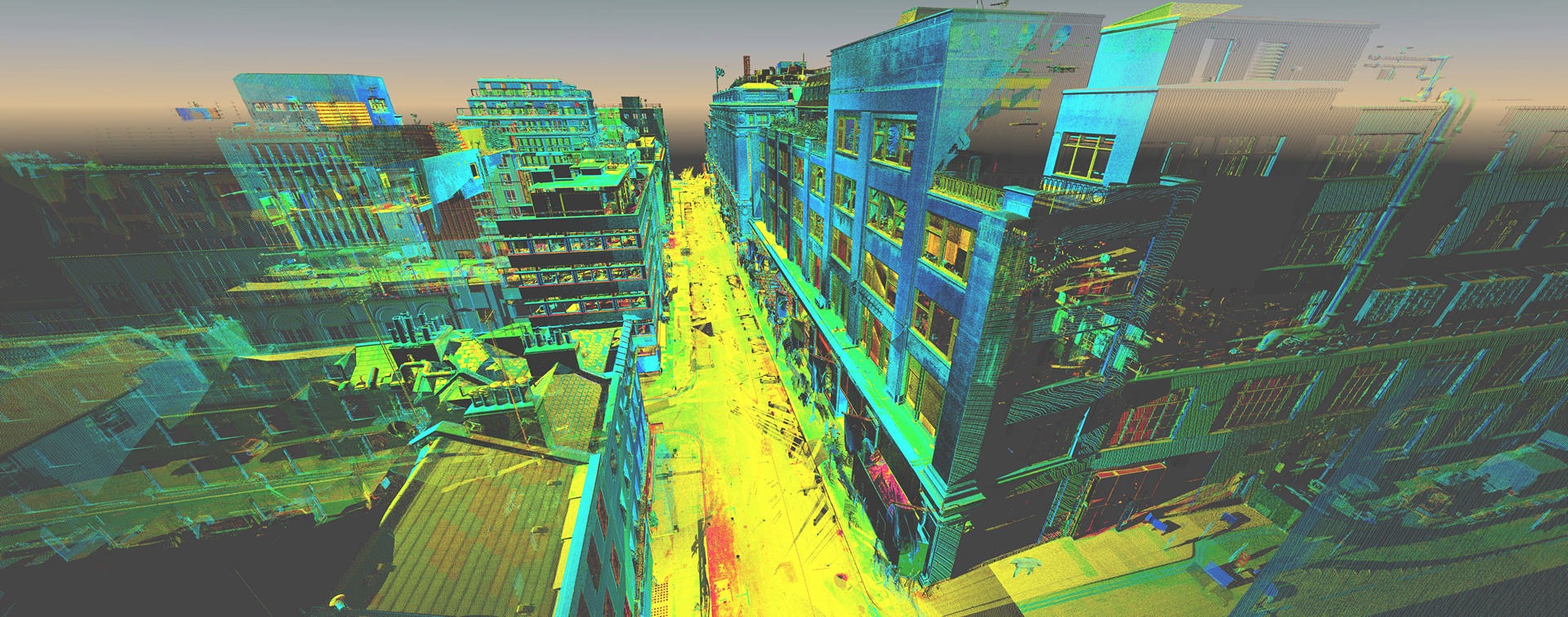

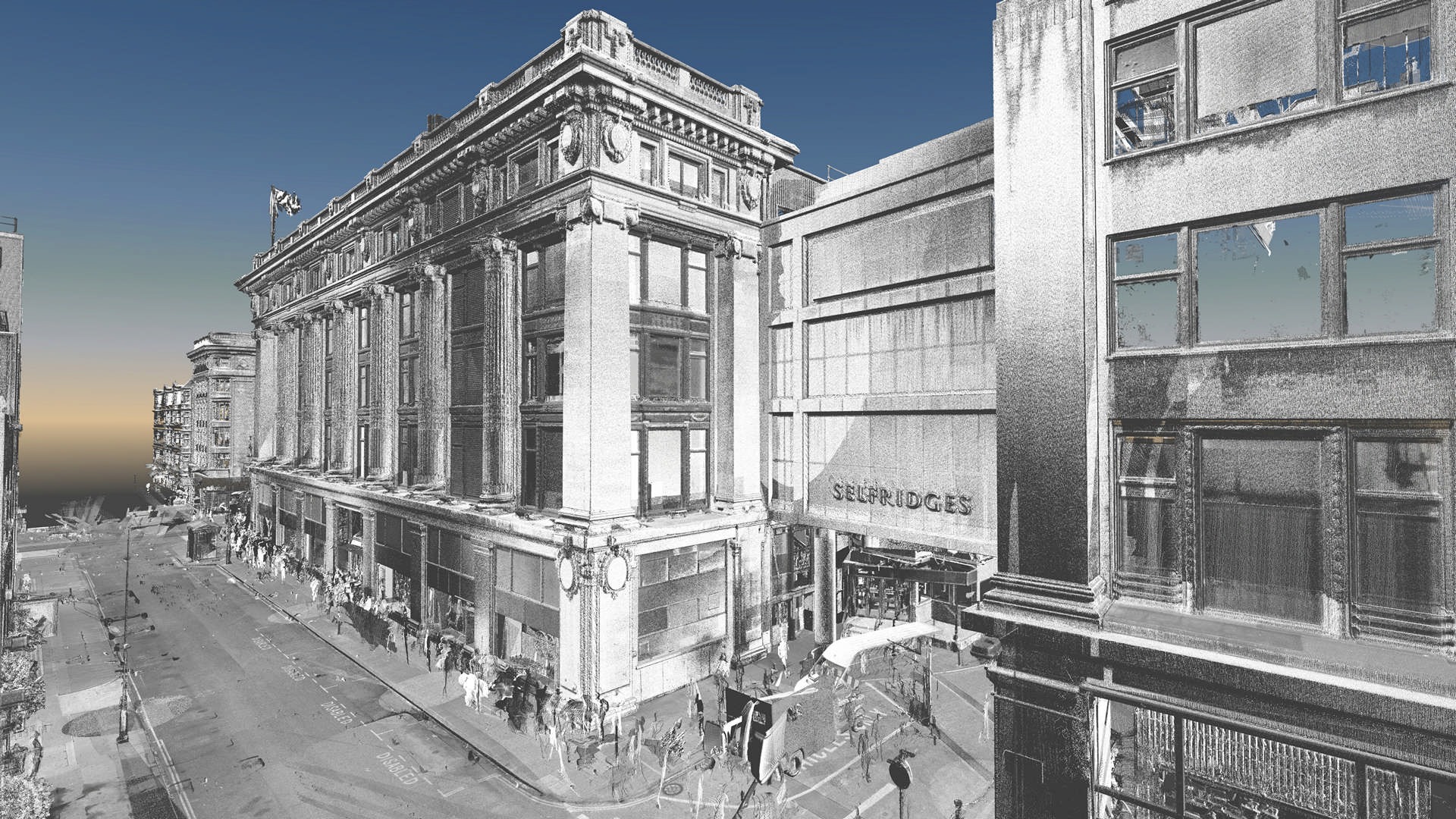

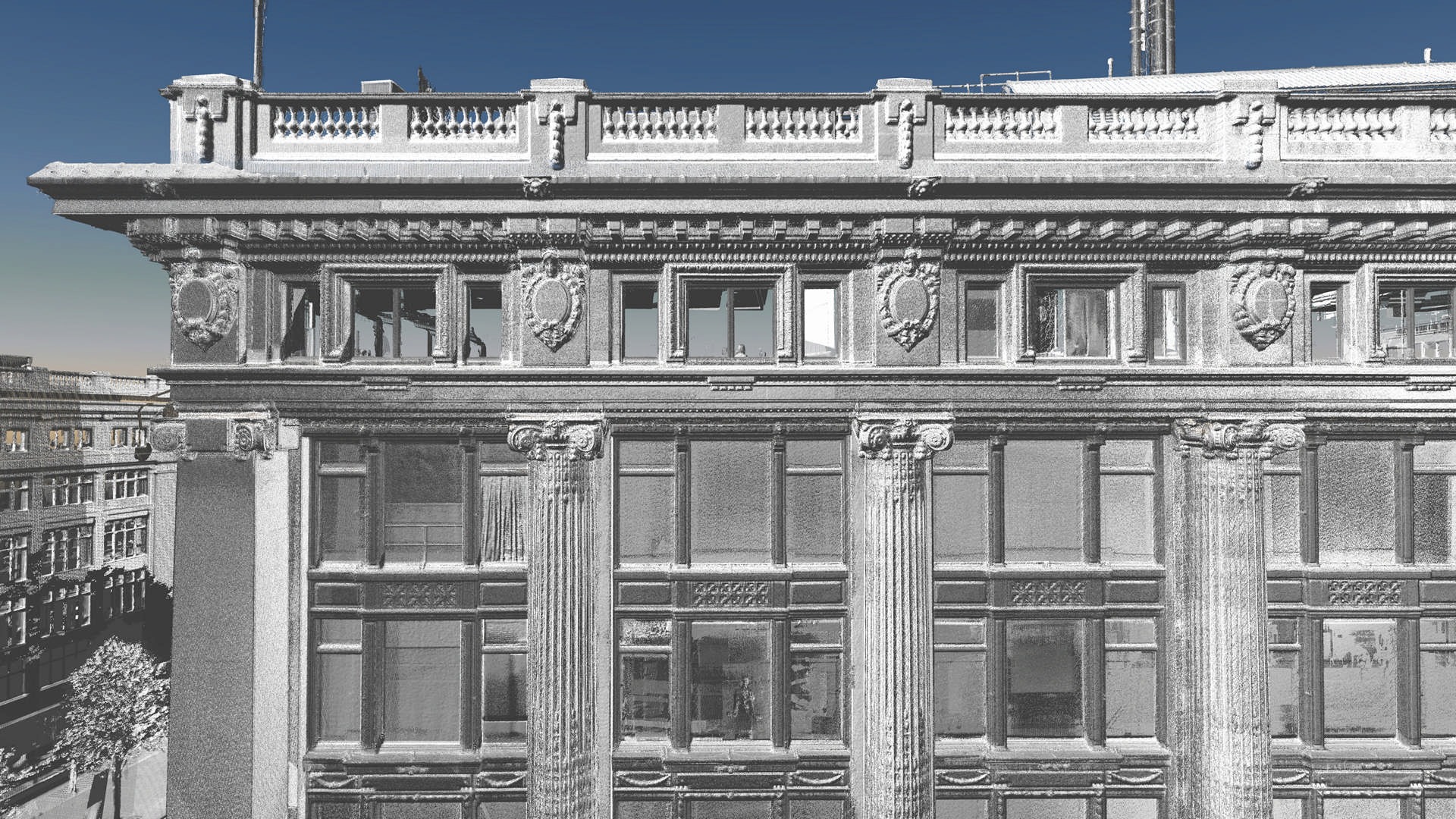

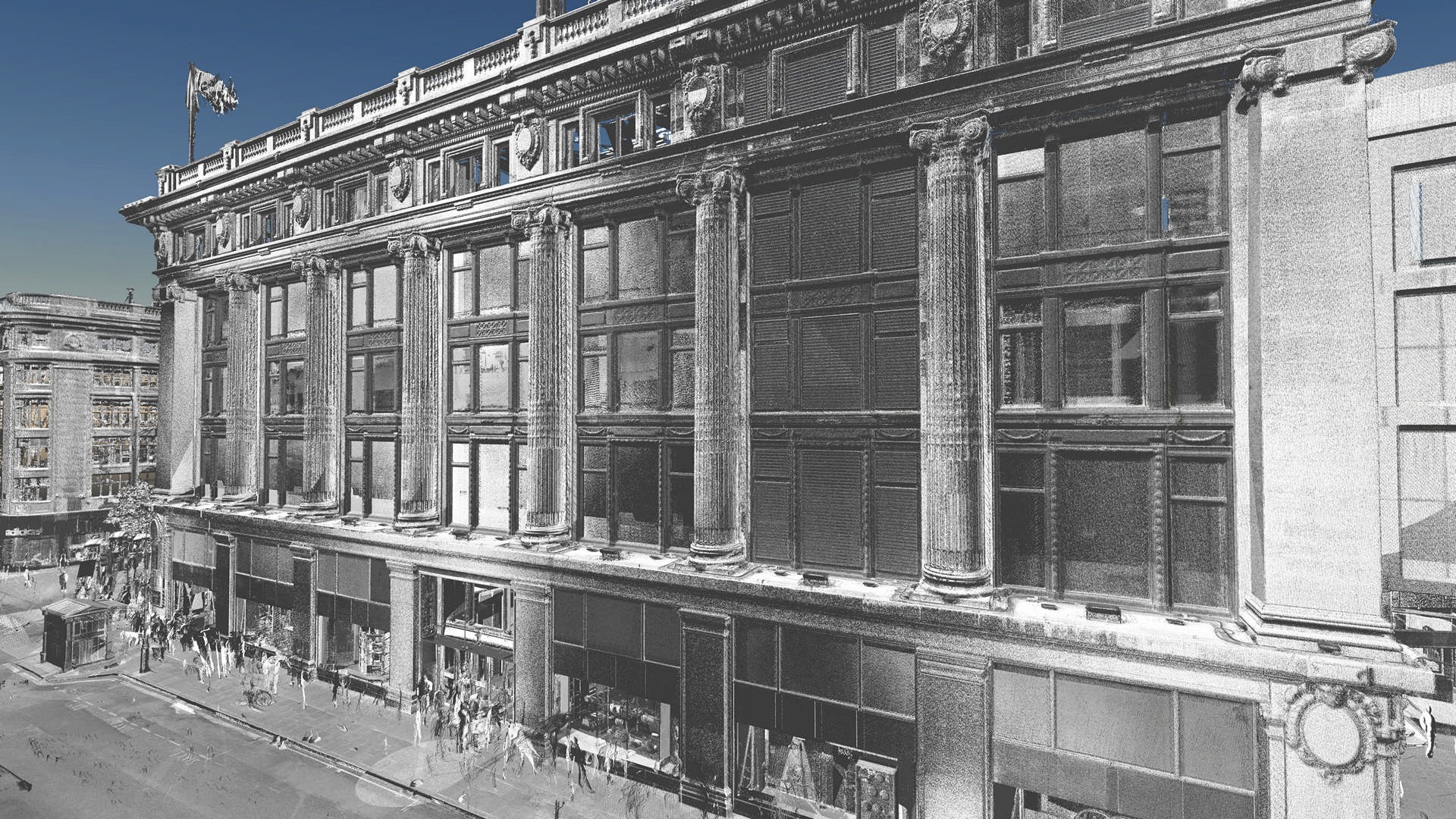

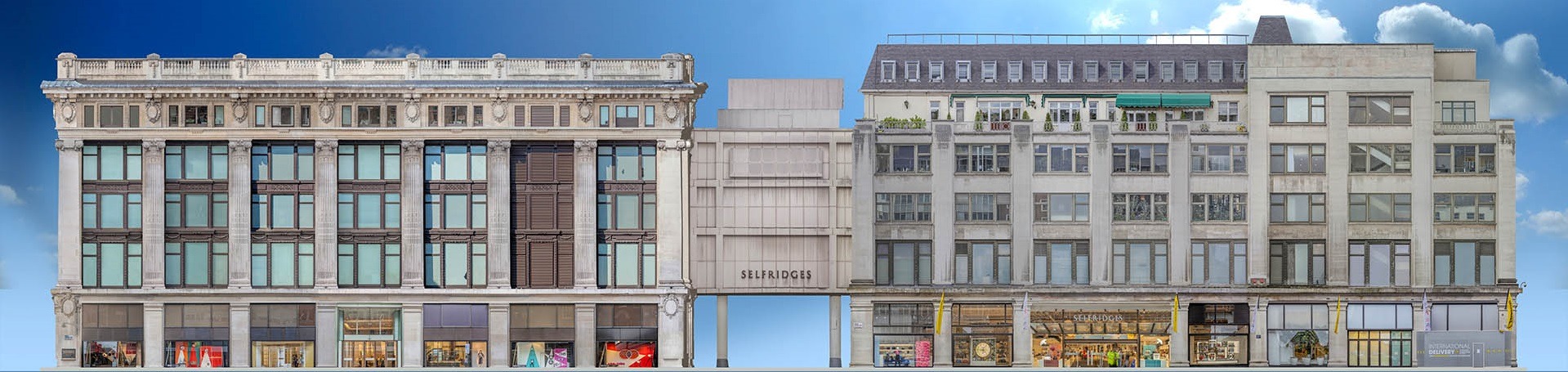

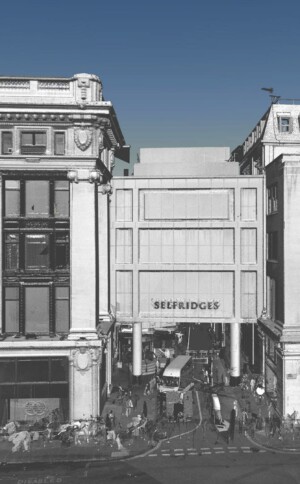

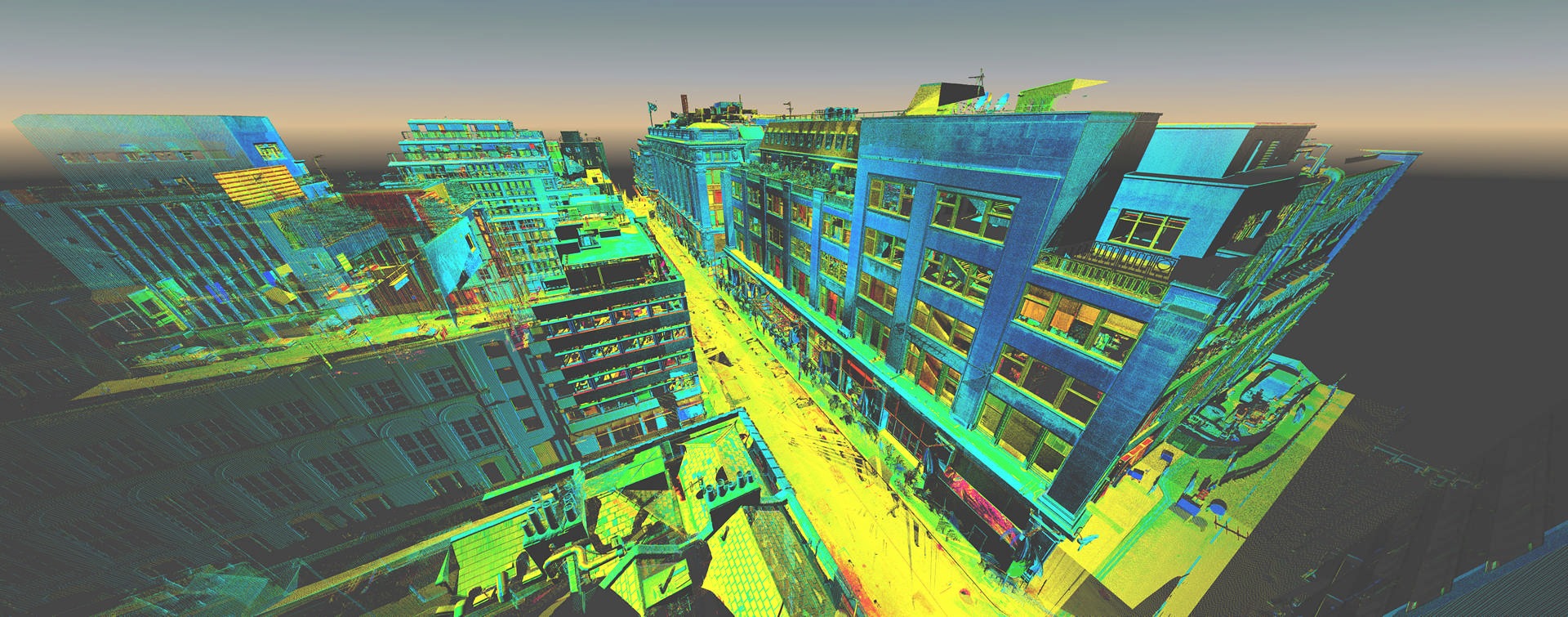

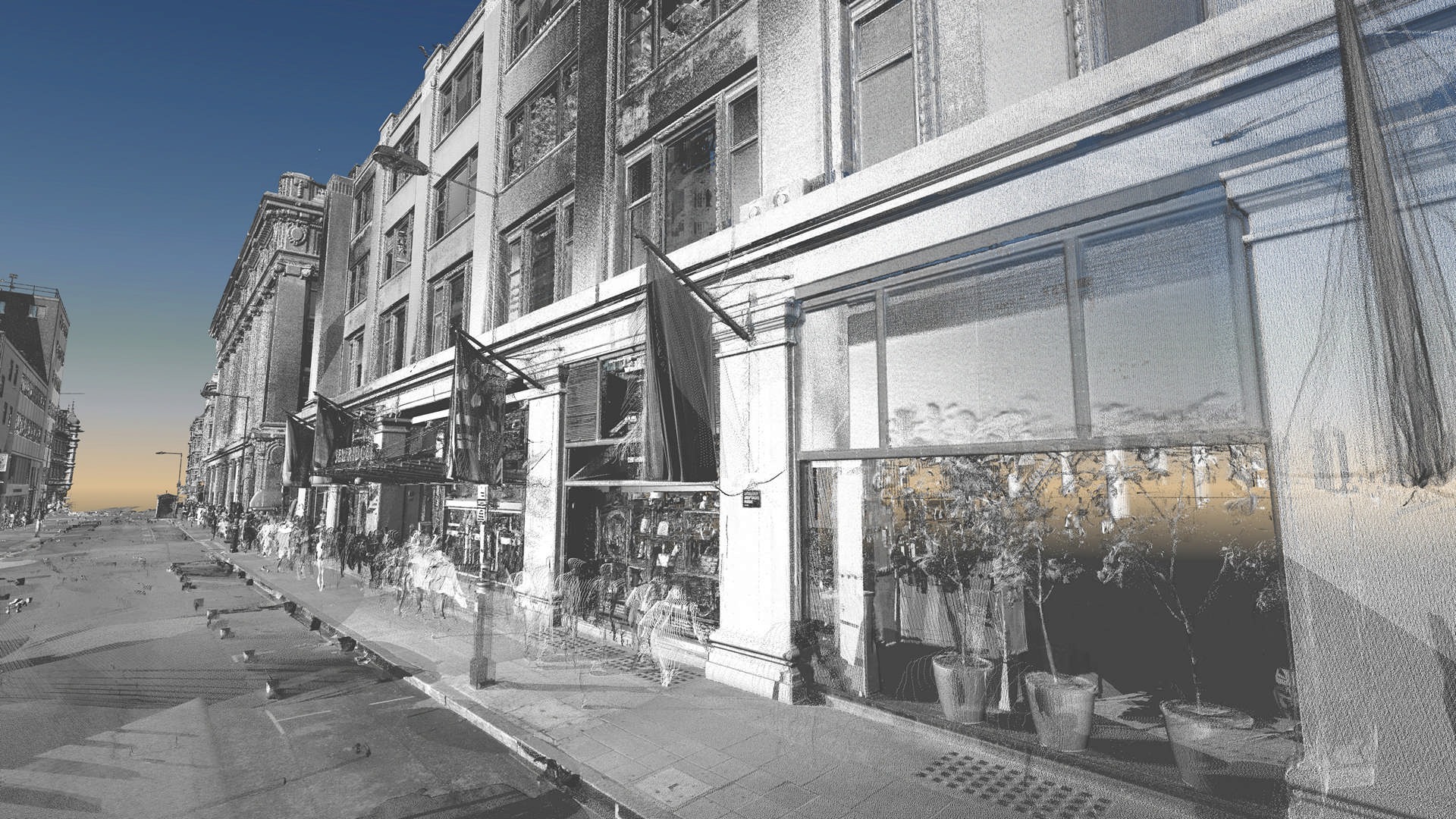

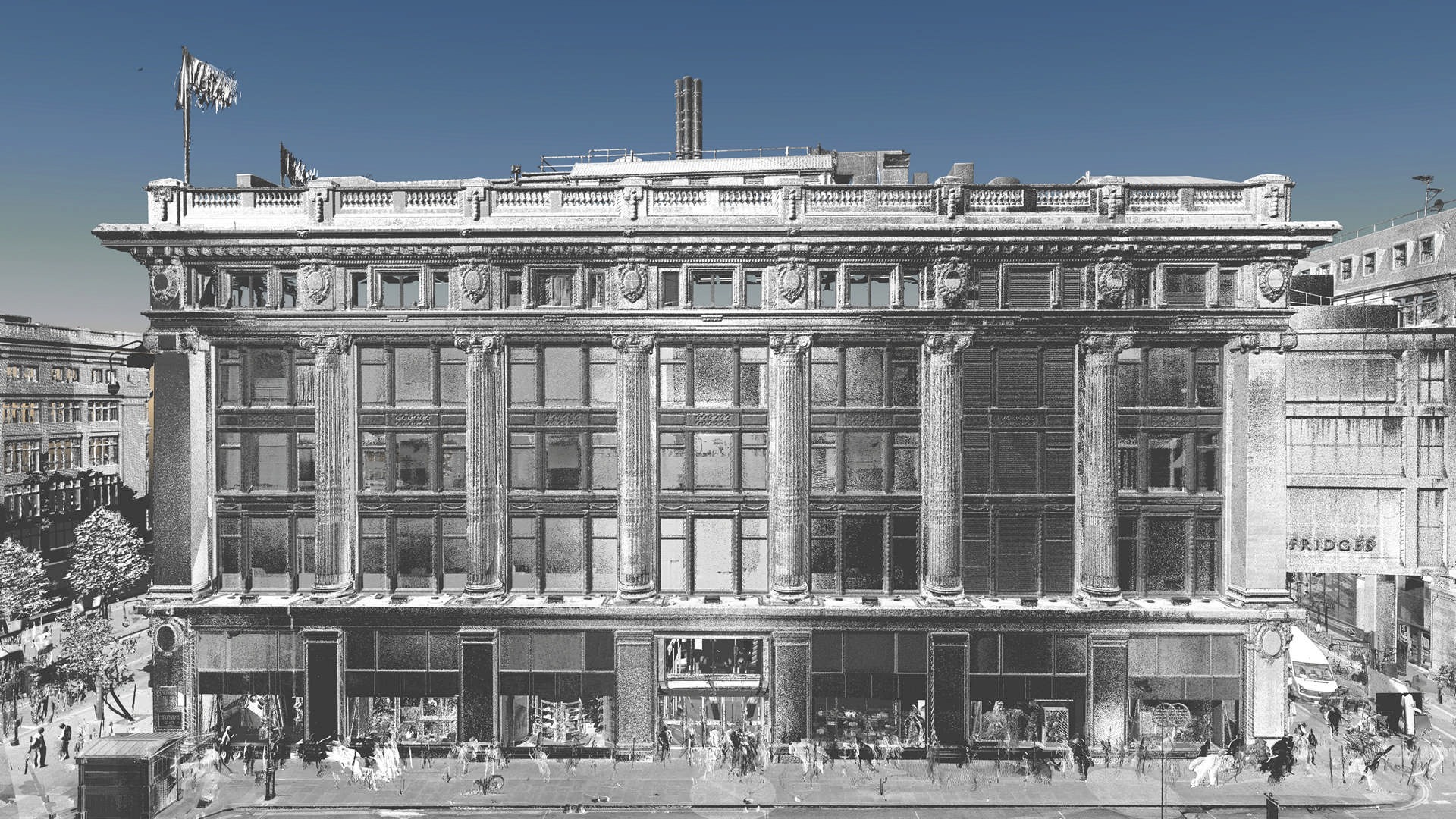

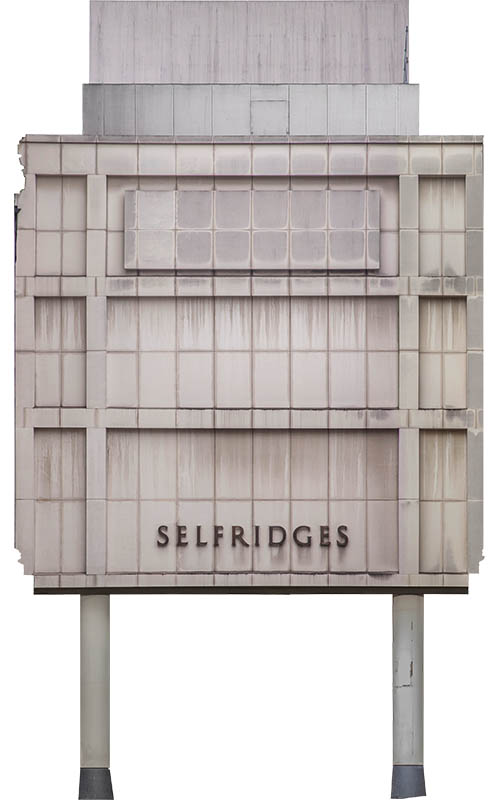

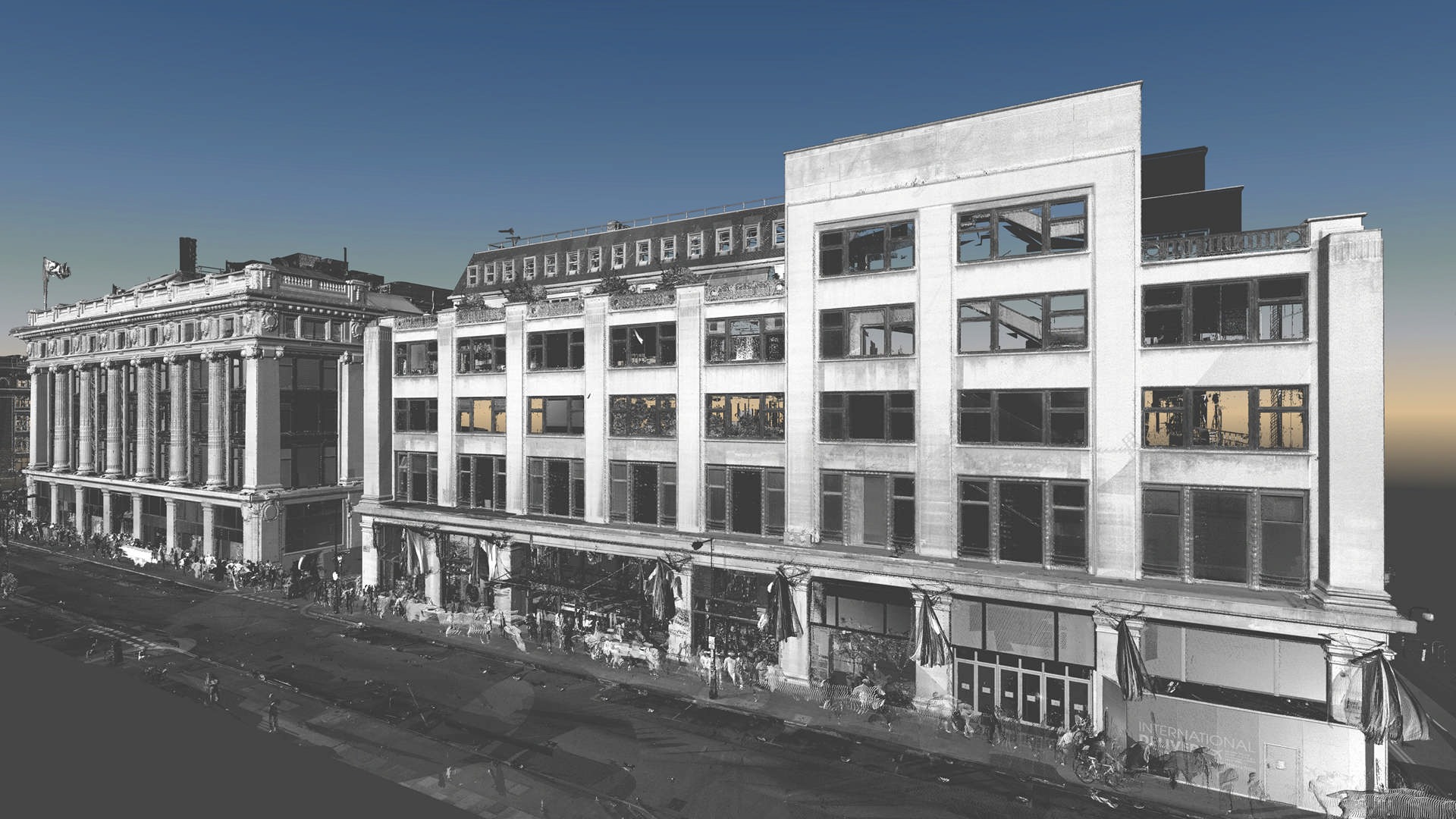

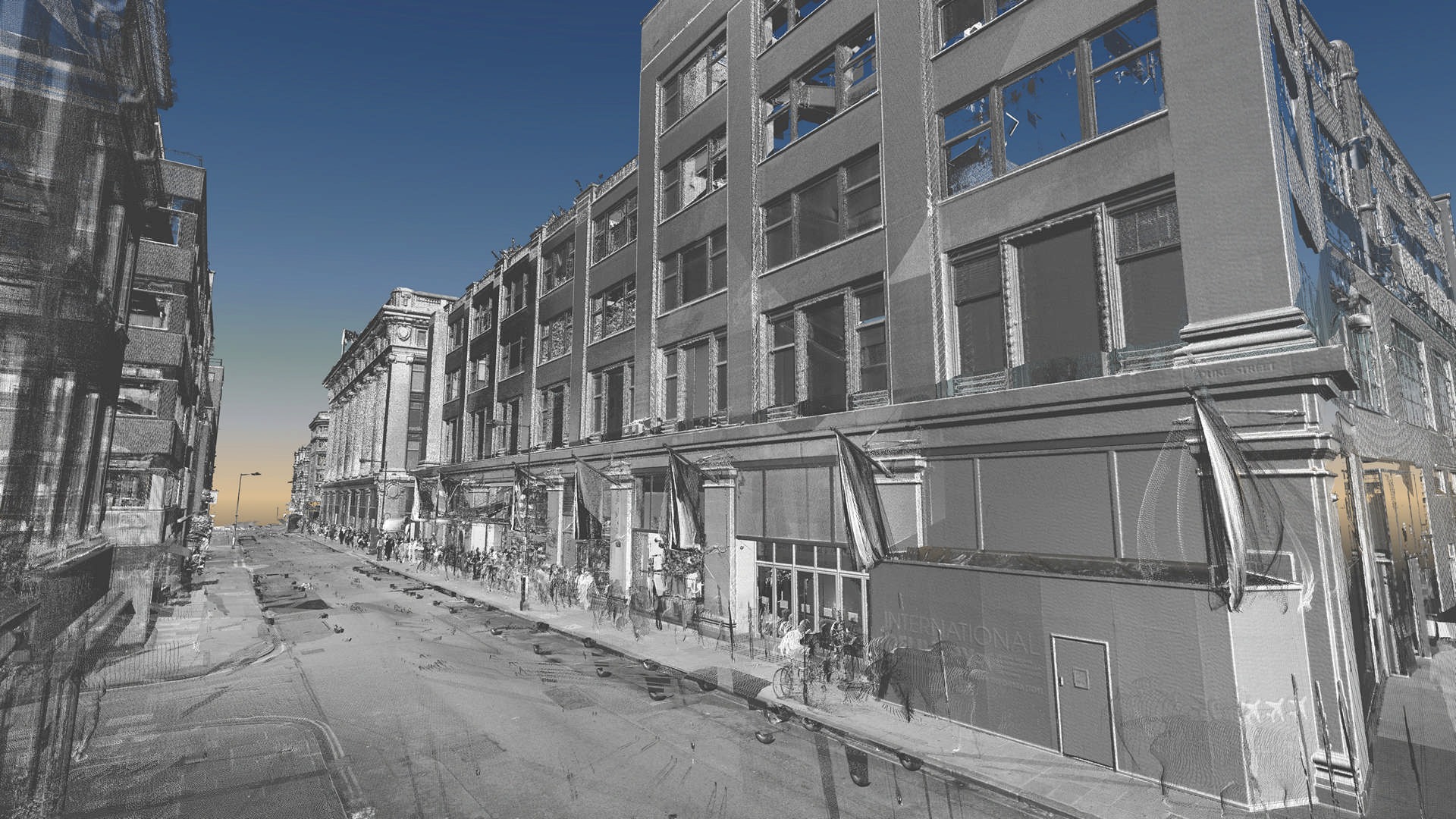

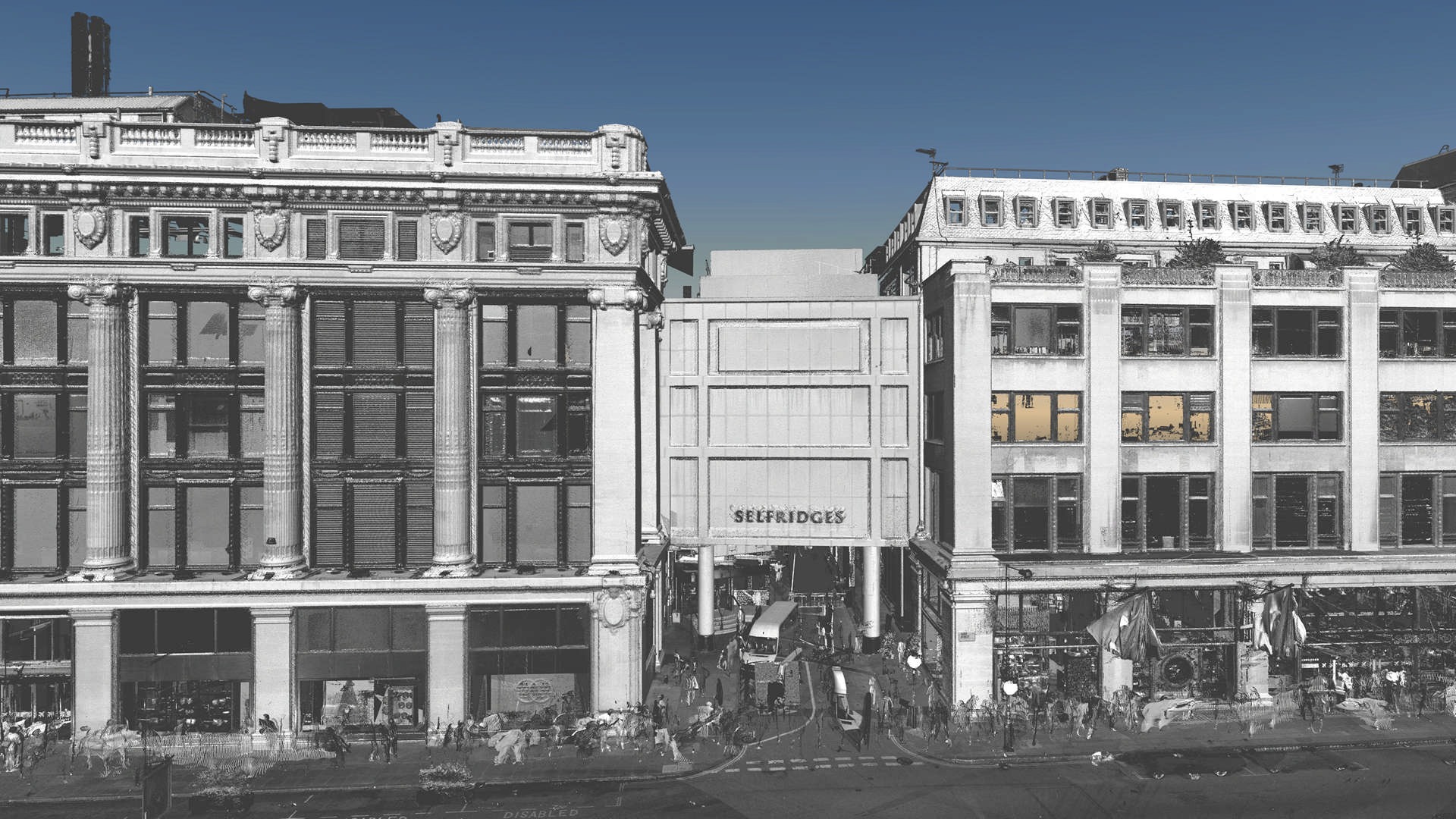

From the collected data, orthophoto plans were produced from a high resolution coloured point cloud.
This was a technically challenging project due to the high resolution and density of the scan data. The finished article, however, is impressive.
