Seychelles

LOCATION

Seychelles, Africa

SURVEYING EQUIPMENT

scanner Z+F Imager 5010C, Leica TCRA 1101 plus Total Station

TOTAL TIME SPENT

2 days on site (150 scans), about 2 days processing in the office (CAD and scan registration)

FINAL PRODUCT

Registered point cloud, TruView



Ship Scanning for Refit, Seychelles

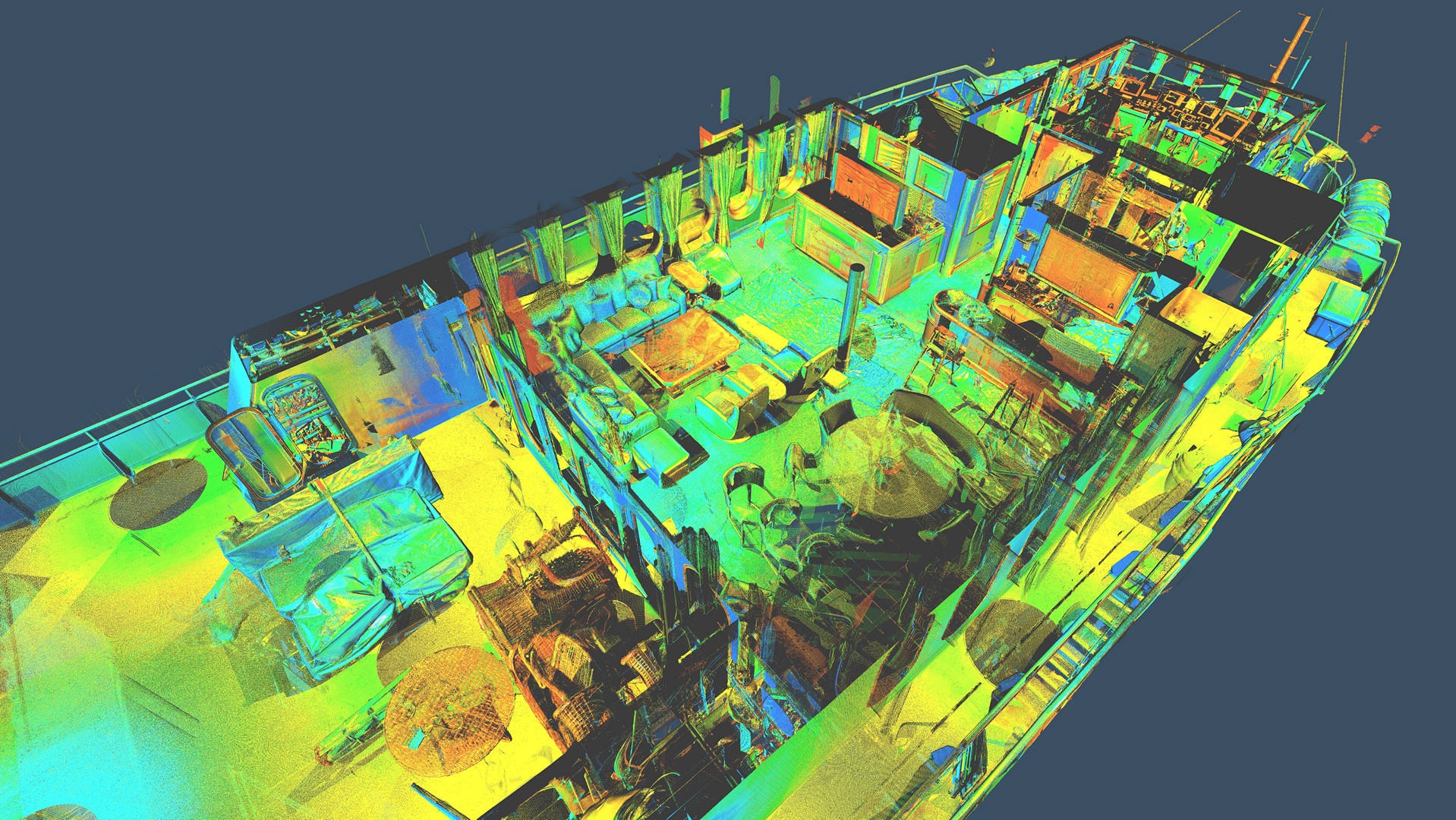

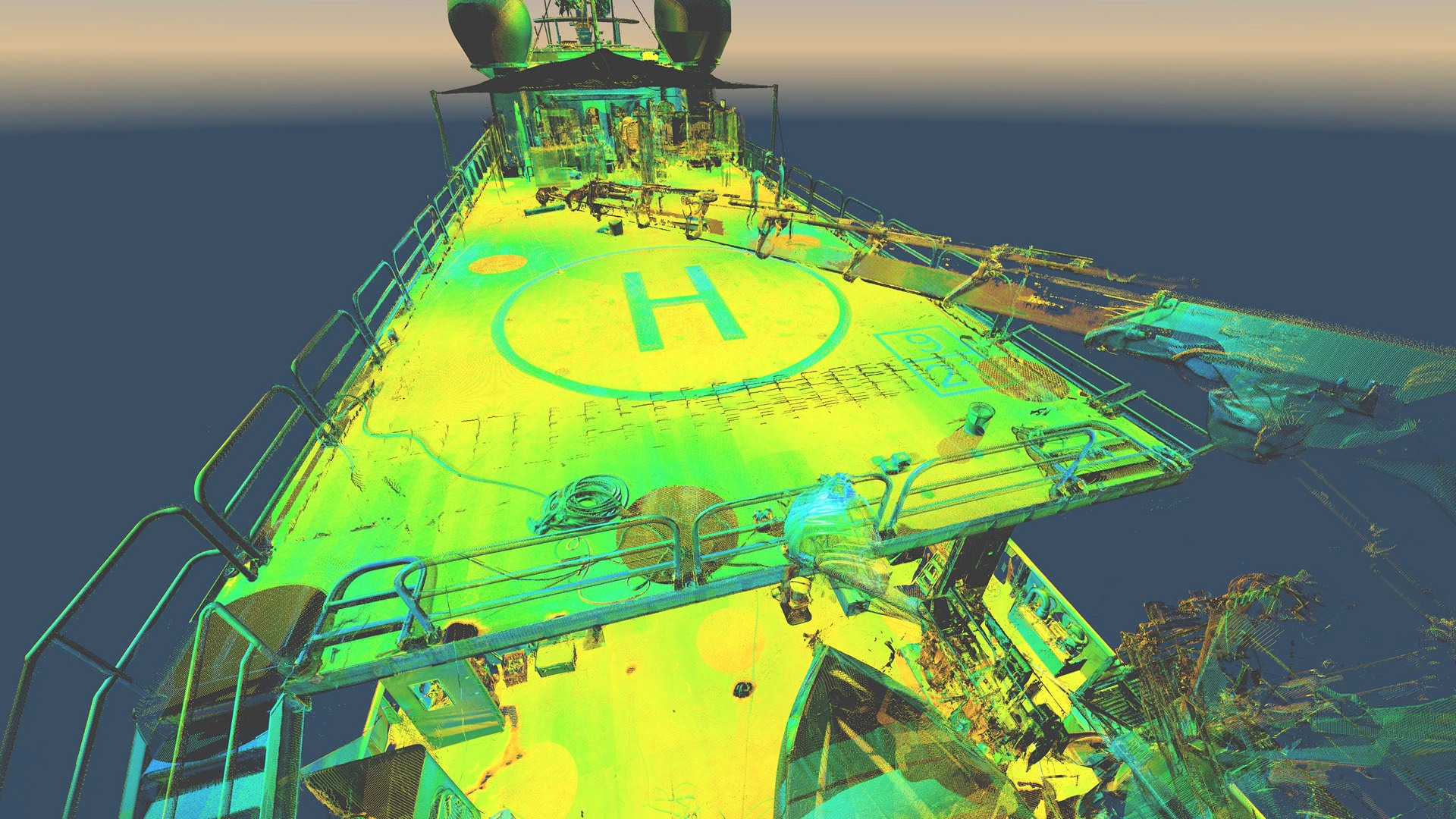

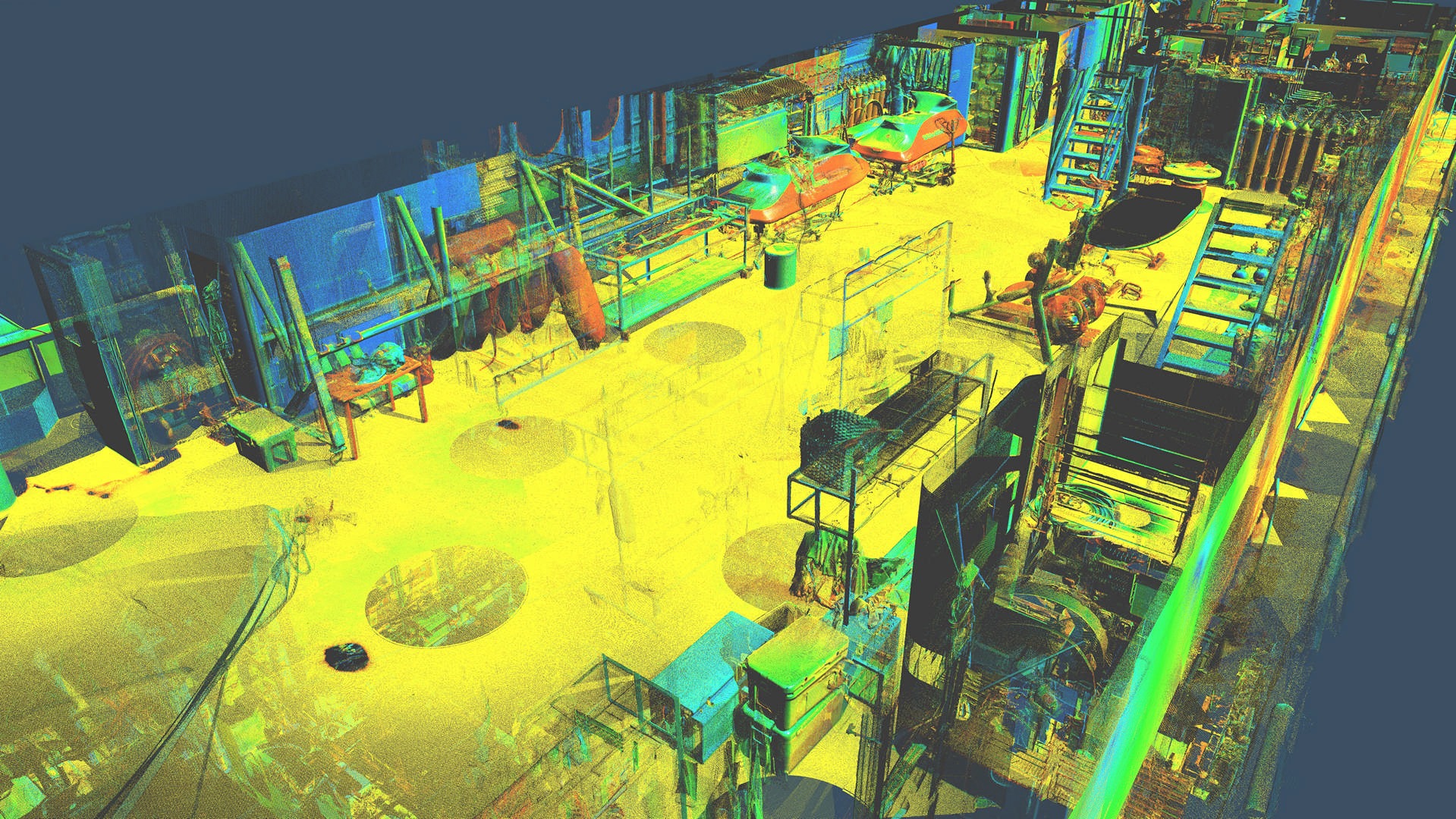

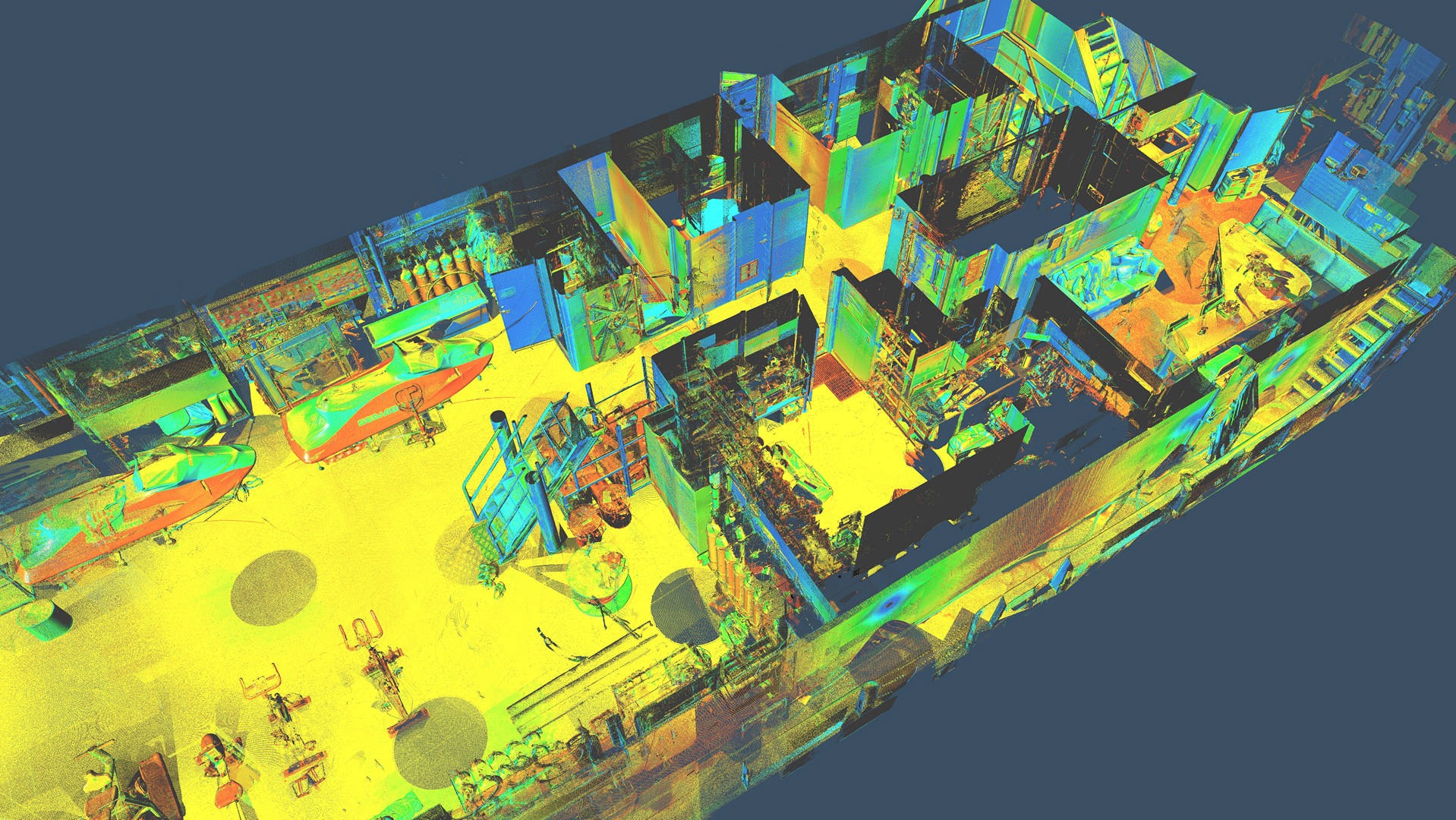

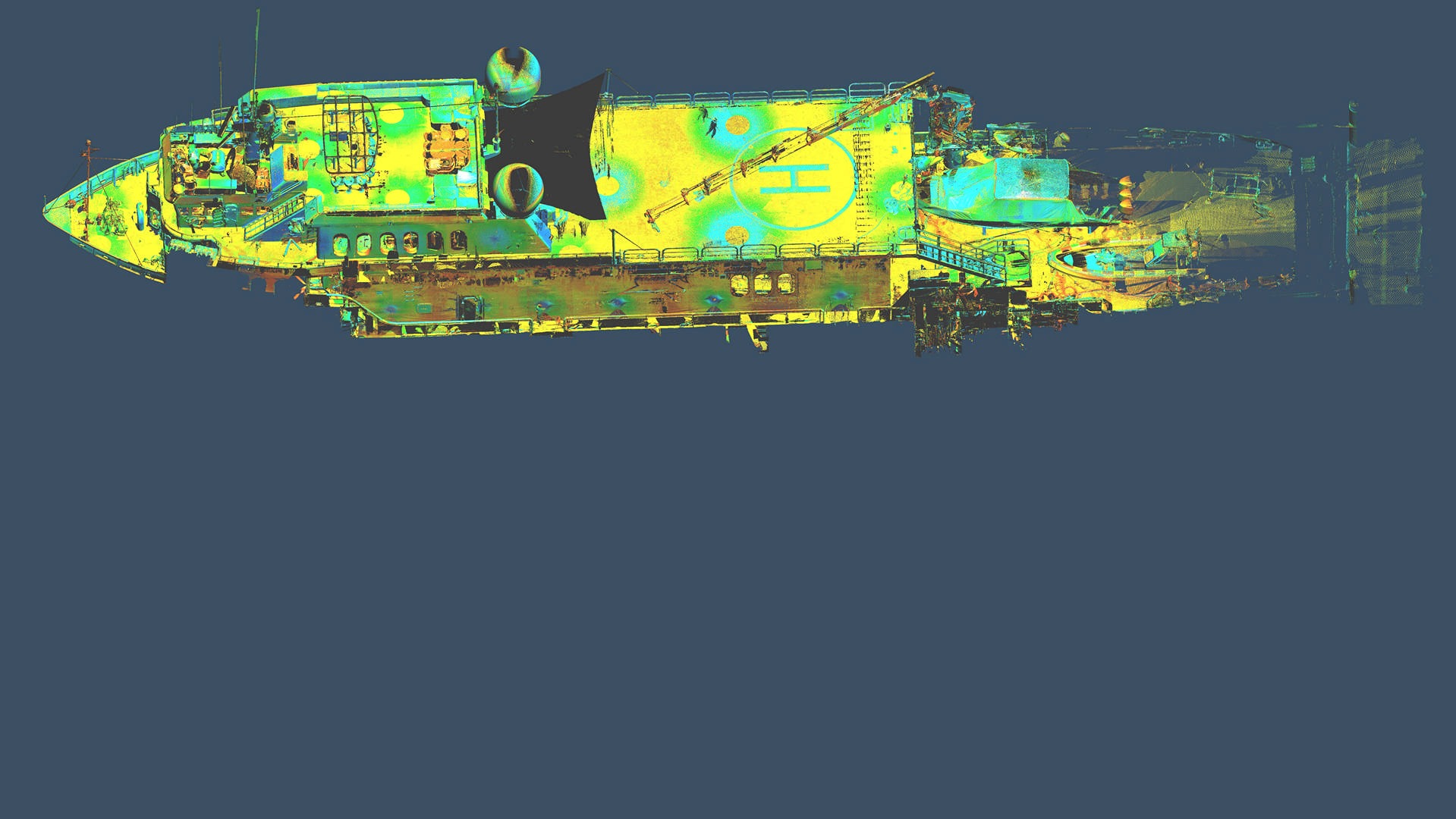

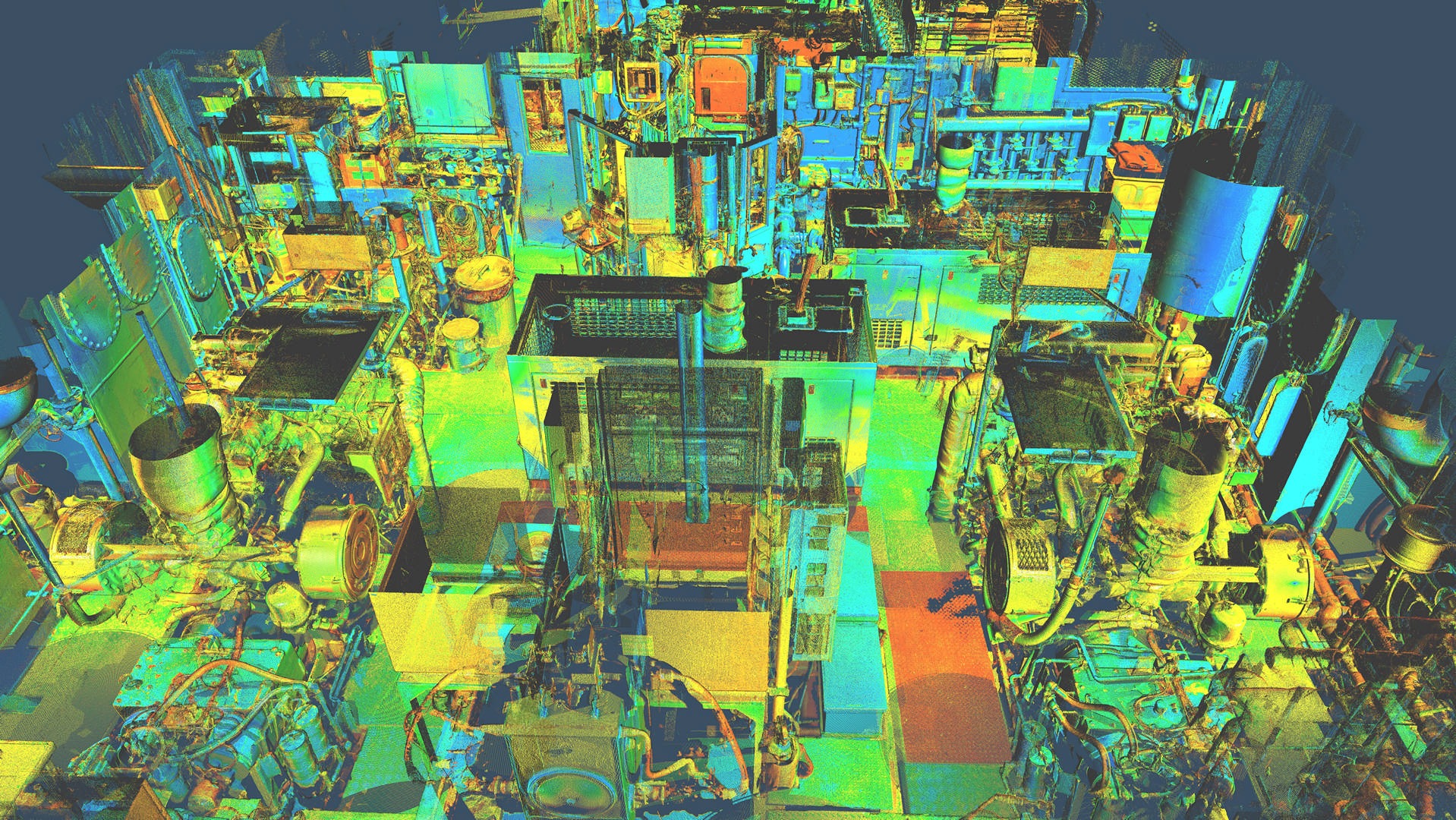

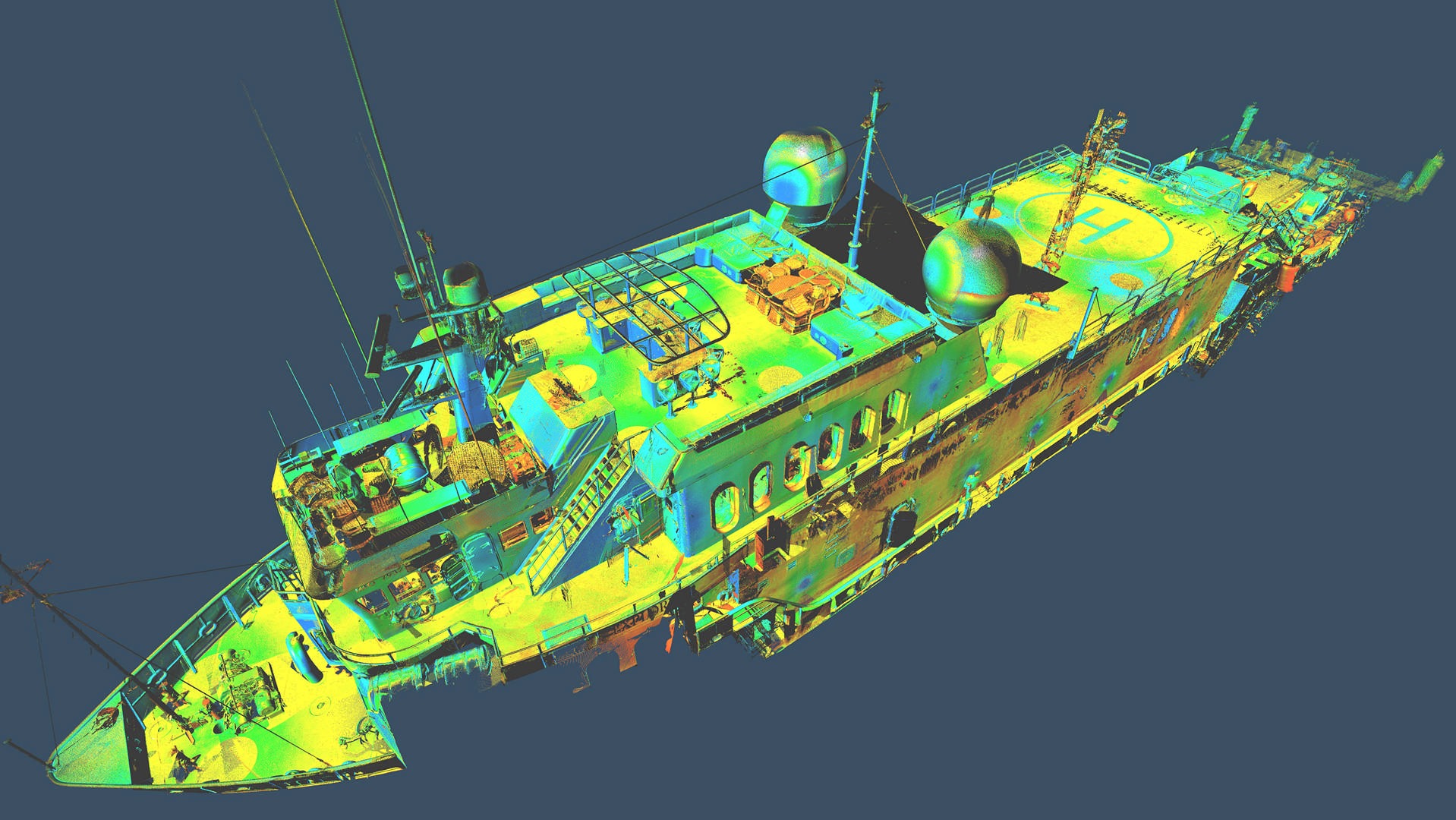

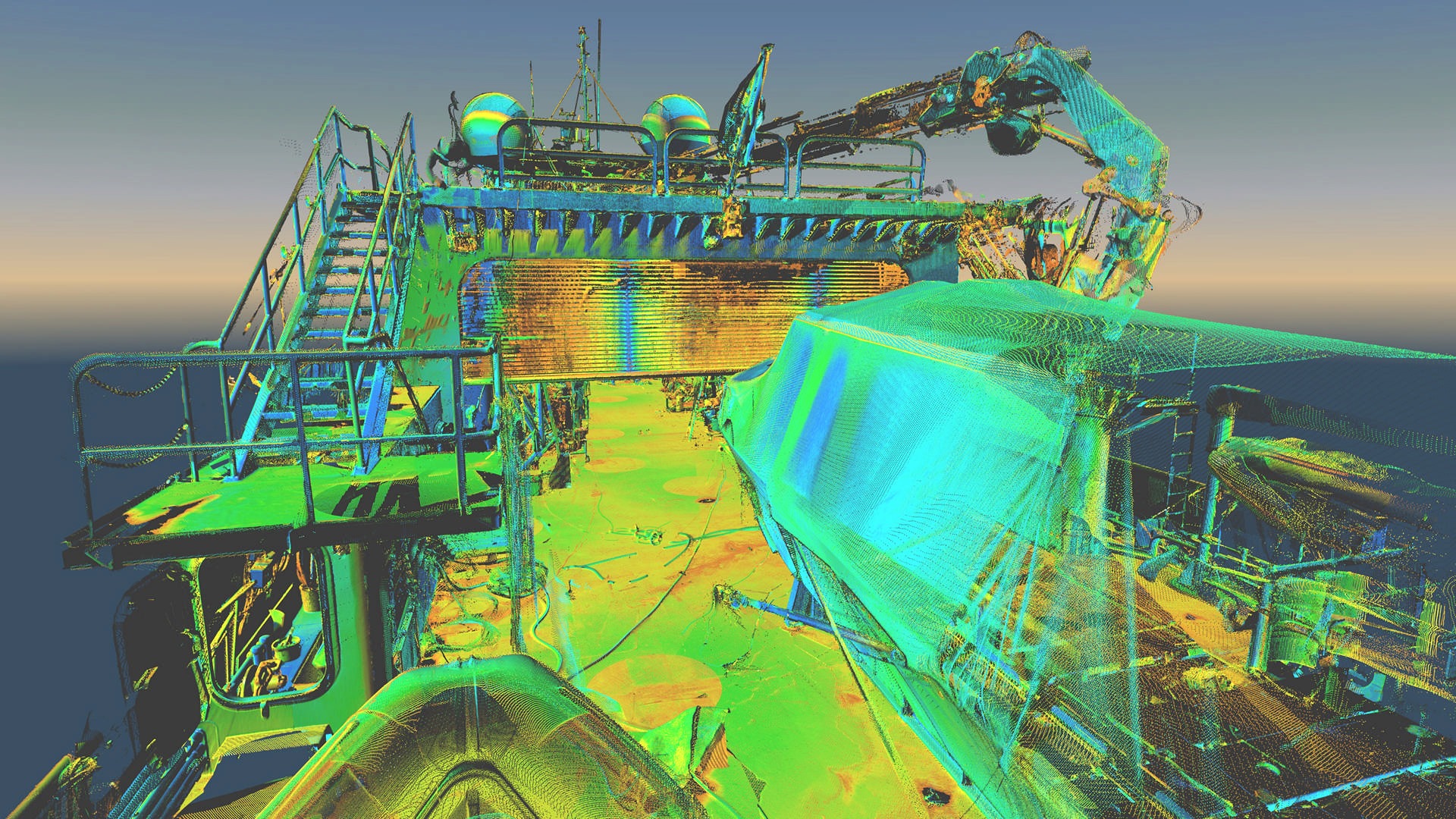

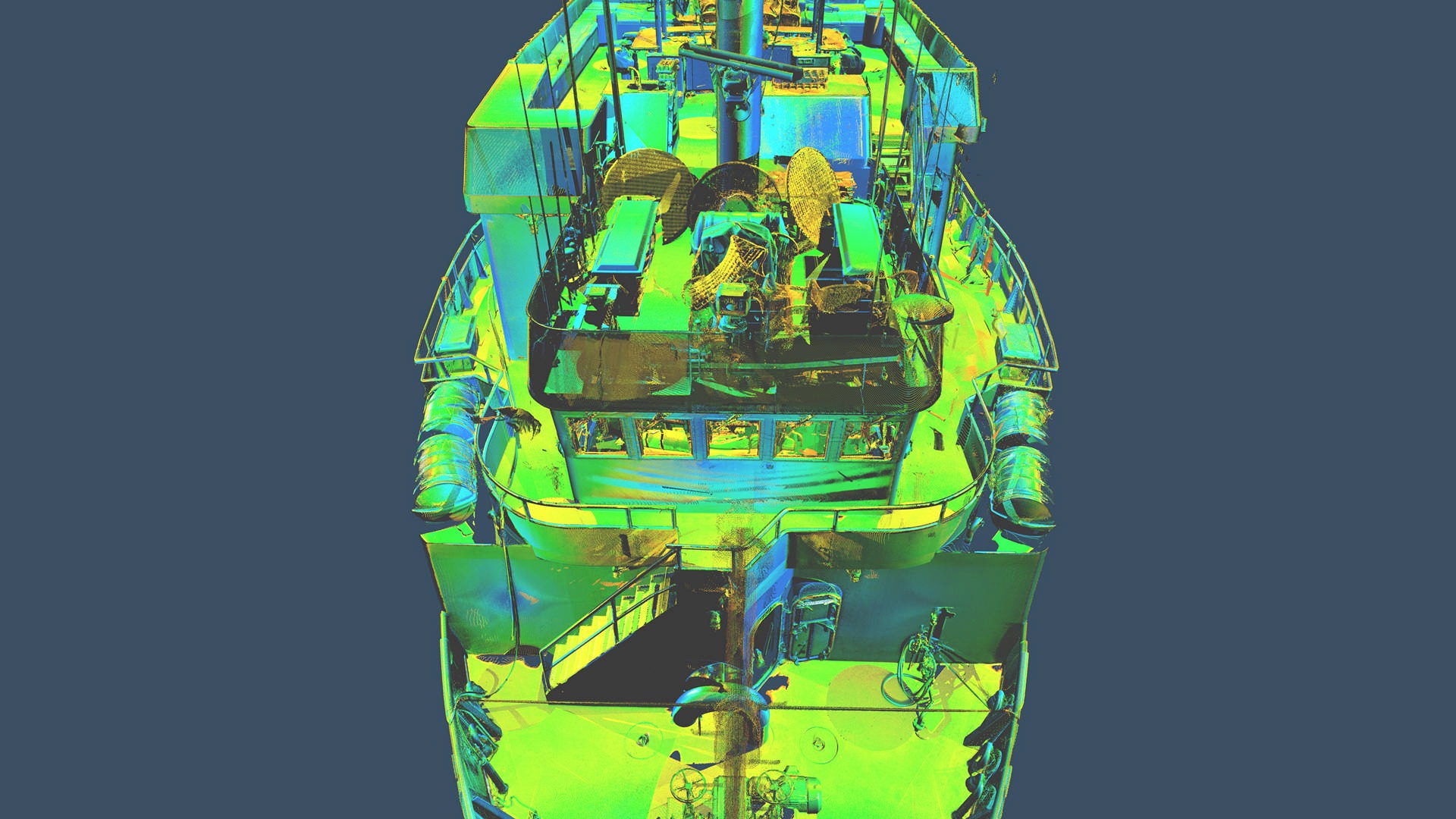

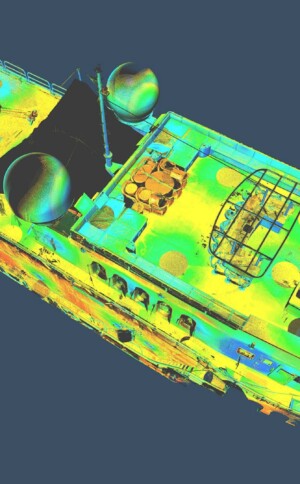

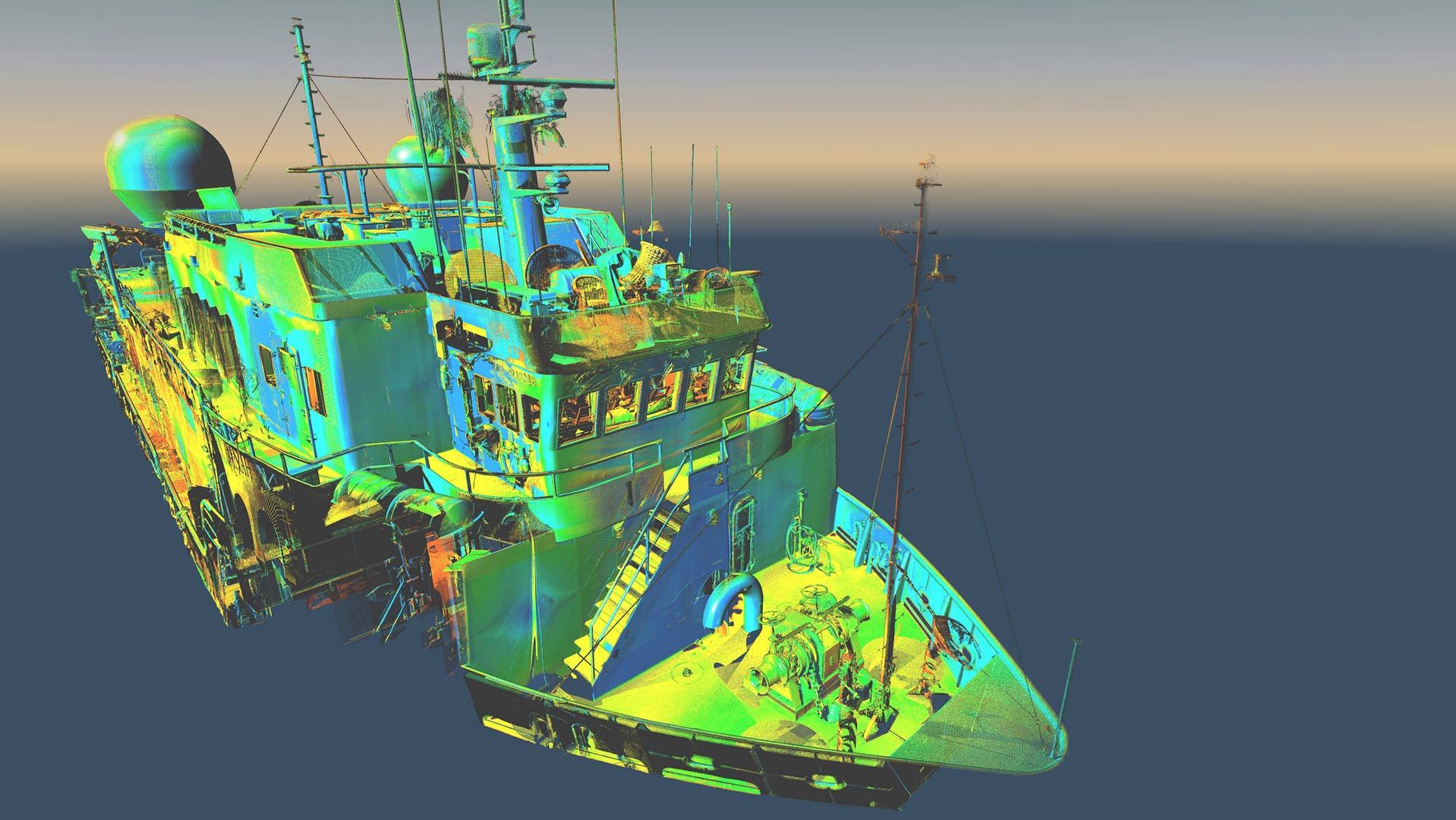

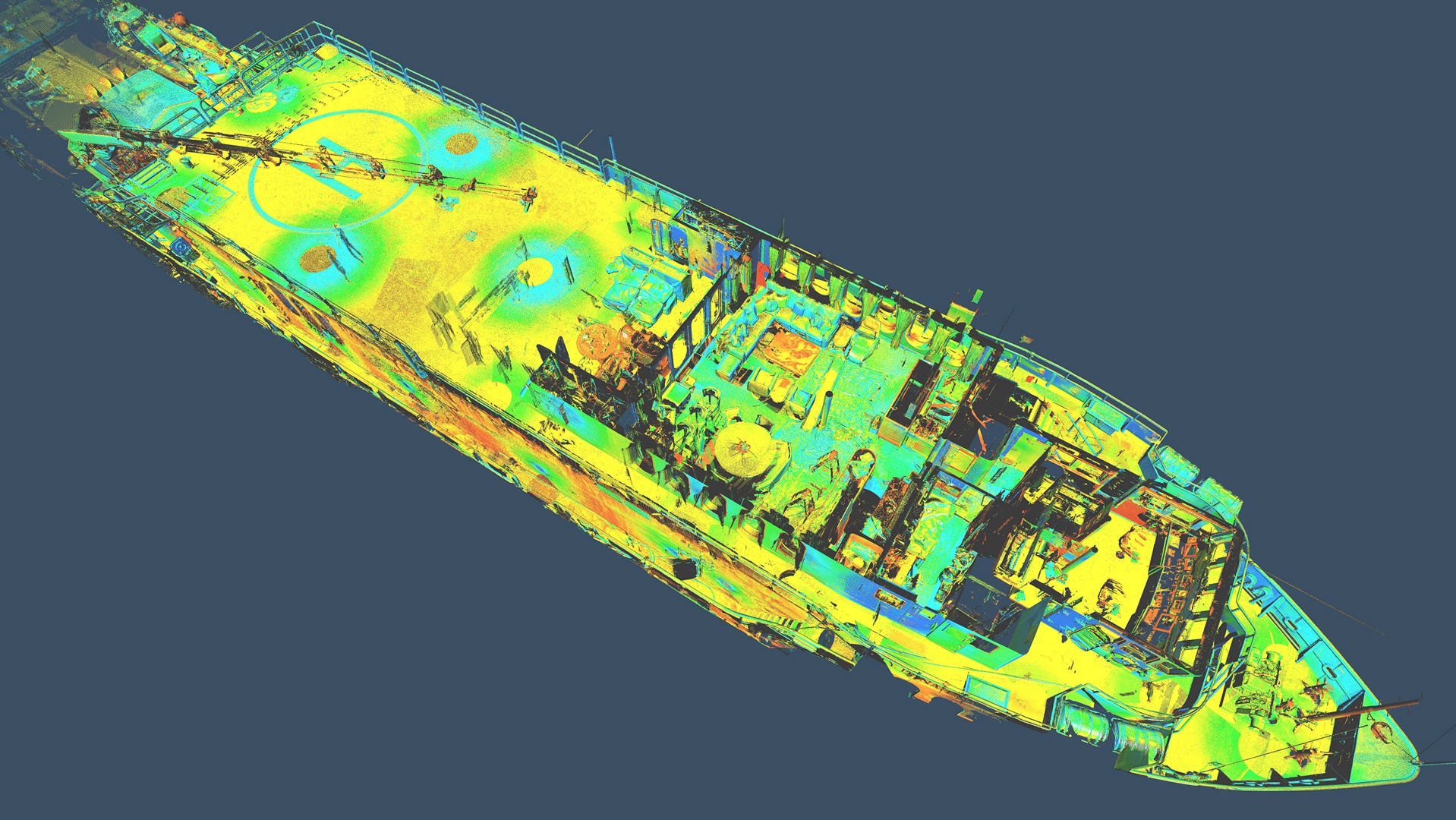

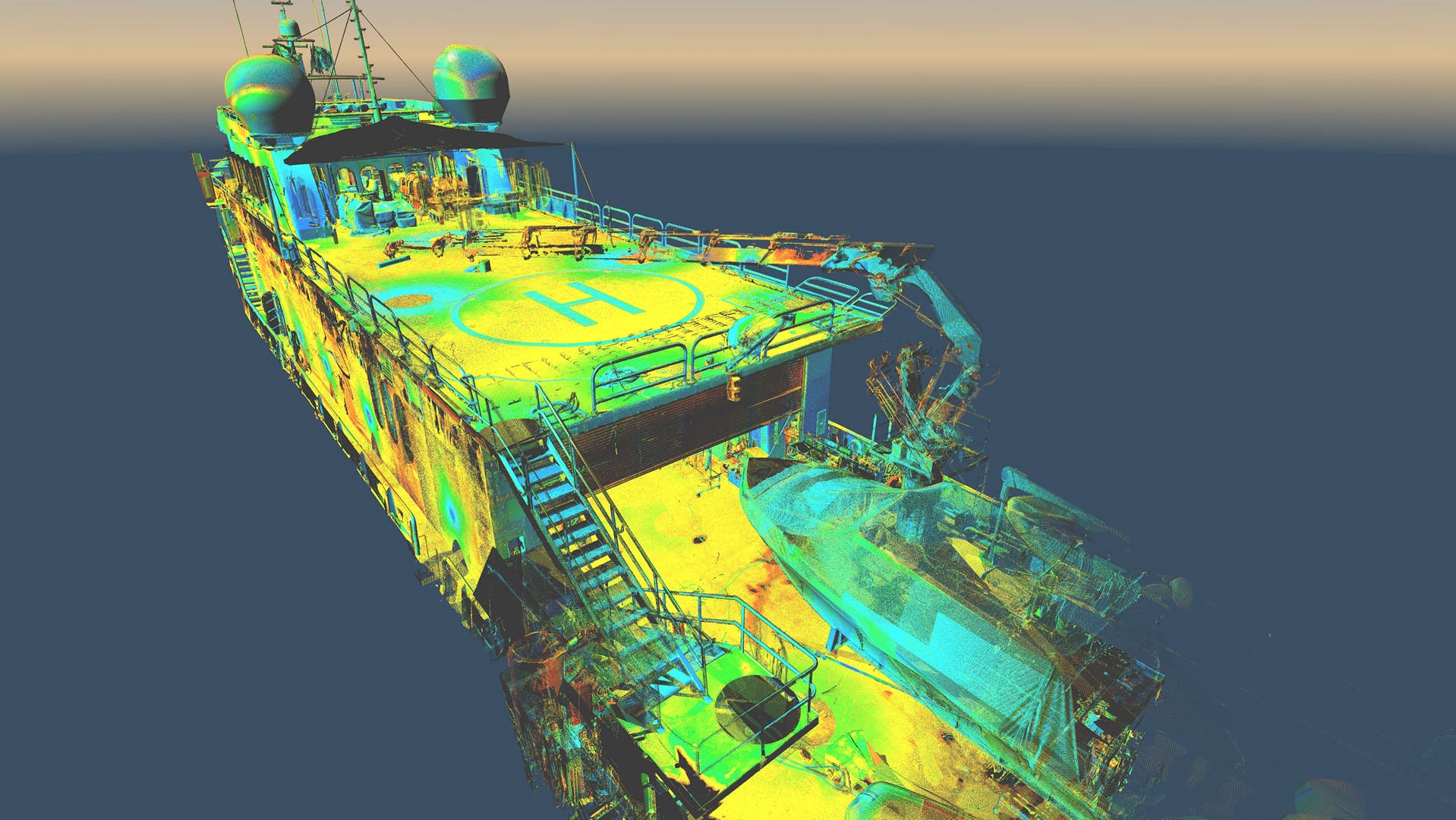

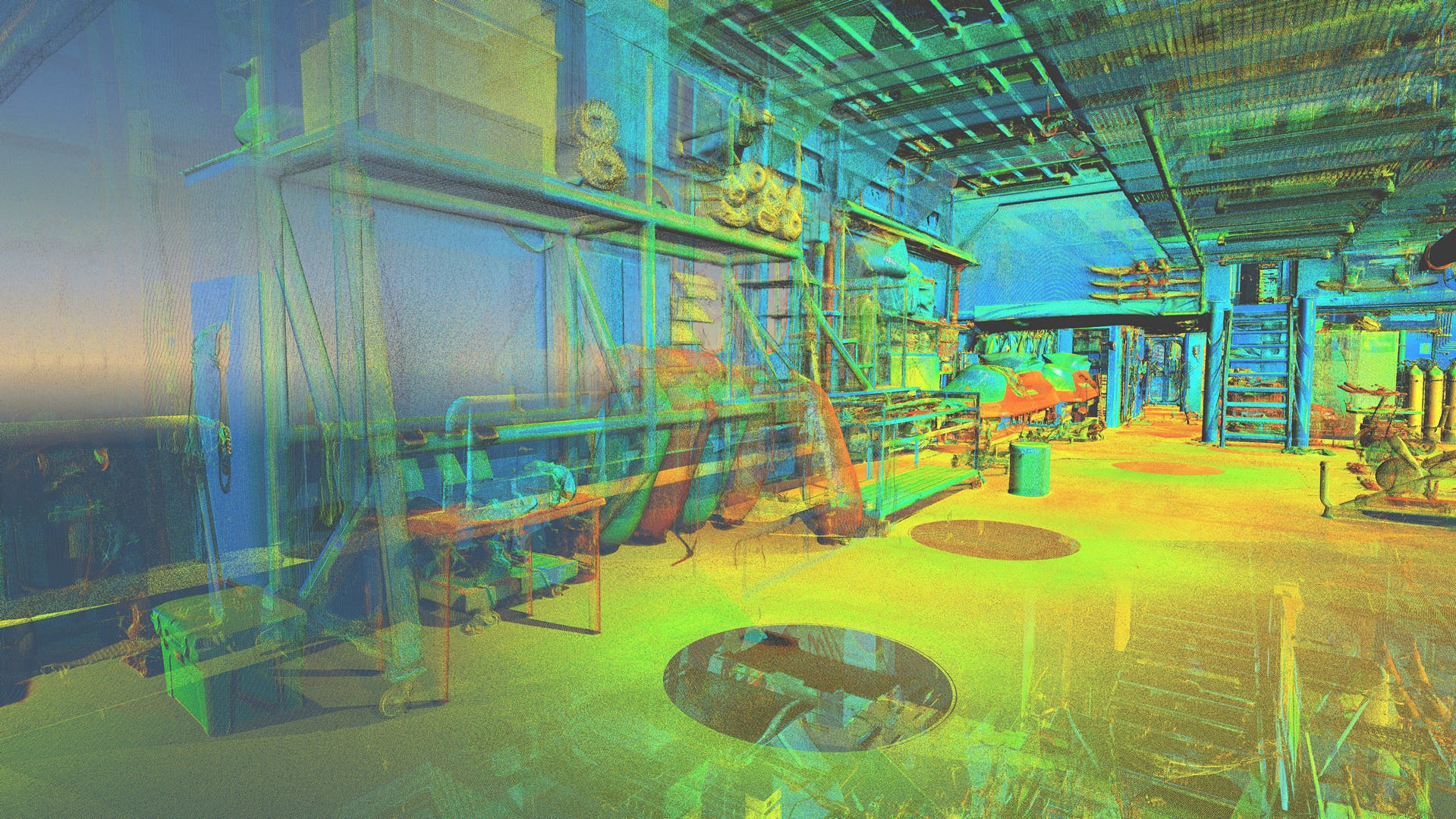

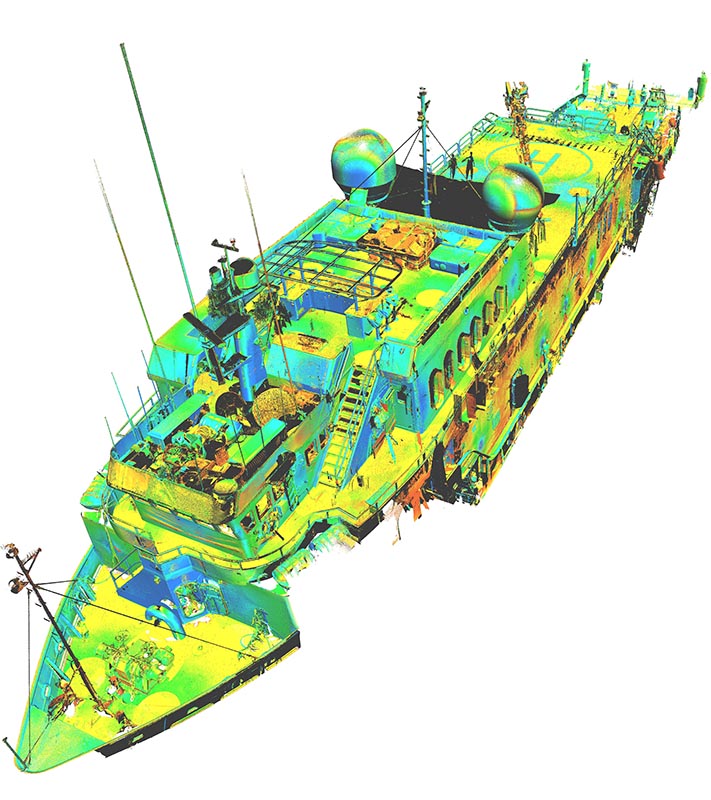

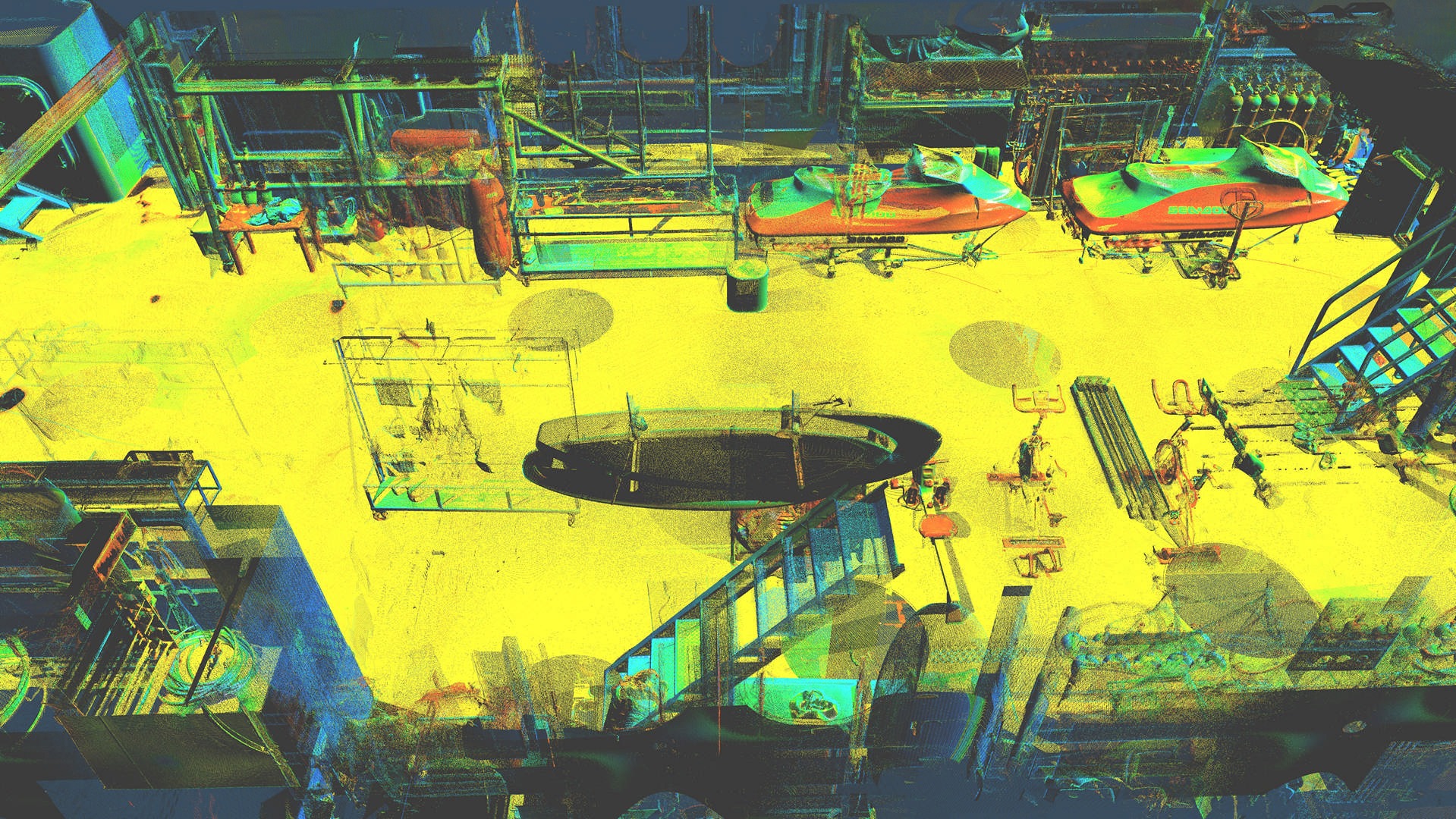

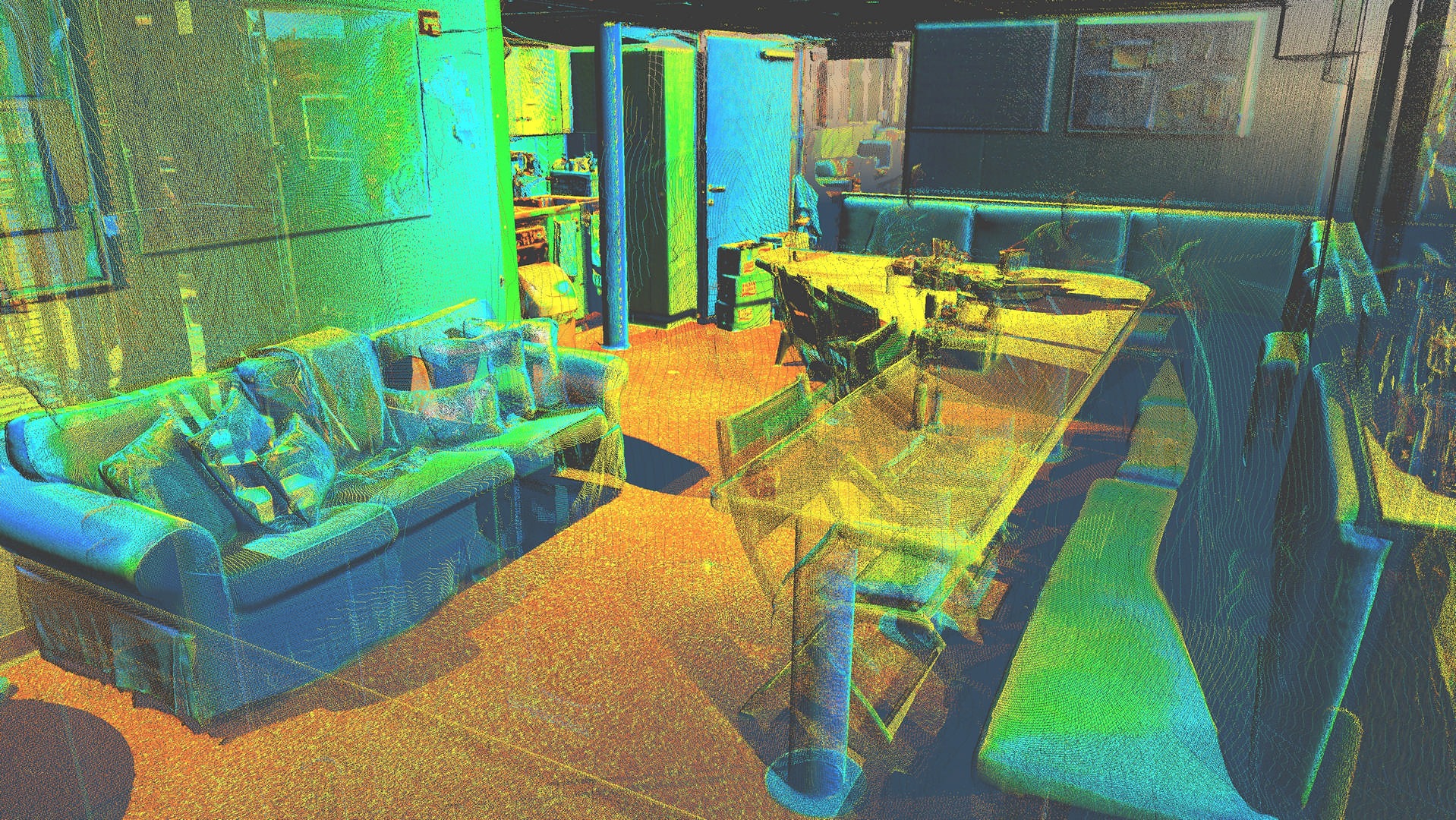

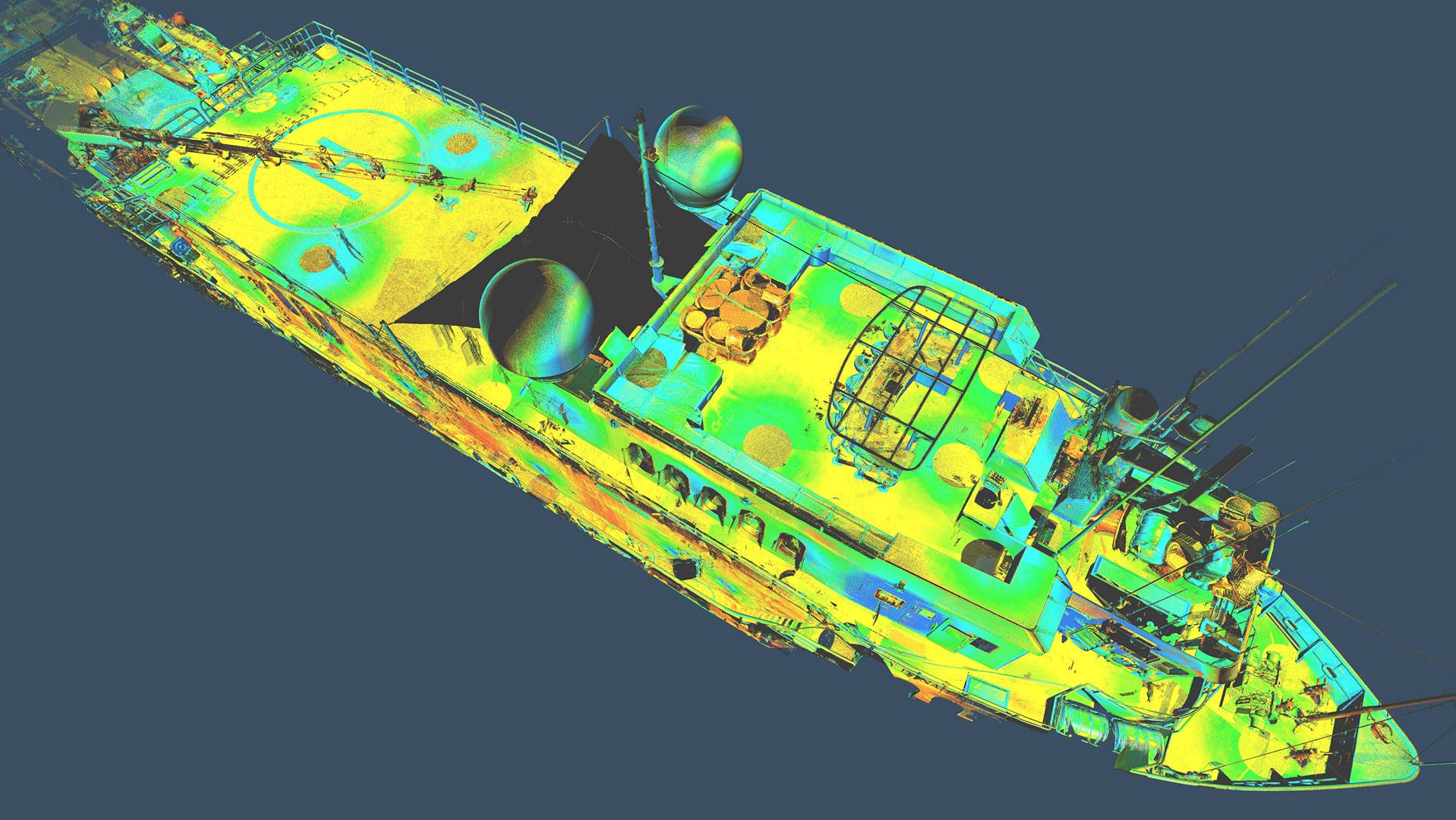

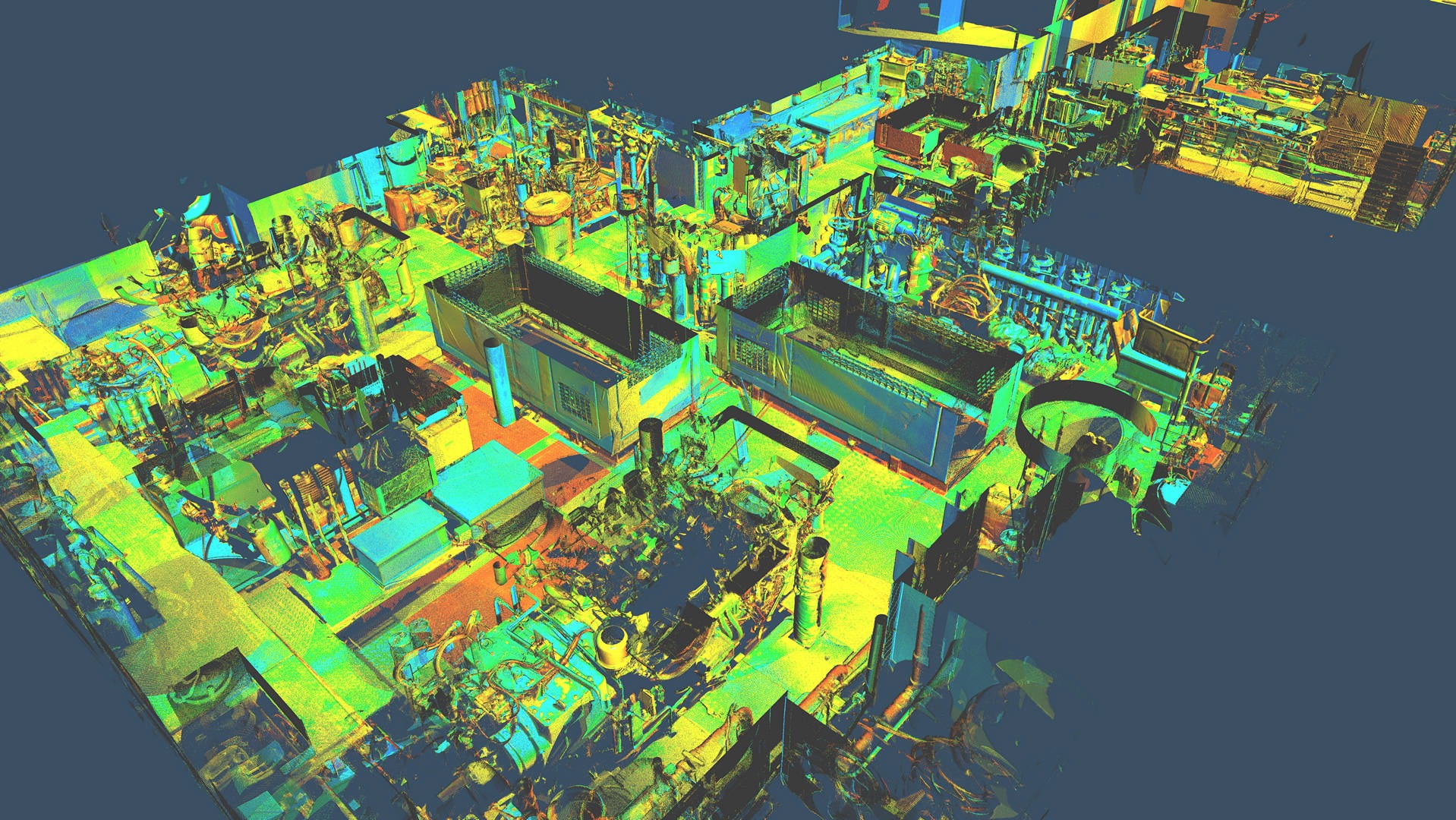

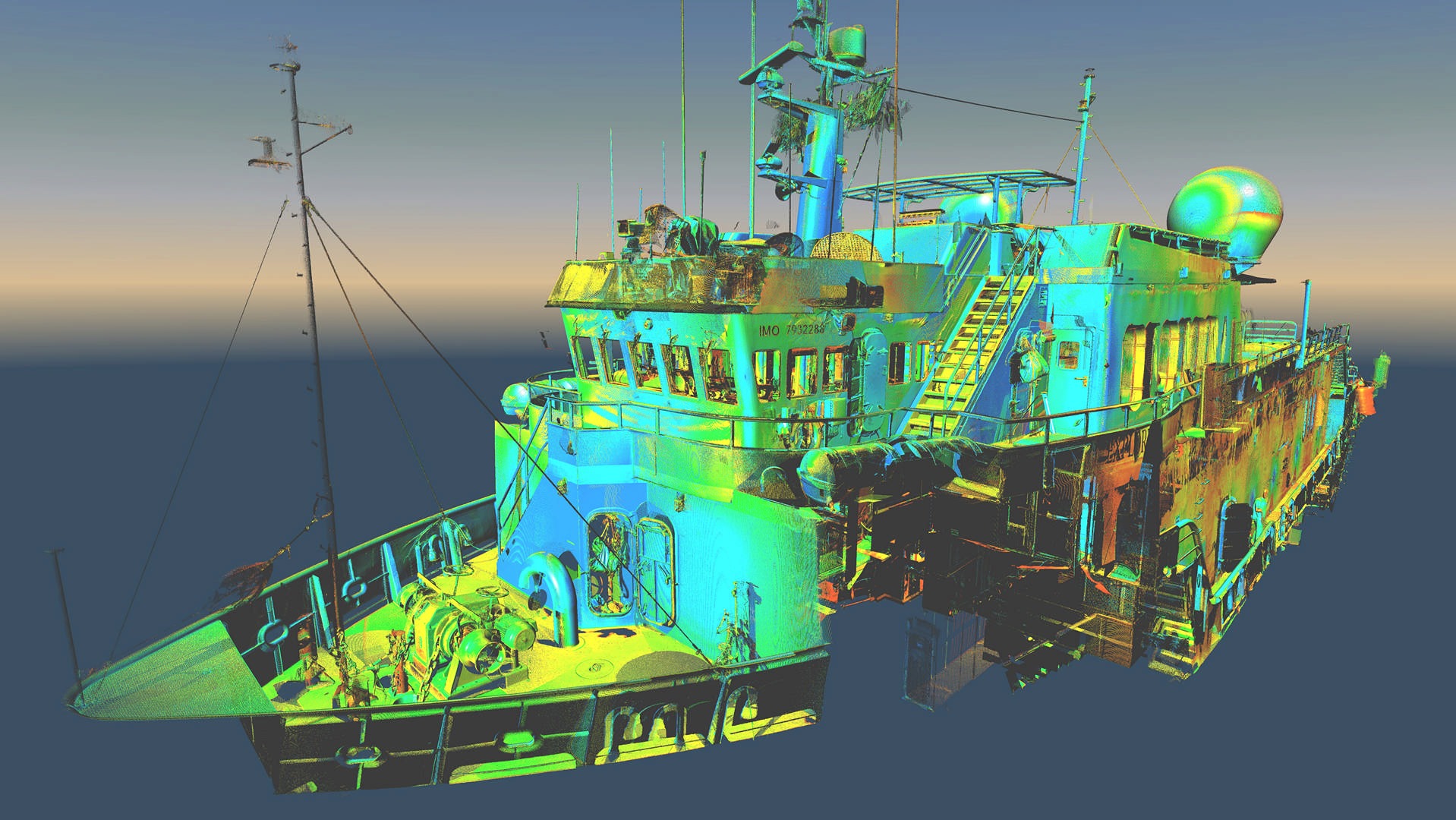

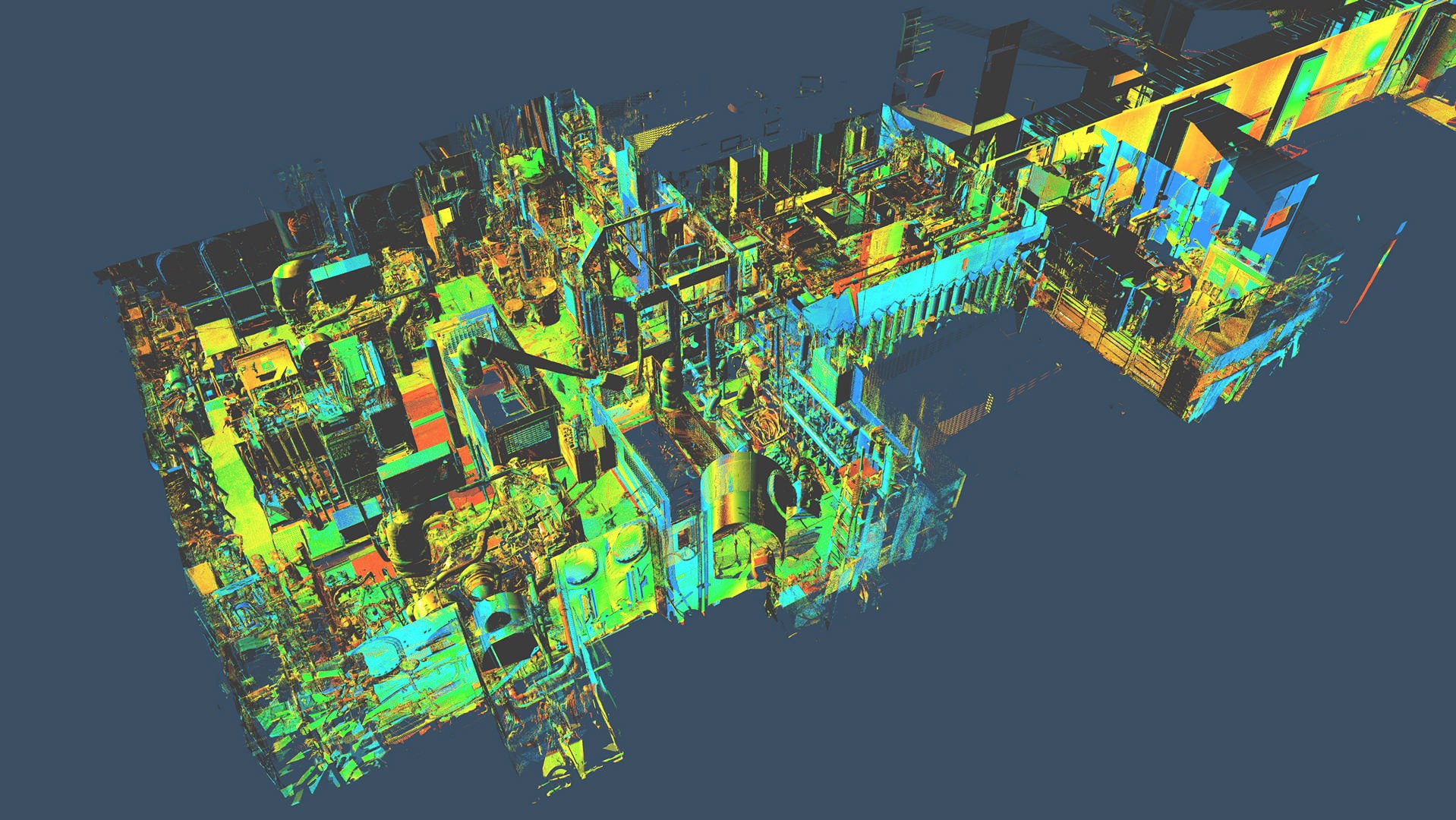

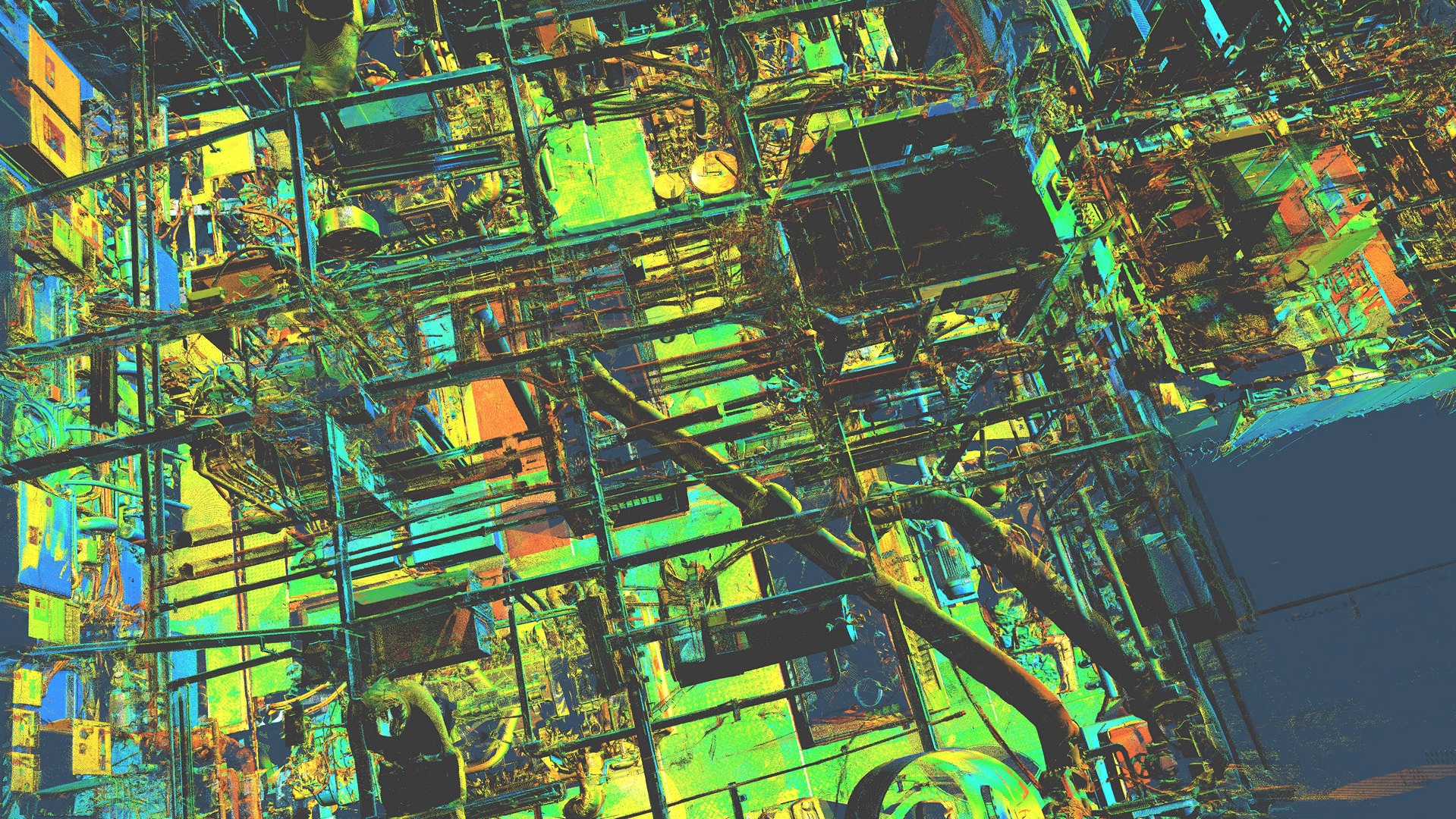

3Deling was commissioned by a large design engineering studio to prepare a registered point cloud of the vessel to support design works for a significant refit. This refit was to include the construction of a purpose build deck for a helicopter landing pad. The client also commissioned the scanning of the engine compartment for potential future works on the vessel. 150 individual scanning positions were recorded. Our bespoke in-house workflows were employed for the scanning of a vessel that is afloat.
