OREL SUGAR REFINERY

LOCATION

Orel, Russia

SURVEYING EQUIPMENT

scanner Riegl Vz-400, Leica TCRA 1101 plus Total Station

TOTAL TIME SPENT

3 days on site,about 15 days processing in the office

FINAL PRODUCT

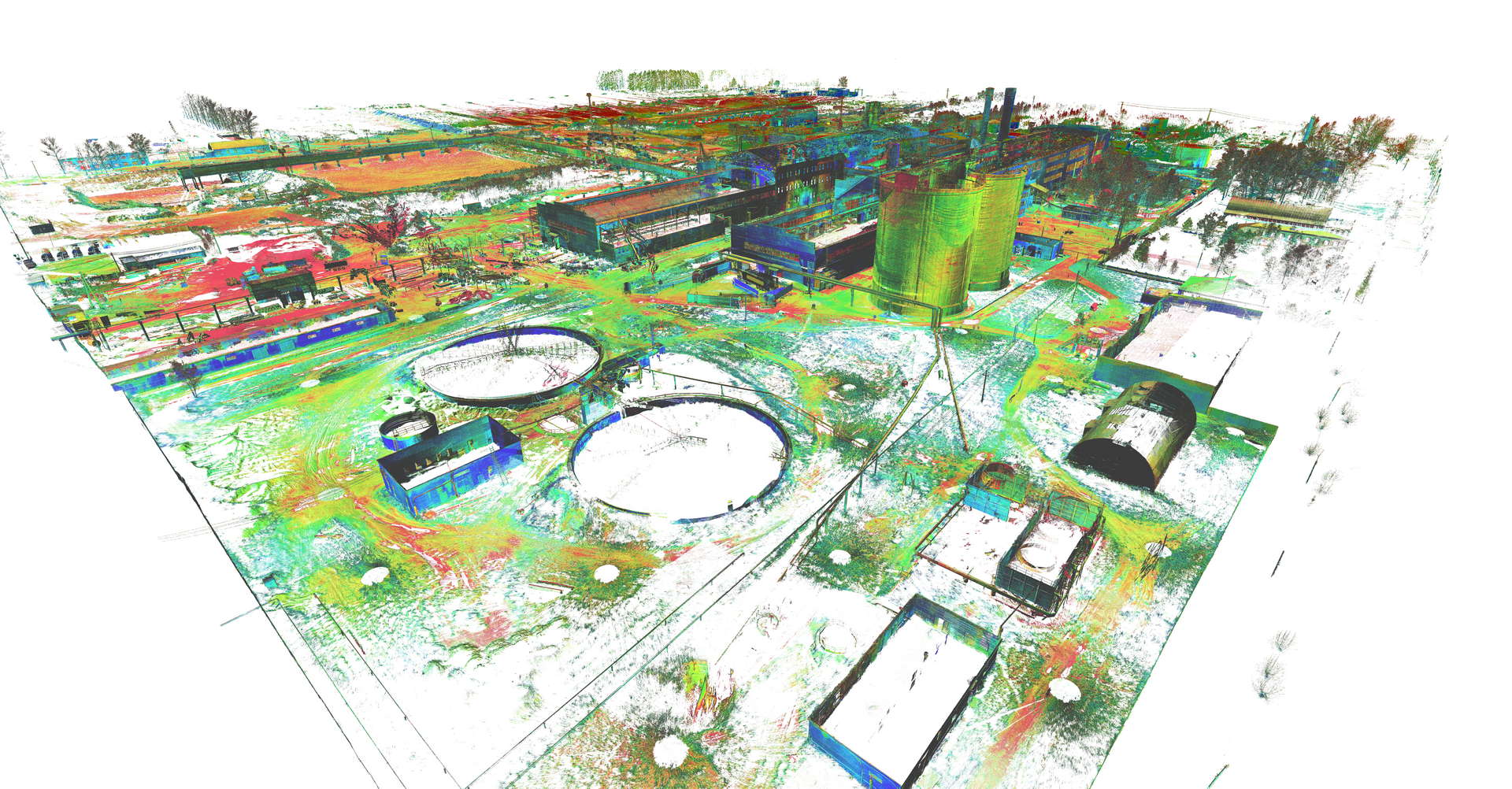

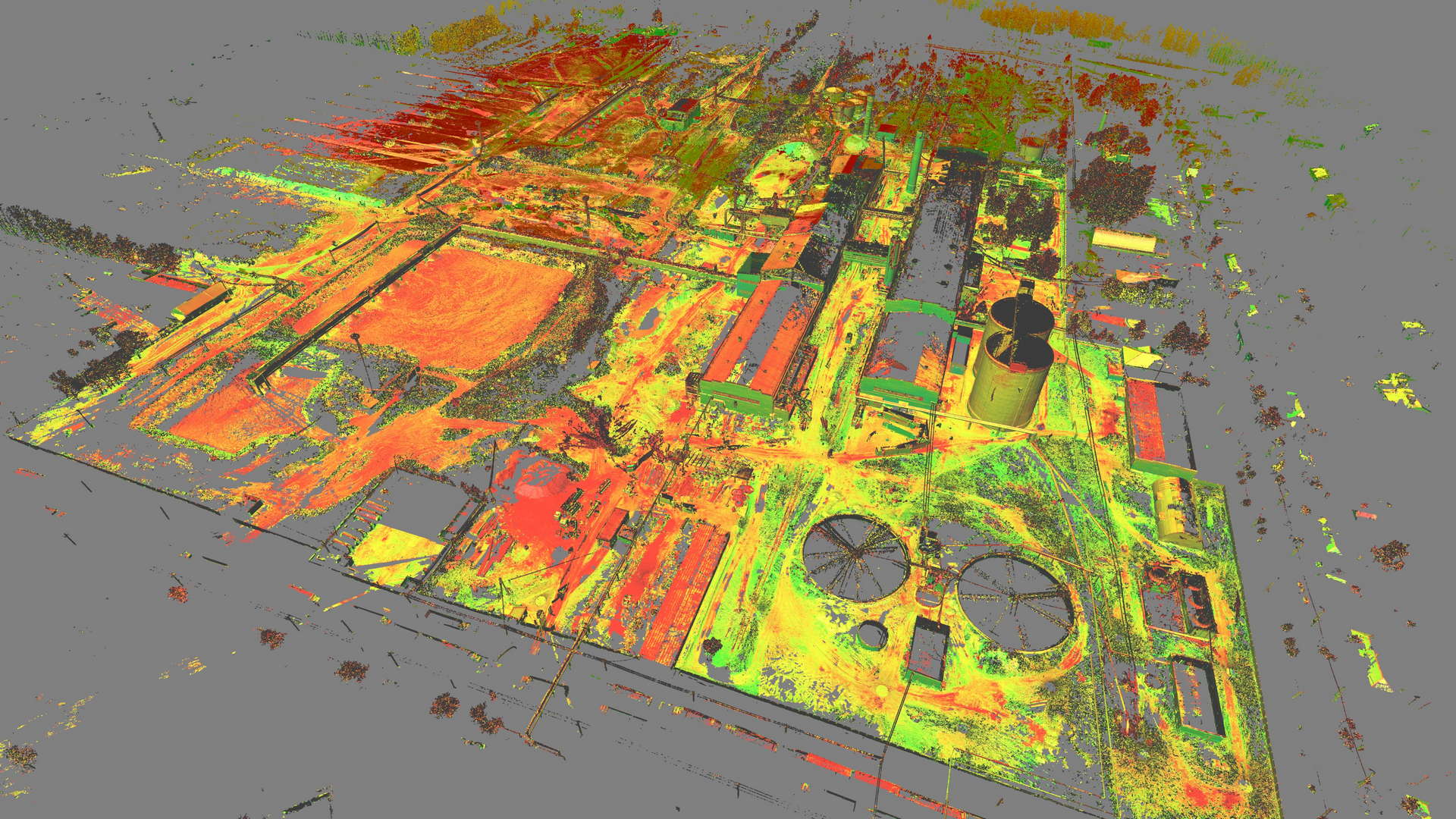

Registered point cloud, 3D CAD models, TruView, video presentation

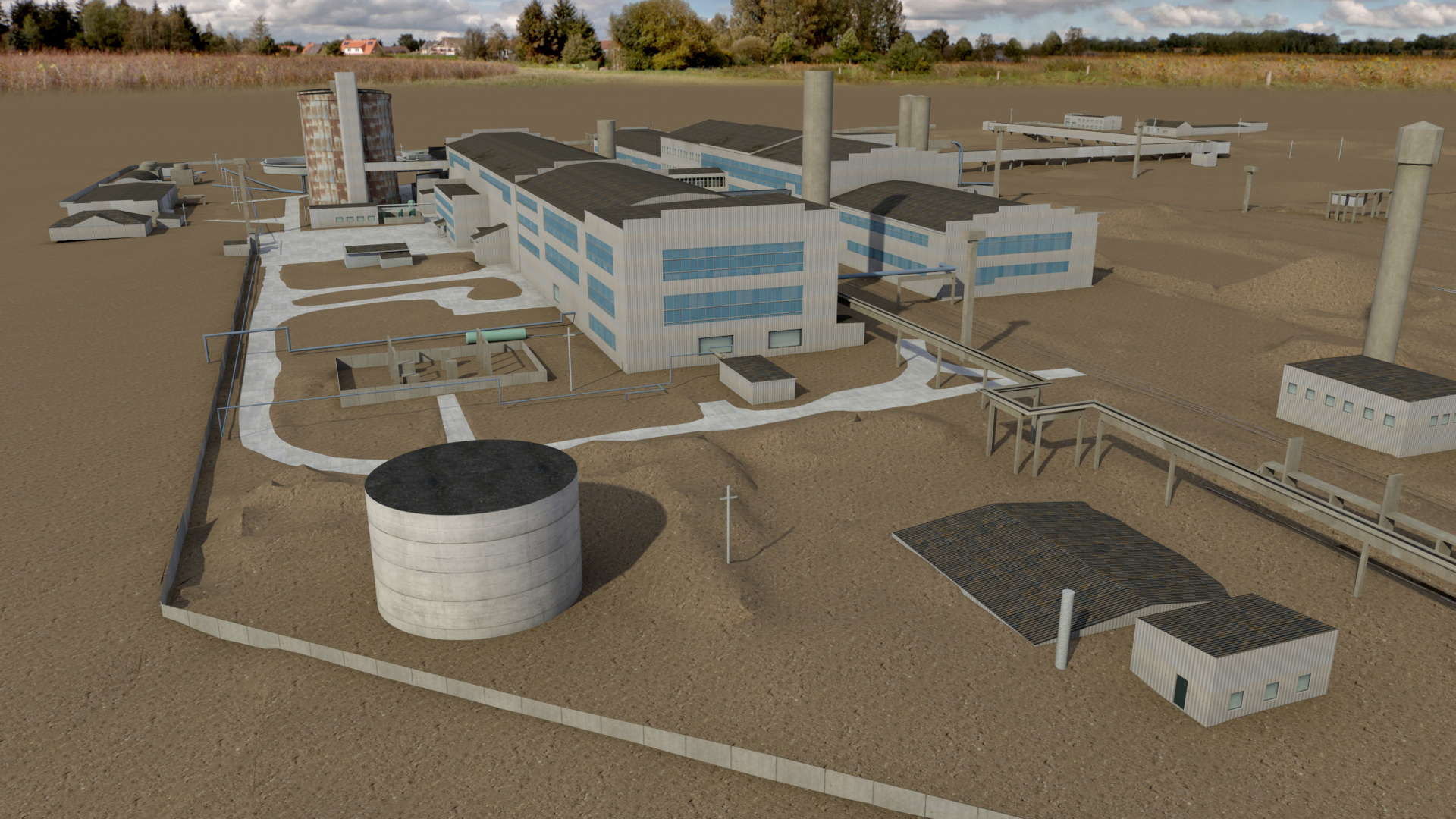

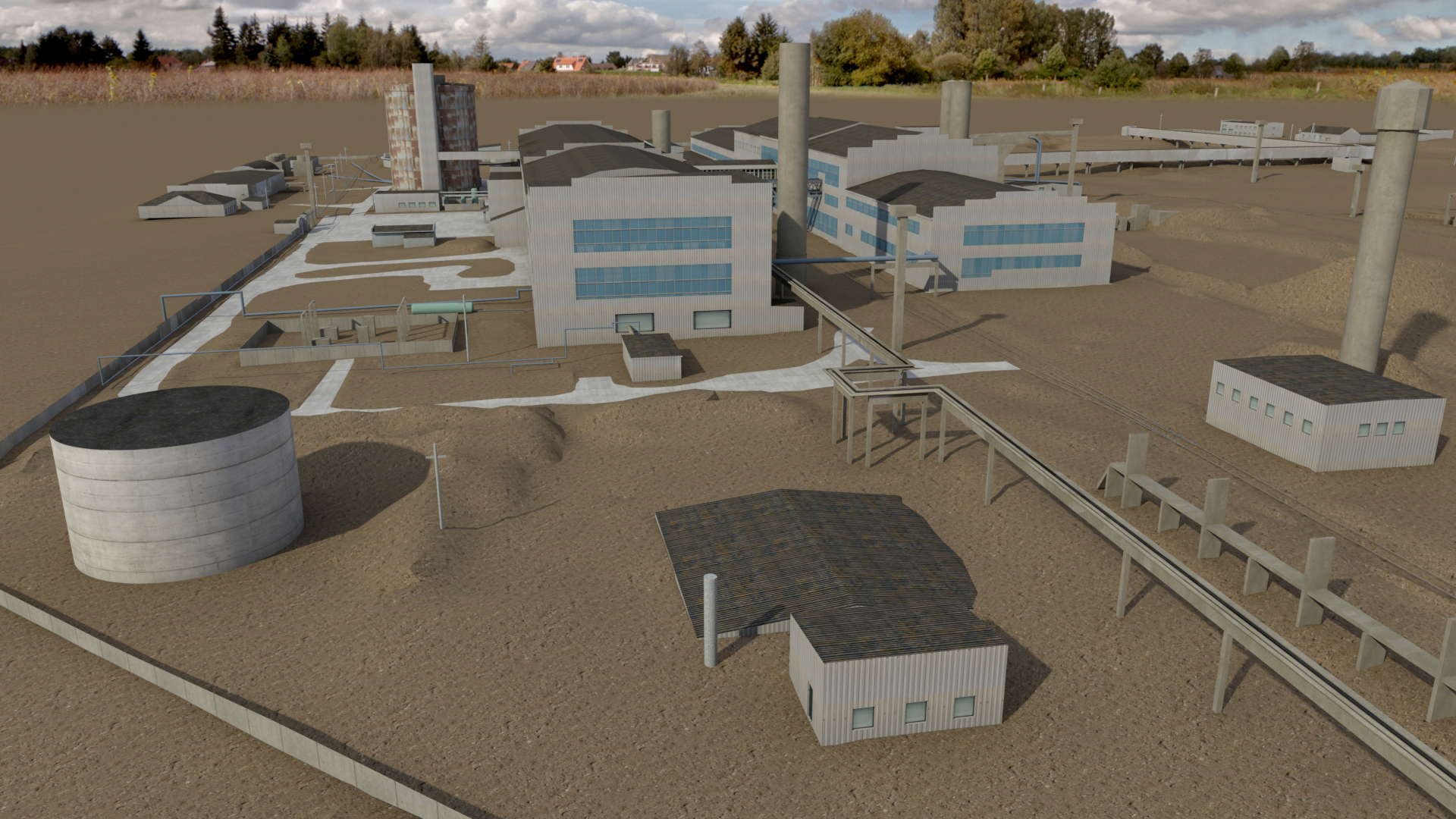

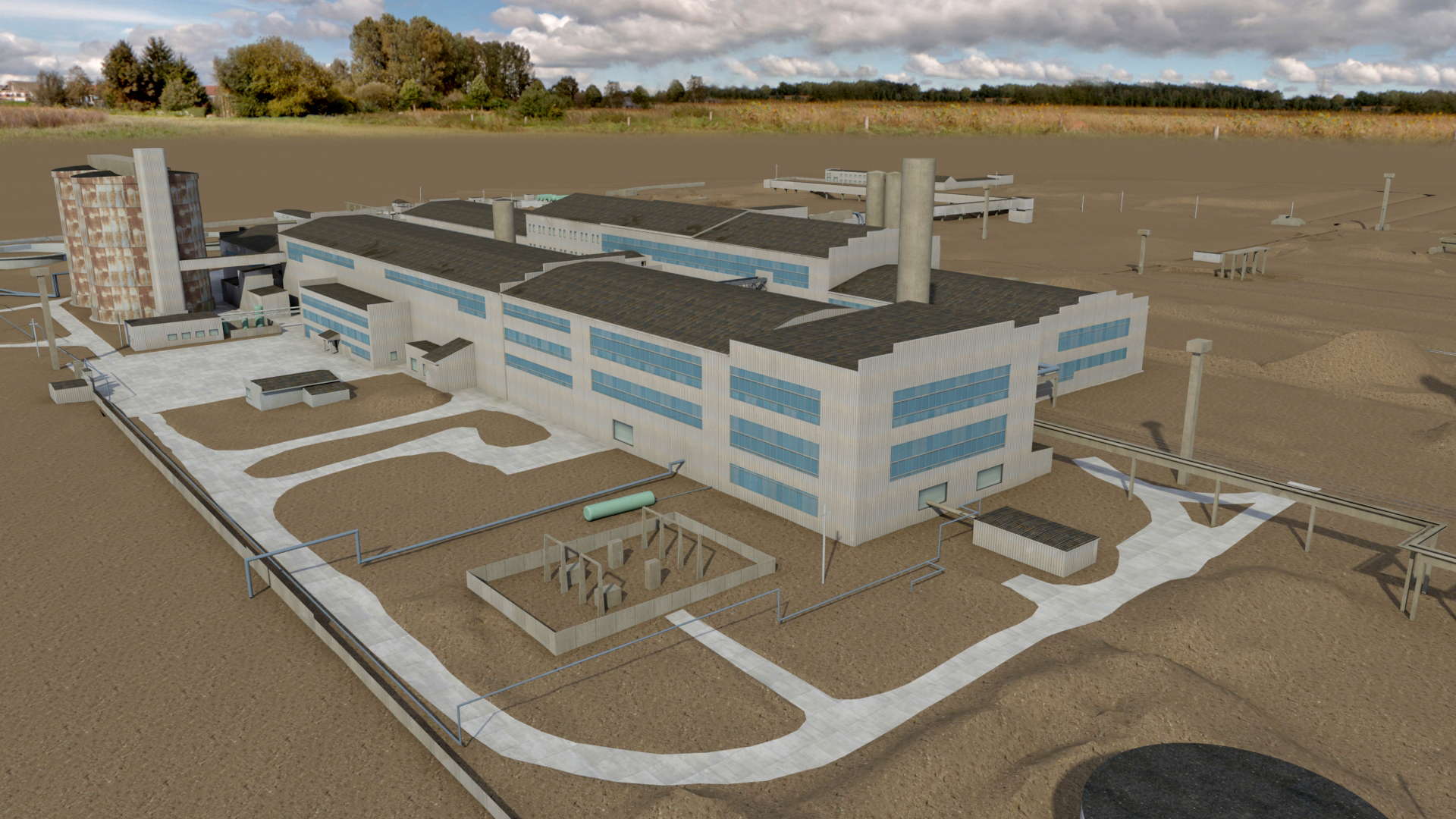

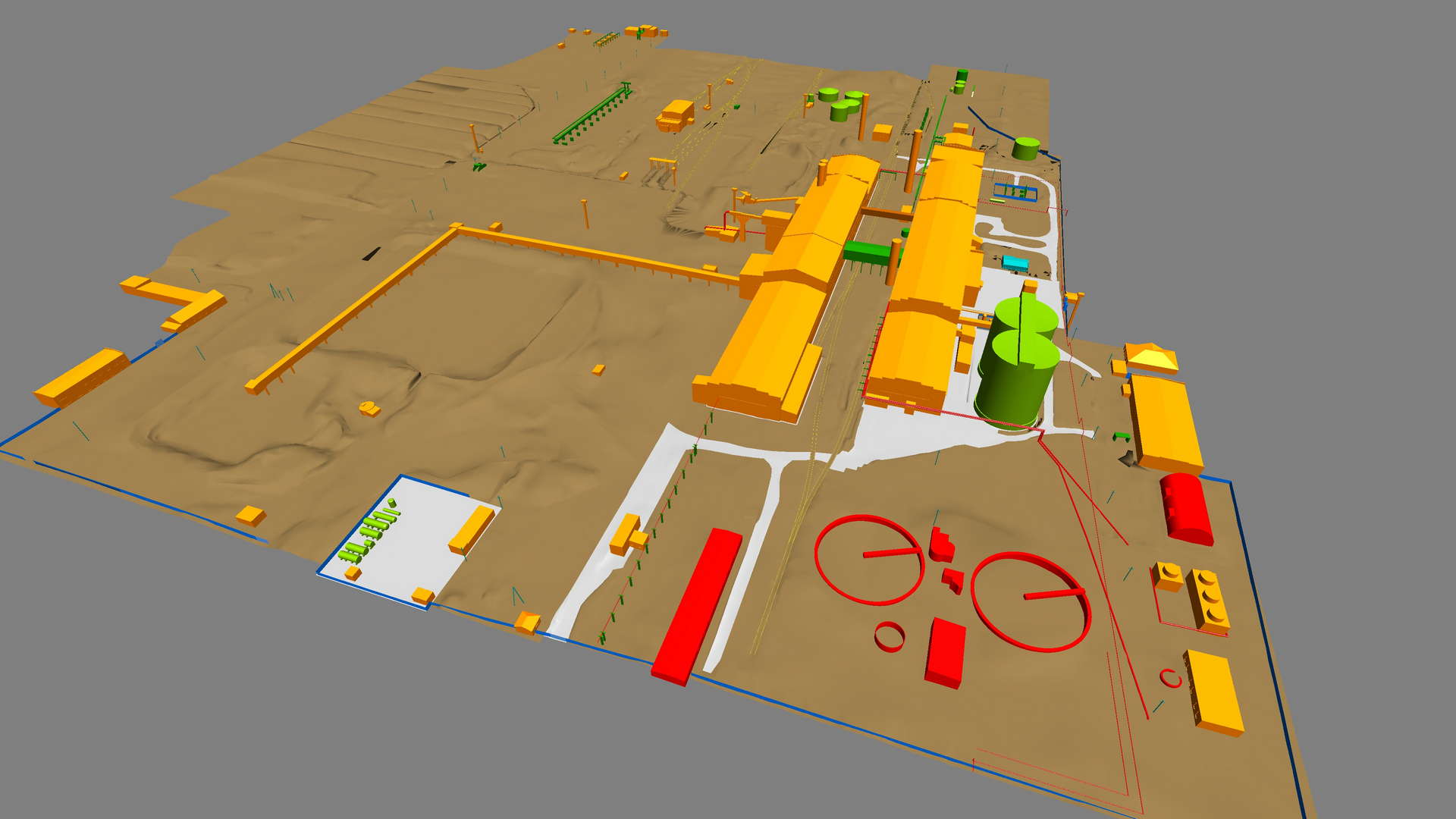

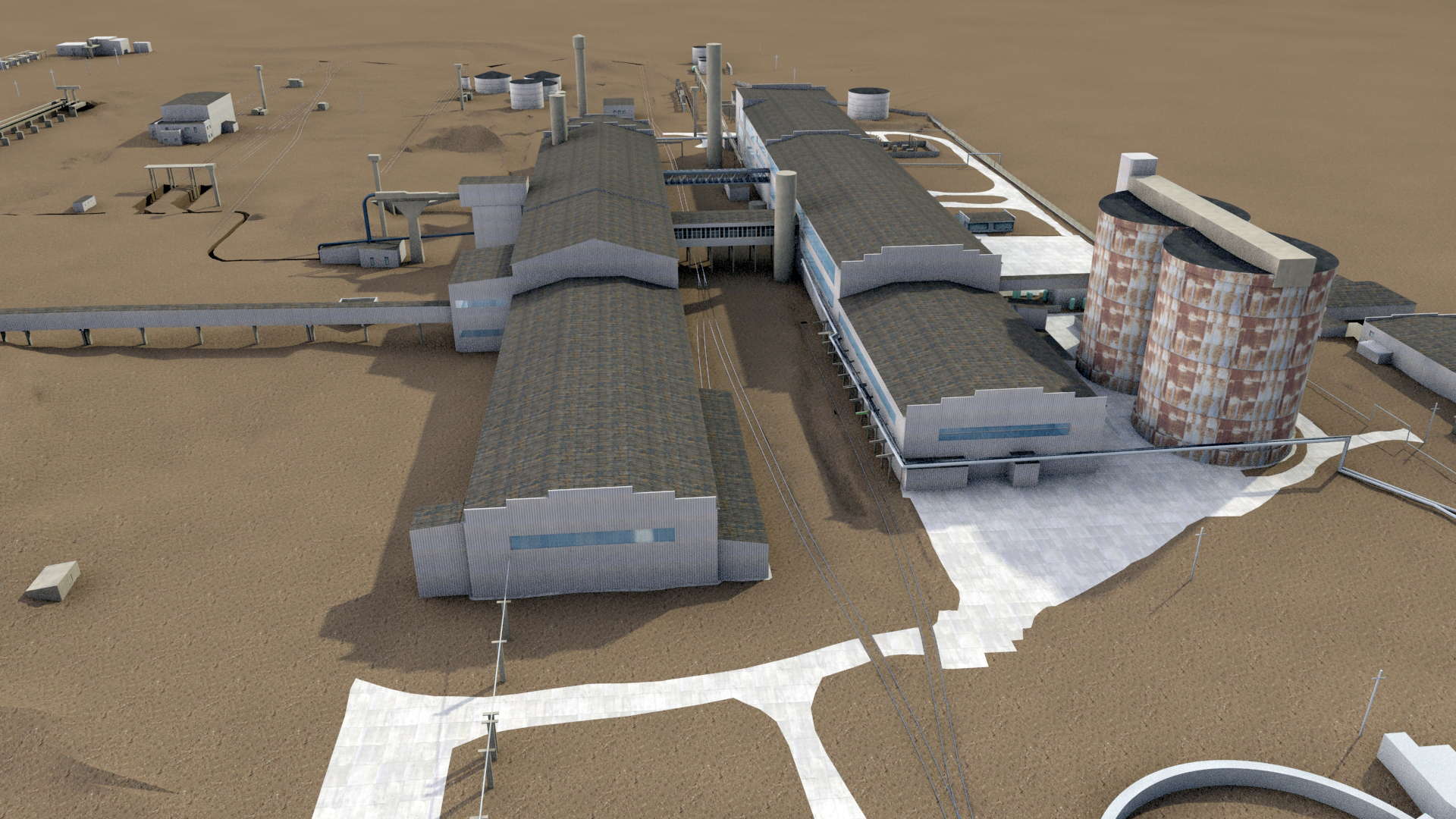

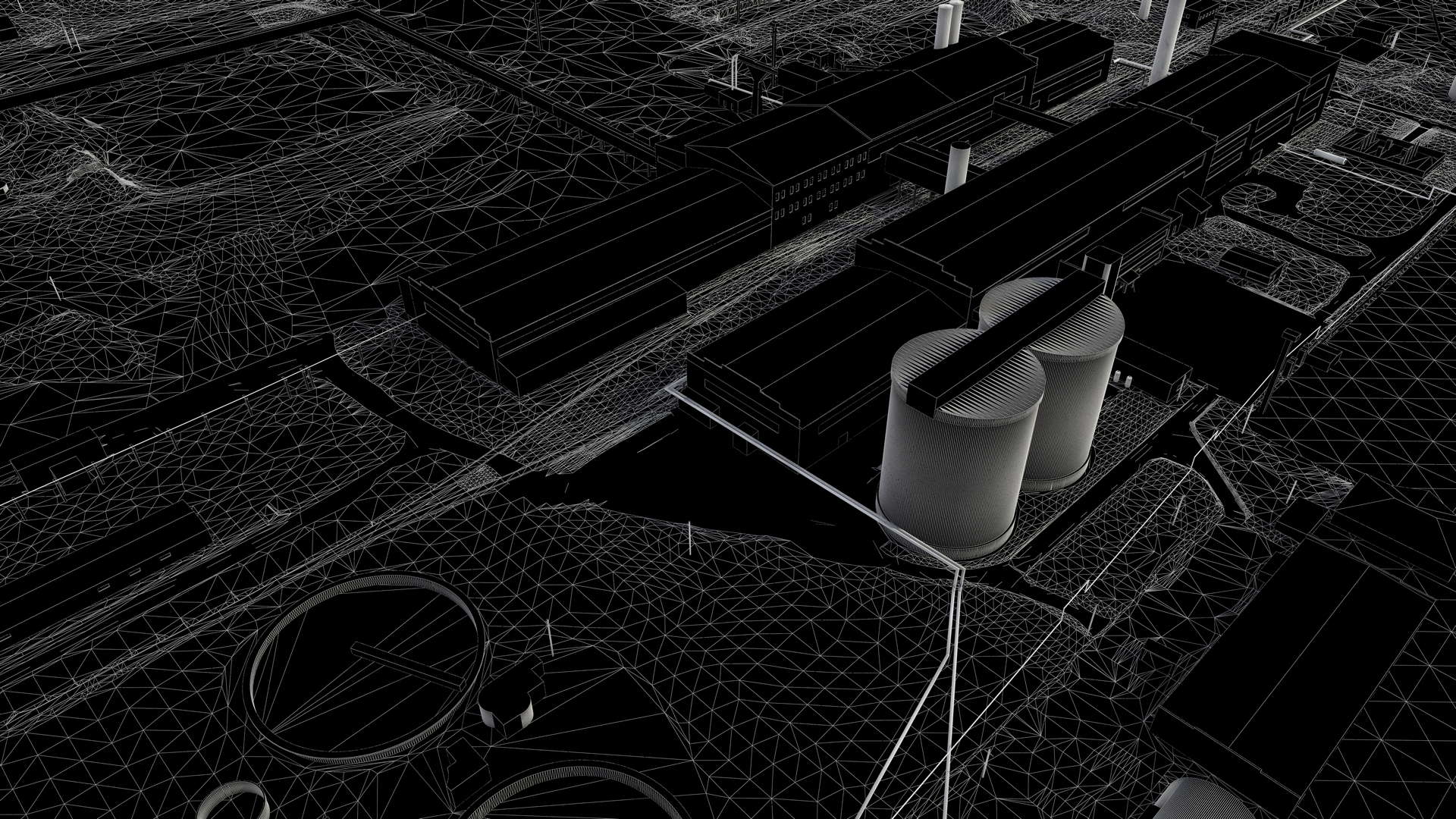

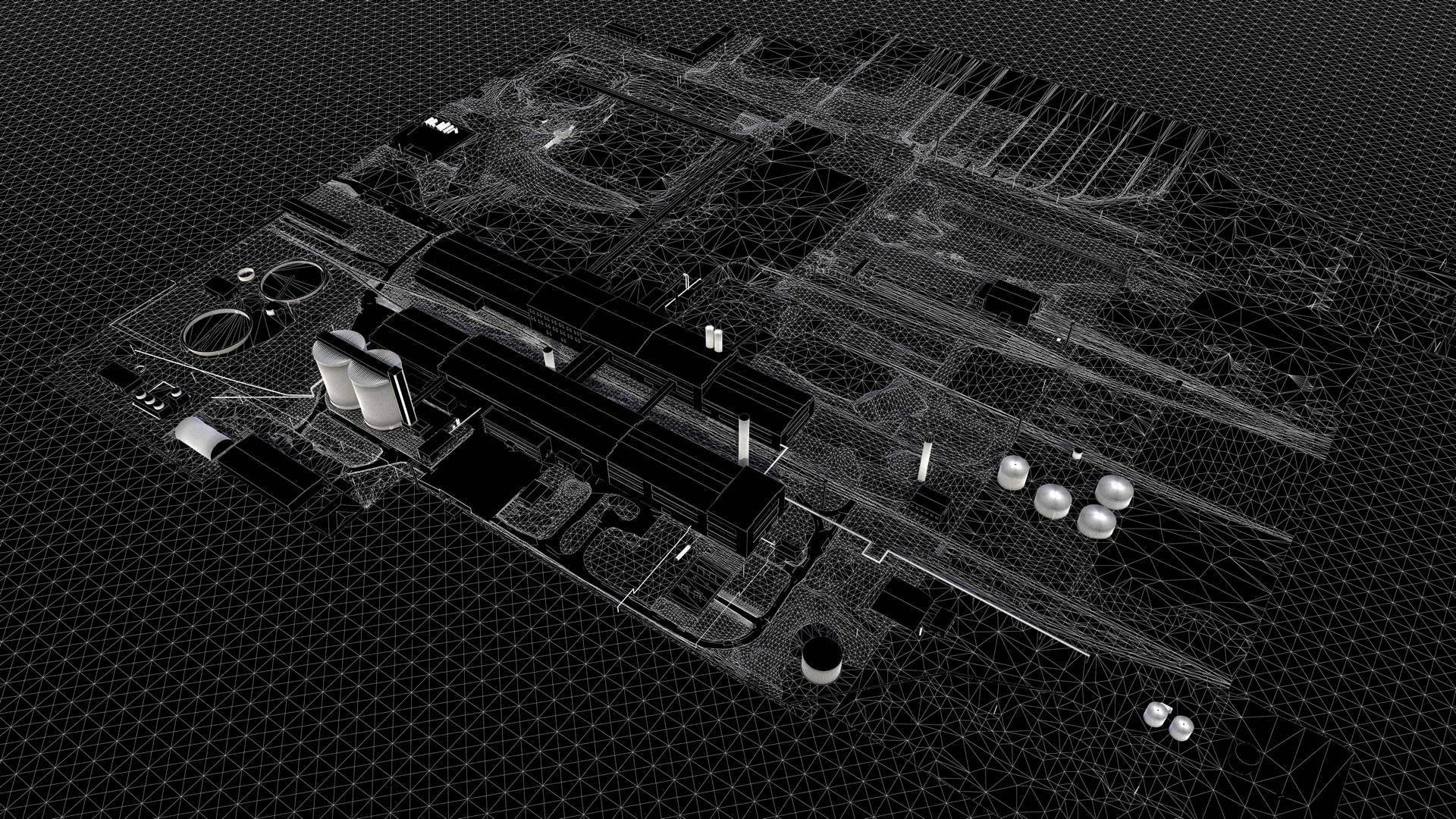

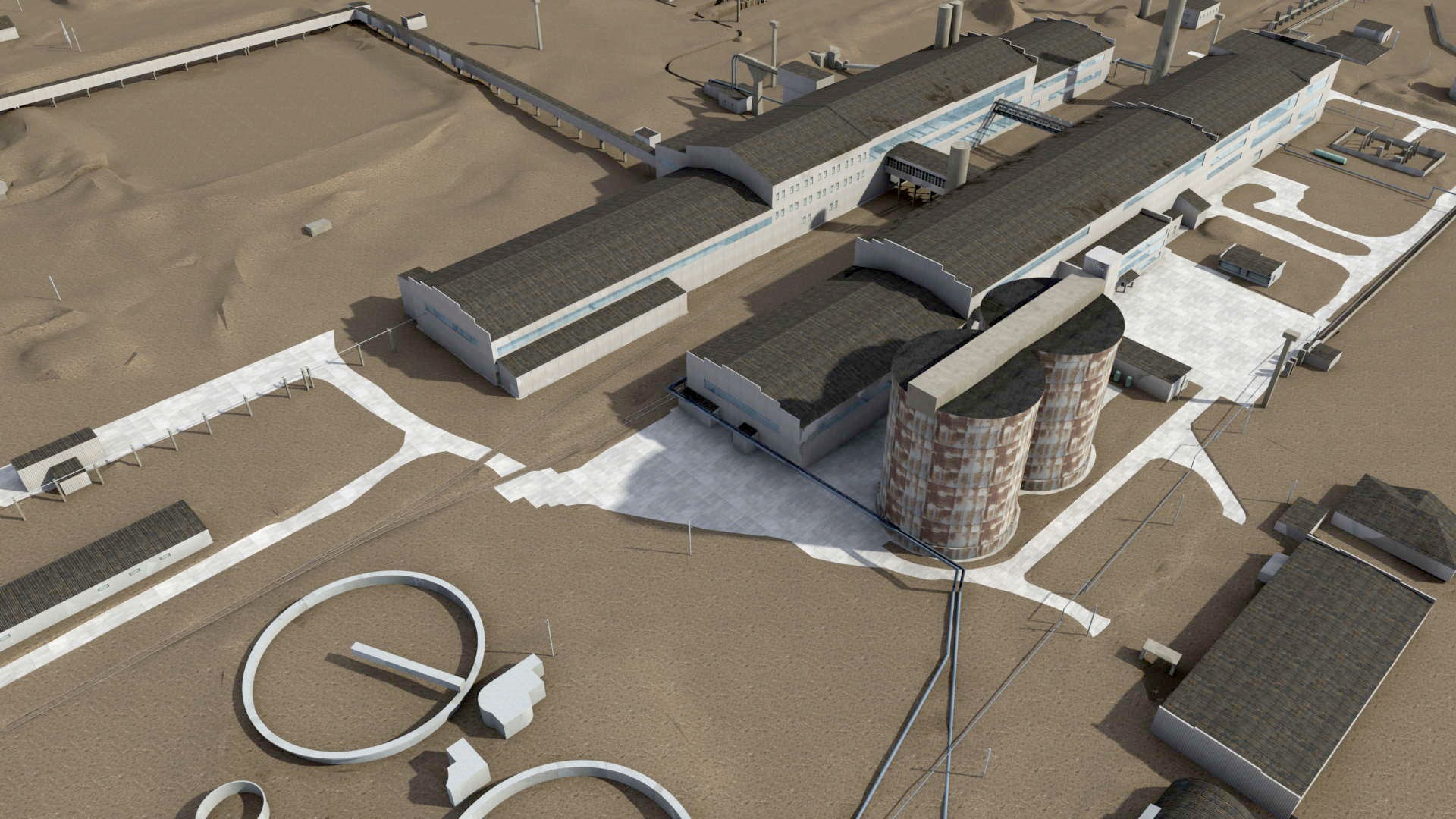

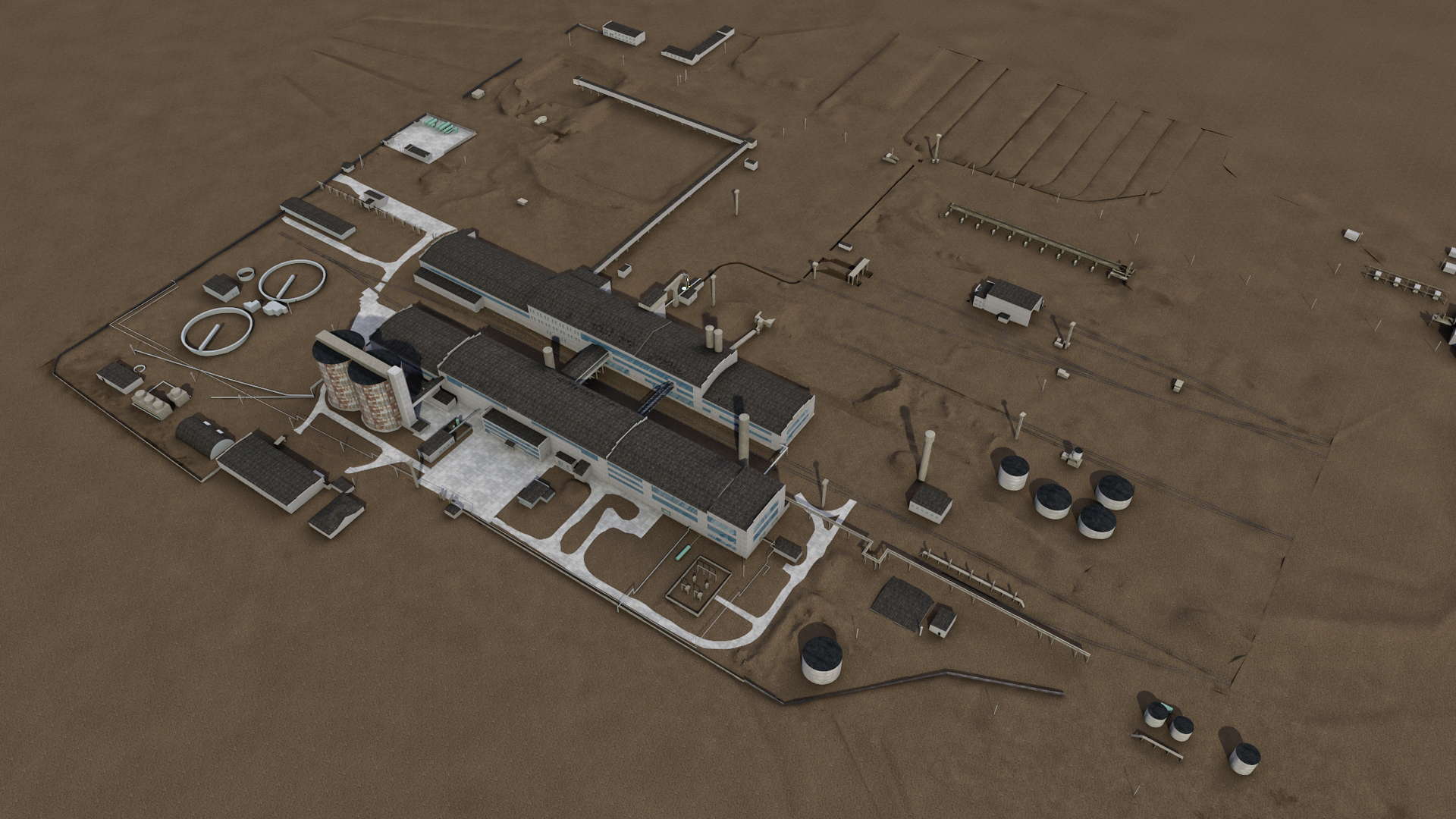

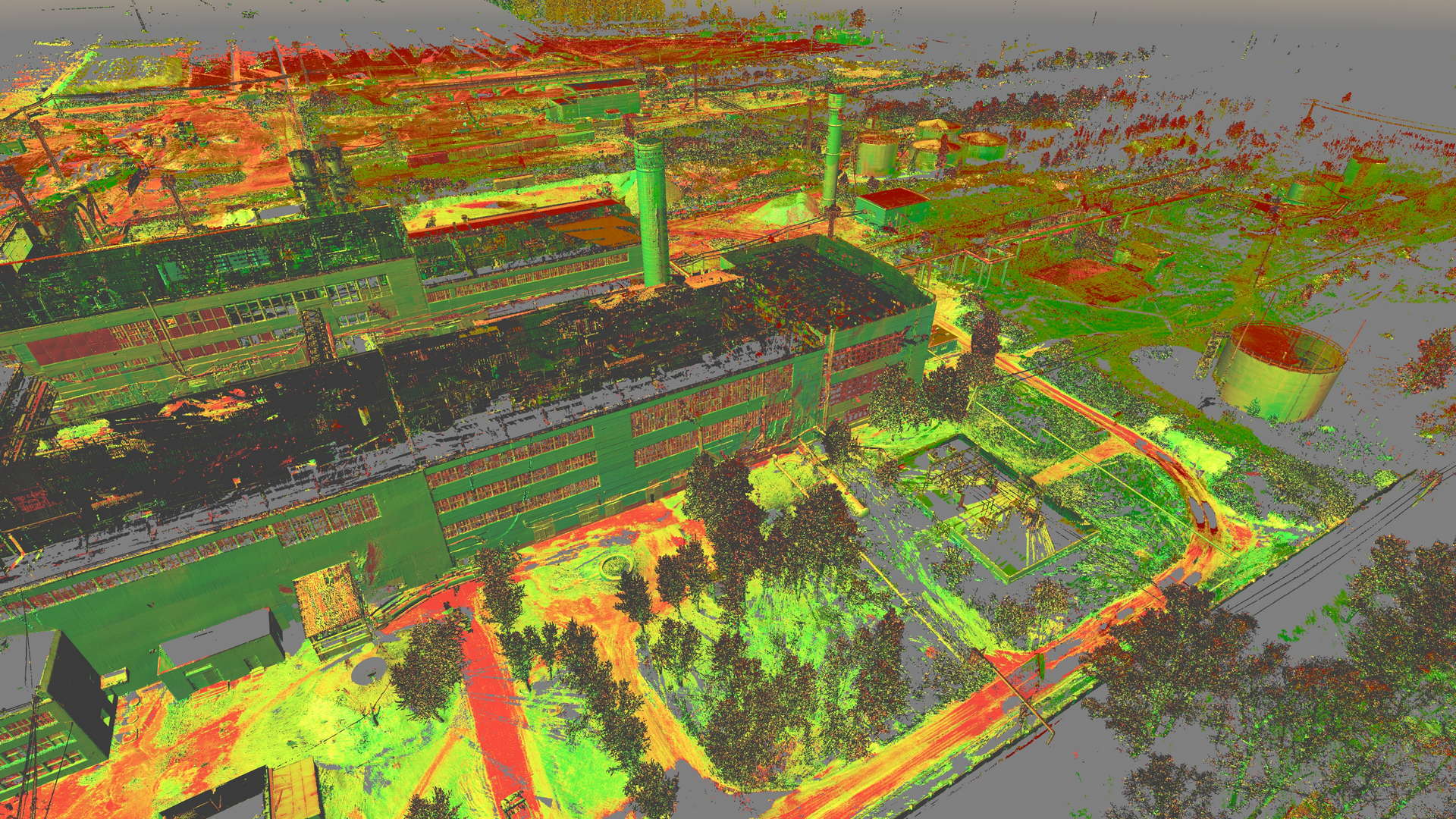

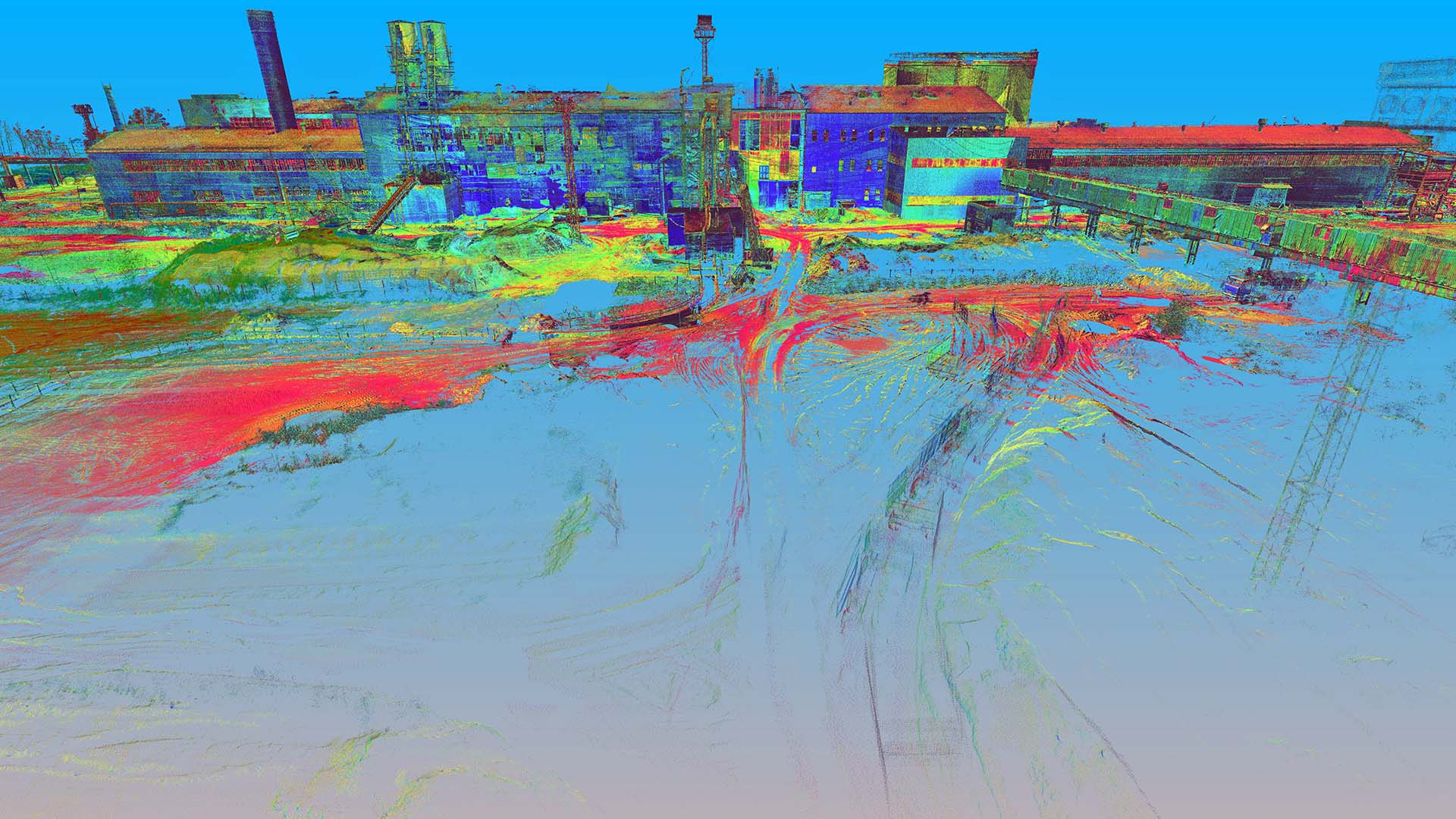

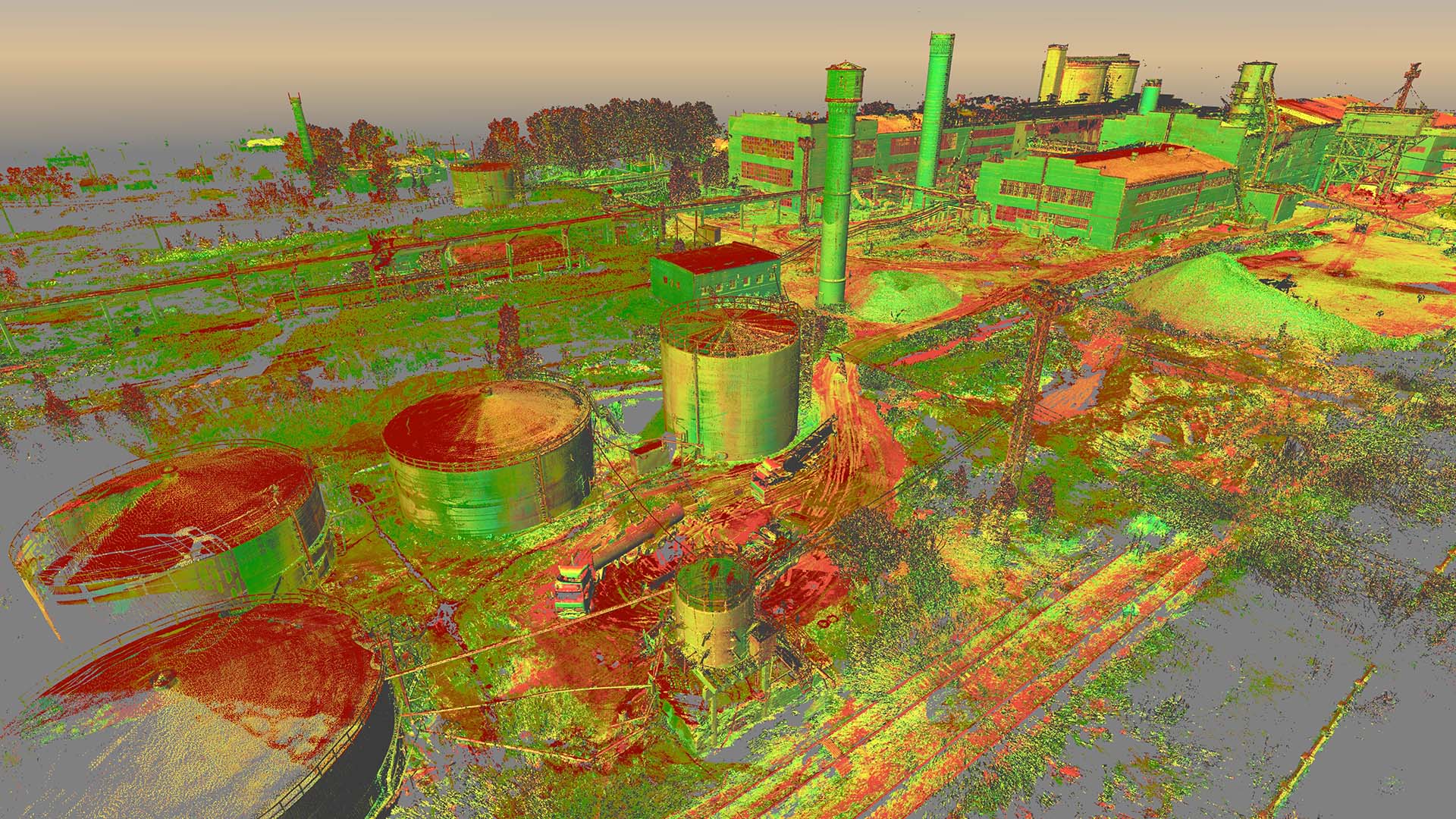

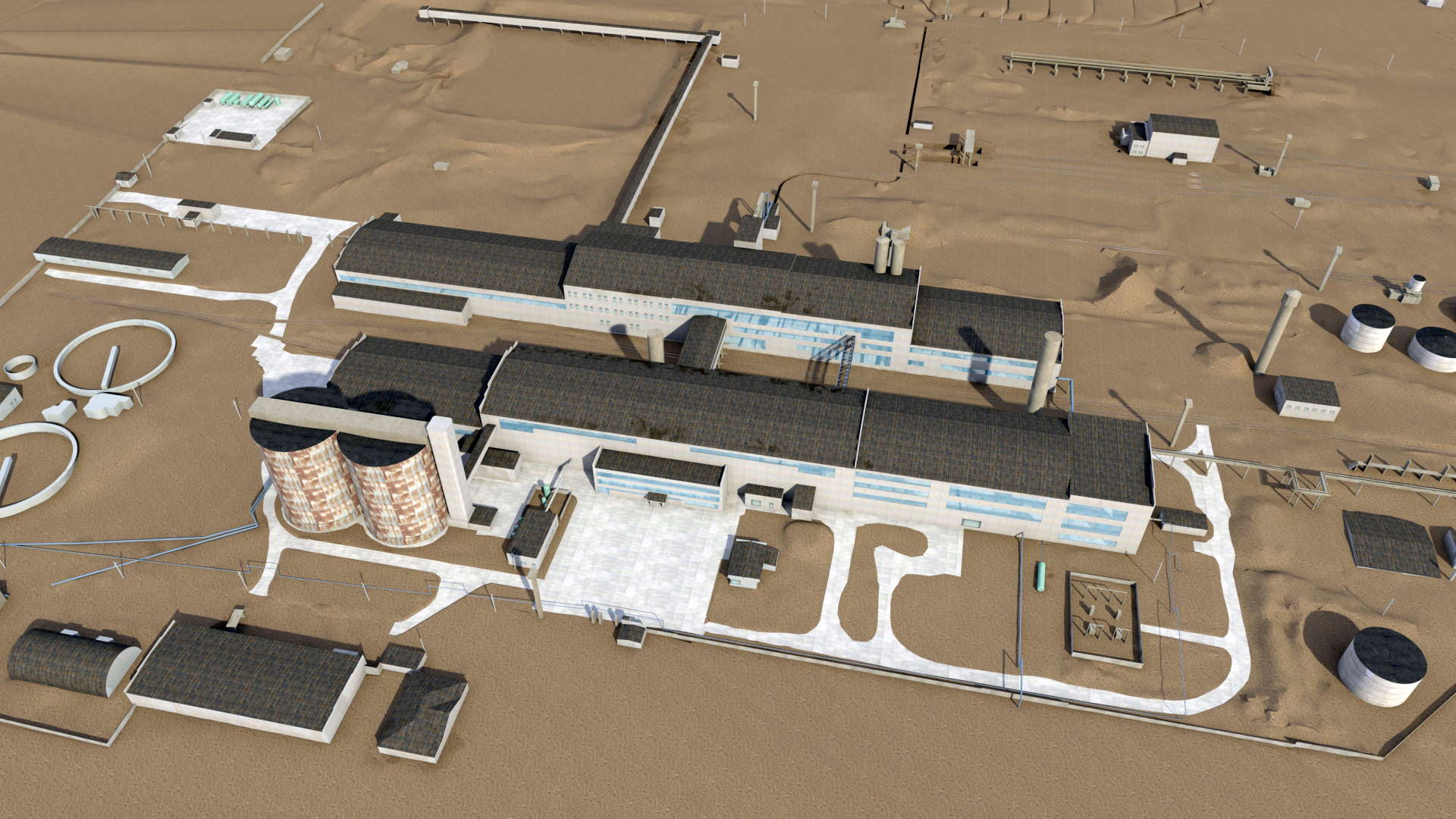

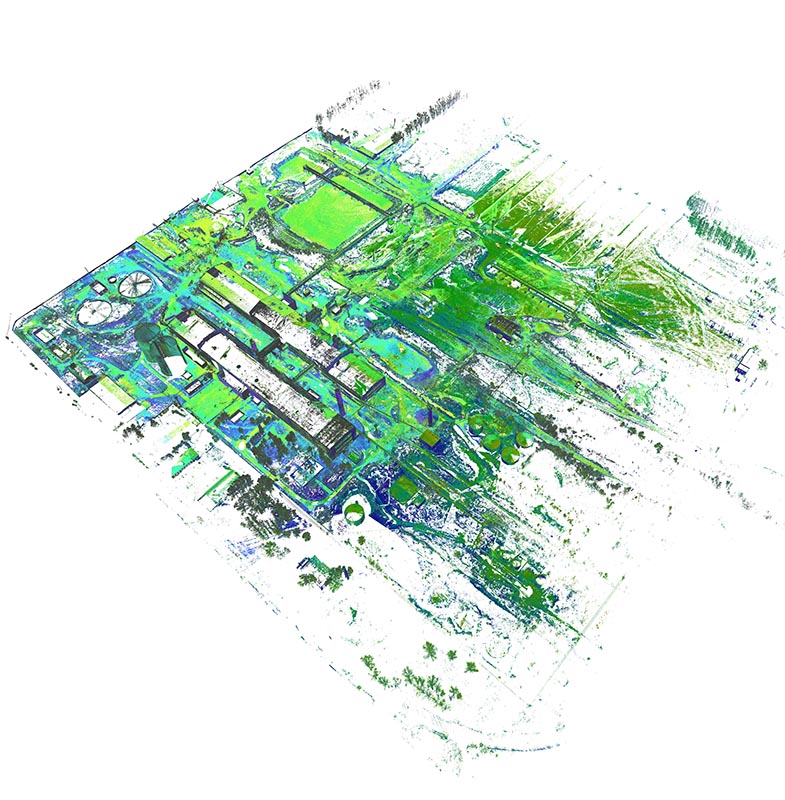

Laser scanning and 3D models of the Orel sugar refinery

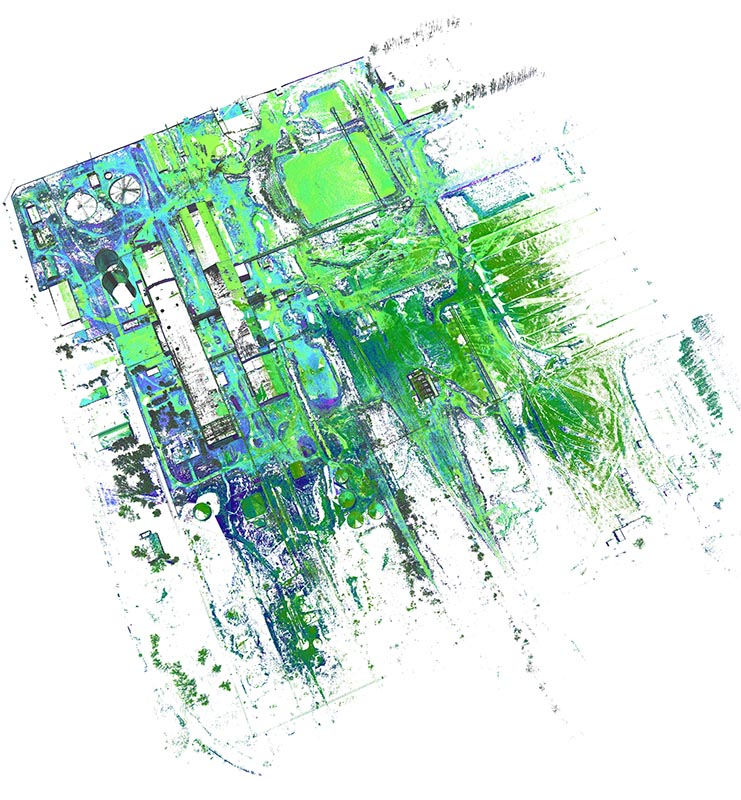

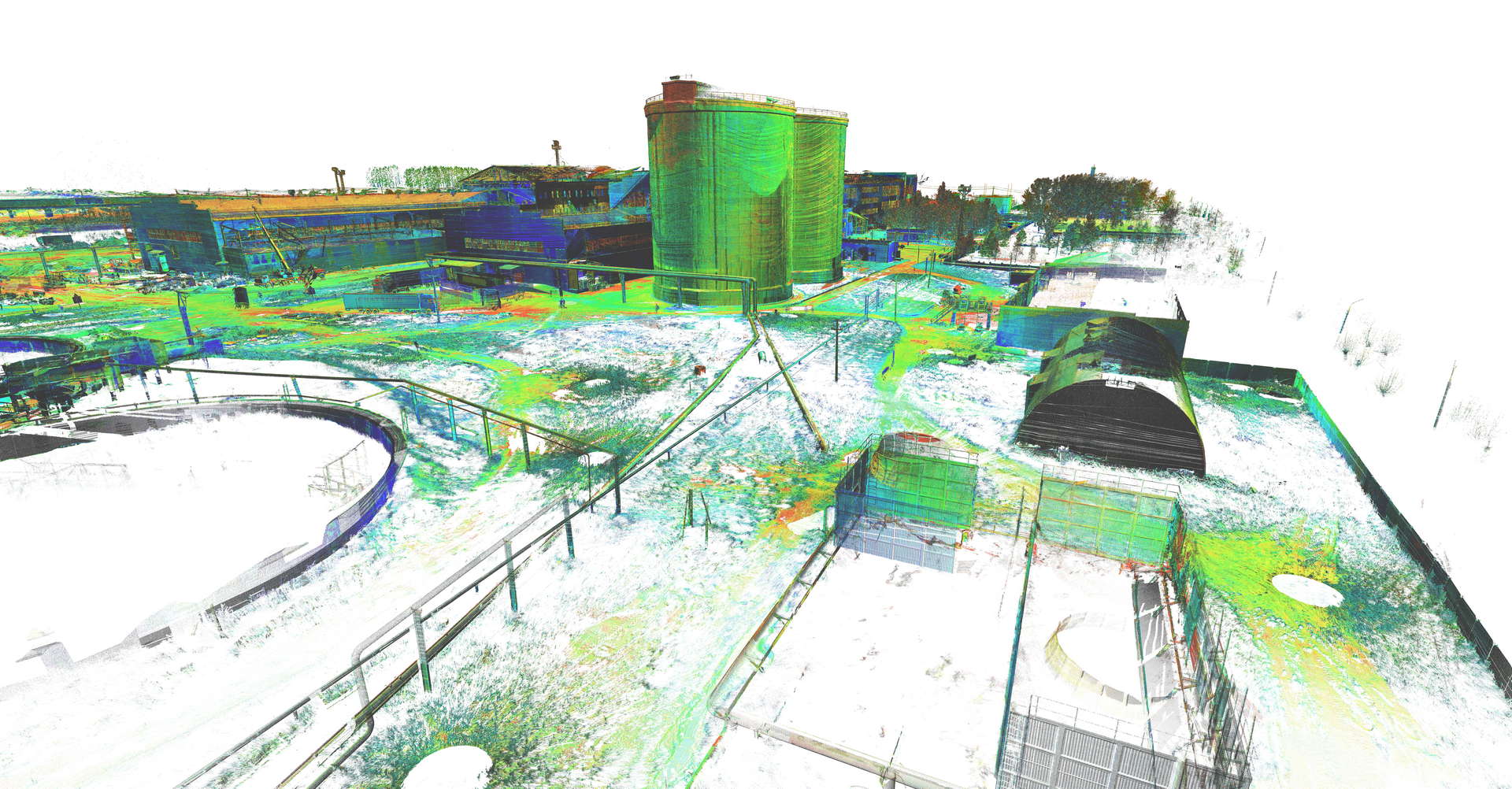

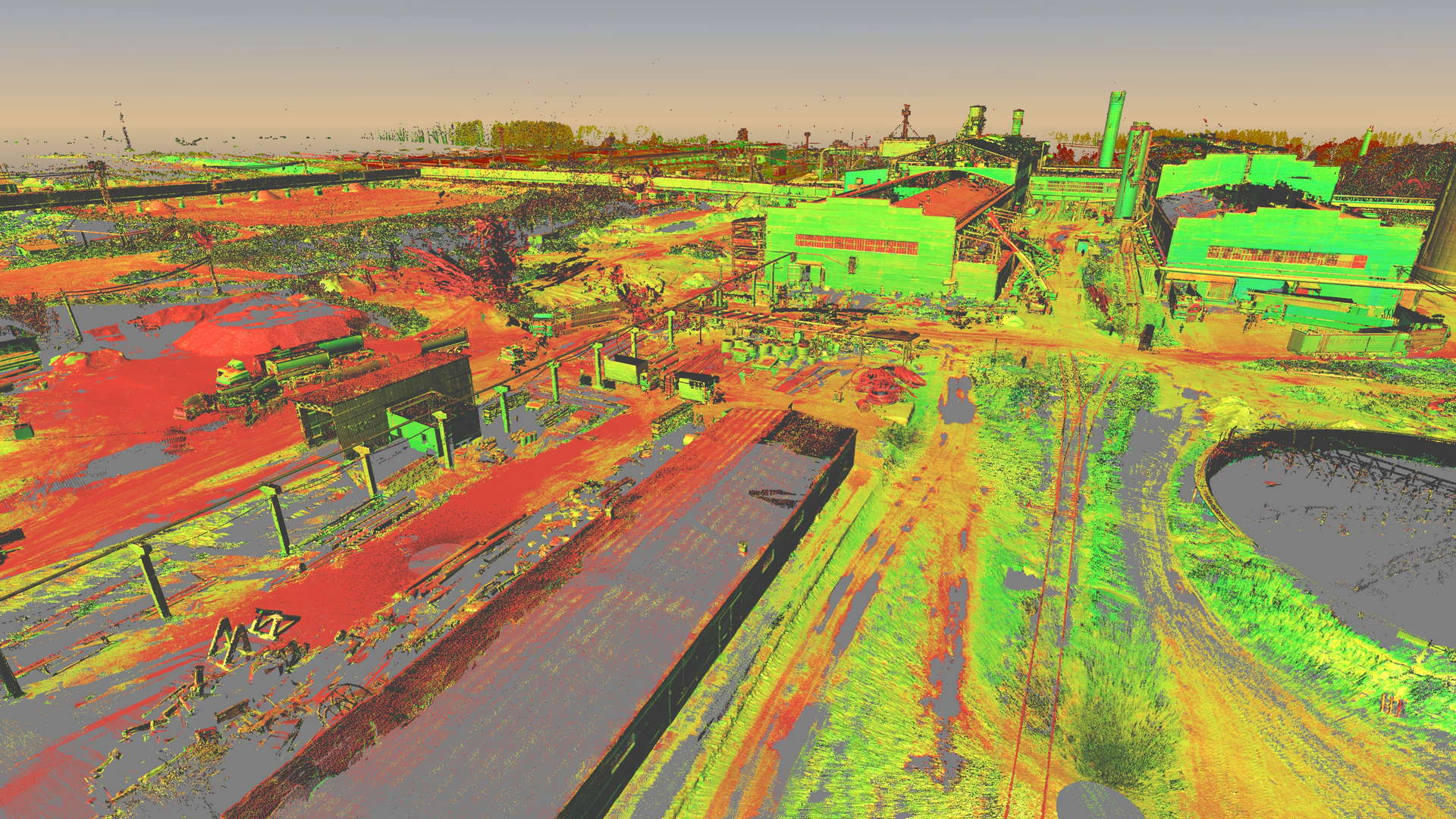

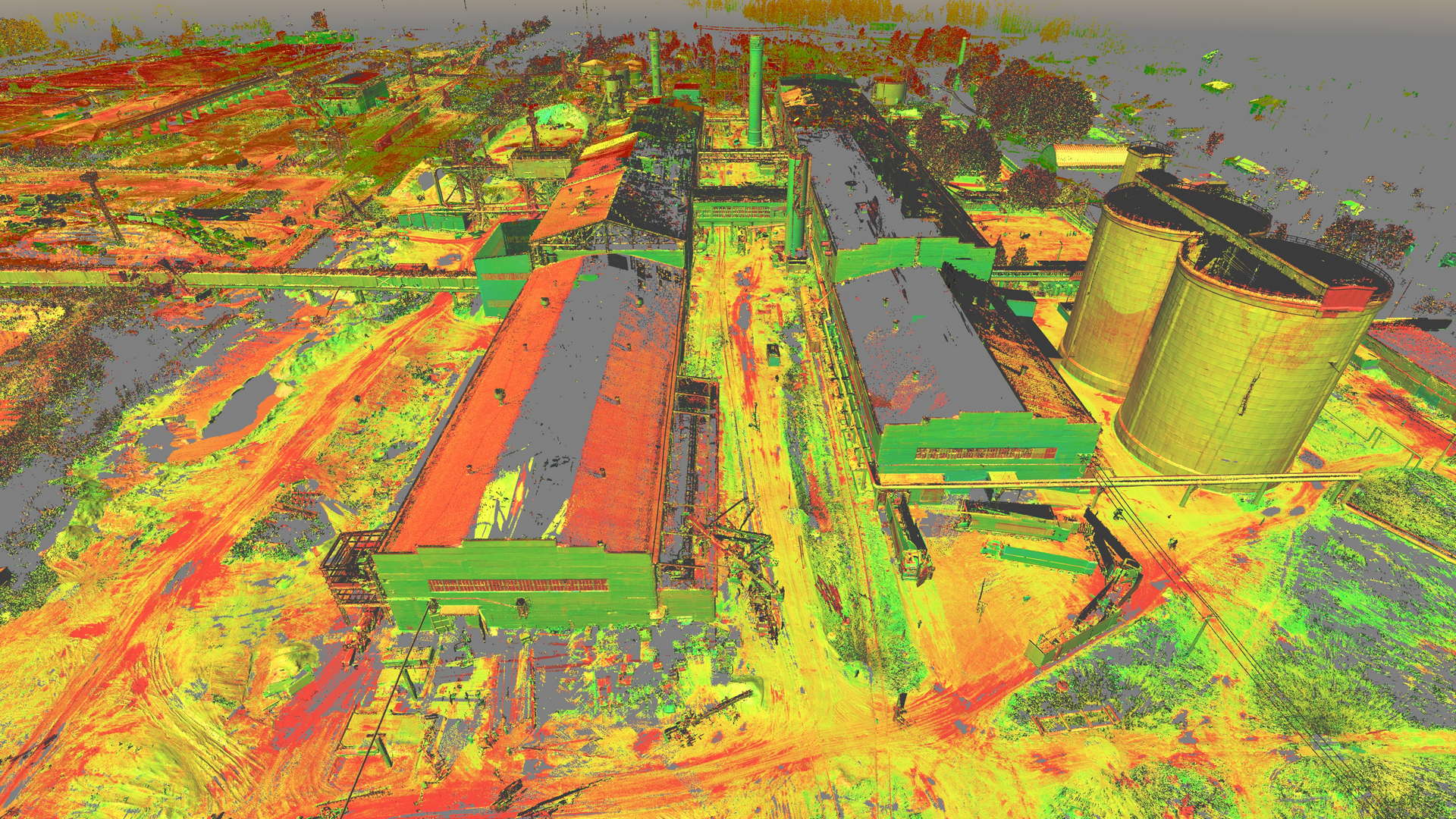

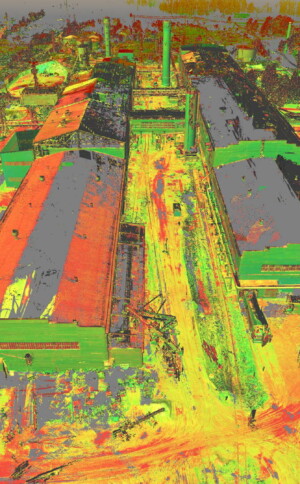

This Sugar refinery is situated in the Russian town of Orel, around 400km south of Moscow. The scope of works included all external details and installations. The scan data and model created was used for preliminary design for major refurbishment work. The site covered an area of around 65 hectares which we recorded with 160 scan positions. Our Long range Reigl VZ400 was deployed in conjunction with total station measurement to provide a robust control solution. The whole project was carried out in the harsh conditions of a Russian winter.
