VILLA ZGORZELEC

LOCATION

Zgorzelec, Poland

SURVEYING EQUIPMENT

scanner Riegl VZ-400, Leica TCRA 1101 plus Total Station

TOTAL TIME SPENT

2 days on site (300 scans), about 35 days processing in the office (CAD and scan registration)

FINAL PRODUCT

Registered point cloud (300 scans), TruView, Revit model, 2D CAD documentation

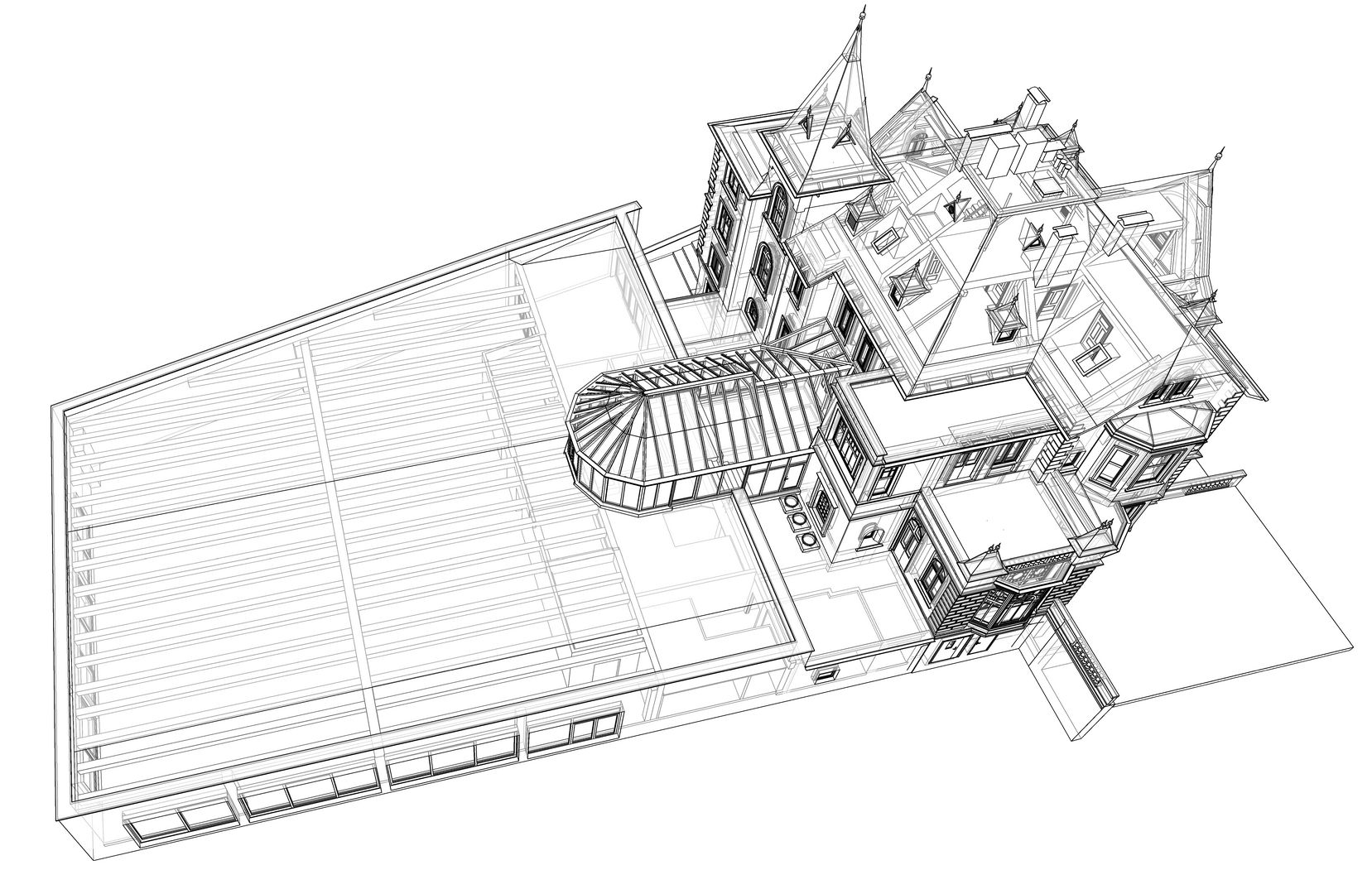

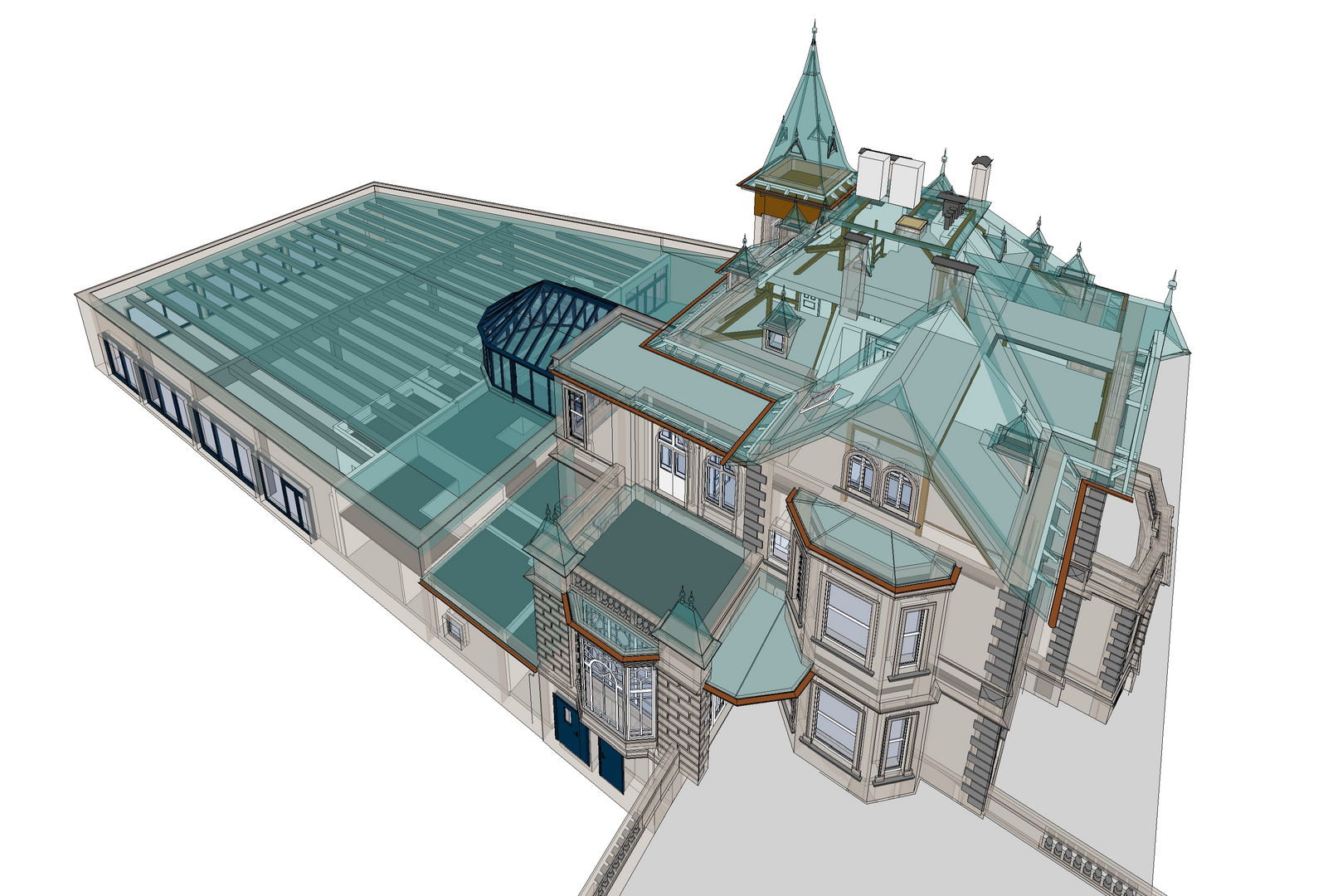

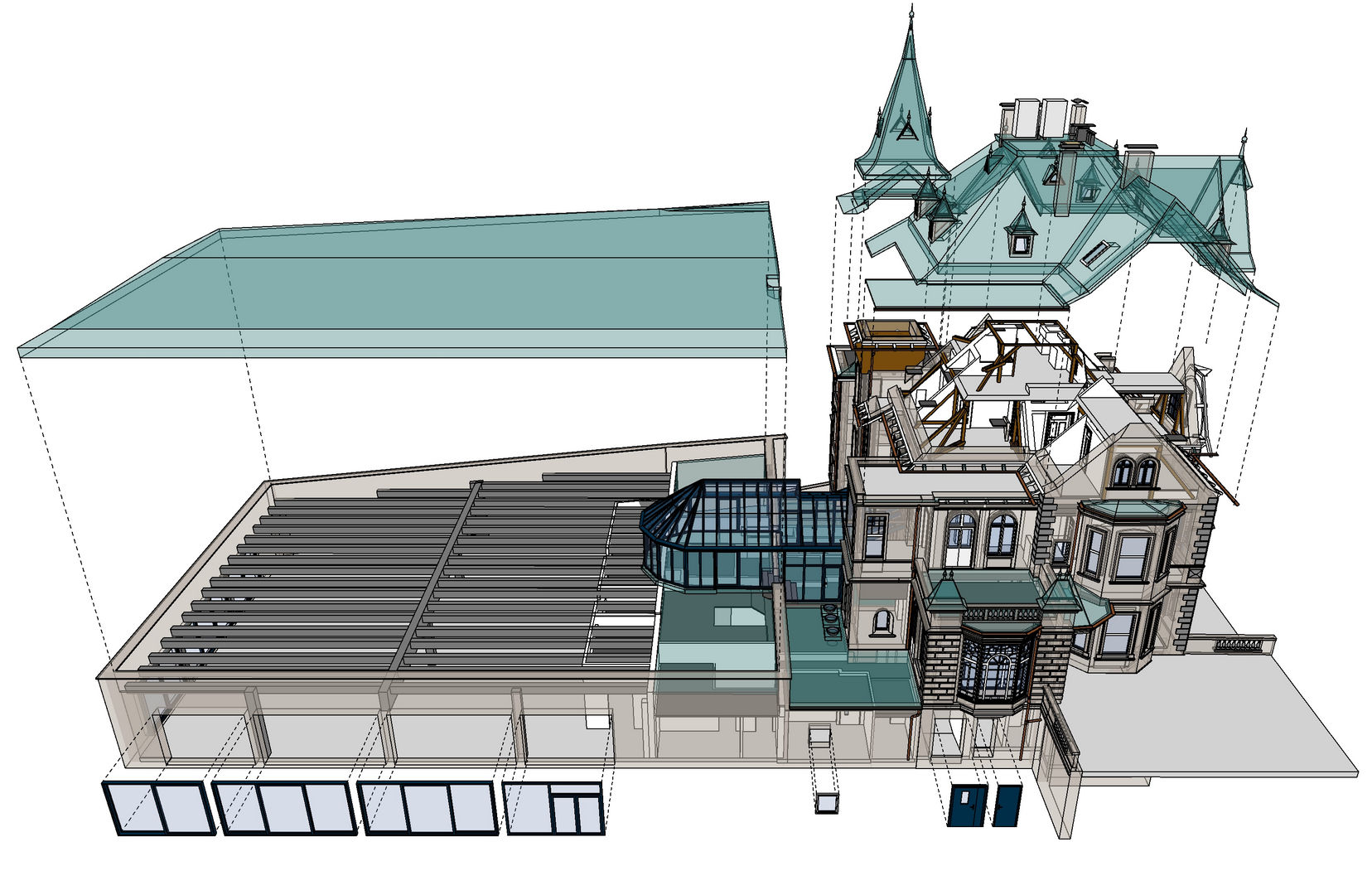

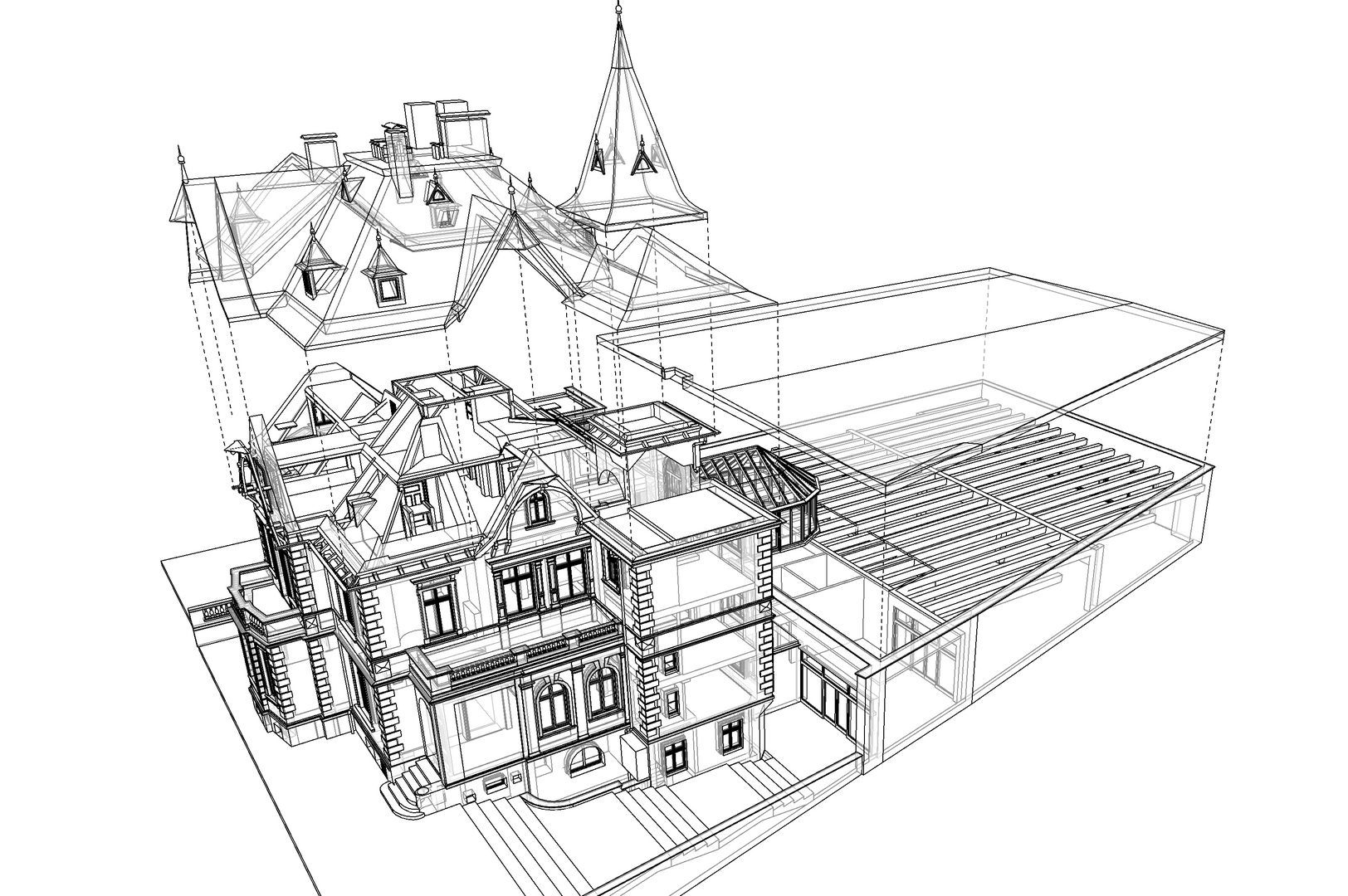

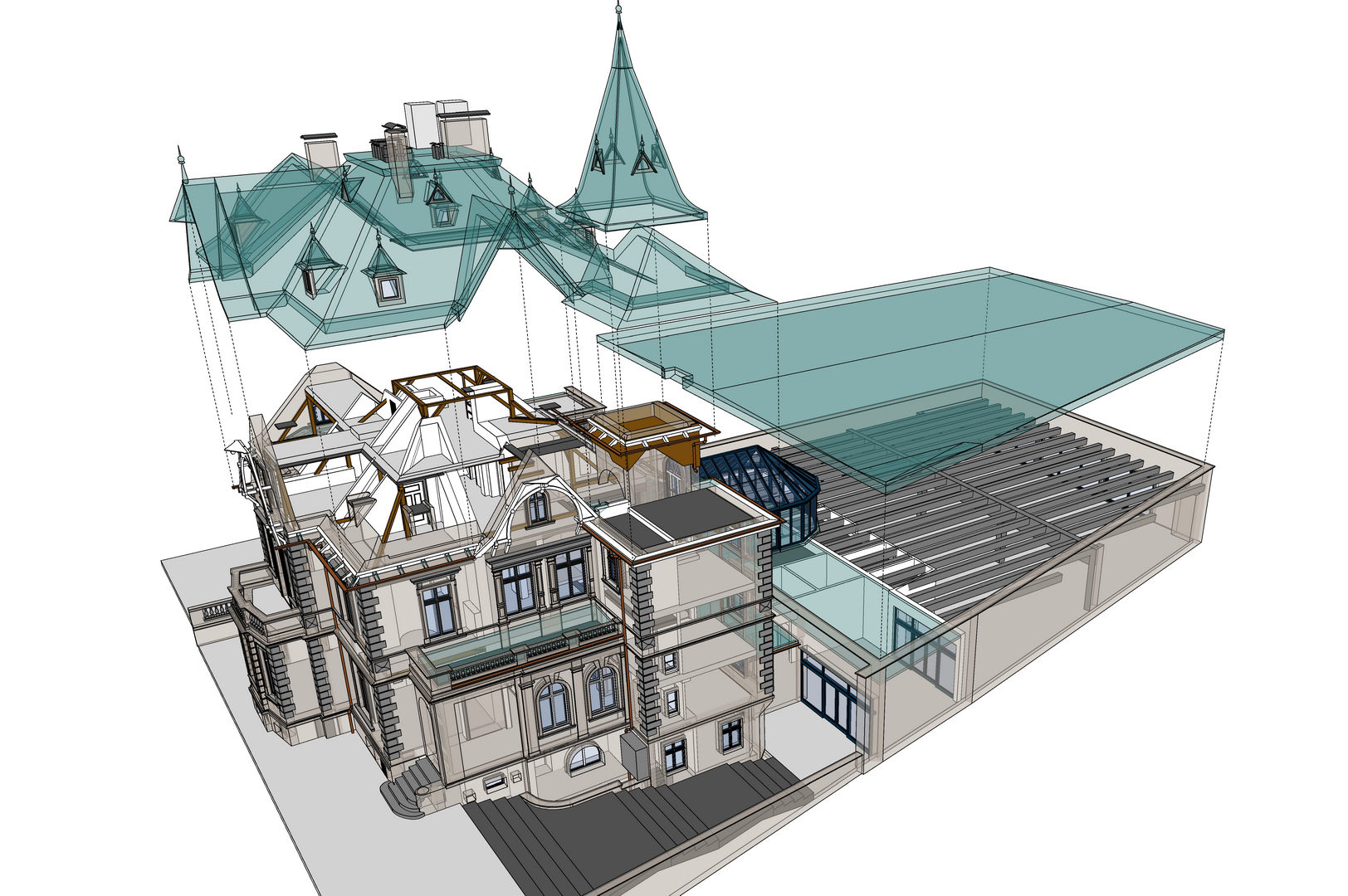

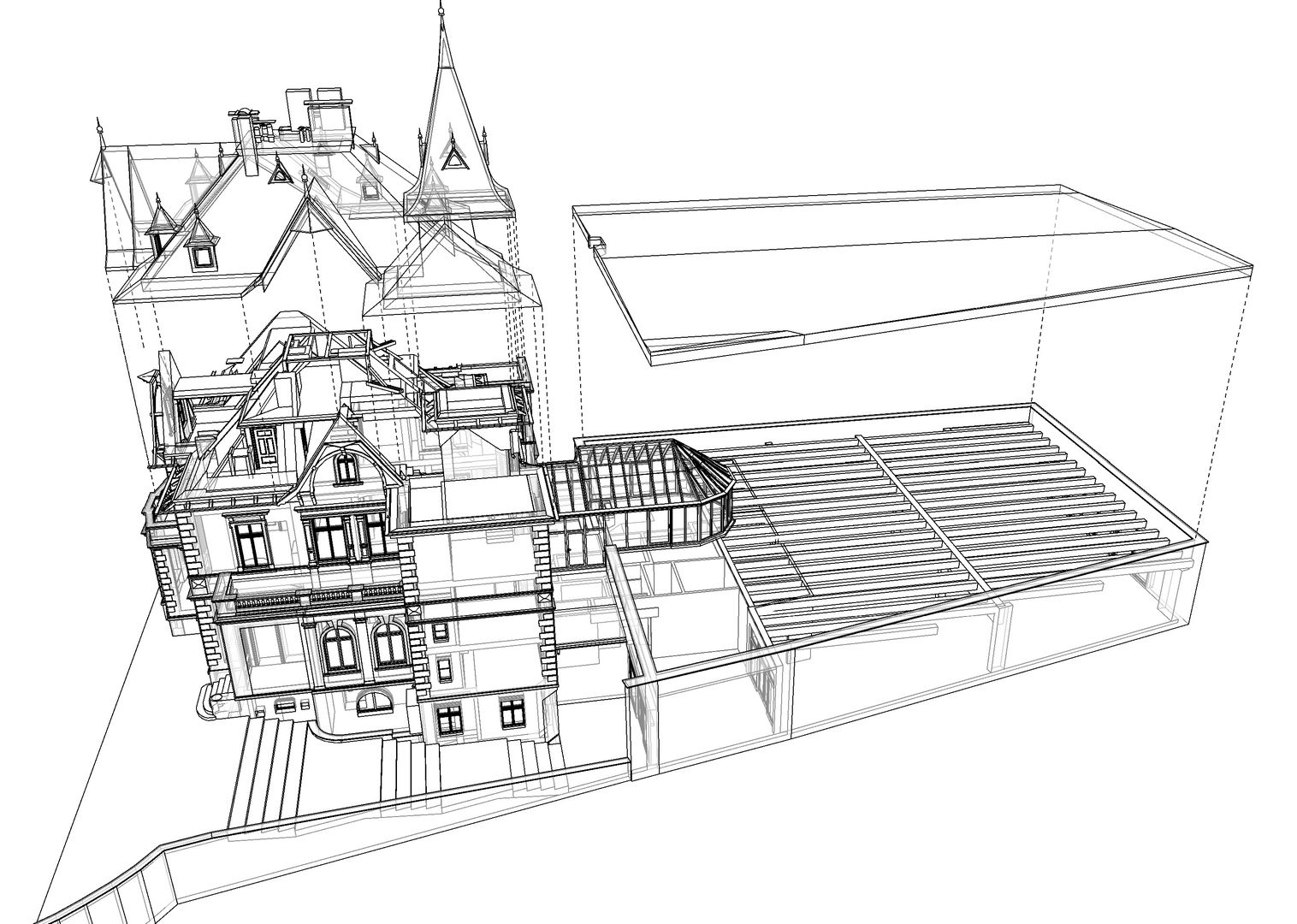

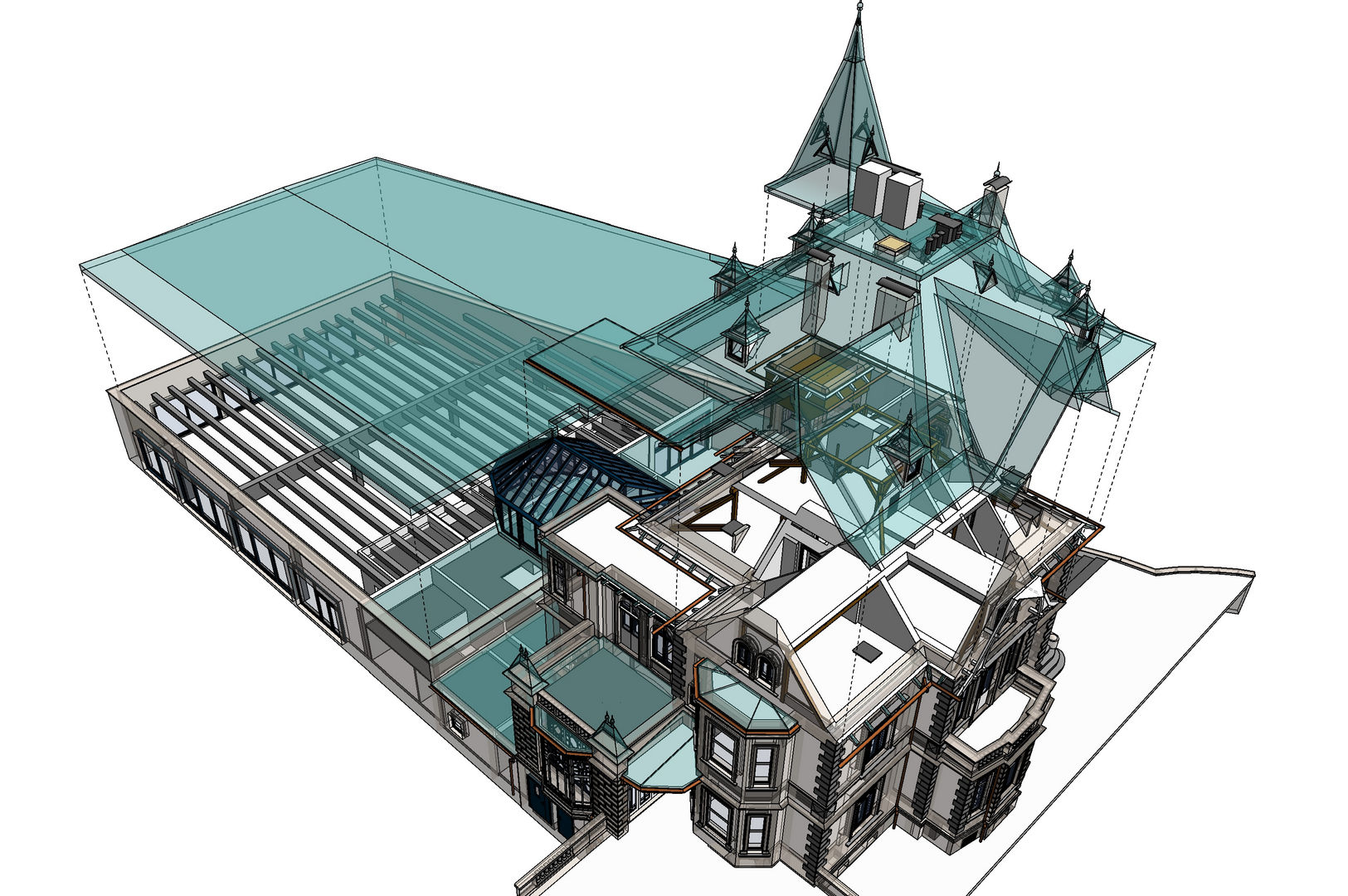

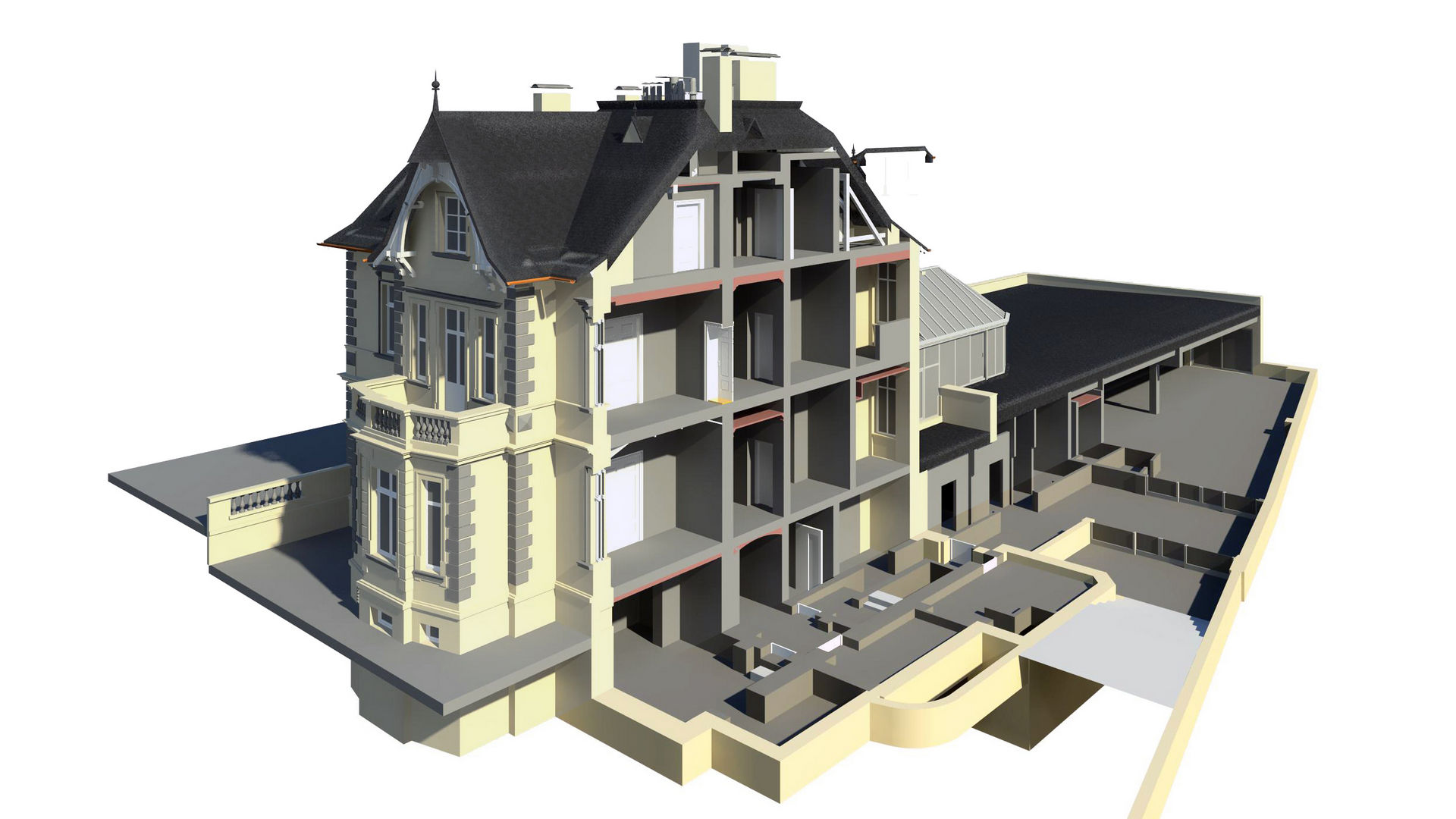

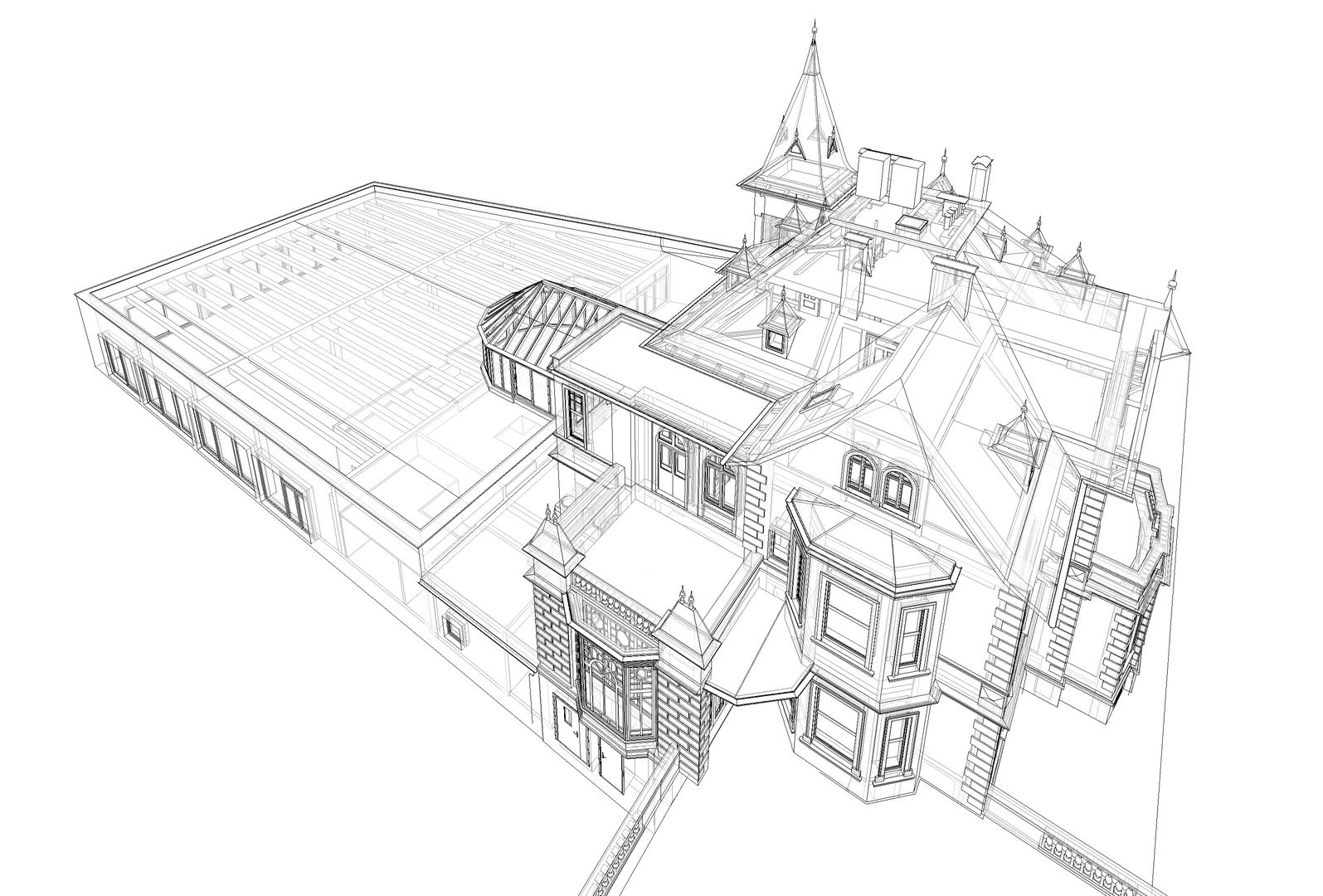

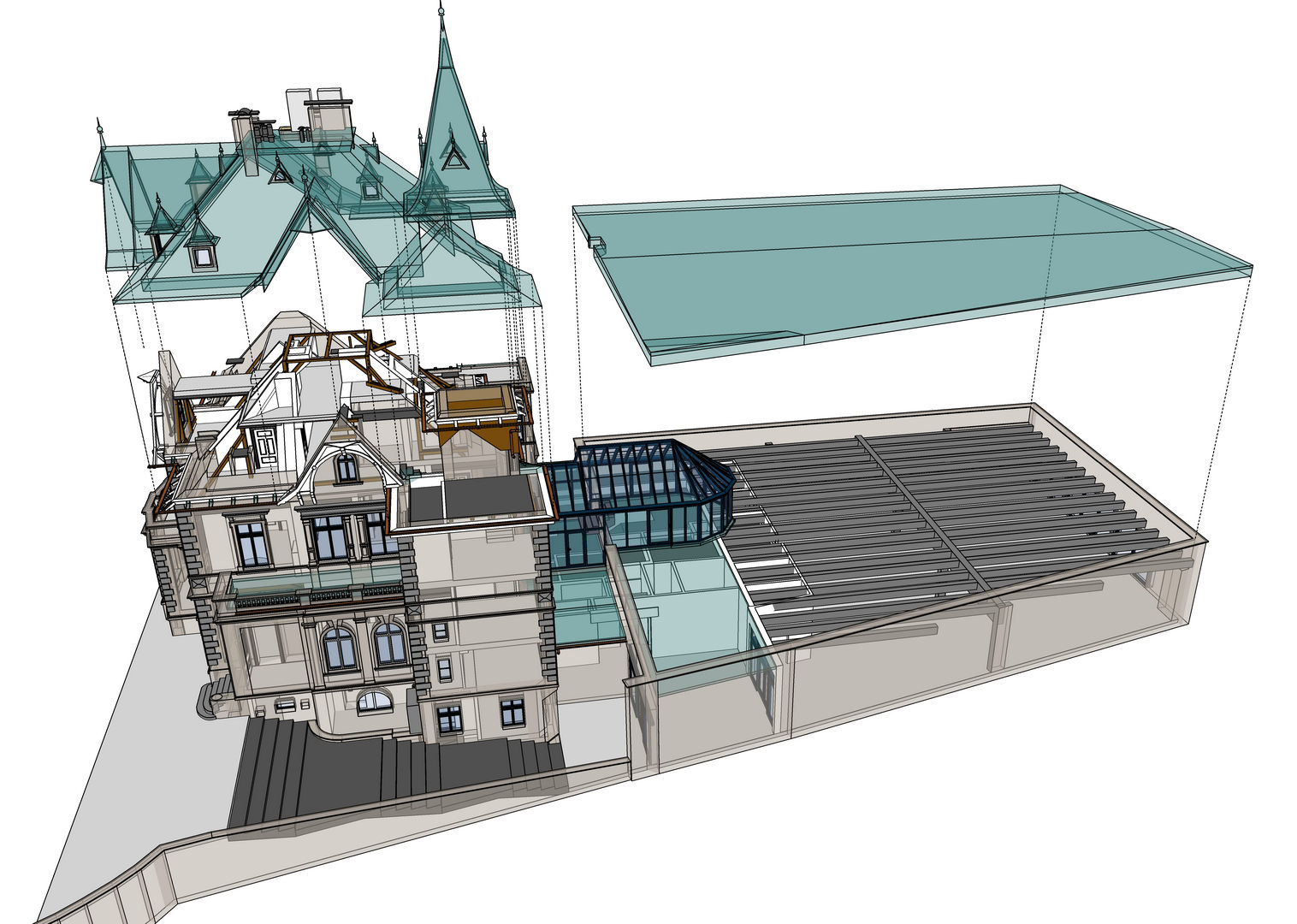

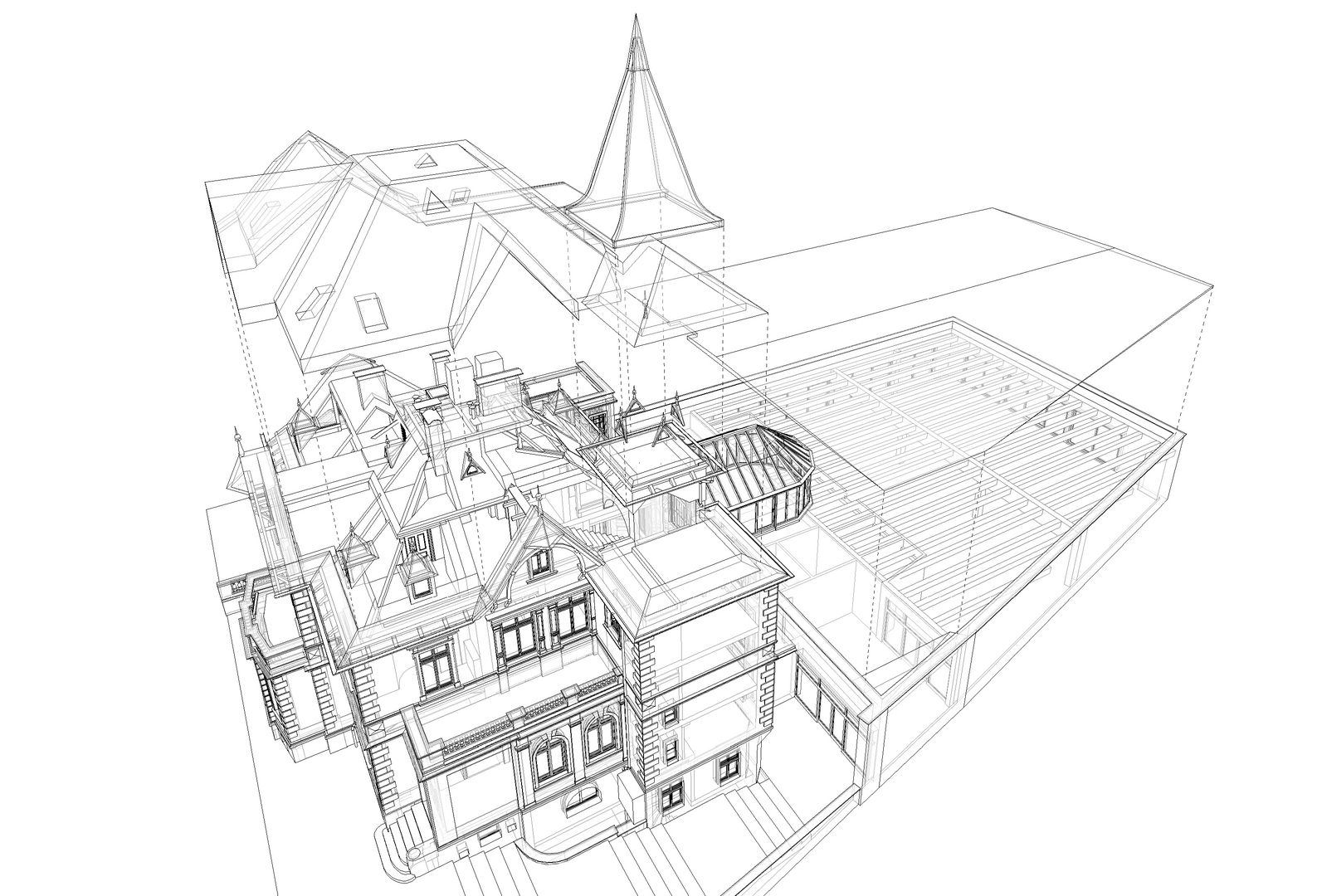

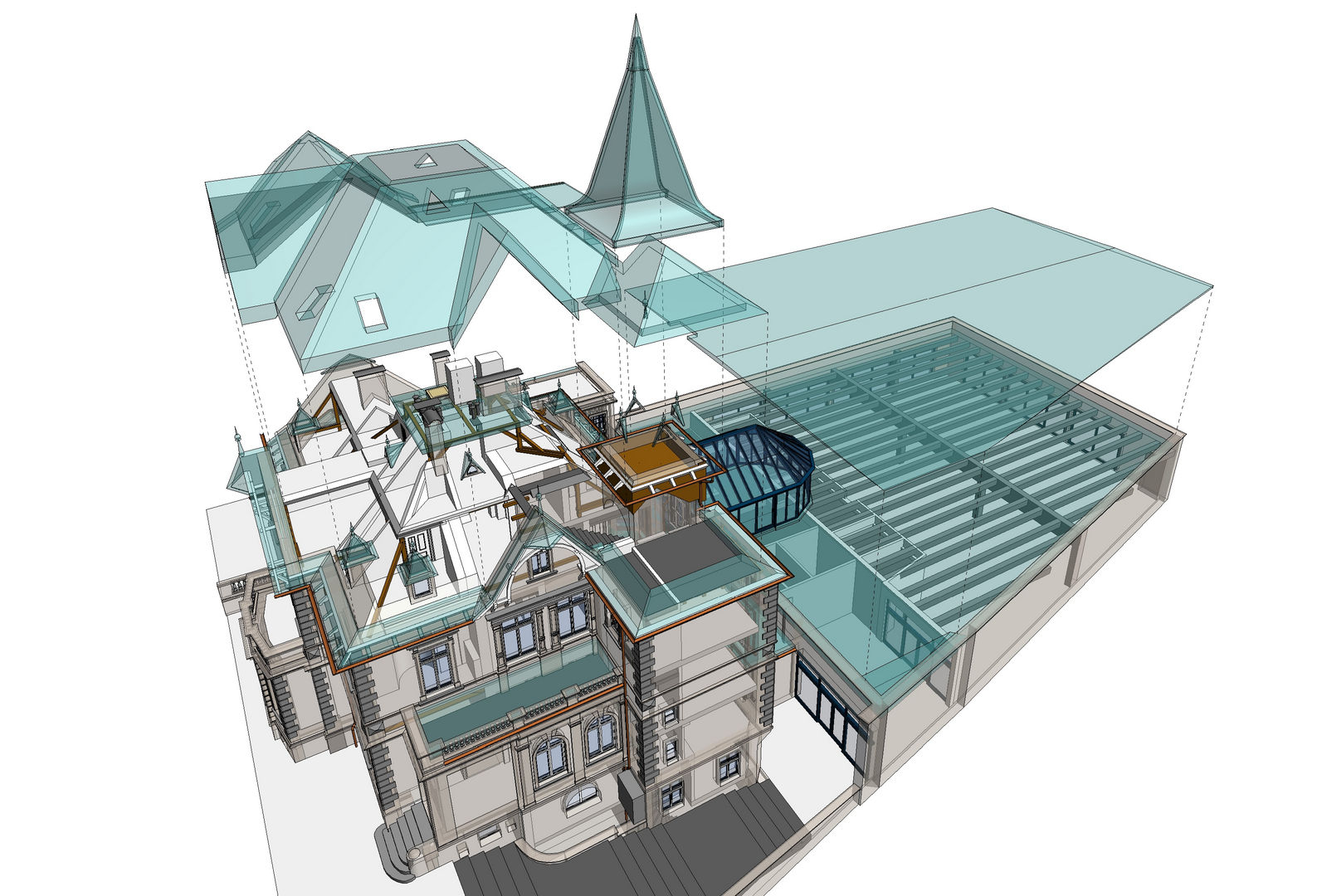

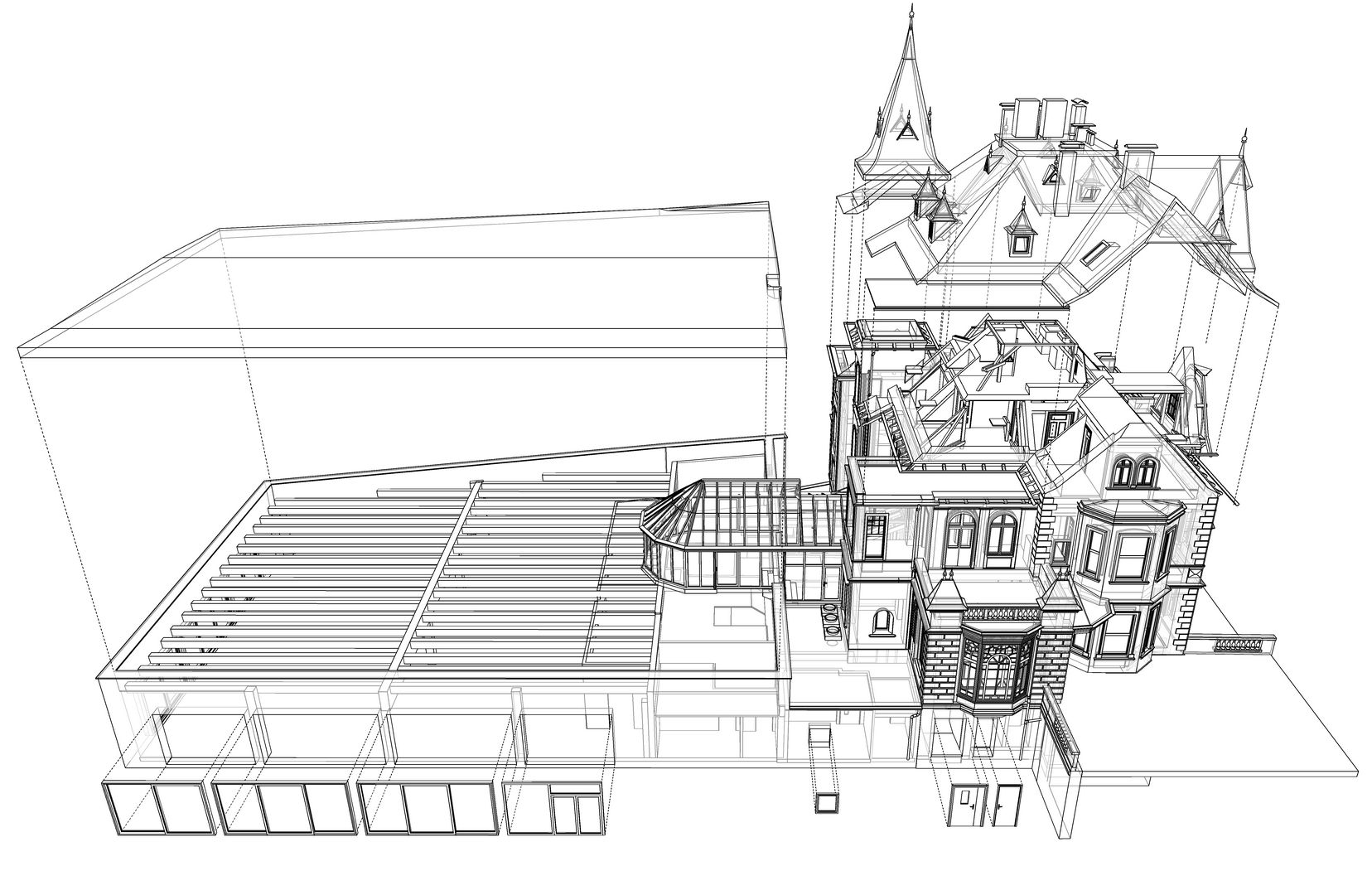

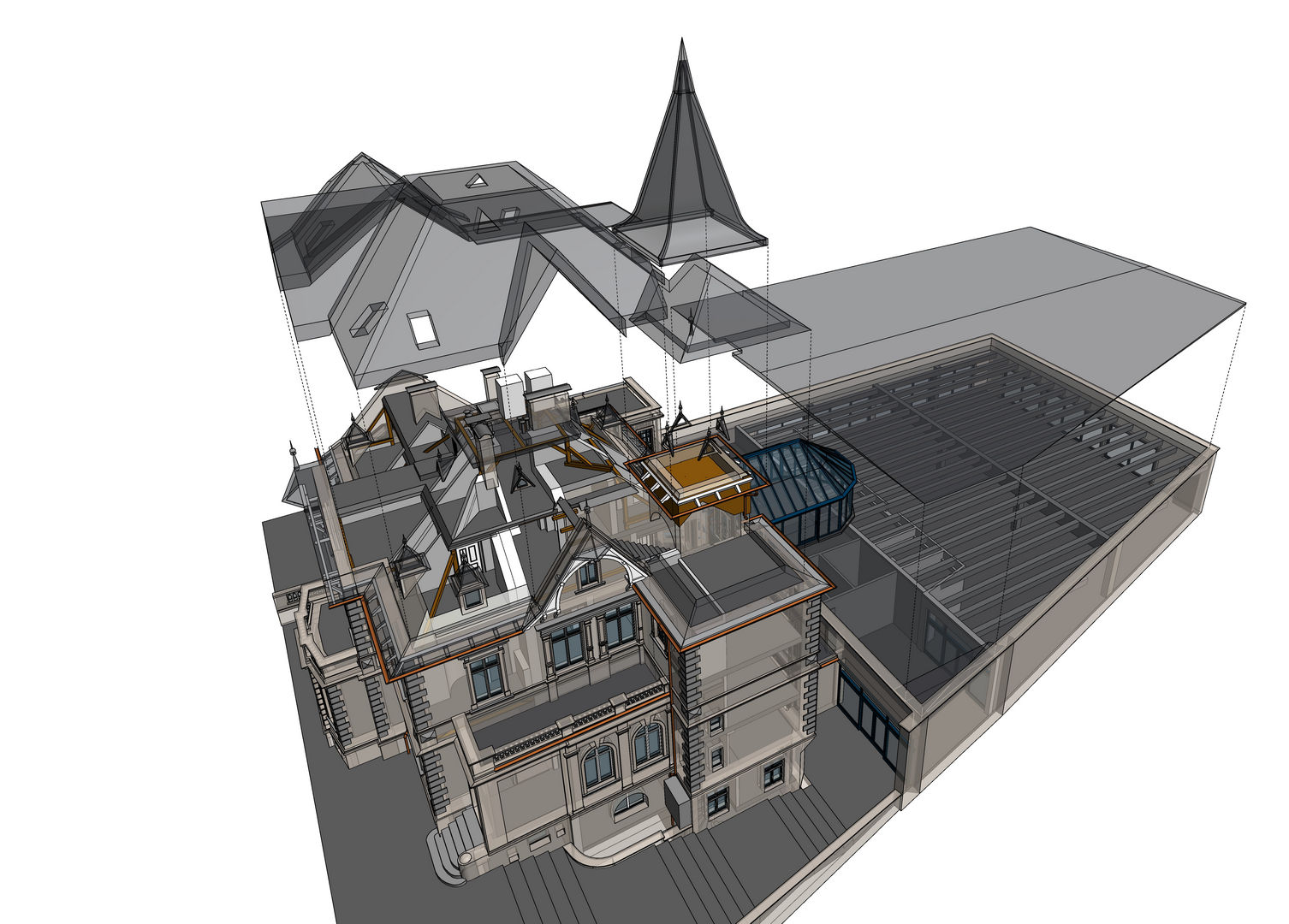

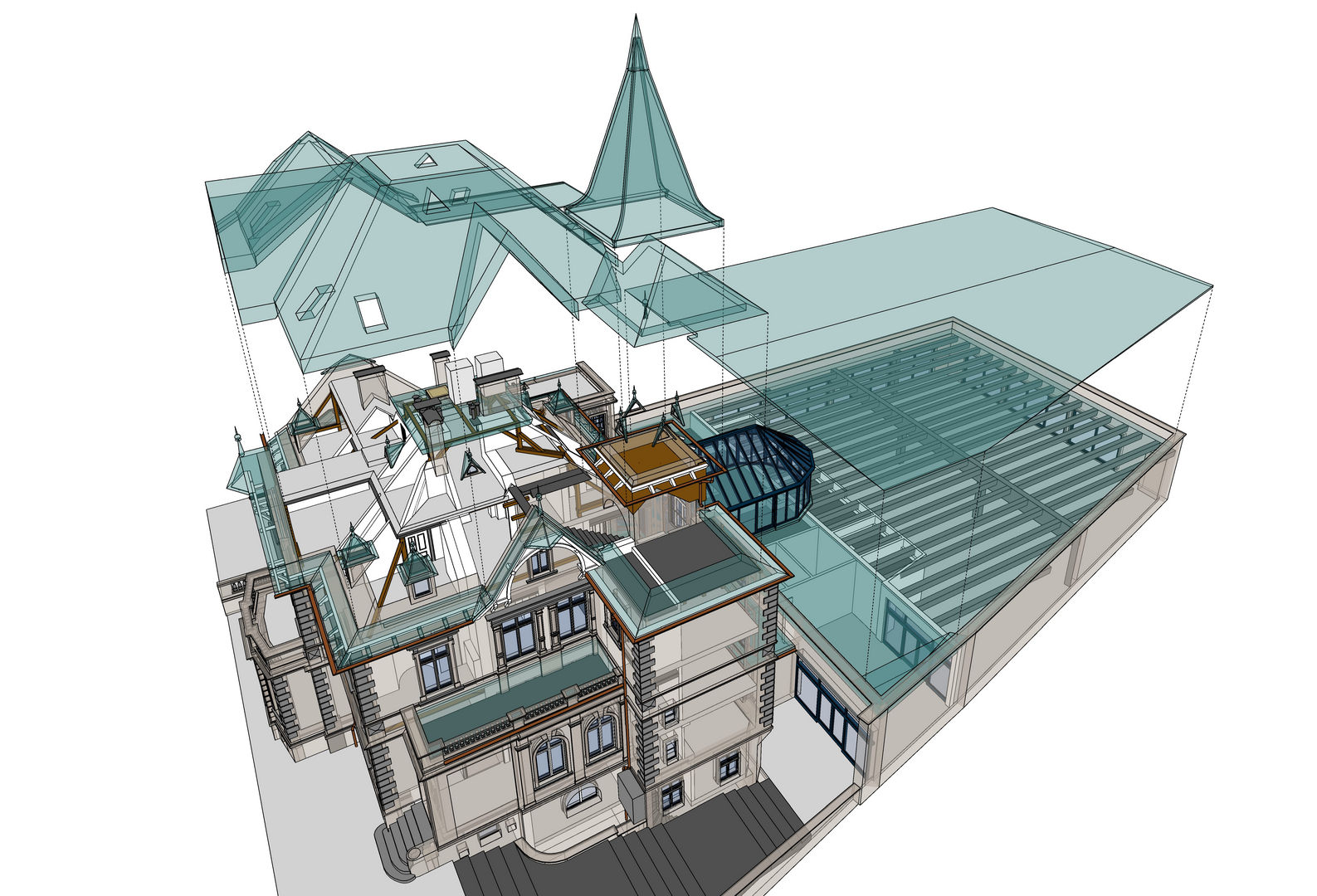

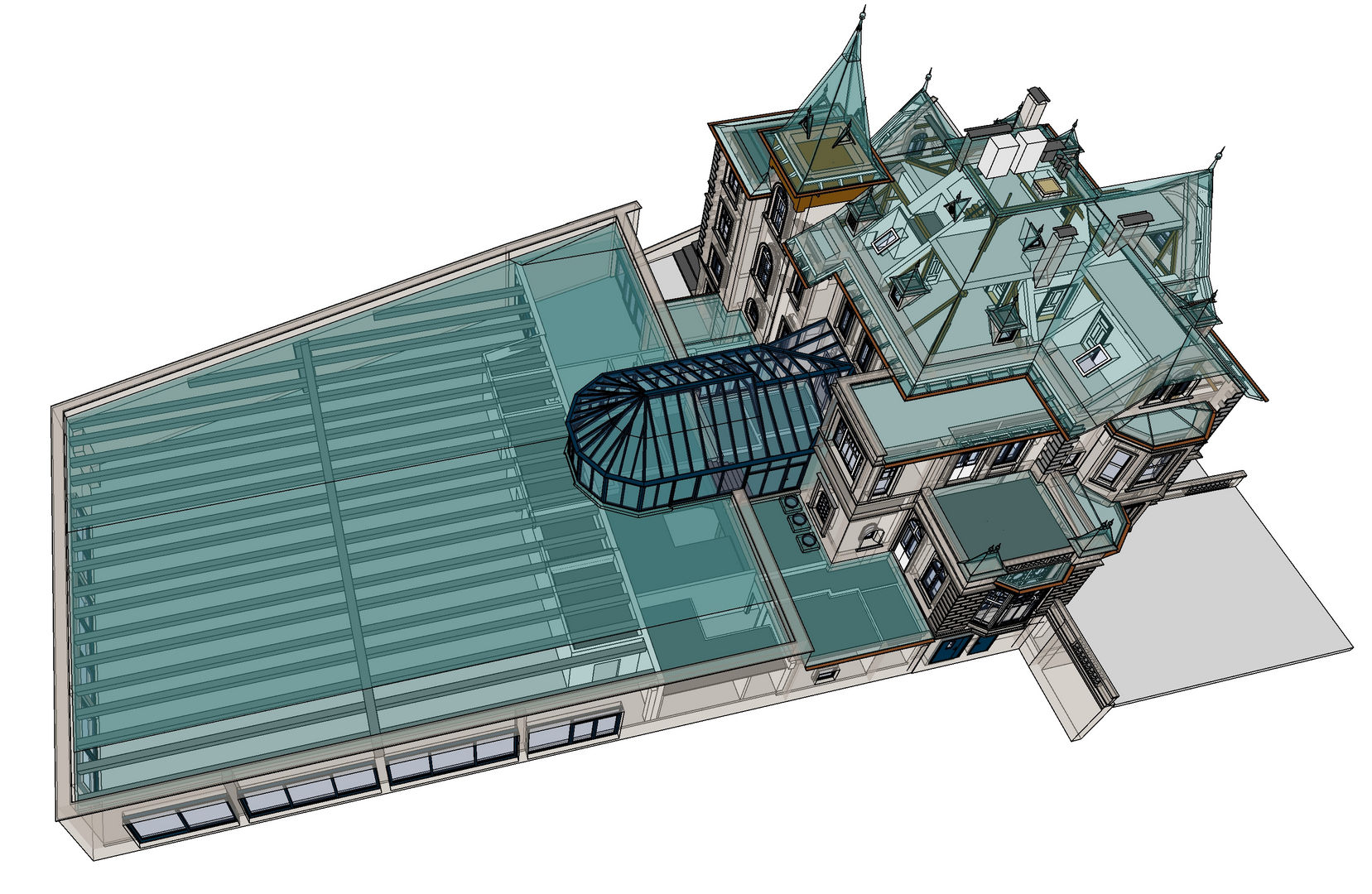

BIM Revit model of Villa Zgorzelec



This is one of a small number of projects created in BIM within the Polish Market. The building is a historic villa in need of major refurbishment. The client commissioned a comprehensive scan of the entire property along with a LOD3 BIM ready model delivered in Autodesk Revit. From the Revit model, 2D sheets were extracted as required. Although not a particularly large property, the architectural detail involved made it a challenge, however, the end result was very satisfying.
